Makita 9227C Sander & Polisher Parts

Makita 9227C Sander & Polisher Parts Image

Makita 9227C Parts
7 Inch 10 AMP, 600-3,000 RPM Polisher and Sander

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 9227C
7 Inch 10 AMP, 600-3...
$199.00
Tool Diagram    (Click image to Zoom in) View larger Image

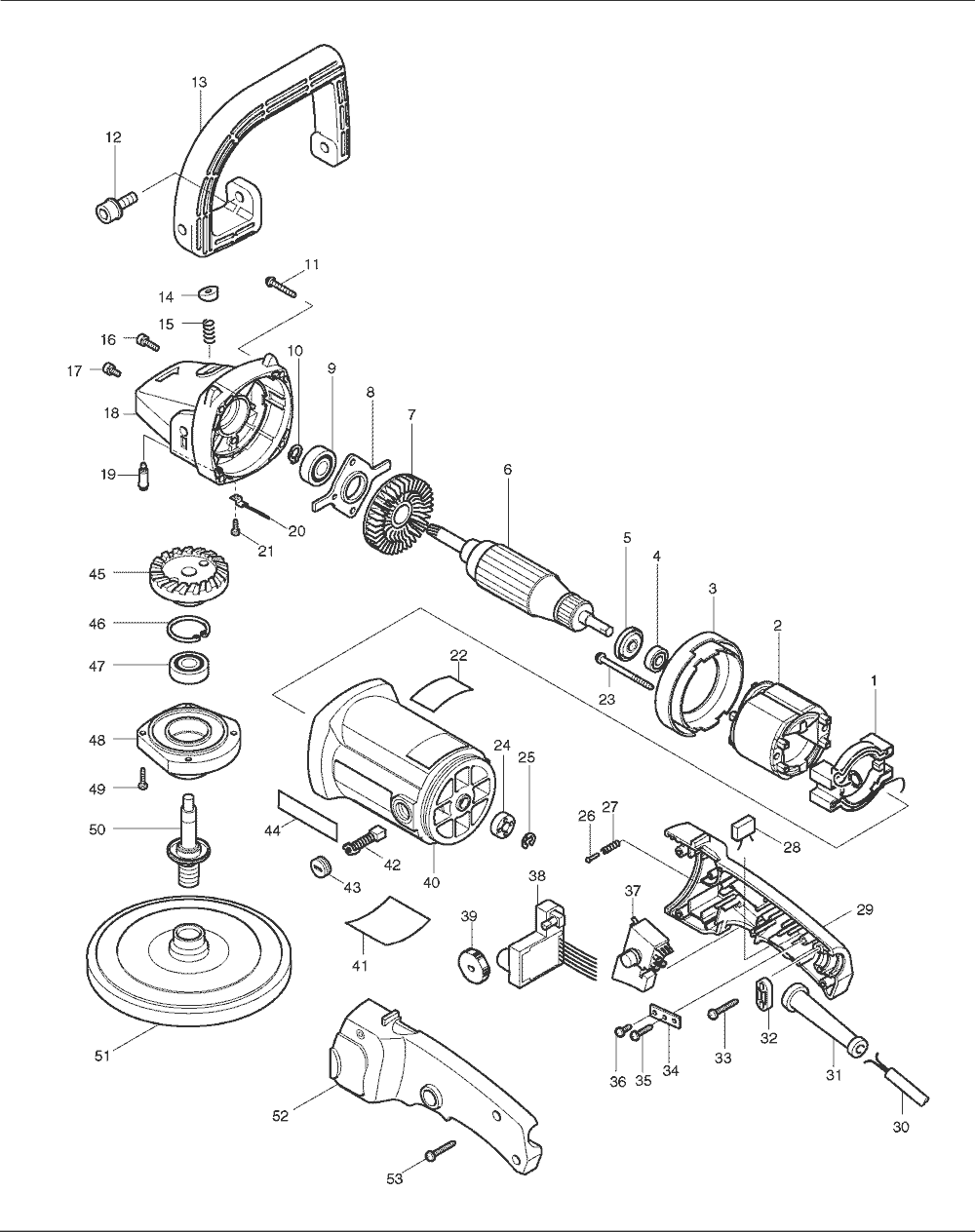

Makita 9227C Sander & Polisher Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 539186-8 SUPPORT ASS'Y, 9227C $3.61
1 632679-5 SUPPORT COMPLETE, 9227C $5.92
00 654622-4 SPLICE, 9227C $0.90
2 634291-7 FIELD 115V, 9227C $27.37
00 654025-2 RECEPTACLE, 9227C $0.49
3 416253-5 BAFFLE PLATE, 9227C $3.06
00 654114-3 TERMINAL 31886, 9227C $1.12
4 211031-6 BALL BEARING 608LLB, 9227C $10.98
5 681644-1 INSULATED WASHER, 9227C $1.63
6 516306-1 ARMATURE ASS'Y 115V, 9227C $91.90
7 240002-6 FAN 70, 9227C $3.06
8 285687-1 BEARING RETAINER 48, 9227C $3.06
9 211106-1 B. BEARING 6201LLB, 9227C $13.07
10 961052-5 RETAINING RING S-12, 9218PBL $0.86
11 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
12 266171-5 HEX. SOCKET HEAD BOLT M8X25,9227C $1.48
13 153489-2 GRIP 36, 9557NB $2.84
13 416256-9 LOOP HANDLE, 9227C $10.32
14 415491-6 PIN CAP, 9523NB $0.97
15 233072-2 COMPRESSION SPRING 8, 9523NB $0.86
16 911221-8 P.H. SCREW M5X16, JR3000V $0.86
17 911211-1 P.H. SCREW M5X12, HM1500B $0.86
18 159951-5 +GEAR HOUSING COMPLETE, 9227C $30.90
19 256446-0 PIN 6, 9015A $3.61
19 256504-2 SHOULDER PIN 9, 9227C $3.28
20 632783-0 LEAD UNIT, 9227C $1.63
21 652014-1 P.H. SCREW M4X8, 2708 $0.75
22 816330-7 INDICATION LABEL, 9227CY $0.96
23 266038-7 TAPPING SCREW 5X70, HP2030 $5.37
24 688110-9 MAGNET SLEEVE, 9227C $4.49
25 961012-7 STOP RING E-6, 2030S $0.53
26 255058-6 RIVET 2, 9227C $0.49
27 233002-3 COMPRESSION SPRING 3,9227C $1.48
29 182917-0 HANDLE SET, 9227C $16.04
30 664630-7 CORD 3X18X8 SJ, 9227C $19.01
30 EC183 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.70
31 682502-4 CORD GUARD 8-85, HP2010N $2.51
31 682503-2 CORD GUARD 8-90, 9005B $2.51
31 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
32 687063-9 STRAIN RELIEF, 4323K $1.26
33 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
34 654571-5 TERMINAL BLOCK, 9227C $3.06
35 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
36 652014-1 P.H. SCREW M4X8, 2708 $0.75
37 651282-3 SWITCH, 9227C $28.05
38 631226-9 CONTROLLER 100-130V, 9227C $66.90
38 631801-1 CONTROLLER, 9227C $37.02
39 271417-6 DIAL 28, 9227C $4.49
40 182918-8 MOTOR HOUSING SET, 9227C $25.17
41 858695-1 NAME PLATE, 9227CY $2.51
42 194996-6 CARBON BRUSH CB-303 SET, 9227C $8.99
43 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
44 819001-5 MAKITA LABEL, 9005B $0.96
45 227512-0 SPIRAL BEVEL GEAR 52, 9227C $29.37
46 962151-6 RETAINING RING R-32, 9005B $1.48
47 211106-1 B. BEARING 6201LLB, 9227C $13.07
48 316896-2 .HOUSING W/O BEARING, 9227C $13.18
49 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
50 152552-8 SPINDLE COMPLETE, 9227C $16.04
51 743052-5 PAD 165, 9227C $25.00
52 182917-0 HANDLE SET, 9227C $16.04
53 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
1001 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
1002 262542-4 SLEEVE 18, 9227C $4.40
1004 153489-2 GRIP 36, 9557NB $2.84
5008 782412-6 LOCK NUT WRENCH 28, GA7911 $8.40
5012 810134-9 CAUTION LABEL, 3709 $0.93
