Makita 9218PB Sander & Polisher Parts

Makita 9218PB Sander & Polisher Parts Image

Makita 9218PB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

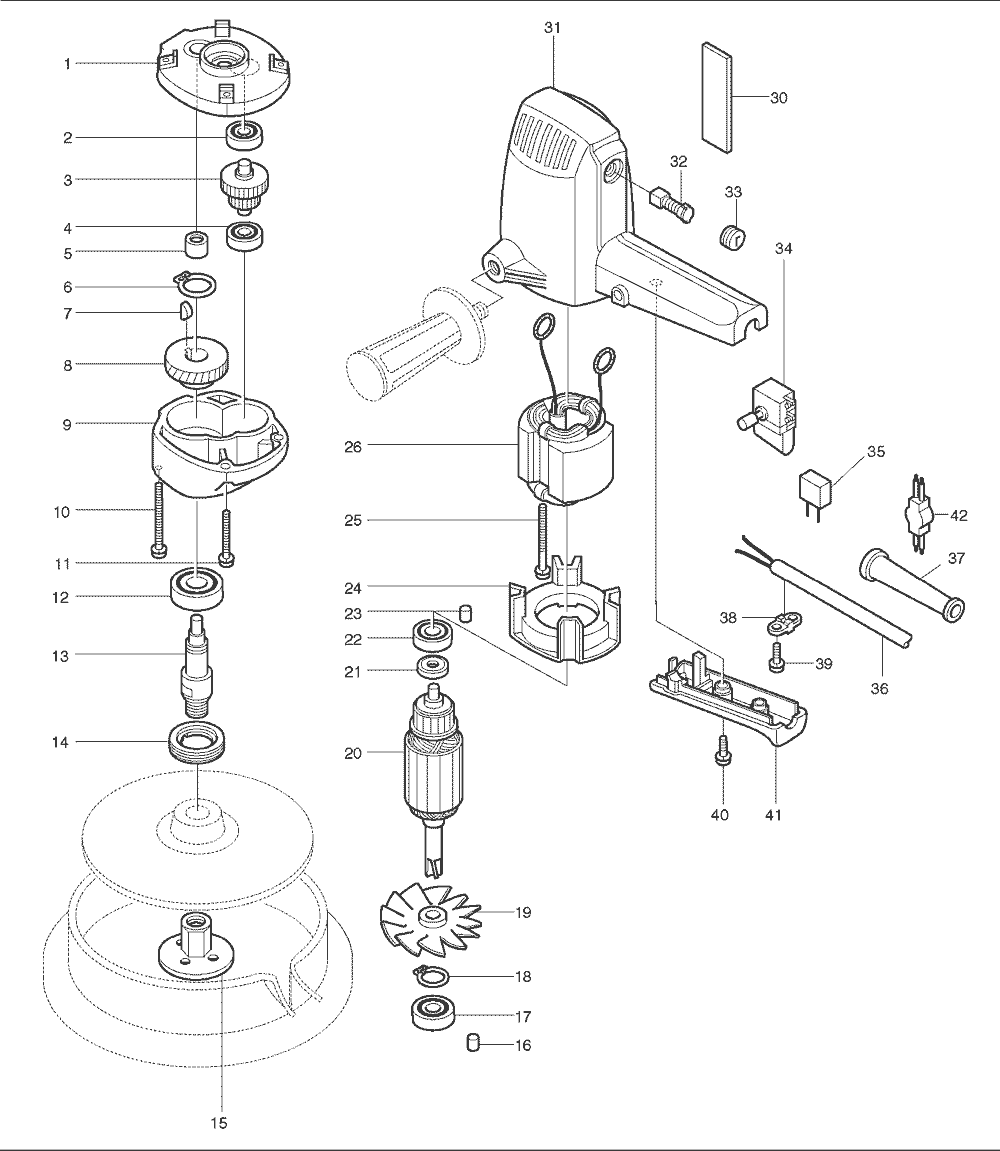

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	156994-8	GEAR HOUSING COVER, 9218PB	$24.29
2	211033-2	B. BEARING 608LB, 5091D	$8.78
3	226031-3	GEAR 19-45, 9218PB	$33.66
4	211033-2	B. BEARING 608LB, 5091D	$8.78
5	212052-1	N. BEARING 1010, HK1810	$7.46
6	961055-9	RETAINING RING S-15, 5007F	$1.19
7	254001-2	WOODRUFF KEY 4, HM1810	$1.26
8	221267-9	H. GEAR, 9218PB	$27.26
9	312671-4	GEAR HOUSING, 9218PB	$37.84
10	911186-4	P.H. SCREW M4X60, 9218PBL	$1.19
11	911166-0	P.H. SCREW M4X40, 9218PBL	$1.48
12	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
13	322050-8	SPINDLE, 9218PB	$24.62
14	285809-3	BEARING RETAINER 23-36, 5477NB	$3.06
16	263002-9	RUBBER PIN 4, 5007NK	$0.86
17	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
18	961052-5	RETAINING RING S-12, 9218PBL	$0.86
19	241046-9	FAN 68, 9218PB	$4.49
21	213002-9	DUST SEAL 8, 6013BR	$1.63
22	211033-2	B. BEARING 608LB, 5091D	$8.78
23	263002-9	RUBBER PIN 4, 5007NK	$0.86
24	411241-7	BAFFLE PLATE, 9218SB	$4.49
25	911681-4	P.H. SCREW M5X60, 9218PBL	$1.96
30	811829-7	NAME PLATE, 9218PB	$1.36
31	156105-5	MOTOR HOUSING, 9218PB(T1)	$40.08
31	159596-9	MOTOR HOUSING, 9218PBL	$45.59
32	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
33	643600-9	BRUSH CAP 6-10, 9005B	$1.63
34	651232-8	SWITCH, 9218SB	$10.43
36	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
36	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
37	682502-4	CORD GUARD 8-85, HP2010N	$2.51
37	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
38	687002-9	STRAIN RELIEF, 9217SPC	$0.97
39	911133-5	P.H. SCREW M4X18, N9501B	$0.86
40	911138-5	P.H. SCREW M4X20, 9218SB	$0.86
41	411239-4	HANDLE COVER, 9218PB(T1)	$4.71
41	414994-7	HANDLE COVER, 9218PBL	$7.46
43	819063-3	MAKITA LABEL, DA3010F	$0.96
403	781008-0	WRENCH 17, 9217SPC	$4.40
404	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
