Makita 9035D Sander & Polisher Parts

Makita 9035D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

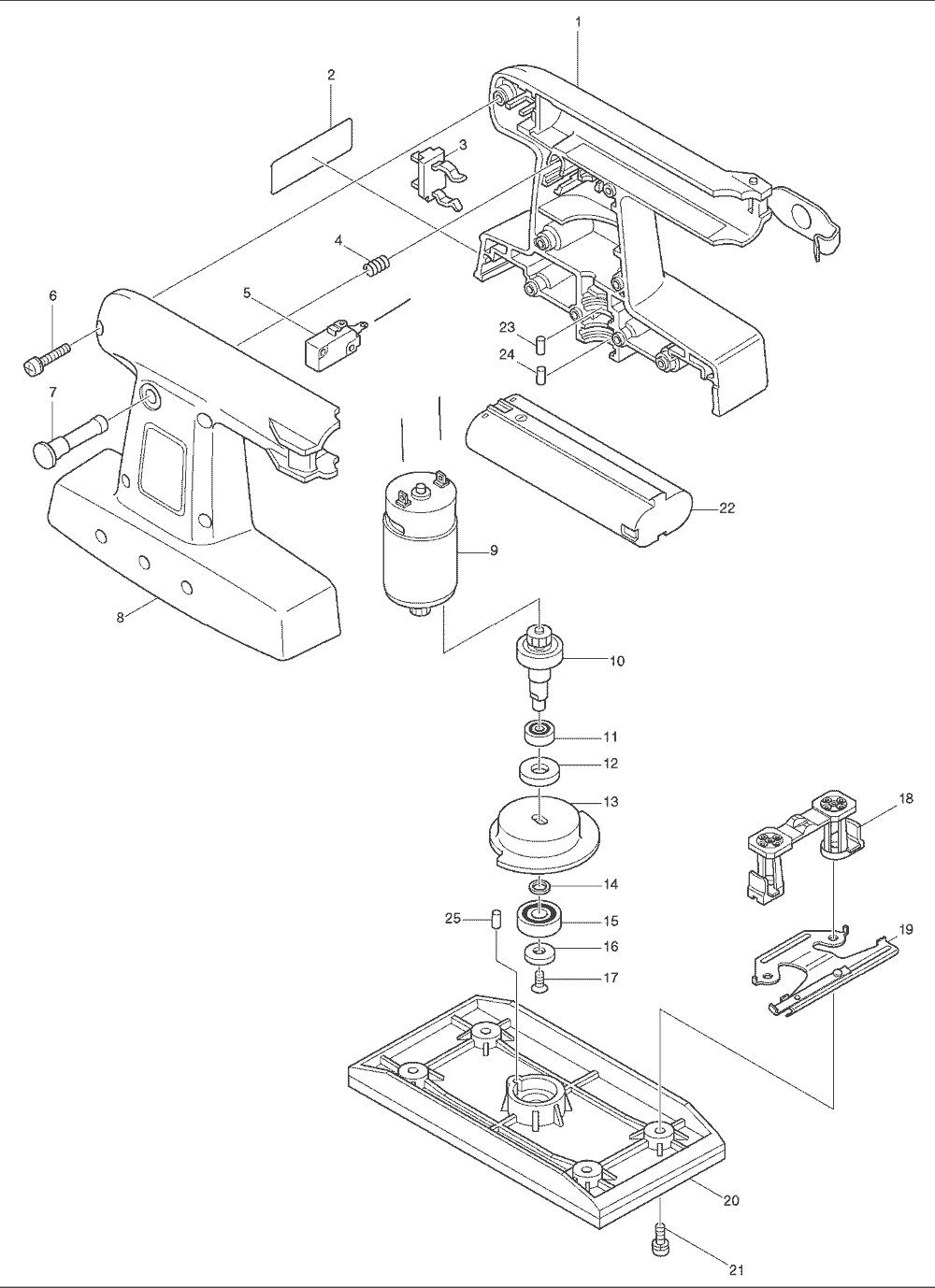

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	855249-5	NAME PLATE, 9035D	$1.12
3	643909-9	BATTERY HOLDER, DA392D	$4.49
4	231393-6	COMP. SPRING 6, 9035DW	$1.12
6	911143-2	P.H. SCREW M4X22, 6211D	$0.86
7	412071-9	PUSH ROD, 9035DW	$1.34
9	629546-3	MOTOR, 9035DW	$21.76
10	153158-5	SPINDLE, 9035DW	$14.94
11	211051-0	BALL BEARING 609LLB HR2400	$15.27
12	257112-2	RING 9, 9035DW	$2.62
13	342868-1	BALANCER, 9035DW	$3.61
14	253133-2	F. WASHER 7, DP4000	$1.34
15	211049-7	BALL BEARING 627LLH, 9035DW	$7.68
16	267007-1	F. WASHER 5, 9035DW	$1.63
17	912112-6	.C.S.H. SCREW M4X10, 3700B	$0.53
18	410918-1	FOOT,BO4510	$4.49
19	163107-4	CLAMPER, 9035	$5.92
20	155750-3	BASE, 9035DW	$8.12
21	911118-1	P.H. SCREW M4X12, 6221D	$0.86
23	263002-9	RUBBER PIN 4, 5007NK	$0.86
24	263002-9	RUBBER PIN 4, 5007NK	$0.86
25	263002-9	RUBBER PIN 4, 5007NK	$0.86
401	414938-7	BATTERY COVER, 6222DWE	$2.20
