Makita 8412D Cordless Drill Parts

Makita 8412D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

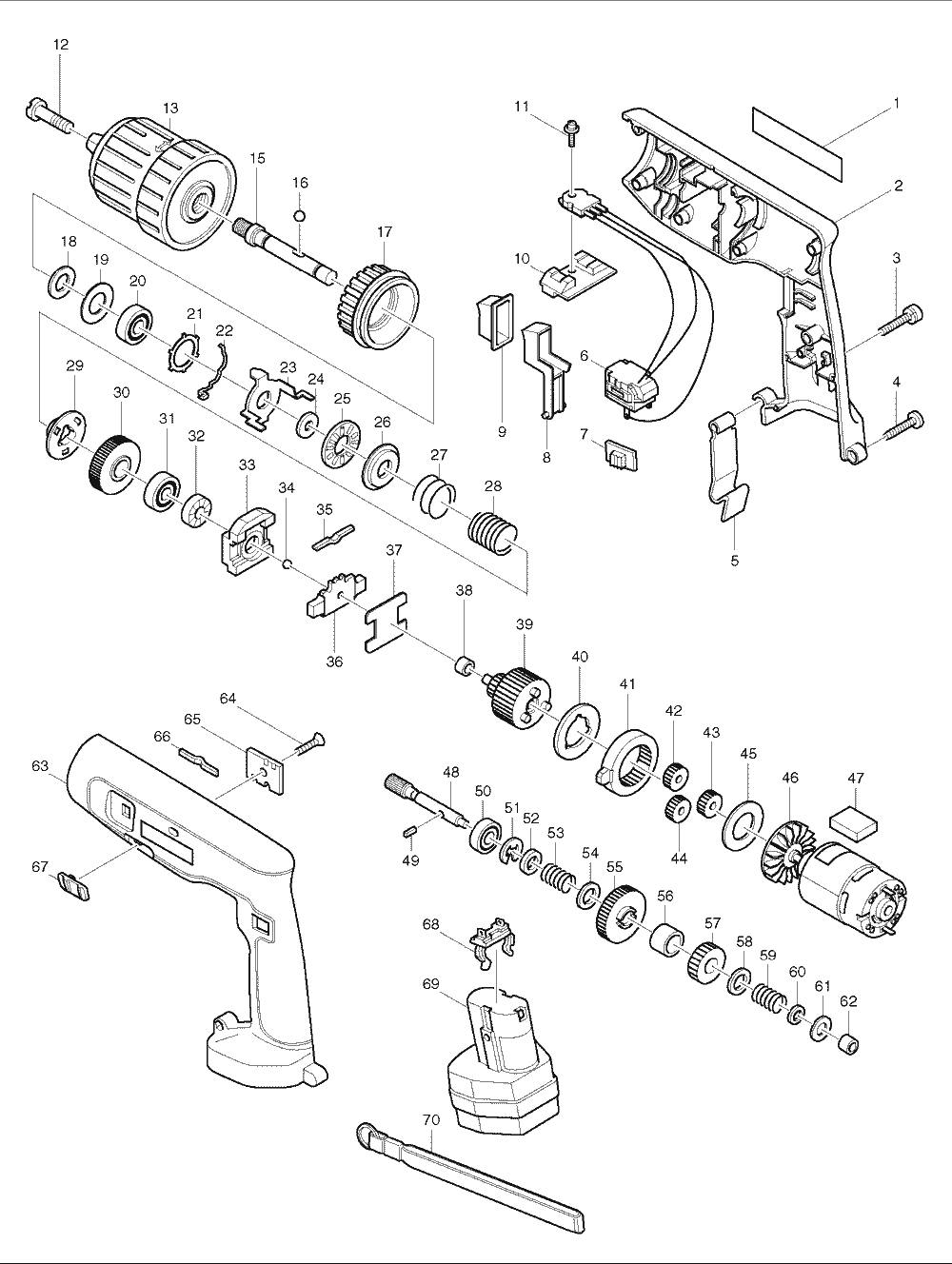

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	857341-3	NAME PLATE, 8412D	$1.12
2	182635-0	HOUSING SET, 8412DWG	$34.88
3	911143-2	P.H. SCREW M4X22, 6211D	$0.86
3	911138-5	P.H. SCREW M4X20, 9218SB	$0.86
4	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
5	343579-1	SET PLATE, 6211D	$3.06
6	192944-9	SWITCH,6202DWG	$72.30
7	414740-8	LEVER, 6222DWE	$3.06
8	415327-9	SWITCH LEVER, 8412DWG	$4.16
9	421481-9	DUST COVER, 8412DWG	$4.16
10	689027-9	RADIATING PLATE, 8412DWG	$11.97
11	911013-5	P.H. SCREW M3X10, LXFD01CW	$0.86
12	251464-3	FLAT SCREW M6X22, HP2031	$1.48
12	251469-3	F.H. SCREW 6X25, HP2032	$1.74
14	231959-2	RING SPRING 6, 8412DWG,T1	$1.34
15	322713-6	SPINDLE, 8412DWG	$39.06
16	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
17	415555-6	CHANGE RING, 8412DWG	$6.80
18	213115-6	DUST SEAL 12, 8412DWG	$0.97
19	267114-0	FLAT WASHER 17, 8412DWG	$2.18
20	211131-2	BALL BEARING 6001DDW,BO4556	$13.07
21	259027-9	SELF LOCK, 8412DWG	$2.84
22	344140-7	CAM PLATE, 8412DWG	$2.84
23	344059-0	SLIDER, 8412DWG	$5.48
24	267113-2	FLAT WASHER 12, GA4030	$1.63
25	216402-2	T.N. GAUGE 1224, 6702D	$9.33
26	267711-2	WASHER 12, 8412DWG	$4.16
27	233090-0	COMPRESSION SPRING 29, 8412DWG	$5.37
28	233056-0	COMPRESSION SPRING 23, 8412DWG	$3.61
29	223096-6	CLUTCH CAM, 8412DWG	$21.76
30	226262-4	SPUR GEAR 55, 8412DWG	$34.47
31	211101-1	BALL BEARING 6001LLB,9218PB	$13.07
32	223085-1	CAM B, 8401	$16.04
33	153226-4	CAM HOLDER COMPLETE, 8412DWG	$29.37
34	216007-8	STEEL BALL 6.4, 6905B	$0.86
35	232053-3	LEAF SPRING, HP2030	$0.86
36	152450-6	SHIFTER PLATE COMPLETE, 8412DWG	$6.80
37	344061-3	PLATE, 8412DWG	$1.52
38	214019-5	P. BEARING 4, 6043D	$1.26
39	153213-3	GEAR COMPLETE, 6201DW	$39.27
40	267098-2	FLAT WASHER 16, 6201DW	$2.18
41	226248-8	INTERNAL GEAR 48, 6201DW	$13.73
42	226245-4	SPUR GEAR 15, 6201DW	$3.17
43	226245-4	SPUR GEAR 15, 6201DW	$3.17
44	226245-4	SPUR GEAR 15, 6201DW	$3.17
45	253794-8	F. WASHER 18, 6905B	$1.63
46	629667-1	DC MOTOR 12V, 8412DWG	$110.10
47	413065-7	SPONGE 20-26, 8412DWH	$1.41
48	226263-2	SPUR GEAR 9, 8412DWG	$30.60
49	254236-5	KEY 3, 6201DW	$1.26
50	211031-6	BALL BEARING 608LLB, 9227C	$10.98
51	961013-5	STOP RING E-7, JN3200	$0.53
52	253777-8	F. WASHER 8, 8412DWG	$1.63
53	233104-5	COMPRESSION SPRING 8,8412DWG	$1.63
54	253339-2	THIN WASHER, 6201DW	$1.34
55	226247-0	SPUR GEAR 40, 6201DW	$13.73
56	257178-2	RING 12, 6201DW	$3.06
57	226261-6	SPUR GEAR 25, 6201DW	$15.27
58	253339-2	THIN WASHER, 6201DW	$1.34
59	231025-5	COMP. SPRING 8, UC3530A	$0.86
60	267099-0	FLAT WASHER 4, 6201D	$1.63
61	267111-6	FLAT WASHER,8411DW	$1.63
62	211044-7	BALL BEARING 404, 6922NB	$17.47
63	182635-0	HOUSING SET, 8412DWG	$34.88
64	265007-5	C.S.H. SCREW M4X12, 6201DW	$1.19
65	343987-6	STOPPER, 6201DW	$4.49
66	232053-3	LEAF SPRING, HP2030	$0.86
67	415014-0	LEVER, 6201DW	$3.06
68	643918-8	BATTERY HOLDER, 6391DWPLE	$8.01
1002	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	784202-3	#2 PHILLIPS BIT 2-45, 6095D	$3.40
