Makita 6940D Impact Wrench & Driver Parts

Makita 6940D Impact Wrench & Driver Parts Image

Makita 6940D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

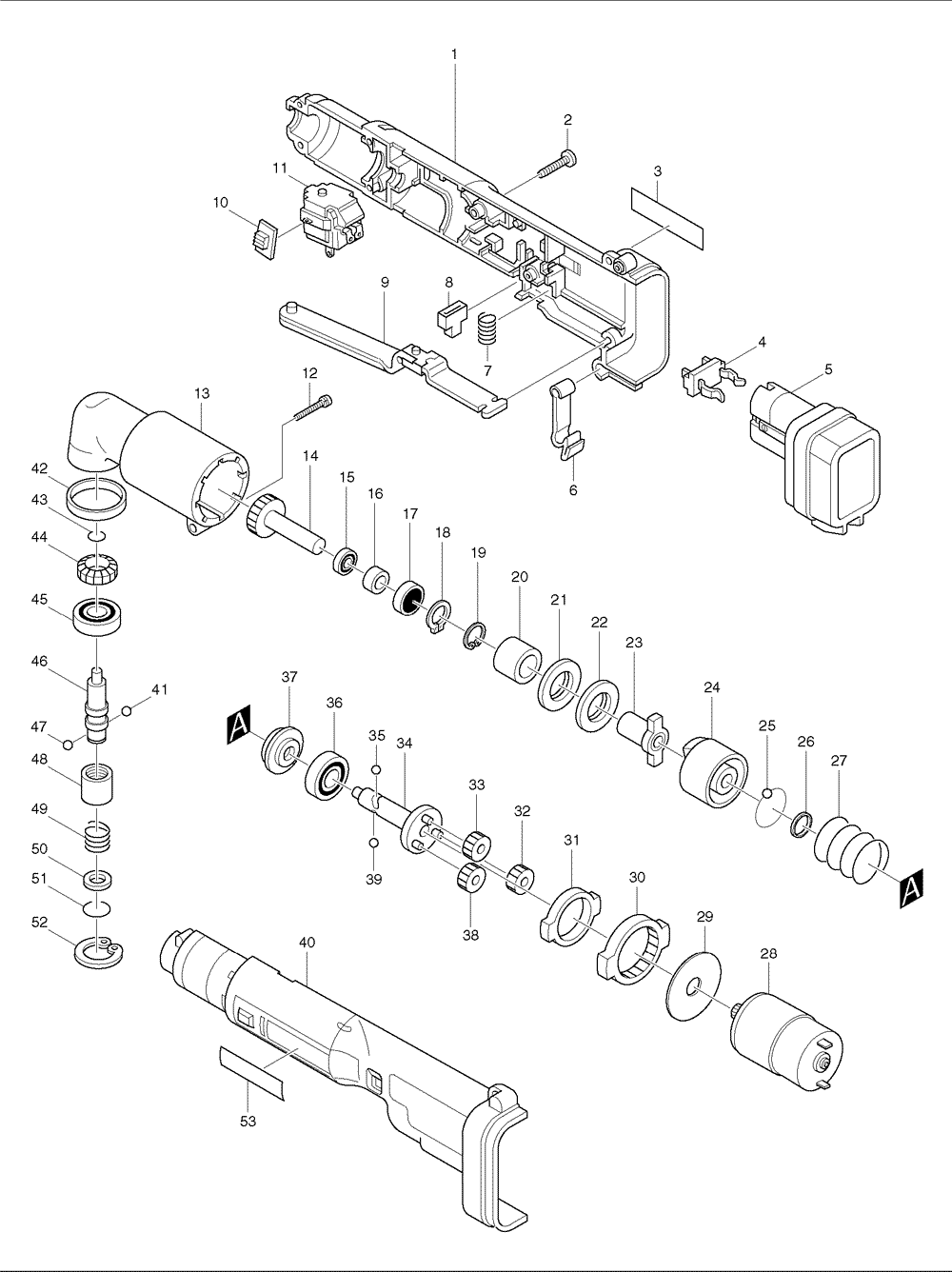

Makita 6940D Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 188189-5 HOUSING SET, 6940D $14.94
2 265925-7 TAPPING SCREW BT4X20, 6201DW $0.53
3 857527-9 NAME PLATE, 6940D $1.21
4 643918-8 BATTERY HOLDER, 6391DWPLE $8.01
6 344121-1 SET PLATE, 6221DW $3.06
7 231470-4 COMP. SPRING, 6940D $0.86
8 415500-1 SWITCH LEVER, 6940D T1 $2.51
8 417160-5 SWITCH LEVER, 6940D $1.52
9 152615-0 LEVER CPL.6940D $8.01
10 414740-8 LEVER, 6222DWE $3.06
11 650500-6 SWITCH, 6903VDWE $40.18
11 651909-5 SWITCH, 6903VD $38.25
12 265409-5 HEX BOLT M5X30, 6940D $2.40
13 152461-1 ANGLE HEAD CPL., 6940D $40.29
14 226720-0 ZEROL BEVEL GEAR 13, 6940D $34.47
15 211064-1 B. BEARING 6000, 2414B $10.98
16 257660-1 SLEEVE 10, 6940D $1.63
17 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
18 961006-2 RETAINING RING S-10, N9501B $0.86
19 962105-3 RETAINING RING R-26, GA4530 $1.48
20 257662-7 SLEEVE 15, 6940D $8.01
21 261095-0 RUBBER WASHER 21, 6940D $3.72
22 267120-5 FLAT WASHER 15, 6940D $5.92
23 322689-7 ANVIL, 6940DWA $42.94
24 322688-9 HAMMER, 6940D $31.72
25 216001-0 STEEL BALL 3.5, 6800DBV $0.53
26 267121-3 FLAT WASHER 20, 6940D $2.18
27 233107-9 COMPRESSION SPRING 22, 6940D $4.16
28 629683-3 DC MOTOR 9.6V, 6940D $47.83
29 267053-4 F. WASHER 12, T220DW $1.63
30 226280-2 INTERNAL GEAR 69, 6940D $19.78
31 257187-1 RING 32, 6940D $4.16
32 226279-7 SPUR GEAR 29, 6940D $4.71
33 226279-7 SPUR GEAR 29, 6940D $4.71
34 154416-2 SPINDLE CPL., 6940D $26.92
35 216002-8 STEEL BALL 4.8, NHP1310 $0.53
36 211064-1 B. BEARING 6000, 2414B $10.98
37 322719-4 WASHER 10, 6940D $8.12
38 226279-7 SPUR GEAR 29, 6940D $4.71
39 216002-8 STEEL BALL 4.8, NHP1310 $0.53
40 188189-5 HOUSING SET, 6940D $14.94
41 216001-0 STEEL BALL 3.5, 6800DBV $0.53
42 262062-8 RUBBER RING 31, 6940D $1.48
43 231990-8 RING SPRING 9, 6940DW $0.86
44 226721-8 Z. BEVEL GEAR 13, 6940D $19.78
45 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
46 323922-0 SPINDLE, 6940DW $25.06
47 216001-0 STEEL BALL 3.5, 6800DBV $0.53
48 322718-6 SLEEVE, 6940D $7.46
49 233005-7 COMP.SPRING 13,6903VDW $1.48
50 267085-1 FLAT WASHER 12, 6903VDW $1.63
51 231951-8 RING SPRING 11, 6903VDW $1.48
52 962116-8 RETAINING RING R-28, 6940D $1.96
53 819063-3 MAKITA LABEL, DA3010F $0.96
1001 414938-7 BATTERY COVER, 6222DWE $2.20
1002 784202-3 #2 PHILLIPS BIT 2-45, 6095D $3.40
