Makita 6918FD Impact Wrench & Driver Parts

Makita 6918FD Impact Wrench & Driver Parts Image

Makita 6918FD Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

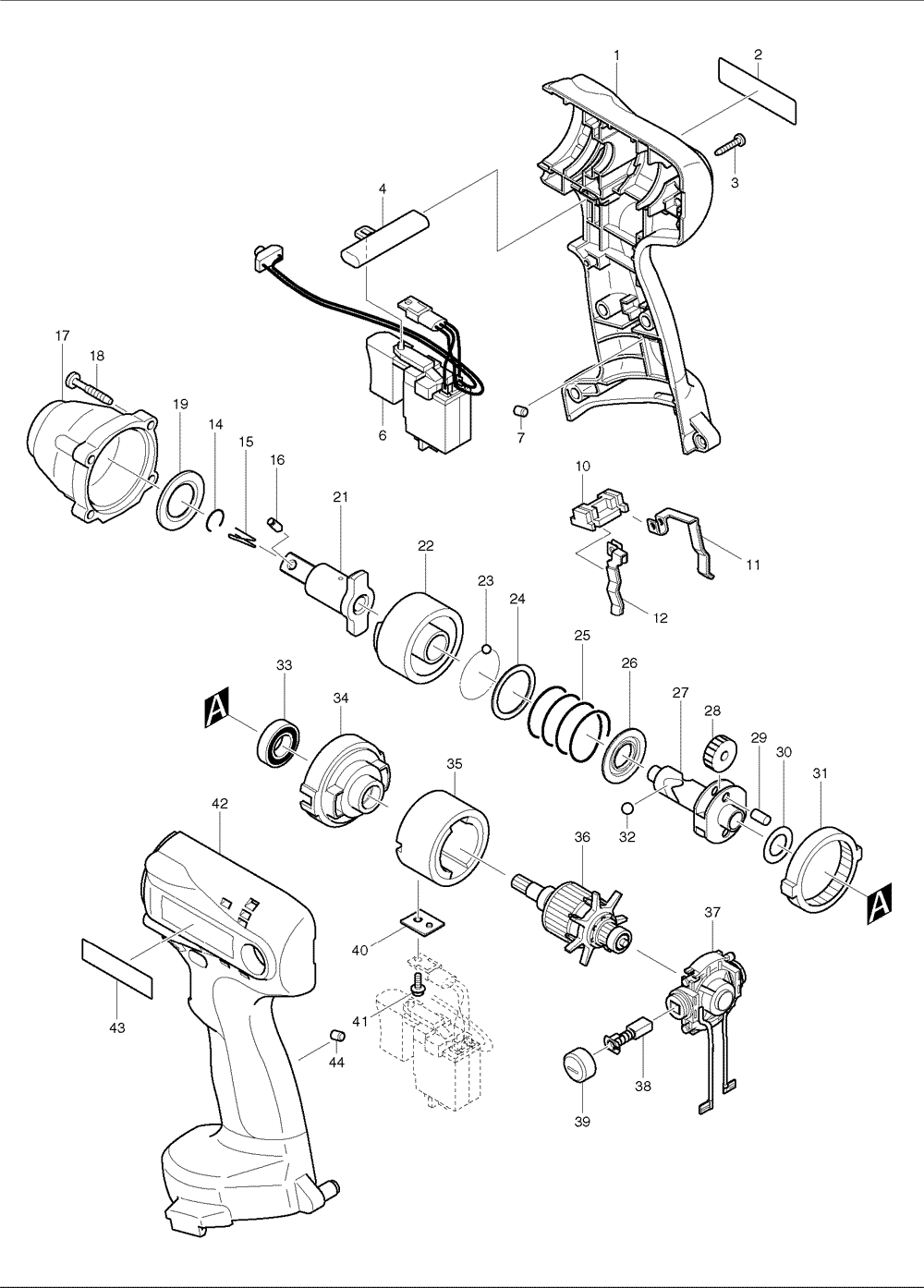

Makita 6918FD Impact Wrench & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 183694-7 HOUSING SET, 6916FD $13.84
2 850906-0 NAME PLATE, 6918FD $2.74
3 266130-9 TAPPING SCREW PT3X16, 6233DWA $0.86
4 416079-5 F/R CHANGE LEVER, 6933FD $1.63
6 638288-8 SWITCH UNIT, 6932FD $56.40
7 263024-9 RUBBER PIN 4, 6918DWD $1.48
10 687085-9 HOLDER, 6233DWA $1.63
11 654168-0 SPRING TERMINAL (+), 6933FD $4.49
12 654169-8 SPRING TERMINAL (-), 6233DWA $4.71
15 322045-1 CLIP, 6905B $3.61
16 323675-1 "RETAINING PIN FOR 1/2"" IMPACT WRENCH, 6905B" $3.06
17 153873-1 HAMMER CASE CPL., 6934FD $14.61
19 261116-8 NYLON WASHER 18, 6918DWD $2.18
21 323893-1 ANVIL, BTW120SA $40.29
22 323997-9 HAMMER, 6918DWD $19.78
23 216001-0 STEEL BALL 3.5, 6800DBV $0.53
24 267175-0 FLAT WASHER 24, 6914DWA $1.63
25 233274-0 COMPRESSION SPRING 25, 6918DWD $4.93
26 267766-7 CUP WASHER 14, BTW121SA $1.63
27 324220-5 SPINDLE, BTW121SA $21.10
28 226336-1 SPUR GEAR 22, 6908DWA $6.25
29 256253-1 PIN 5, 6908DWA $1.19
30 267212-0 FLAT WASHER 12, 6918DWD $1.34
31 227001-5 INTERNAL GEAR 51, 6918DWD $4.27
32 216011-7 STEEL BALL 5.6, 6222DWE $0.86
33 211140-1 BALL BEARING 6901LLB, 6918DWD $9.99
33 211150-8 BALL BEARING 6901ZZ, 6916FD $8.01
34 417269-3 INTERNAL GEAR CASE, 6933FD $2.95
35 632965-4 YOKE UNIT, 6918DWD $36.72
36 619057-6 ARMATURE, 6918DWD $51.40
37 638156-5 ENDBELL CPL.,6932FD $5.48
38 195020-8 CARBON BRUSH CB-434 SET, BTW121SA $5.92
39 643982-9 BRUSH HOLDER CAP, BTW150SA $1.52
39 643933-2 HOLDER CAP, 6908DWA $1.63
40 689096-0 FET SPACER, 6918DWD $1.52
41 266170-7 TAPPING SCREW ST3X8, 6918DWD $0.53
42 183694-7 HOUSING SET, 6916FD $13.84
43 819063-3 MAKITA LABEL, DA3010F $0.96
44 263024-9 RUBBER PIN 4, 6918DWD $1.48
1002 192598-2 BATTERY 1222, 12VDC 2.0AH,6213DWAE $96.20
1002 193157-5 BATTERY 1234 12V NIMH,6217DWDE $126.20
1003 414938-7 BATTERY COVER, 6222DWE $2.20
1004 824635-1 PLASTIC TOOL CASE,6227D,6991DWDE $40.20
1004 183763-4 PLASTIC TOOL CASE, 6217DWDE $40.20
