Makita 6844 Cordless Screwdriver Parts

Makita 6844 Cordless Screwdriver Parts Image

Makita 6844 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6844
Autofeed Screwdriver...
$262.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

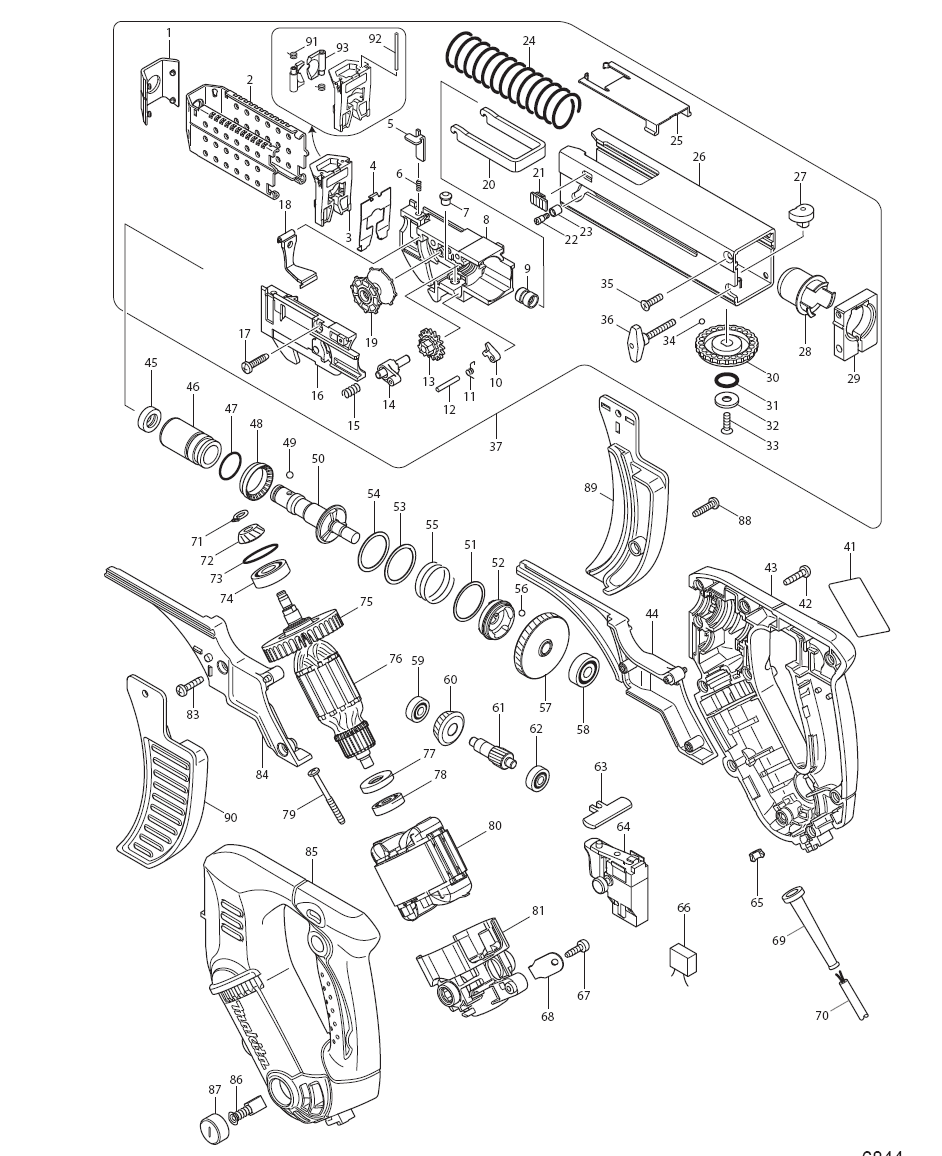

Makita 6844 Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 424043-2 CAP, BFR750Z $2.73
2 345841-0 STOPPER BASE 75, BFR750Z $14.94
003-1 158776-4 GUIDE BOX COMPLETE, BFR750Z $11.42
4 345840-2 GUARD, BFR750Z $2.73
5 345837-1 LEVER, BFR750Z $1.48
6 233211-4 COMP. SPRING 2, 6834 $0.86
7 256451-7 PIN 6, 6834 $1.96
8 450107-6 FEEDER BOX, BFR750Z $3.94
9 257685-5 SLEEVE 5, 6834 $4.49
10 310062-3 STOPPER, 6834 $5.92
11 231636-6 TORSION SPRING 4, 6834 $1.63
12 256158-5 PIN 3, BJR181 $1.19
13 226344-2 SPUR GEAR 16, 6834 $3.17
14 158374-4 RATCHET ARM COMPLETE, BFR750Z $16.04
15 233212-2 COMP. SPRING 6, 6834 $0.86
16 158378-6 BOX COVER COML. , BFR750Z $7.02
17 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
18 162201-9 DUST COVER, 6834 $4.49
19 416518-5 WHEEL, 6834 $4.49
20 345838-9 PLATE, BFR750Z $3.94
21 450111-5 STOPPER, BFR750Z $2.73
22 265177-0 S.F.H. SCREW M3X5, BFR750Z $2.84
23 257764-9 SLEEVE 4, BFR750Z $2.73
24 234032-7 COMPRESSION SPRING 23, BFR750Z $3.61
25 450114-9 CASING COVER, BFR750Z $1.48
26 158379-4 CASING 75 CPL., 6844 $33.86
C10 816886-0 INDICATION LABEL, BFR750Z $1.41
27 310237-4 SHIFTER PIN, BFR750Z $5.15
28 450110-7 INSULATION SLEEVE, BFR750Z $2.73
29 318181-9 CLAMPER, BFR750Z $7.68
30 417056-0 DIAL 42, 6835DWA $2.84
31 213107-5 O RING 12, JR3000V $0.86
32 267201-5 FLAT WASHER 6, 6835DWA $2.18
33 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
34 216001-0 STEEL BALL 3.5, 6800DBV $0.53
35 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
036-1 265779-2 THUMB SCREW M4X28, 6834 $2.84
037-2 194637-4 CASING 75 SET, 6844 $112.14
41 863777-6 NAME PLATE, 6844 $1.08
42 266045-0 TAPPING SCREW 4X20, 9046 $1.19
43 188305-9 HOUSING SET, 6844 $30.70
44 188304-1 SCREW GUIDE SET, 6844 $9.22
45 421467-3 DUST COVER, 6830 $1.63
46 214172-7 PLANE BEARING 14, BFR750Z $5.15
47 213262-3 O RING 18, 5005BA $1.96
48 421927-5 SLEEVE 20, BFS450Z $1.19
49 216001-0 STEEL BALL 3.5, 6800DBV $0.53
50 324807-3 SPINDLE A, BFR750Z $22.64
51 267332-0 FLAT WASHER 26, BFS450Z $1.63
52 223169-5 CLUTCH CAM C, BFS450Z $16.04
53 267331-2 FLAT WASHER 25, BFS450Z $1.63
54 267331-2 FLAT WASHER 25, BFS450Z $1.63
55 234017-3 COMPRESSION SPRINGS 25, BFS450Z $4.16
56 216008-6 STEEL BALL 4.0, 5007NK $0.53
57 226657-1 HELICAL GEAR 60, 6844 $23.96
058-1 211034-0 BALL BEARING 608, 2106 $13.07
059-1 211014-6 B. BEARING 606, 6826 $13.07
60 227528-5 SPIRAL BEVEL GEAR 22, 6844 $14.94
61 226667-8 HELICAL GEAR 9, 6844 $8.12
062-1 211014-6 B. BEARING 606, 6826 $13.07
63 419304-3 F/R CHANGE LEVER, BFS450Z $2.73
64 650590-9 SWITCH SGEL206CR-1, 6844 $13.84
65 252045-6 SQUARE NUT M5, BO5021K $1.96
67 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
68 687169-3 STRAIN RELIEF, HP1621F $0.97
69 682559-5 CORD GUARD 8, 6824 $2.51
69 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
70 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
70 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
71 961002-0 RETAINING RING S-6, 6012HDW $0.53
72 227527-7 SPIRAL BEVEL GEAR 15, 6844 $14.94
73 213380-7 O RING 24, 6805BV $1.96
74 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
75 241869-5 FAN 55, 5621DWA $4.16
76 515711-9 ARMATURE ASS'Y, 6844 $42.22
77 681652-2 INSULATION WASHER, BO4556 $1.34
78 211021-9 BALL BEARING 607LLB, LS1013 $8.78
79 266069-6 T. SCREW FLANGE PT4X45 HR2410 $1.74
80 633651-0 FIELD, 6844 $17.25
81 158380-9 ENDBELL CPL., 6844 $11.53
83 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
84 188304-1 SCREW GUIDE SET, 6844 $9.22
85 188305-9 HOUSING SET, 6844 $30.70
86 191938-1 CARBON BRUSH 408 SET, 3901 $8.99
86 K25 This item will be shipped Free Carbon Brush Set $8.50
87 643928-5 HOLDER CAP, 9523NB $1.63
088-1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
089-1 188310-6 GUIDE ATTACHMENT SET, BFR750Z $6.47
090-1 188310-6 GUIDE ATTACHMENT SET, BFR750Z $6.47
91 233516-2 TORSION SPRING 4, BFR750Z $1.34
92 268188-4 PIN 2, BFR750Z $1.52
093-1 310282-9 GUIDE, BFR750Z $3.94
A01 265734-4 SCREW M5X13, 6812 $3.28
A02 345831-3 HOOK, 6844 $2.51
A03-2 B-10475 +BIT 2-182L (5PK) BFR750Z $14.20
C10 163455-1 LATCH, 5007NK $2.84
C20 419360-3 HANDLE (TOOL CASE), 5007NK $2.84
D01A 652008-6 P.H. SCREW M3.5X7, PV7001C $0.49
D02 654037-5 INSULATED TERMINAL, RP0900K $0.75
D03 654100-4 GARTER SPRING, N9501B $0.97
D04 654501-6 CONNECTOR P-1.25, 9503BH $0.75
