Makita 6827 Electric Screwdriver Parts

Makita 6827 Electric Screwdriver Parts Image

Makita 6827 Parts
Screwdriver with 6 Stage Torque

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6827
Screwdriver with 6 S...
$174.99
Tool Diagram    (Click image to Zoom in) View larger Image

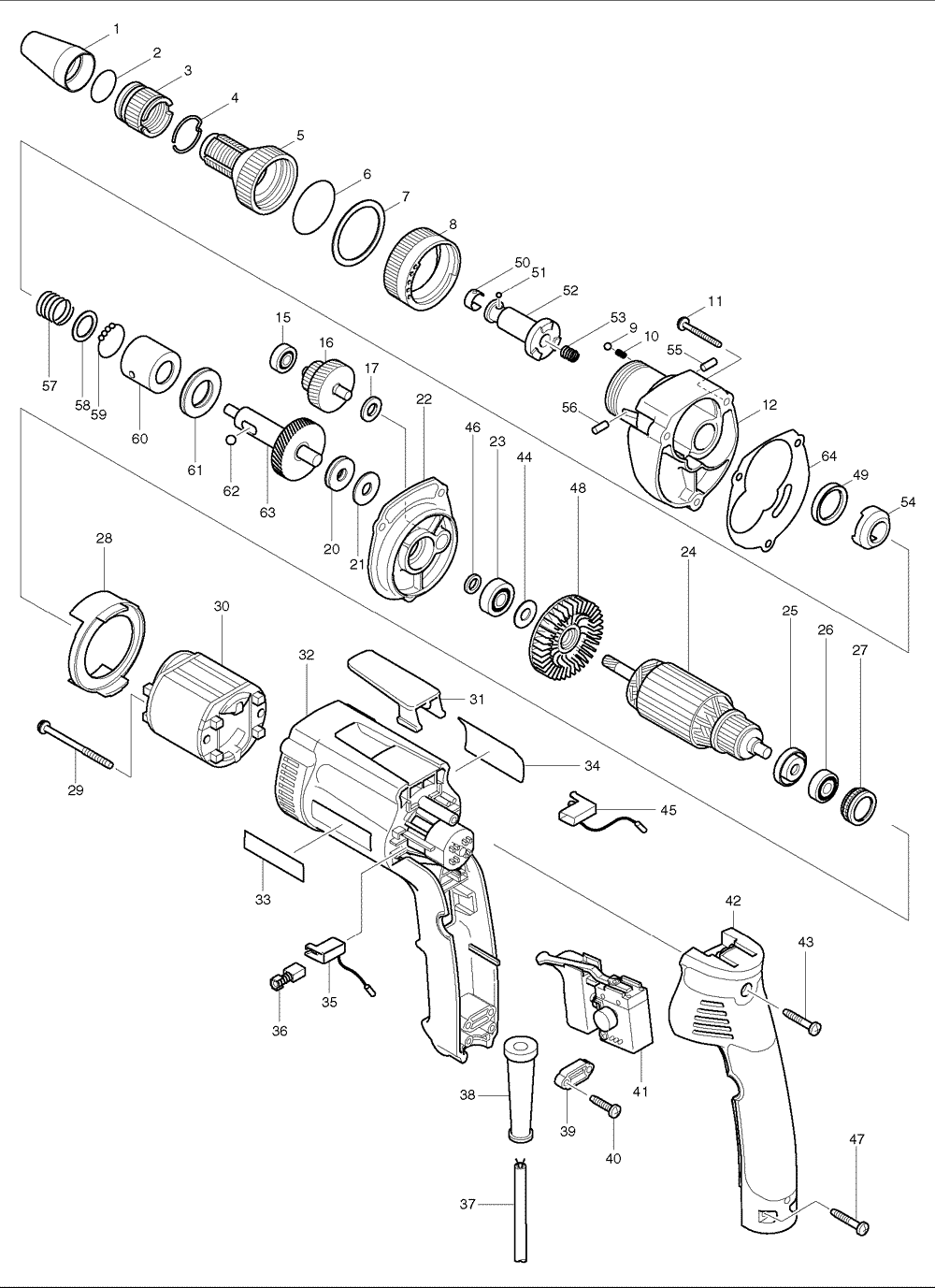

Makita 6827 Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 322120-3 FRONT CAP, 6805BV $16.60
22 152913-2 GEAR HOUSING COVER CPL., 6827 $26.16
2 213310-8 O RING 20, 6805BV $1.19
3 322073-6 ADJUST SLEEVE, 6805BV $13.18
4 231940-3 RING SPRING 22, 6805BV $2.07
5 324140-3 CLUTCH COVER, 6827 $22.42
6 213343-3 SPO RING 35, FS2701 $0.66
6 213486-1 O RING 35, AG125 $1.41
7 253806-7 F. WASHER 36, 6805BV $2.18
8 152841-1 RING 36 CPL., 6827 $26.38
9 216008-6 STEEL BALL 4.0, 5007NK $0.53
10 233314-4 COMPRESSION SPRING 4, 5007NK $1.63
11 266050-7 P.T. SCREW 4X30, 4304 $1.19
12 317440-8 GEAR HOUSING, 6827 $24.84
15 211014-6 B. BEARING 606, 6826 $13.07
15 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
16 226133-5 GEAR CPL.17-35, 6823/23TP $22.75
17 267017-8 F. WASHER, JS8000 $2.18
20 212042-4 T. N. BEARING 821, 6830 $9.33
21 261111-8 URETHANE WASHER 8, 6827 $1.63
22 152913-2 GEAR HOUSING COVER CPL., 6827 $26.16
23 210007-0 BALL BEARING 608VV, 6825 $13.07
24 517321-8 ARMATURE ASS'Y , 6824,JS8000 $62.10
25 681636-0 INSULATION WASHER, GA4030 $3.72
26 211021-9 BALL BEARING 607LLB, LS1013 $8.78
27 421479-6 RUBBER RING 19, JN1601 $4.49
28 416993-5 BAFFLE PLATE, 6823 $1.63
29 266147-2 TAPPING SCREW 4X55, 6824 $1.96
30 633441-1 FIELD, JS8000 $12.63
31 417625-7 HOOK, 6827 $2.84
32 183285-4 MOTOR HOUSING SET, 6827 $16.04
32 450718-7 MOTOR HOUSING, 6827 $16.04
33 819063-3 MAKITA LABEL, DA3010F $0.96
34 860147-0 NAME PLATE, 6827 $1.21
35 643952-8 BRUSH HOLDER, 6823/6823TP $3.06
36 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
37 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
37 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
38 682559-5 CORD GUARD 8, 6824 $2.51
38 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
39 687063-9 STRAIN RELIEF, 4323K $1.26
40 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
41 651978-6 SWITCH, 6823N $33.25
42 151961-8 HANDLE COVER COMPLETE, 6825 $17.25
42 158710-4 HANDLE COVER CPL., JS8000 $17.25
44 253139-0 F. WASHER 8, 6510LVR $1.34
45 643953-6 BRUSH HOLDER, 6823N,6826N $3.06
46 262087-2 RING 8, HP2050F $5.37
48 240022-0 FAN 52, JS1300 $2.84
49 421766-3 RING 20, 6827 $0.97
50 232050-9 LEAF SPRING, 6820V $1.48
51 216001-0 STEEL BALL 3.5, 6800DBV $0.53
52 134461-3 SPINDLE ASSY, 6805BV $24.62
53 231278-6 COMP. SPRING 6, 6805BV $1.63
54 223073-8 CLUTCH CAM, 6805BV $11.75
55 256226-4 PIN 4, 6922NB $1.19
55 268075-7 PIN 4, 6827 $0.86
56 256226-4 PIN 4, 6922NB $1.19
56 268075-7 PIN 4, 6827 $0.86
57 231423-3 COMP. SPRING 13.6, 6805BV $4.16
58 253837-6 F. WASHER 14, 2030S $1.63
59 216014-1 STEEL BALL 3.2, 6805BV $0.53
60 324209-3 SLEEVE, 6827 $7.02
61 212262-0 THRUST NEEDLE BEARING 1831, 6827 $11.53
62 216011-7 STEEL BALL 5.6, 6222DWE $0.86
63 152840-3 GEAR COMPLETE, 6827 $31.92
64 442136-3 GASKET , 6827 $2.84
65 256157-7 PIN 3, 6222DWE $0.86
5001 810134-9 CAUTION LABEL, 3709 $0.93
