Makita 6824N Electric Screwdriver Parts

Makita 6824N Electric Screwdriver Parts Image

Makita 6824N Parts
Variable speed, 0-4,500 rpm Drywall Screwdriver

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6824N
Variable speed, 0-4,...
$94.99
Tool Diagram    (Click image to Zoom in) View larger Image

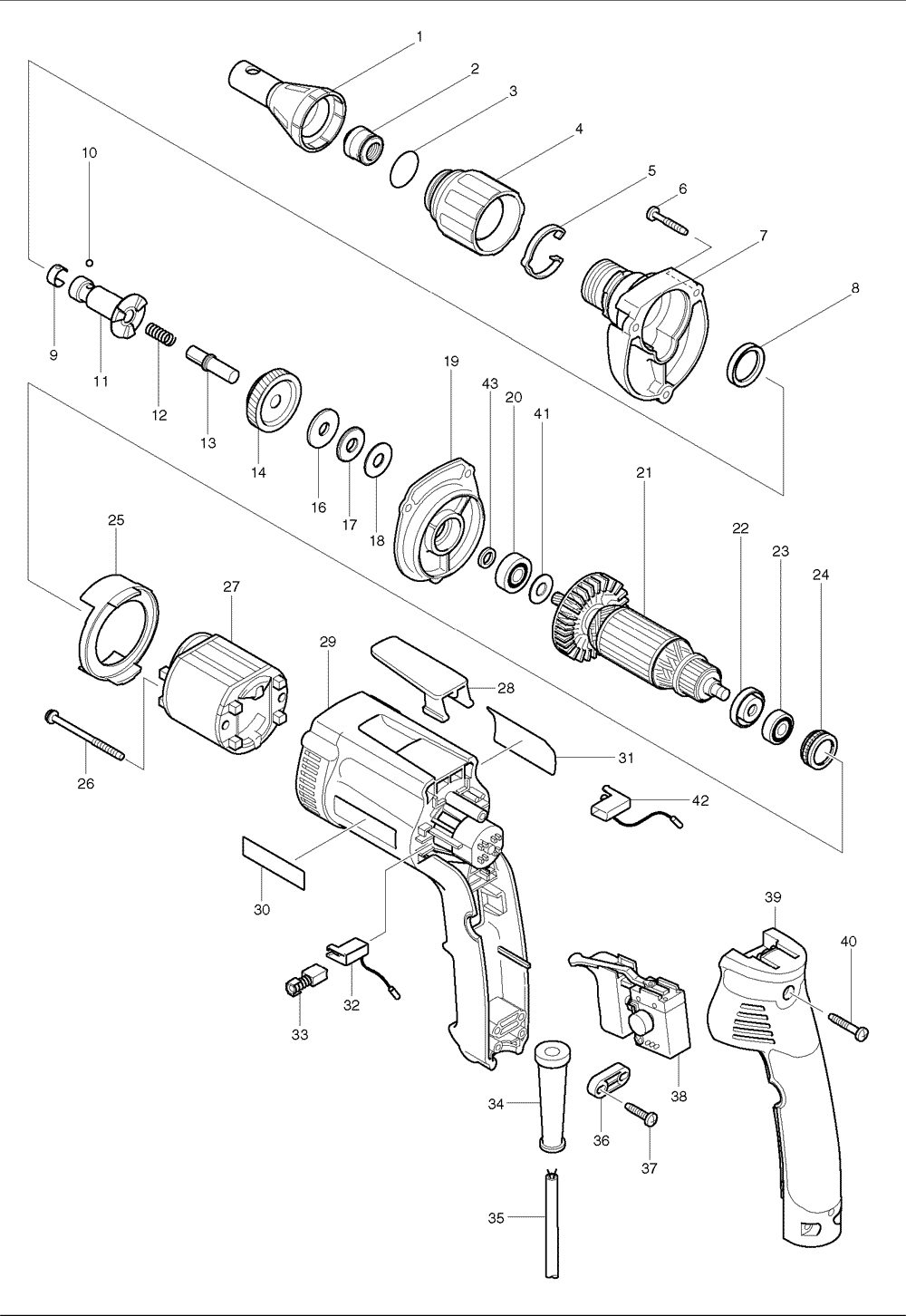

Makita 6824N Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 151726-8 LOCATOR CPL., 6823 $16.60
2 421631-6 DUST SEAL RING, 6823 $1.63
3 213373-4 O RING 22, GEO600 $1.19
4 416994-3 LOCK RING., 6824N $3.06
5 232154-7 LEAF SPRING, 6823 $4.16
7 153498-1 GEAR HOUSING CPL., 6824N $8.45
8 421766-3 RING 20, 6827 $0.97
9 232050-9 LEAF SPRING, 6820V $1.48
10 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 324290-4 SPINDLE, 6824N $19.78
12 233126-5 COMP. SPRING 6, FS4200 $1.48
13 268099-3 COLLARED PIN 8, 6824N $1.74
14 226566-4 HELICAL GEAR 43, 6824N $13.07
16 216213-5 WASHER 824, 6824 $2.18
17 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
18 216212-7 WASHER 821, FS4200 $2.18
19 153500-0 GEAR HOUSING COVER CPL., 6824N $11.09
20 210007-0 BALL BEARING 608VV, 6825 $13.07
21 517321-8 ARMATURE ASS'Y , 6824,JS8000 $62.10
22 681636-0 INSULATION WASHER, GA4030 $3.72
23 211021-9 BALL BEARING 607LLB, LS1013 $8.78
24 421479-6 RUBBER RING 19, JN1601 $4.49
25 416993-5 BAFFLE PLATE, 6823 $1.63
26 266147-2 TAPPING SCREW 4X55, 6824 $1.96
27 633441-1 FIELD, JS8000 $12.63
28 417625-7 HOOK, 6827 $2.84
29 183285-4 MOTOR HOUSING SET, 6827 $16.04
29 450718-7 MOTOR HOUSING, 6827 $16.04
30 819063-3 MAKITA LABEL, DA3010F $0.96
31 850196-5 NAME PLATE, 6824N $1.21
32 643948-9 BRUSH HOLDER, 6823 $2.84
33 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
34 682559-5 CORD GUARD 8, 6824 $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
35 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
36 687063-9 STRAIN RELIEF, 4323K $1.26
37 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
38 651978-6 SWITCH, 6823N $33.25
39 151961-8 HANDLE COVER COMPLETE, 6825 $17.25
39 158710-4 HANDLE COVER CPL., JS8000 $17.25
41 253139-0 F. WASHER 8, 6510LVR $1.34
42 643951-0 BRUSH HOLDER, 6824 $3.06
43 262087-2 RING 8, HP2050F $5.37
1002 784801-1 MAGNETIC BIT HOLDER, 6801DBV $9.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
