Makita 6510LVR Electric Drill Parts

Makita 6510LVR Electric Drill Parts Image

Makita 6510LVR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

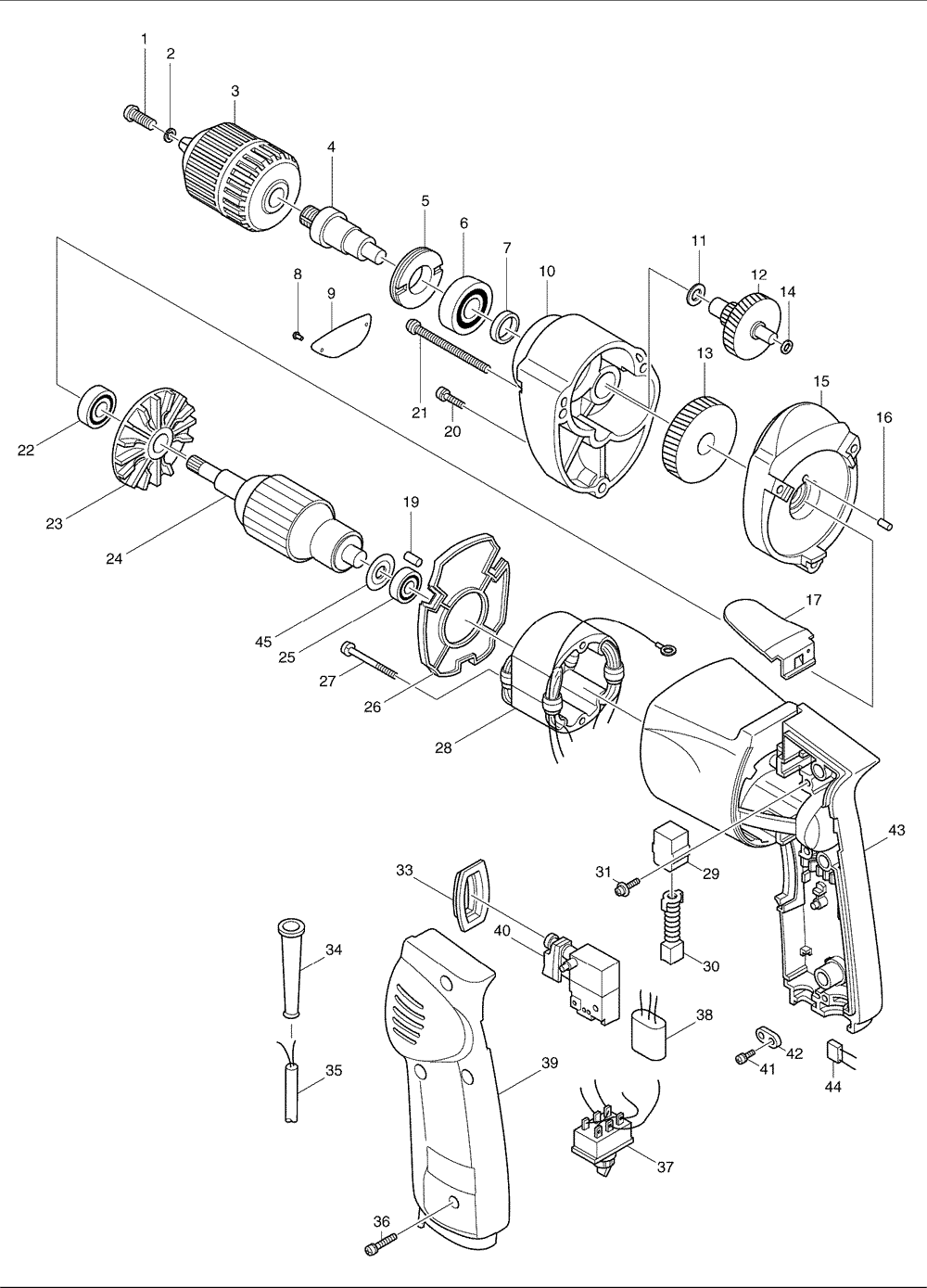

Makita 6510LVR Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 251448-1 SCREW M5X18, NHP1030 $1.48
39 154960-9 HANDLE COVER, 6510LVR $11.75
39 154960-9 HANDLE COVER, 6510LVR $11.75
3 763136-3 DRILL CHUCK 10, 6407 $31.20
17 343693-3 HOOK, 6805BV,T2 $4.49
4 323685-8 SPINDLE, 6510LVR (TYPE 2) $16.04
24 511795-5 ARMATURE, 6510LVR $65.90
5 285804-3 BEARING RETAINER 19-34, 6510LVR $3.06
6 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
37 531003-8 REV. SWITCH, 6510LVR $14.94
7 257053-2 RING 15, 6510LVR $1.63
9 815390-6 NAME PLATE, 6510LVR $1.12
10 156401-1 GEAR HOUSING, 6510LVR $13.84
11 253139-0 F. WASHER 8, 6510LVR $1.34
12 226032-1 GEAR 13-40, 6510LVR $27.26
13 221624-1 H. GEAR, 6510LVR $16.81
14 253077-6 F. WASHER 6, 2040 $1.01
15 156402-9 GEAR HOUSING COVER, 6510LVR $13.73
16 263002-9 RUBBER PIN 4, 5007NK $0.86
17 343693-3 HOOK, 6805BV,T2 $4.49
19 263002-9 RUBBER PIN 4, 5007NK $0.86
20 911168-6 P.H. SCREW M4X40, 6905B $0.86
21 911188-0 P.H. SCREW M4X60, N9501B $1.19
22 211033-2 B. BEARING 608LB, 5091D $8.78
23 241802-7 FAN 58, 6510LVR $4.49
24 511796-3 ARMATURE ASS'Y 115V FOR 6000LR $86.70
24 511795-5 ARMATURE, 6510LVR $65.90
25 211028-5 B. BEARING 627LB, 6510LVR $8.78
26 414292-9 BAFFLE PLATE, 6510LVR,T2 $1.63
28 633081-5 FIELD, 6510LVR,T2 $27.03
29 643552-4 BRUSH HOLDER, BO5012K $1.63
31 911124-6 P.H. SCREW M4X14, 6402 $0.86
33 421144-7 DUST COVER, 6510LVR $3.06
34 682559-5 CORD GUARD 8, 6824 $2.51
34 682502-4 CORD GUARD 8-85, HP2010N $2.51
34 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
35 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
35 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
36 911153-9 P.H. SCREW M4X28, JR3000V $0.86
41 911133-5 P.H. SCREW M4X18, N9501B $0.86
42 687001-1 STRAIN RELIEF, 6013BR $0.97
42 687002-9 STRAIN RELIEF, 9217SPC $0.97
43 188104-9 MOTOR HOUSING CPL., 6000LR $18.02
45 681617-4 INS. WASHER, 6510LVR $1.34
400 763423-0 CHUCK KEY,6407 $4.80
401 411780-7 KEY HOLDER,6402 $1.26
