Makita 6302H Electric Drill Parts

Makita 6302H Electric Drill Parts Image

Makita 6302H Parts
1/2 Inch Variable Speed, Reversible Drill

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 6302H
1/2 Inch Variable Sp...
$139.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

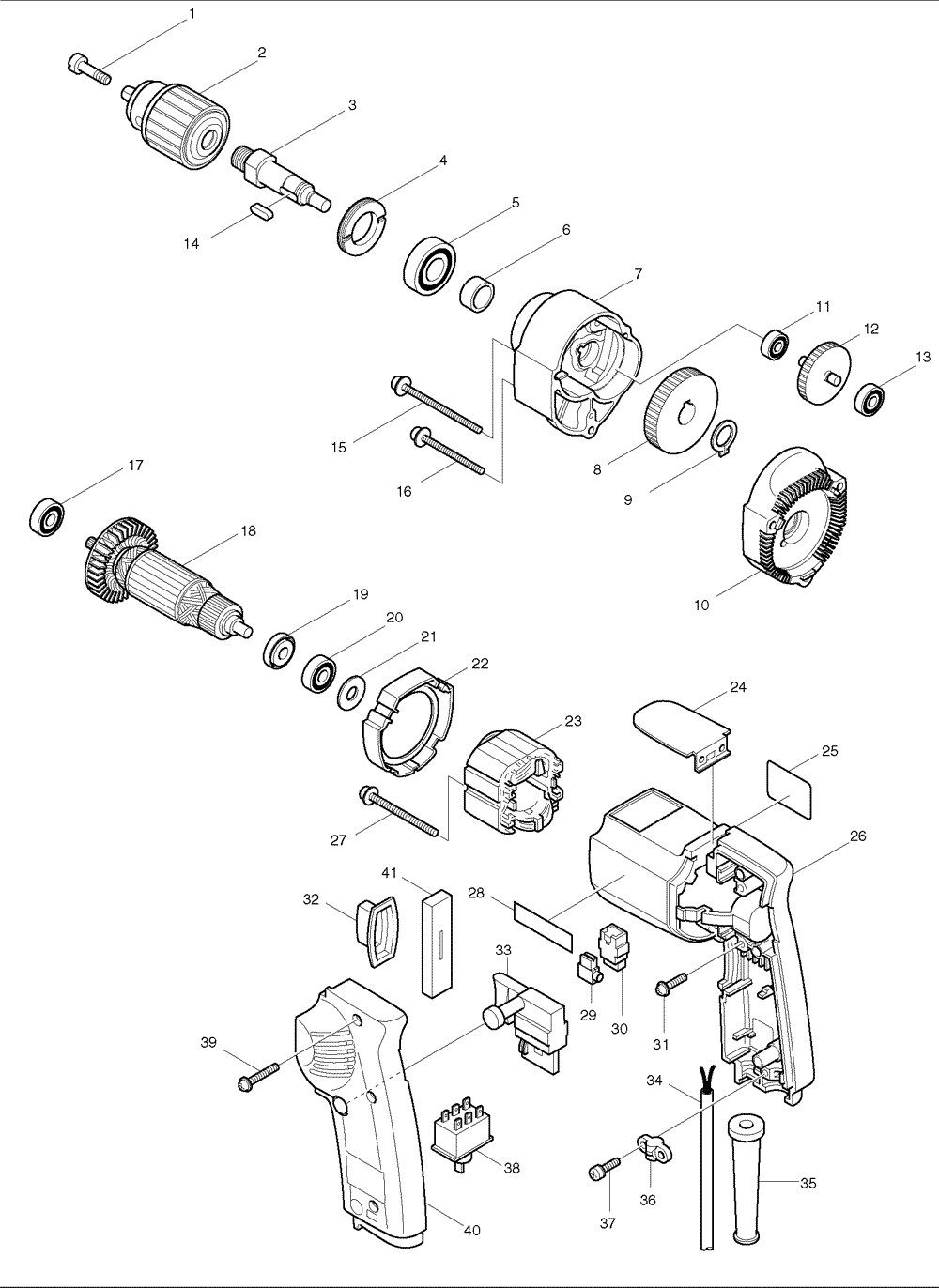

Makita 6302H Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 251441-5 F.H. SCREW M6X22, 6302 $1.96
3 324197-4 SPINDLE, 6302 $14.61
4 285807-7 BEARING RETAINER 22-36, 5008FA $3.06
5 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
6 257018-4 RING 15, 6300LR $3.06
7 151765-8 GEAR HOUSING COMP.,6302H,6303H $27.26
8 221979-4 SPUR GEAR 52, 6302 $19.78
9 961054-1 RETAINING RING S-14, 6302 $0.86
10 157904-8 GEAR HOUSING COVER, 6302 $15.27
11 211014-6 B. BEARING 606, 6826 $13.07
11 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
12 226078-7 GEAR 7-46, 6302 $25.83
13 211020-1 BALL BEARING 626Z, NHP1310 $10.98
14 254211-1 KEY 5, 6300LR $1.26
15 911193-7 P.H. SCREW M4X65, 6303 $1.48
16 911178-3 P.H. SCREW M4X50, 6302 $1.19
17 211031-6 BALL BEARING 608LLB, 9227C $10.98
18 511836-7 ARMATURE ASS'Y 115V, 6302H,6303H $71.80
20 211028-5 B. BEARING 627LB, 6510LVR $8.78
21 253192-6 F. WASHER 14, HR2400 $1.63
22 414594-3 BAFFLE PLATE, 6302H,6303H $1.63
23 633361-9 FIELD, 6302 $27.04
24 343407-0 HOOK, 6820V $4.49
25 851885-5 NAME PLATE, 6302H $2.40
26 157725-8 MOTOR HOUSING, 6820V $27.59
27 911581-8 PAN HEAD SCREW M4X55, 6820V $1.48
28 819063-3 MAKITA LABEL, DA3010F $0.96
29 686015-7 RECEPTACLE SLEEVE, 6820V $0.75
30 195005-4 CARBON BRUSH 401, NHP1310 $11.53
31 911124-6 P.H. SCREW M4X14, 6402 $0.86
32 421144-7 DUST COVER, 6510LVR $3.06
34 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
34 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
35 682502-4 CORD GUARD 8-85, HP2010N $2.51
35 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
36 687002-9 STRAIN RELIEF, 9217SPC $0.97
37 911133-5 P.H. SCREW M4X18, N9501B $0.86
38 651478-6 SWITCH, REVERSING, 6302H $13.84
39 911153-9 P.H. SCREW M4X28, JR3000V $0.86
40 151766-6 HANDLE COVER COMP., 6302H,6303H $4.49
1001 411780-7 KEY HOLDER,6402 $1.26
1001 410102-8 KEY HOLDER, 6013BR $1.26
1002 763434-5 CHUCK KEY 10, 6302H,6303H $6.00
1003 122593-8 GRIP ASS'Y, 6302H, 6303H $12.60
