Makita 6260D Cordless Drill Parts

Makita 6260D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

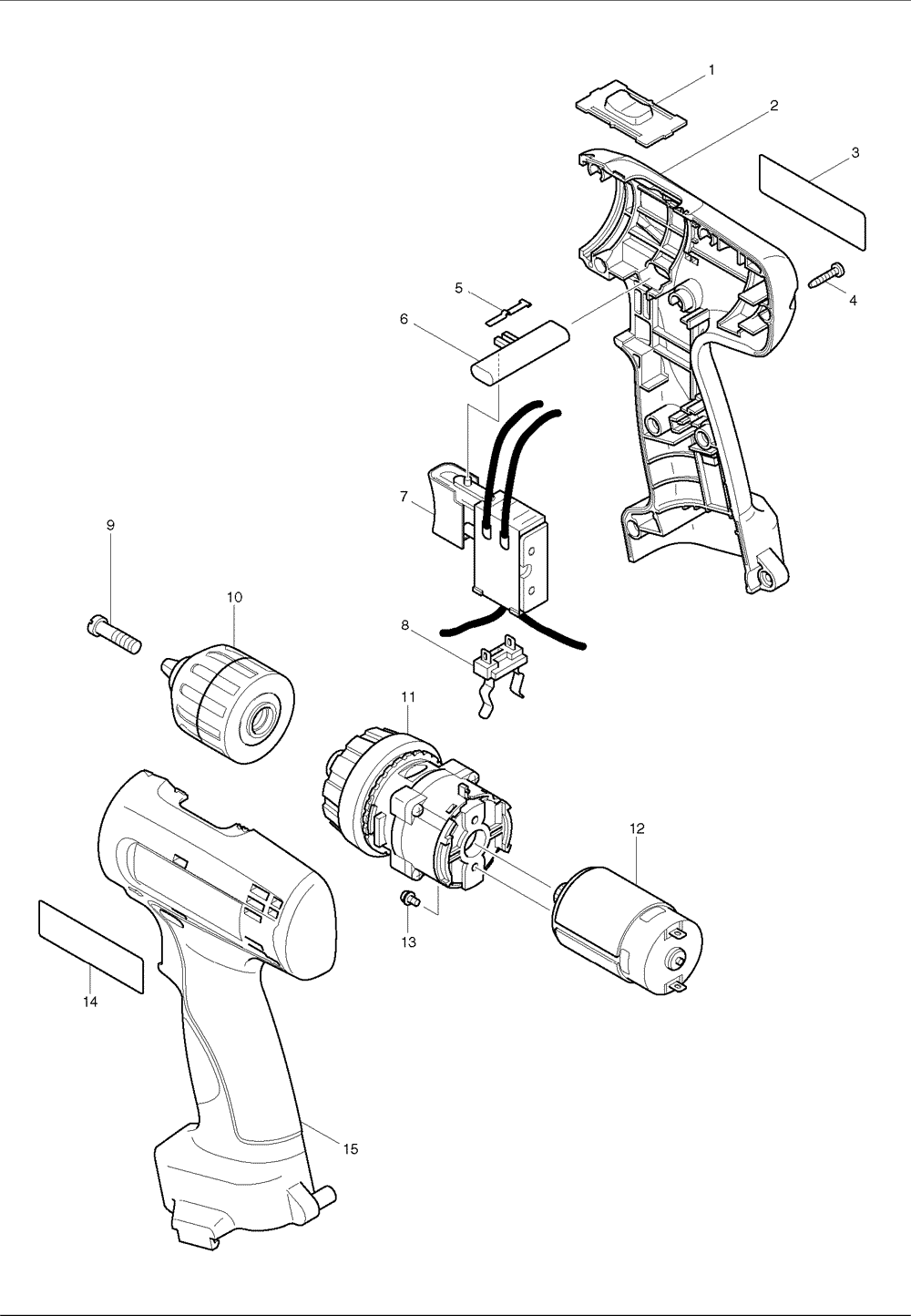

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	125102-2	SPEED CHANGE LEVER ASS'Y, BDF460SH	$1.52
2	183822-4	HOUSING SET, 6260DWPE	$11.53
3	860433-9	NAME PLATE, 6260DWPE	$0.45
4	266130-9	TAPPING SCREW PT3X16, 6233DWA	$0.86
5	232182-2	LEAF SPRING, 6096DWE	$2.07
6	417283-9	F/R CHANGE LEVER, 8390D	$2.84
7	650556-9	SWITCH C3NA-1M1, 6260DWPE	$20.33
8	643909-9	BATTERY HOLDER, DA392D	$4.49
9	251468-5	F.H. SCREW M6X22, BHP451	$0.86
10	763185-0	KEYLESS DRILL CHUCK 10,6260DWPE	$24.20
11	125237-9	GEAR ASS'Y, 6260DWPE	$24.84
12	629815-2	DC MOTOR, 6260DWPE	$17.25
13	911003-8	P.H. SCREW M3X6, 6261DWPLE	$0.86
14	819001-5	MAKITA LABEL, 9005B	$0.96
15	183822-4	HOUSING SET, 6260DWPE	$11.53
1001	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	784636-0	PHILLIPS/SLOTTED BIT 2-65, 6222DWE	$2.40
1004	824635-1	PLASTIC TOOL CASE,6227D,6991DWDE	$40.20
1004	824581-8	PLASTIC TOOL CASE,6226,27,28DWLE	$40.20
1005	193979-3	BATTERY PA09,9.6V,6260DWPE	$68.20
1006	345261-8	HOOK PLATE, ML702	$1.26
1007	417926-3	STRAP, ML180	$5.70
1008	193979-3	BATTERY PA09,9.6V,6260DWPE	$68.20
