Makita 6172D Cordless Drill Parts

Makita 6172D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

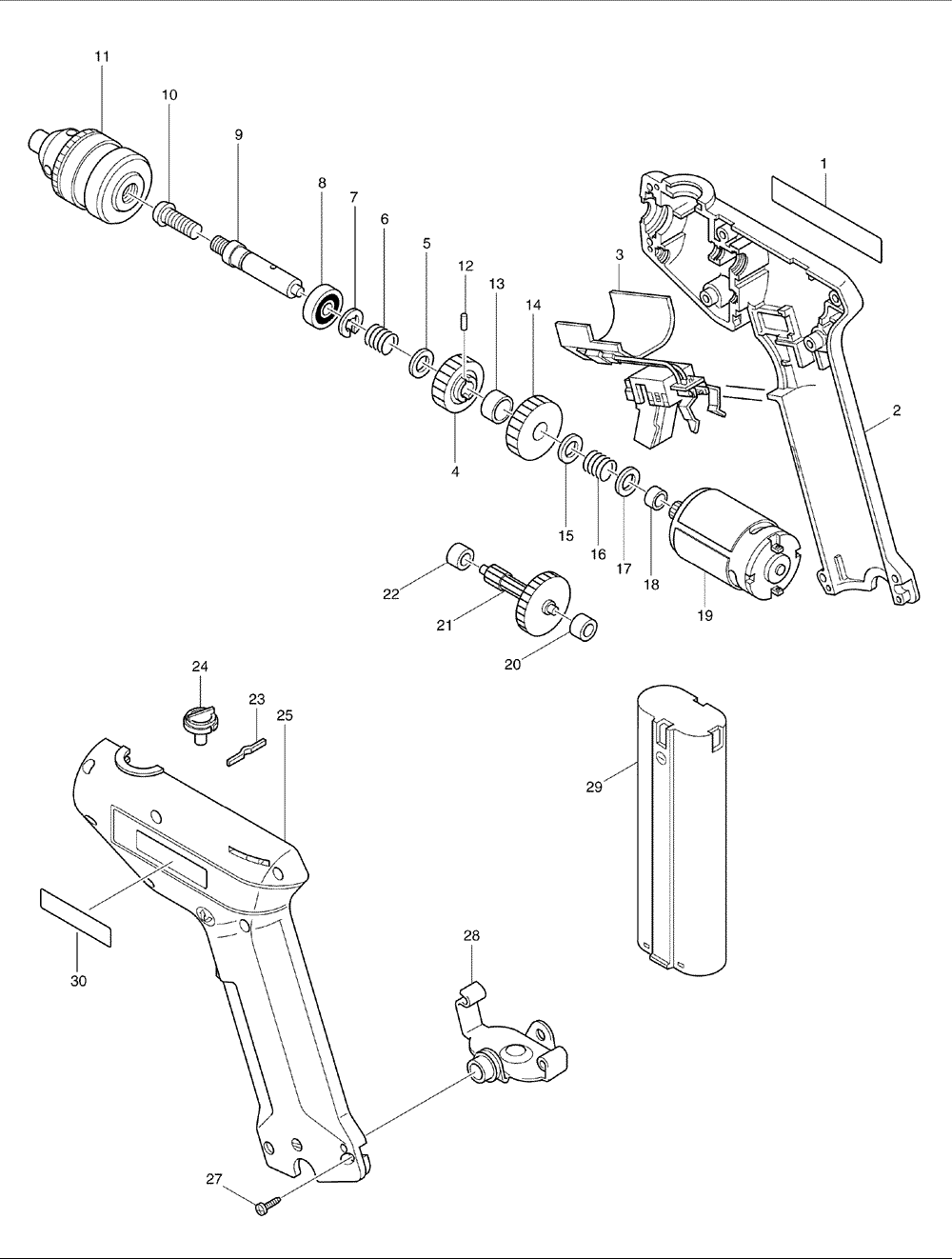

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	182828-9	HOUSING SET, 6172DW	$24.62
2	182828-9	HOUSING SET, 6172DW	$24.62
3	651912-6	SWITCH, 6172D-T2	$41.20
3	651912-6	SWITCH, 6172D-T2	$41.20
4	221861-7	S. GEAR 69, 6002DWK	$15.27
5	253330-0	T. WASHER 10, 6012HDW	$1.01
6	231250-8	COMP. SPRING 10, 6012HDW	$1.48
7	961015-1	STOP RING E-9, BO5021	$0.86
8	211061-7	B. BEARING 6000LLB, 6222DWE	$10.98
9	321723-0	SPINDLE, 6012HDW (TYPE 2)	$16.04
10	251451-2	P.H. SCREW M5X22, DA391DW	$1.96
12	256101-4	PIN 3, 6012HDW	$1.48
13	257073-6	RING 16, 6012HDW	$1.63
14	221862-5	S. GEAR 78, 6012HDW	$15.27
15	253330-0	T. WASHER 10, 6012HDW	$1.01
16	231250-8	COMP. SPRING 10, 6012HDW	$1.48
17	253807-5	F. WASHER 5, 6012HDW	$1.01
18	214017-9	P. BEARING 5, 6043D	$1.26
19	629623-1	DC MOTOR, DA391D	$27.64
20	214016-1	P. BEARING 3, 6176DW	$0.75
21	153126-8	GEAR COMPLETE, 6002DWK	$30.90
22	214016-1	P. BEARING 3, 6176DW	$0.75
23	232053-3	LEAF SPRING, HP2030	$0.86
24	168097-6	SHIFTER, 6002DWK	$5.92
25	182828-9	HOUSING SET, 6172DW	$24.62
27	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
30	819063-3	MAKITA LABEL, DA3010F	$0.96
1001	784202-3	#2 PHILLIPS BIT 2-45, 6095D	$3.40
1003	414938-7	BATTERY COVER, 6222DWE	$2.20
