Makita 6043D Cordless Drill Parts

Makita 6043D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

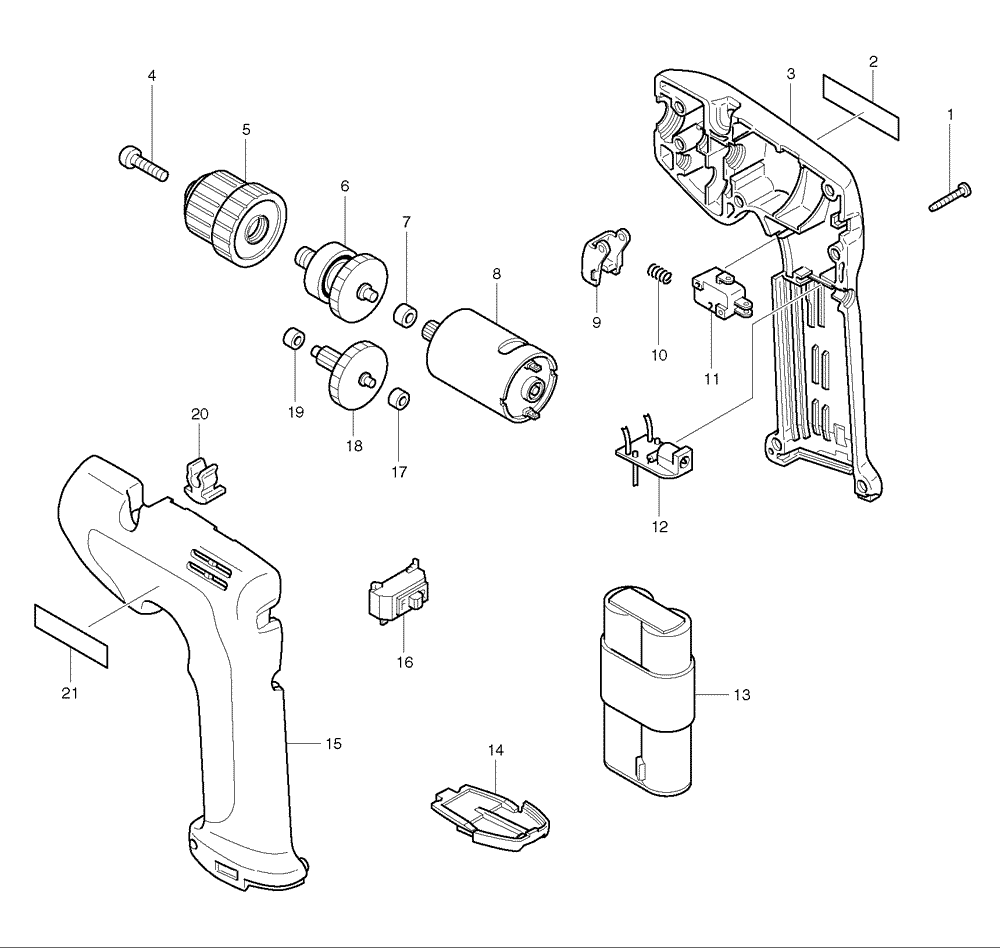

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265837-4	TAPPING SCREW M3X20, 6176D	$0.53
3	415250-8	HOUSING SET, 6043D	$10.43
5	763184-2	KEYLESS CHUCK 10, 6176DW	$31.20
6	153175-5	GEAR, 6043D	$26.72
7	214017-9	P. BEARING 5, 6043D	$1.26
8	629649-3	DC MOTOR 4.8V,6043D	$18.35
9	414113-5	SWITCH LEVER, 6043D	$3.06
10	231311-4	COMP. SPRING 7, 6043D	$1.63
11	651852-8	SWITCH, 6043D	$8.12
12	631161-1	CIRCUIT BOARD, 6043D	$16.04
13	678102-6	BATTERY 6043D	$35.39
14	415231-2	COVER, 6176D	$1.63
15	415250-8	HOUSING SET, 6043D	$10.43
16	531086-8	SWITCH ASS'Y, 6806D	$17.25
17	214019-5	P. BEARING 4, 6043D	$1.26
18	226077-9	GEAR 11-65, 6043D	$18.24
19	214019-5	P. BEARING 4, 6043D	$1.26
20	411640-3	HOLDER, 6043D	$1.26
21	819063-3	MAKITA LABEL, DA3010F	$0.96
1001	784202-3	#2 PHILLIPS BIT 2-45, 6095D	$3.40
