Makita 5377MG Electric Saw Parts

Makita 5377MG Electric Saw Parts Image

Makita 5377MG Parts
7-1/4 Inch Magnesium Hypoid Circular Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 5377MG
7-1/4 Inch Magnesium...
$179.00
Tool Diagram    (Click image to Zoom in) View larger Image

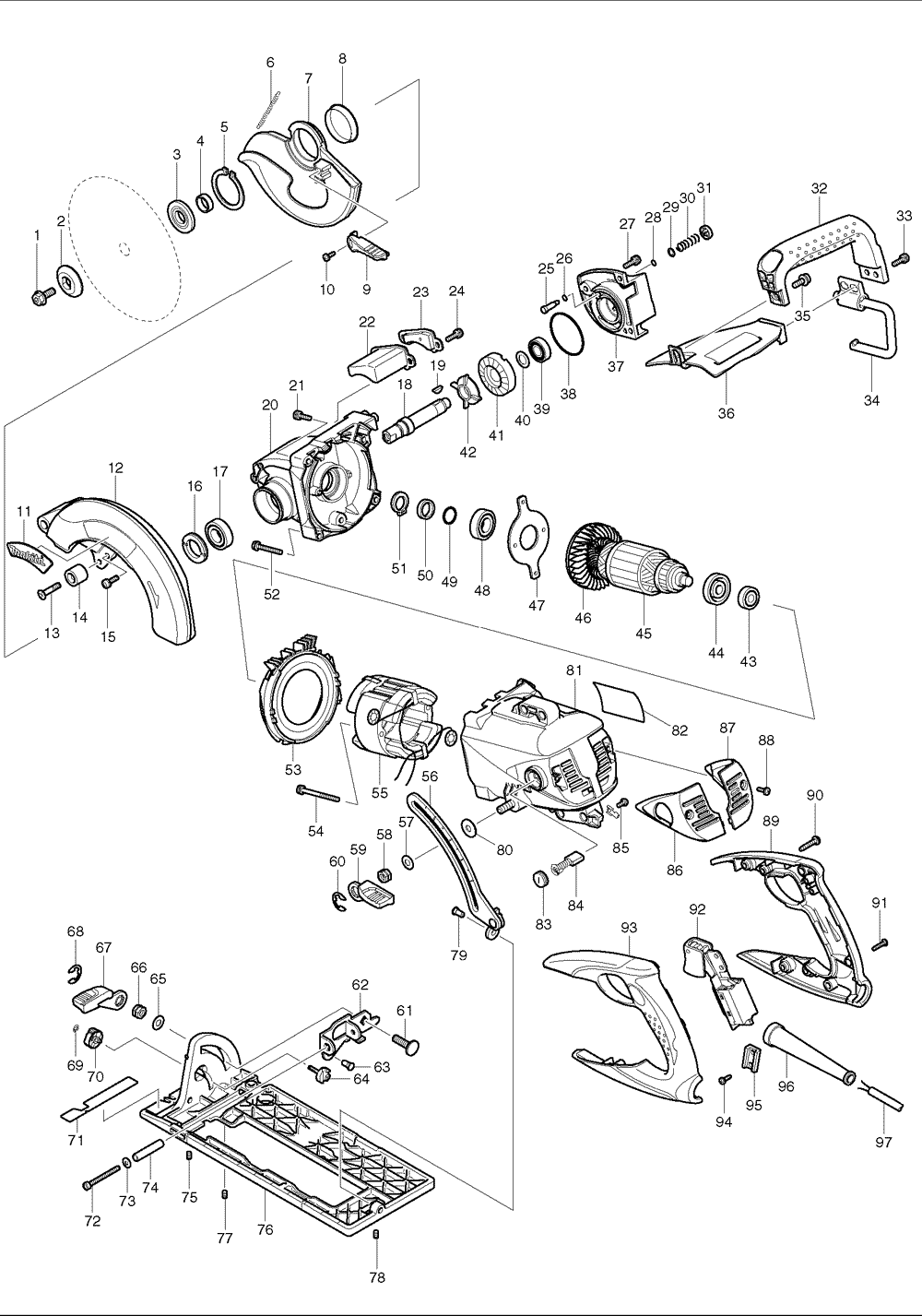

Makita 5377MG Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
1 266400-6 H.S.H.BOLT M8X20, 5377MG $1.34
00 313135-1 JOINT, 5377MG $3.28
2 224275-9 OUTER FLANGE, 5620DWA $5.92
00 810291-3 CAUTION LABEL, 5377MG $0.51
3 224268-6 INNER FLANGE 40 5277NB $2.84
00 689055-4 RING TERMINAL RETAINER, 5377MG $0.66
4 257279-6 RING 16, 5007NK $1.19
00 684790-9 VINYL TUBE, 5377MG $0.44
5 961201-4 RETAINING RING S-42, 5007NK $1.96
6 231831-8 TENSION SPRING 4, 5277NB $1.96
7 318068-5 SAFETY COVER, 5477NB $6.14
8 345422-0 SPACER, 5007NK $1.26
9 272255-9 LEVER 50, 5377MG $1.74
10 266026-4 TAPPING SCREW 4X12,5477NB $0.86
11 819236-8 MAKITA LOGO PLATE, 5377MG $1.74
12 188203-7 BLADE CASE SET, 5377MG $18.13
13 251350-8 C.H. SCREW M6X28, 5277B $1.96
14 262553-9 RUBBER SLEEVE 6, 5277NB,5377MG $1.52
15 911228-4 P.H. SCREW M5X18, 5377MG $0.86
15 266036-1 TAPPING SCREW 5X20, 5177B $1.48
16 285809-3 BEARING RETAINER 23-36, 5477NB $3.06
17 211251-2 B.BEARING 6003LLB, 5277B $15.27
18 324958-2 SPINDLE, 5477NB $4.71
18 324698-2 SPINDLE, 5377MG $4.93
19 254001-2 WOODRUFF KEY 4, HM1810 $1.26
20 140706-9 GEAR HOUSING, 5377MG $26.82
20 158142-5 GEAR HOUSING, 5377MG $26.82
21 911228-4 P.H. SCREW M5X18, 5377MG $0.86
22 421970-4 DECOMPRESSION CHAMBER, 5377MG $1.26
23 318079-0 PLATE, 5377MG $1.74
24 911228-4 P.H. SCREW M5X18, 5377MG $0.86
25 256501-8 SHOULDER PIN 6, 5377MG $1.48
26 213005-3 O RING, 5277NB,5377NB $0.86
27 911228-4 P.H. SCREW M5X18, 5377MG $0.86
28 213005-3 O RING, 5277NB,5377NB $0.86
29 253145-5 FLAT WASHER 6, 5177B $1.63
30 233011-2 COMP. SPRING 8, 5377MG $0.79
31 419589-1 CAP, 5377MG $0.82
32 419578-6 GRIP, 5377MG $4.71
33 911228-4 P.H. SCREW M5X18, 5377MG $0.86
34 125346-4 HOOK ASS'Y, 5377MG $5.48
35 911323-0 P.H. SCREW M6X16, LS1211 $1.19
36 158143-3 COVER CPL.,5377MG $3.17
37 318066-9 HOUSING W/O BEARING, 5377MG $7.68
38 213676-6 O RING 52, 5377MG $0.53
39 211104-5 BALL BEARING 6001, HM1303 $13.07
40 253744-3 F. WASHER 12, HR2410 $1.34
41 227504-9 HYPOID GEAR 36, 5377MG $17.36
42 240005-0 FAN 45, 5277NB $1.26
43 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
44 681640-9 INSULATION WASHER, LS1040 $2.18
45 516981-3 ARMATURE ASS'Y 115V, 5377MG $51.40
46 241905-7 FAN 80, 5277NB $1.52
47 285727-5 BEARING RETAINER, 5477NB $3.17
48 211251-2 B.BEARING 6003LLB, 5277B $15.27
49 213226-7 O-RING 16, 5177B $5.37
50 257198-6 RING 17, 5277B $10.32
51 961077-9 RETAINING RING, 5177B $1.48
52 911258-5 P.H. SCREW M5X35, 9045N $1.19
53 419573-6 BAFFLE PLATE, 5377MG $1.74
54 911676-7 P.H. SCREW M5X55, 5007NB, T2 $1.74
55 526171-0 FIELD ASS'Y 115V, 5377MG $29.17
56 163470-5 DEPTH GUIDE, 5377MG $4.71
57 941201-0 F. WASHER 8, 5007NK $0.75
58 264006-4 HEX. NUT M8-13, 5007N & 5377MG $1.34
59 272254-1 LEVER 59, 5377MG $1.74
60 257953-6 BOW STOP RING E-12, 5007NK $1.19
61 266227-4 C.S.N. BOLT M8X28, 5057KB $1.34
62 345725-2 ANGULAR GUIDE, 5377MG $1.74
63 256480-0 SHOULDER PIN 6-7, 5740NB $0.86
63 256511-5 SHOULDER PIN 6-7, 5007MG $0.86
64 324699-0 STOPPER PIN, 5377MG $2.95
65 941201-0 F. WASHER 8, 5007NK $0.75
66 264006-4 HEX. NUT M8-13, 5007N & 5377MG $1.34
67 272254-1 LEVER 59, 5377MG $1.74
68 257953-6 BOW STOP RING E-12, 5007NK $1.19
69 961017-7 STOP RING E-3, 4304, SH01 $0.53
70 419571-0 DIAL 22, 5377MG $1.08
71 816864-0 SCALE PLATE, 5377MG $1.41
72 922903-7 H.S.H. BOLT M5X50, 6905B $1.34
73 941101-4 F. WASHER 5, 5007NK $0.75
74 257761-5 SLEEVE 6, 5377MG $1.41
75 266229-0 HEX.SCREW M5X8, 4200N $1.19
76 318071-6 BASE, 5377MG $24.18
77 266229-0 HEX.SCREW M5X8, 4200N $1.19
78 266229-0 HEX.SCREW M5X8, 4200N $1.19
79 256480-0 SHOULDER PIN 6-7, 5740NB $0.86
79 256511-5 SHOULDER PIN 6-7, 5007MG $0.86
80 253022-1 F. WASHER 8, 5277NB $1.34
81 158141-7 MOTOR HOUSING CPL.,5377MG $30.60
82 862845-2 NAME PLATE, 5377MG $1.12
83 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
84 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
84 K21 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-154), 18104... $8.50
85 652014-1 P.H. SCREW M4X8, 2708 $0.75
86 188184-5 REAR COVER SET, 5377MG $9.55
87 188184-5 REAR COVER SET, 5377MG $9.55
88 266026-4 TAPPING SCREW 4X12,5477NB $0.86
89 188185-3 HANDLE SET, 5377MG $12.19
90 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
91 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
92 651189-3 SWITCH, 5007NK $14.94
93 188185-3 HANDLE SET, 5377MG $12.19
94 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
94 266427-6 TAPPING SCREW 4X12, 5377MG $0.49
95 687673-2 STRAIN RELIEF, 5177B $3.06
96 682564-2 CORD GUARD, 5007NK $4.16
96 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
98 961056-7 RETAINING RING S-16, 5077B $1.48
99 232247-0 CONED DISC SPRING 16, 5477NB $0.90
1002 783204-6 HEX WRENCH 6, 3705, HR5000 $3.40
