Makita 5077B Electric Saw Parts

Makita 5077B Electric Saw Parts Image

Makita 5077B Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

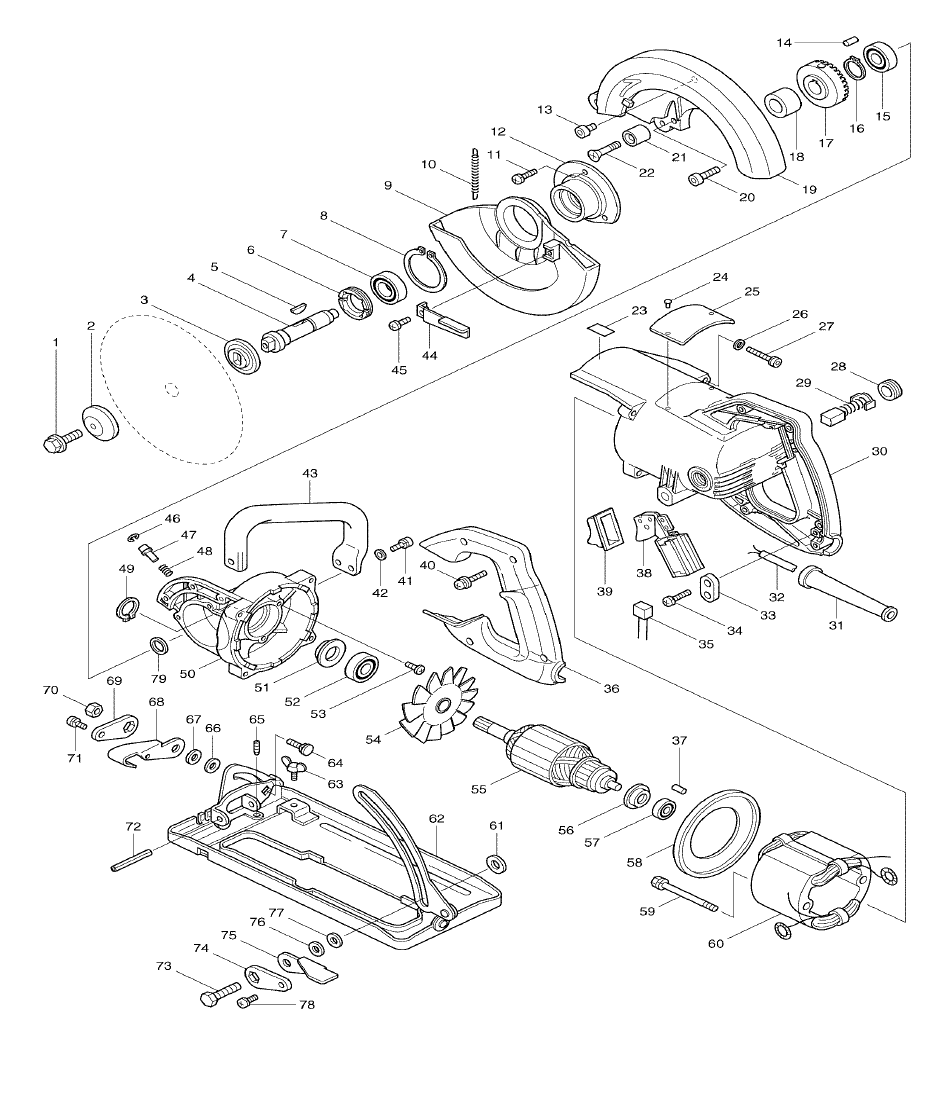

Makita 5077B Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3 224268-6 INNER FLANGE 40 5277NB $2.84
1 265315-4 H.F.H. BOLT M8X20, 5277B $2.40
53 251343-5 BINDING HD SCREW M5X12, 5077B $1.48
2 224275-9 OUTER FLANGE, 5620DWA $5.92
36 415331-8 HANDLE COVER FOR 5077B $4.71
3 224268-6 INNER FLANGE 40 5277NB $2.84
5 254001-2 WOODRUFF KEY 4, HM1810 $1.26
6 285809-3 BEARING RETAINER 23-36, 5477NB $3.06
7 211251-2 B.BEARING 6003LLB, 5277B $15.27
8 961201-4 RETAINING RING S-42, 5007NK $1.96
11 911231-5 P.H. SCREW M5X20, HR4002 $0.86
12 322063-9 HOUSING W/O BEARING, 5077B $23.19
13 922311-2 H.S.H. BOLT M6X12, 5077B $1.96
14 263002-9 RUBBER PIN 4, 5007NK $0.86
15 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
16 961056-7 RETAINING RING S-16, 5077B $1.48
17 221396-8 HYPOID GEAR 36, 5077B T2 $30.60
18 257613-0 SLEEVE 16, 5077B $7.46
19 152309-7 BLADE CASE, 5077B $32.74
20 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
21 262501-8 RUBBER SLEEVE 6, 5005BA $1.26
22 251350-8 C.H. SCREW M6X28, 5277B $1.96
23 812166-2 INDICATION LABEL,SHAFT LOCK,LS1011 $0.64
24 953106-2 RIVET 0-5, HM1500 $0.49
25 855906-5 NAME PLATE, 5077B $1.36
26 941102-2 F. WASHER 5, HM1100C $0.75
27 922251-4 H.S.H. BOLT M5X30, 5077B $1.74
28 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
29 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
29 181047-4 CARBON BRUSH SET 154,5402A $8.99
29 K21 This item will be shipped Free Carbon Brush Set Replaces Makita CB154, CB-155, ... $8.50
30 157743-6 MOTOR HOUSING, 5077B $26.92
32 682505-8 CORD GUARD, 2711 $2.51
32 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
33 687001-1 STRAIN RELIEF, 6013BR $0.97
32 682505-8 CORD GUARD, 2711 $2.51
32 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
34 911133-5 P.H. SCREW M4X18, N9501B $0.86
33 687001-1 STRAIN RELIEF, 6013BR $0.97
34 911133-5 P.H. SCREW M4X18, N9501B $0.86
36 415331-8 HANDLE COVER FOR 5077B $4.71
37 263002-9 RUBBER PIN 4, 5007NK $0.86
39 421279-4 DUST COVER, 4110C $3.06
40 911148-2 P.H. SCREW M4X25, 5057KB $0.86
41 922216-6 H.S.H. BOLT M5X14, 5077B $1.34
42 941102-2 F. WASHER 5, HM1100C $0.75
45 911111-5 P.H. SCREW M4X10, LS1011 $0.53
46 231928-3 RING SPRING 8, LS1013 $0.86
47 256633-1 PIN 6, LS1016L $1.48
48 231240-1 COMP. SPRING 7, 2414B $0.79
49 961057-5 RETAINING RING S-17, LS1016L $0.86
50 159559-5 GEAR HSG COMP., 5077B T2 $34.88
52 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
53 251343-5 BINDING HD SCREW M5X12, 5077B $1.48
54 241111-4 FAN $5.92
55 514996-4 ARMATURE ASS'Y, 5077B T2 $82.60
56 681625-5 INS. WASHER, 5007NK $1.63
57 211033-2 B. BEARING 608LB, 5091D $8.78
58 410916-5 BAFFLE PLATE, 5077B $5.48
59 911290-9 P.H. SCREW M5X65, GA7911 $1.96
61 253022-1 F. WASHER 8, 5277NB $1.34
63 924206-5 THUMB SCREW M5X10, 5077B $1.48
64 251918-0 C.S.N. BOLT M8X24, 4110C $2.40
66 941201-0 F. WASHER 8, 5007NK $0.75
67 941202-8 F. WASHER 8, 5037NB $0.75
65 266213-5 H.S.H. SCREW M5X12,2012NB $1.48
66 941201-0 F. WASHER 8, 5007NK $0.75
68 343527-0 LEVER PLATE, 5077B $4.49
67 941202-8 F. WASHER 8, 5037NB $0.75
69 343458-3 LOCK PLATE, 5037NB $1.63
70 931402-8 HEX NUT M8, 5037NB $1.34
68 343527-0 LEVER PLATE, 5077B $4.49
71 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
69 343458-3 LOCK PLATE, 5037NB $1.63
70 931402-8 HEX NUT M8, 5037NB $1.34
72 951228-2 SPRING PIN 6-45, 5077B $1.96
71 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
73 921447-4 HEX BOLT M8X28, 5077B $1.96
74 343458-3 LOCK PLATE, 5037NB $1.63
72 951228-2 SPRING PIN 6-45, 5077B $1.96
75 343357-9 LEVER PLATE, 5077B $4.49
73 921447-4 HEX BOLT M8X28, 5077B $1.96
76 941201-0 F. WASHER 8, 5007NK $0.75
74 343458-3 LOCK PLATE, 5037NB $1.63
77 941201-0 F. WASHER 8, 5007NK $0.75
75 343357-9 LEVER PLATE, 5077B $4.49
78 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
76 941201-0 F. WASHER 8, 5007NK $0.75
77 941201-0 F. WASHER 8, 5007NK $0.75
79 257179-0 RING 26, 5077B $10.32
78 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
79 257179-0 RING 26, 5077B $10.32
400 164095-8 GUIDE RULE, 4200H $12.60
401 782016-4 OFFSET WRENCH 13, 5177B $6.40
900 817709-5 CAUTION LABEL, 5077B $1.36
400 164095-8 GUIDE RULE, 4200H $12.60
401 782016-4 OFFSET WRENCH 13, 5177B $6.40
900 817709-5 CAUTION LABEL, 5077B $1.36
