Makita 5007NBA Electric Saw Parts

Makita 5007NBA Electric Saw Parts Image

Makita 5007NBA Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

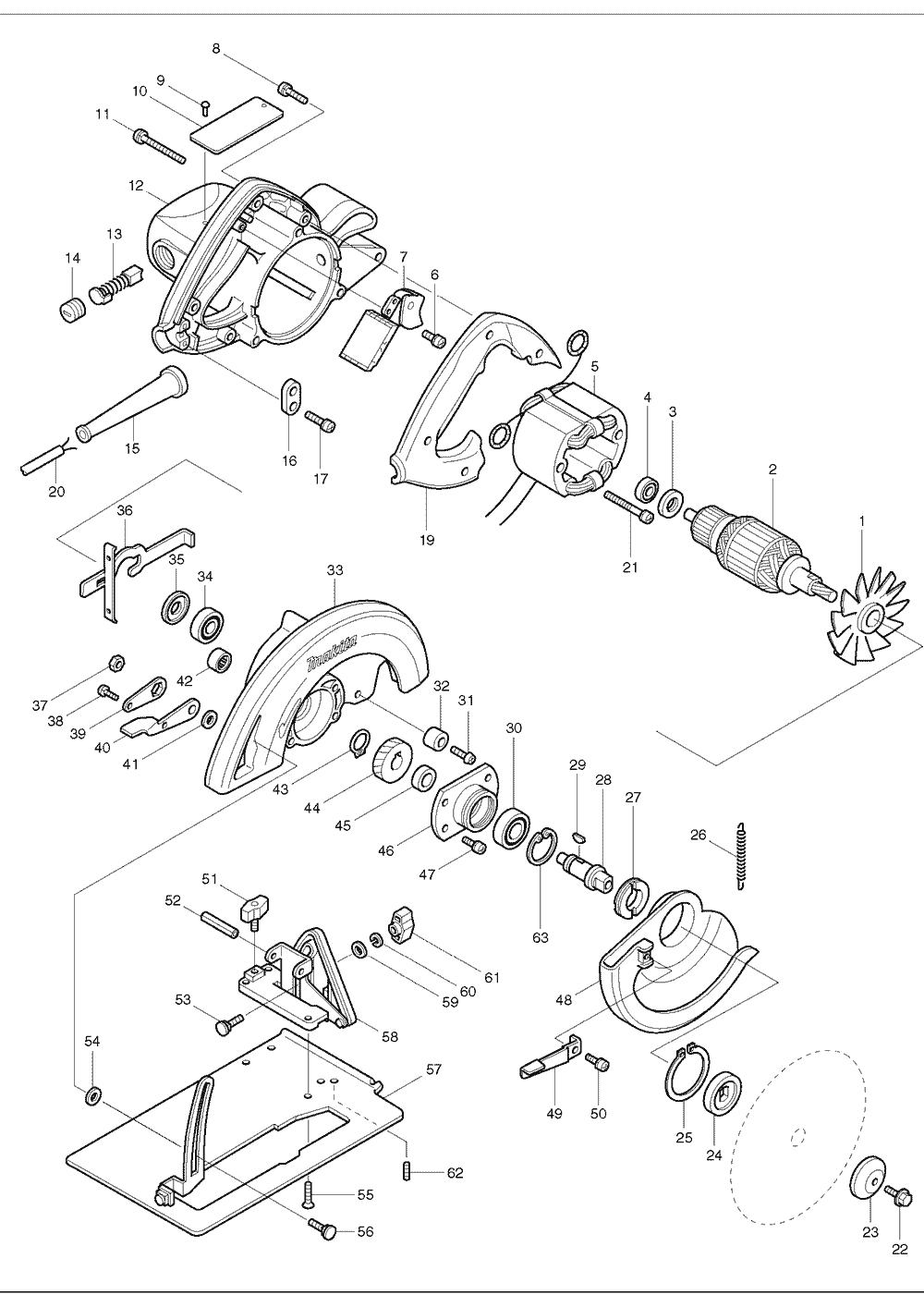

Makita 5007NBA Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 241513-4 FAN 92, 5007NB $4.16
48 317436-9 SAFETY COVER, 5007FK $13.29
21 911280-2 P.H. SCREW M5X55, JR3000V $1.48
2 516606-9 ARMATURE ASS'Y 115V, 5057KB $97.78
3 681625-5 INS. WASHER, 5007NK $1.63
4 211033-2 B. BEARING 608LB, 5091D $8.78
5 636071-7 FIELD, 5007NBA-T2 $44.16
6 911119-9 P.H. SCREW M4X12, BO6040 $0.86
7 651042-3 SWITCH, 5007NBA, M514 $23.96
8 911148-2 P.H. SCREW M4X25, 5057KB $0.86
9 953106-2 RIVET 0-5, HM1500 $0.49
10 853471-8 NAME PLATE, 5007NBA $1.36
10 855536-2 NAME PLATE, 5007NBA $2.51
11 911273-9 P.H. SCREW M5X50, HR2400 $1.19
12 151554-1 MOTOR HOUSING, 5007S $21.43
12 152928-9 MOTOR HOUSING COMPLETE, 5007NBA $21.10
13 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
13 K21 This item will be shipped Free Carbon Brush Set Replaces Makita (CB-154), 18104... $8.50
14 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
15 682505-8 CORD GUARD, 2711 $2.51
15 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
16 687063-9 STRAIN RELIEF, 4323K $1.26
16 687001-1 STRAIN RELIEF, 6013BR $0.97
17 911133-5 P.H. SCREW M4X18, N9501B $0.86
19 410201-6 HANDLE COVER, 5057KB $8.01
21 911280-2 P.H. SCREW M5X55, JR3000V $1.48
22 251644-1 H.F.H. BOLT M8X20, 5037NB $2.40
23 224275-9 OUTER FLANGE, 5620DWA $5.92
24 224151-7 INNER FLANGE, 5007FK $7.46
25 961201-4 RETAINING RING S-42, 5007NK $1.96
26 231806-7 TENSION SPRING 4, 5037NB $2.07
27 285807-7 BEARING RETAINER 22-36, 5008FA $3.06
28 323789-6 SPINDLE, 5008NB $10.32
28 324256-4 SPINDLE, 5007NB $11.97
29 254032-1 WOODRUFF KEY 5, 5037NB $1.63
30 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
31 251247-1 P.H. SCREW M6X20, 5007NK $0.86
32 262502-6 RUBBER SLEEVE 6, 5037NB $1.26
33 153304-0 BLADE CASE CPL.,5007S $22.86
33 154321-3 BLADE CASE, 5007NB $47.63
33 153436-3 BLADE CASE, 5007F $25.06
34 211106-1 B. BEARING 6201LLB, 9227C $13.07
35 213102-5 DUST SEAL 12, 5057KB $1.63
36 163113-9 SHAFT LOCK, 5057KB $4.49
37 931402-8 HEX NUT M8, 5037NB $1.34
38 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
39 341415-5 LOCK PLATE, 5057KB $1.26
40 341416-3 LEVER PLATE, 5057KB $3.06
41 941201-0 F. WASHER 8, 5007NK $0.75
42 212052-1 N. BEARING 1010, HK1810 $7.46
43 961055-9 RETAINING RING S-15, 5007F $1.19
44 221647-9 HELICAL GEAR, M513 $20.66
44 226532-1 HELICAL GEAR 39, 5007NLK $10.21
45 257064-7 RING 15, 5037NB $1.63
46 316700-5 HOUSING W/O BEARING, 5007NB $18.90
46 321061-0 HOUSING W/O BEARING, 5007NB,T1 $27.37
47 911126-2 P.H. SCREW M4X16, 5402NA $0.53
48 317436-9 SAFETY COVER, 5007FK $13.29
49 341417-1 LEVER, 5007FK $1.63
50 266026-4 TAPPING SCREW 4X12,5477NB $0.86
50 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
51 251858-2 SCREW M6X15, 5007NK $3.61
52 951225-8 SPRING PIN 6-40, 5007NBA $1.63
53 251920-3 C.S.N. BOLT M6X30, 5007NB $1.34
54 267096-6 FLAT WASHER 8, 5008FA $1.01
54 267113-2 FLAT WASHER 12, GA4030 $1.63
55 912212-2 C.S.H. SCREW M5X12, 5007NK $0.53
56 265965-5 C.S.N. BOLT M8X24, 5007N & 5477NB $1.96
56 266249-4 C.S.N. BOLT M8X24, 5007NHK $1.34
57 163378-3 BASE,5007FK $17.25
58 163248-6 ANGULAR PLATE, 5007NB (TYPE 2) $21.76
59 941151-9 F. WASHER 6, 5007NB $0.75
60 942151-2 SPRING WASHER 6, 5007NB $0.90
61 252624-0 KNOB M6, 5007NB $3.06
63 962153-2 RETAINING RING R-35,HP2030 $1.48
400 164095-8 GUIDE RULE, 4200H $12.60
901 415603-1 FAN GUIDE, 5007NBA $3.06
903 819003-1 MAKITA LABEL, 5057KB $1.48
