Makita 5005BA Electric Saw Parts

Makita 5005BA Parts

5-1/2 Inch Circular Saw with Electric Brake

Download Schematic

Time to buy a new tool?

Makita 5005BA

5-1/2 Inch Circular ...

$258.99

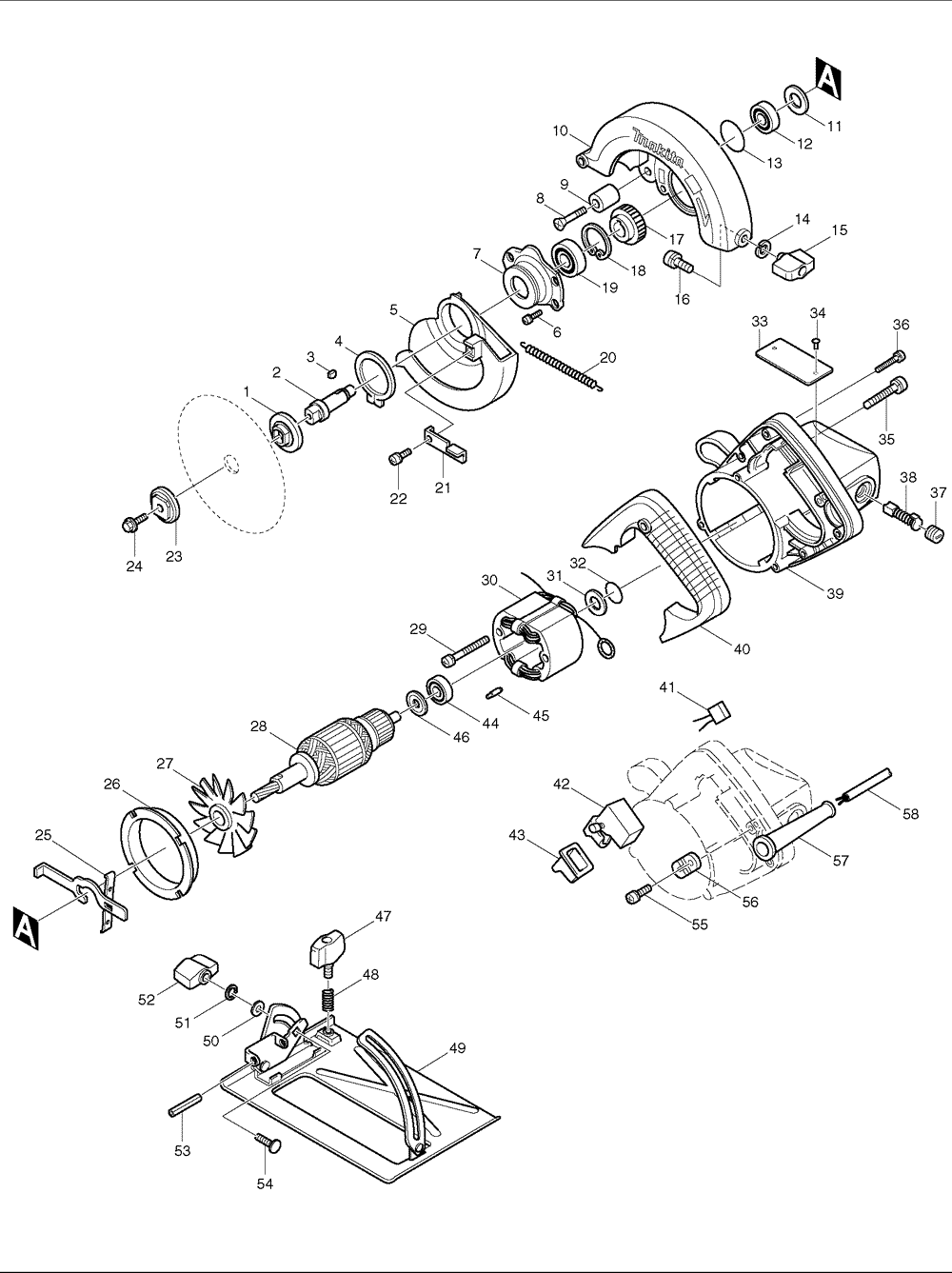

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	224131-3	INNER FLANGE, 5005BA	$13.18
28	512831-0	ARMATURE, 5005B	$100.30
2	321811-3	SPINDLE, 5005BA	$18.90
42	651331-6	SWITCH, 5005BA-T1	$29.47
46	681625-5	INS. WASHER, 5007NK	$1.63
3	254011-9	WOODRUFF KEY 4, 9557PB	$1.26
4	961155-5	RETAINING RING S-38, 4200H	$1.96
00	812166-2	INDICATION LABEL,SHAFT LOCK,LS1011	$0.64
5	315792-1	SAFETY COVER, 5005BA	$27.59
902	817667-5	CAUTION LABEL, 5005BA	$1.27
6	912122-3	C.S.H SCREW M4X14,5005BA	$0.53
00	214005-6	P. BEARING 8, 5005BA	$3.06
7	321767-0	HOUSING W/O BEARING, 5005BA	$26.92
00	321062-8	HOOK PIN, 5005BA	$1.26
8	251224-3	C.H. SCREW M6X28, 5005BA	$1.19
9	262501-8	RUBBER SLEEVE 6, 5005BA	$1.26
10	151182-2	BLADE CASE,5005BA	$48.24
11	253069-5	F. WASHER 12, 5005BA	$1.01
12	211101-1	BALL BEARING 6001LLB,9218PB	$13.07
13	213415-4	O RING 28, 5005BA	$1.96
14	942151-2	SPRING WASHER 6, 5007NB	$0.90
15	252624-0	KNOB M6, 5007NB	$3.06
16	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
17	221738-6	H. GEAR 44, 5005BA	$18.24
18	962151-6	RETAINING RING R-32, 9005B	$1.48
19	211106-1	B. BEARING 6201LLB, 9227C	$13.07
20	231730-4	TEN. SPRING 4, 5005BA	$4.16
21	342836-4	LEVER, 5005BA	$3.06
22	911111-5	P.H. SCREW M4X10, LS1011	$0.53
23	224427-2	OUTER FLANGE, 5005BA	$10.32
24	265226-3	H.F.H. BOLT M6X17, 5005BA	$1.96
25	163227-4	SHAFT LOCK, 5005BA	$4.49
26	343319-7	BAFFLE PLATE, 5005BA	$4.49
27	241104-1	FAN 70, 5005BA	$4.49
28	512831-0	ARMATURE, 5005B	$100.30
29	911681-4	P.H. SCREW M5X60, 9218PBL	$1.96
30	594146-7	FIELD, 5005BA, T2	$49.98
31	253192-6	F. WASHER 14, HR2400	$1.63
32	213262-3	O RING 18, 5005BA	$1.96
33	855142-3	NAME PLATE, 5005BA	$1.36
34	953106-2	RIVET 0-5, HM1500	$0.49
35	911263-2	P.H. SCREW M5X40, 4131	$1.74
36	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
37	643600-9	BRUSH CAP 6-10, 9005B	$1.63
38	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
39	159231-9	MOTOR HOUSING, 5005BA (T2)	$38.96
40	414712-3	HANDLE COVER, 4200N, T3, 5005BA	$8.78
42	651243-3	SWITCH, 5005BA	$17.58
43	421142-1	DUST COVER, 5005BA	$3.06
44	211033-2	B. BEARING 608LB, 5091D	$8.78
45	263014-2	RUBBER PIN 4, 9217SPC	$1.19
46	681625-5	INS. WASHER, 5007NK	$1.63
47	251858-2	SCREW M6X15, 5007NK	$3.61
48	231316-4	COMP. SPRING 7, 5005BA	$0.79
49	163226-6	BASE, 5005BA	$21.76
50	941151-9	F. WASHER 6, 5007NB	$0.75
51	942151-2	SPRING WASHER 6, 5007NB	$0.90
52	252624-0	KNOB M6, 5007NB	$3.06
53	951225-8	SPRING PIN 6-40, 5007NBA	$1.63
54	251919-8	C.S.N. BOLT M6X20, 5402NA	$1.34
55	911133-5	P.H. SCREW M4X18, N9501B	$0.86
56	687002-9	STRAIN RELIEF, 9217SPC	$0.97
57	682502-4	CORD GUARD 8-85, HP2010N	$2.51
57	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
58	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
58	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
400	164095-8	GUIDE RULE, 4200H	$12.60
401	782209-3	SOCKET WRENCH, 4200H	$6.40
901	953106-2	RIVET 0-5, HM1500	$0.49
902	810149-6	CAUTION LABEL, 5005BA	$1.30
