Makita 4390D Cordless Saw Parts

Makita 4390D Parts

9.6-Volt Cordless Recipro Saw

Download Schematic

Time to buy a new tool?

Makita 4390D

9.6-Volt Cordless Re...

$87.99

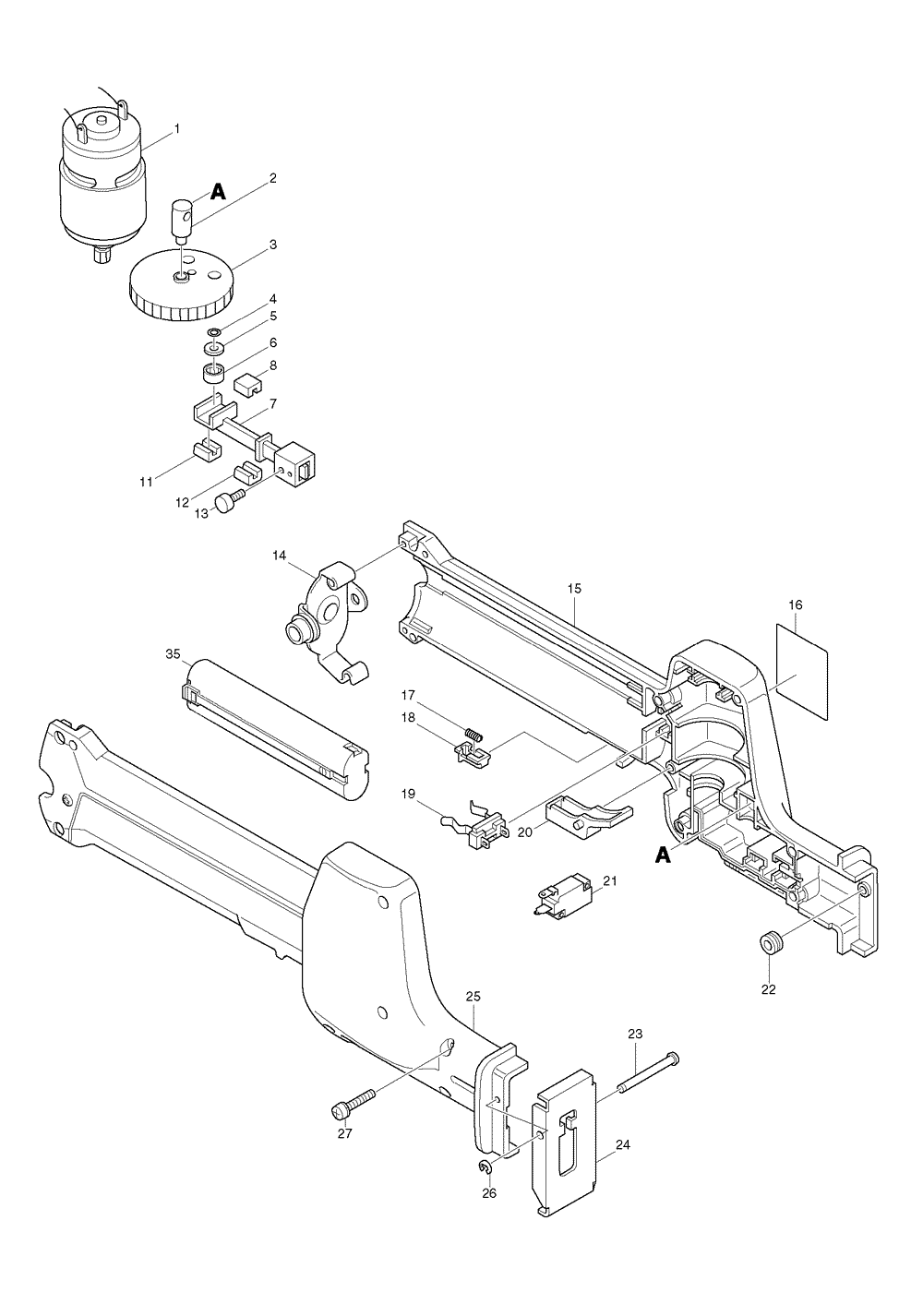

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	629581-1	MOTOR, 6093DW, T2	$34.98
00	256672-1	PIN 2, 4390D	$1.74
2	152272-4	SUPPORTER, 4300DW	$5.92
3	153202-8	GEAR,4390D,TYPE 2	$29.47
4	253307-5	T. WASHER, 4390D	$1.34
5	253874-0	F. WASHER 4, LS1016L	$1.34
6	212014-9	N.R. BEARING 407, BJV180	$11.97
7	154401-5	SLIDER, 4390DW, T2	$30.90
8	214020-0	P. BEARING 3, 4300DW	$3.06
11	214020-0	P. BEARING 3, 4300DW	$3.06
12	214020-0	P. BEARING 3, 4300DW	$3.06
13	922107-1	H.S.H. BOLT M4X8, 4329K	$1.34
15	182406-5	HOUSING SET, 4390DW, T3	$31.72
16	855903-1	NAME PLATE, 4390D	$1.12
17	231390-2	COMP. SPRING 3, UH3000D	$0.90
18	414169-8	LOCK-OFF LEVER, 4390D	$0.97
19	643909-9	BATTERY HOLDER, DA392D	$4.49
20	410972-5	TRIGGER, 4390DW	$3.06
22	322099-8	ROLLER, 4390DW	$4.49
23	256654-3	PIN 4, 4390DW	$3.61
24	343875-7	SHOE, 4390DW, T2	$4.49
25	182406-5	HOUSING SET, 4390DW, T3	$31.72
26	961017-7	STOP RING E-3, 4304, SH01	$0.53
27	911143-2	P.H. SCREW M4X22, 6211D	$0.86
403	414938-7	BATTERY COVER, 6222DWE	$2.20
