Makita 4334D Cordless Saw Parts

Makita 4334D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

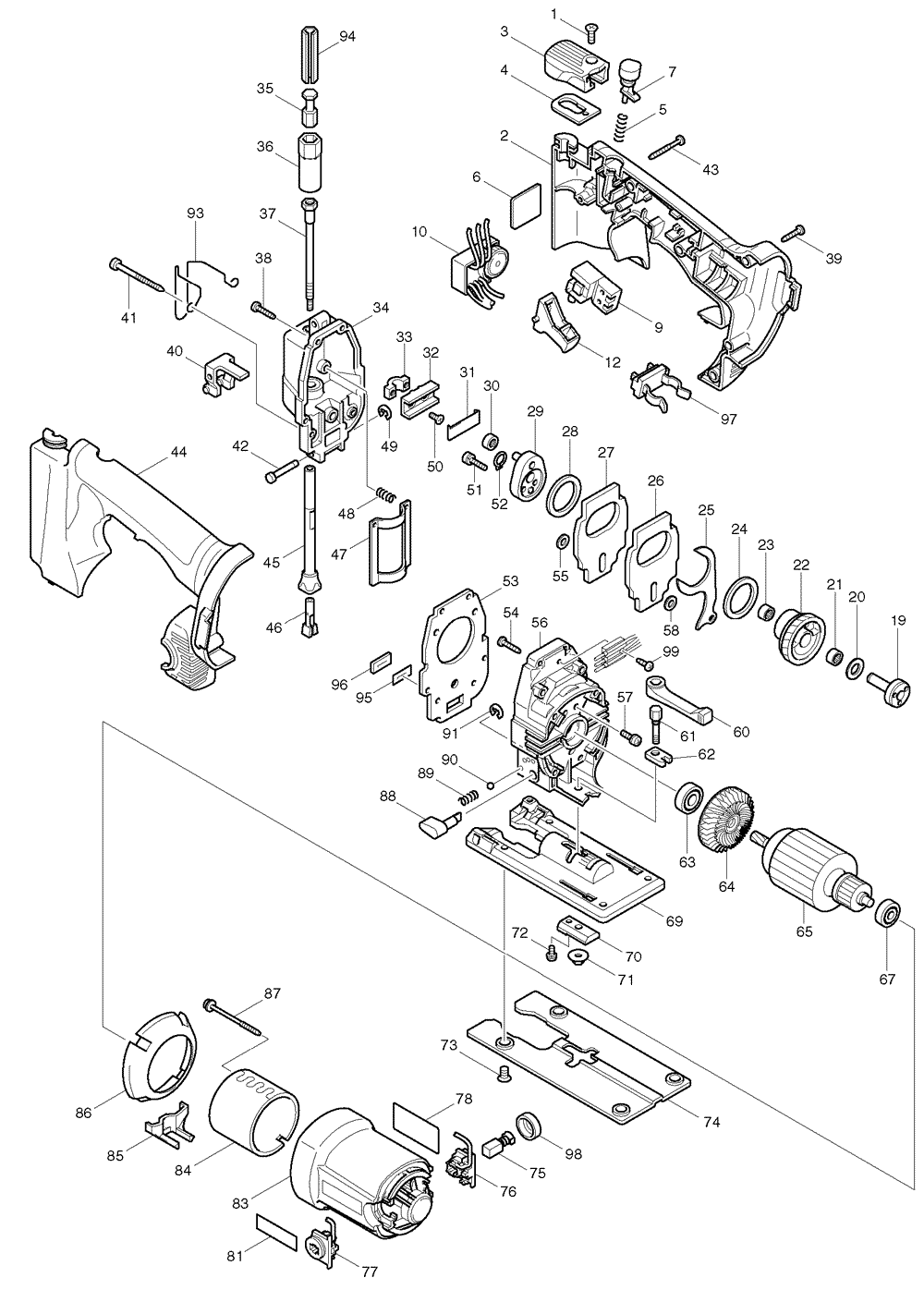

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	912102-9	C.S.H.SCREW M4X6,4304T	$0.53
2	183302-0	HANDLE SET, 4334DWD	$21.10
3	416370-1	LEVER 51, 4304T	$3.06
4	344331-0	INNER LEVER, 4304T	$3.06
5	233194-8	COMPRESSION SPRING 4, 5620DWA	$1.48
6	810835-9	CAUTION LABEL, 4304T	$2.51
7	416644-0	SWITCH BUTTON, 5620DWA	$16.04
9	651976-0	SWITCH TG72BD, BSS611Z	$13.84
10	631373-6	CONTROLLER, 4334DWD	$51.40
12	416642-4	SWITCH LEVER, 5620DWA	$1.63
19	322691-0	GEAR SHAFT, 4334DW	$15.27
20	253139-0	F. WASHER 8, 6510LVR	$1.34
21	212043-2	NEEDLE BEARING 8-10, N900	$3.06
22	226538-9	HELICAL GEAR, 4334DWD	$27.37
23	212043-2	NEEDLE BEARING 8-10, N900	$3.06
24	253792-2	F. WASHER 26, 4304	$1.63
25	344134-2	PUSH PLATE, 4304	$3.06
26	344330-2	BALANCE PLATE, 4304	$5.92
27	344330-2	BALANCE PLATE, 4304	$5.92
28	253792-2	F. WASHER 26, 4304	$1.63
29	152454-8	CRANK COMPLETE, 4304	$10.32
30	212010-7	N. BEARING 607, 4330DWA	$14.61
31	344232-2	THRUST PLATE, 4304	$0.97
32	310028-3	SLIDER, 4334D	$17.47
33	316608-3	HOLDER, 4304	$5.92
34	153389-6	GEAR HOUSING COVER, 4334DWD	$29.37
35	324097-8	CONNECTOR, 4334DWD	$2.84
36	416351-5	JOINT, 4304T	$1.52
37	322826-3	DRIVER ROD, 4304T	$5.92
38	266034-5	TAPPING SCREW 4X16, 9524NB	$0.53
39	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
40	152947-5	RETAINER CPL.,4334DWD	$8.12
41	266147-2	TAPPING SCREW 4X55, 6824	$1.96
42	256693-3	HEADED PIN 4, 4305	$5.37
43	266048-4	T. SCREW 4X40, BO4556	$1.19
44	183302-0	HANDLE SET, 4334DWD	$21.10
45	168282-1	ROD, 4304T	$21.76
46	310005-5	BLADE CLAMP,4304T	$13.29
47	344137-6	SLIDE PLATE, 4334DWD	$3.06
48	233151-6	COMPRESSION SPRING 4, 4304T	$1.48
49	961017-7	STOP RING E-3, 4304, SH01	$0.53
50	265035-0	C.S.H. SCREW M4X10, 4304	$1.48
51	922126-7	H.S.H. BOLT M4X16, 4330DWA	$1.34
52	961004-6	RETAINING RING S-8, DA391D	$0.53
53	442123-2	PACKING, 4304,T2	$0.97
54	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
55	253715-0	F. WASHER 6, NHP1310	$1.34
56	152771-6	GEAR HOUSING,4334DWD	$39.88
57	911111-5	P.H. SCREW M4X10, LS1011	$0.53
58	253715-0	F. WASHER 6, NHP1310	$1.34
60	272232-1	LEVER 65, 4304T	$2.84
61	265434-6	HEX BOLT M5X24, 4304T	$5.37
62	344332-8	NUT M6, 4304T	$4.16
63	211031-6	BALL BEARING 608LLB, 9227C	$10.98
64	241875-0	FAN 54, 4334DWD	$2.84
65	519064-8	ARMATURE ASS'Y, 4334DWD	$78.70
67	211021-9	BALL BEARING 607LLB, LS1013	$8.78
69	316777-0	BASE, 4304T	$17.47
70	344333-6	CLAMP PLATE, 4304T	$4.49
71	252142-8	HEX NUT FLANGE M5, 4304T	$3.61
72	911109-2	P.H. SCREW M4X8, HR2210	$0.86
73	912202-5	C.S.H. SCREW M5X8, 4110C	$0.53
74	344443-9	BASE PLATE, 4304T	$6.80
75	195022-4	CARBON BRUSH SET CB-441, BJR181	$4.71
76	643976-4	BRUSH HOLDER R, 4334DWD	$4.16
77	643977-2	BRUSH HOLDER L, 4334DWD	$4.16
78	852927-8	NAME PLATE, 4334D	$1.36
81	819080-3	MAKITA LABEL, 9565CV	$1.48
83	183324-0	MOTOR HOUSING SET, 4334DDW	$10.43
84	632828-4	YOKE UNIT, 5620DWA	$34.98
85	415879-0	AIR CAP, 4304T	$1.52
86	415878-2	BAFFLE PLATE, 4304T	$1.52
87	266209-6	TAPPING SCREW MT 4X60, 5620DWA	$1.96
88	272231-3	LEVER 17, 4304	$8.78
89	233151-6	COMPRESSION SPRING 4, 4304T	$1.48
89	231314-8	COMP. SPRING 4, 4301BV	$0.86
90	216008-6	STEEL BALL 4.0, 5007NK	$0.53
91	961018-5	STOP RING E-5, LS1011	$0.53
93	322893-8	SAFETY WIRE, 4304T	$2.84
94	344537-0	HEX SLEEVE, 4304T	$1.52
95	344784-3	SEAL PLATE, 4304T	$0.97
96	443106-5	FELT 10-20, 4304T	$0.75
97	643918-8	BATTERY HOLDER, 6391DWPLE	$8.01
98	643941-3	HOLDER CAP, BJR181	$4.49
99	911006-2	P.H. SCREW M3X8, 6233DWAE	$0.53
1002	414938-7	BATTERY COVER, 6222DWE	$2.20
1003	415524-7	ANTI SPLINTERING PLATE, 4304	$4.40
1004	415887-1	PROTECTOR, 4304T	$4.20
1005	193159-1	BATTERY 1834 18V NIMH, 8443DWDE	$152.20
1008	792729-9	JIG SAW BLADE, BR-13 5/PKG., 4304	$7.40
5001	414938-7	BATTERY COVER, 6222DWE	$2.20
5003	193159-1	BATTERY 1834 18V NIMH, 8443DWDE	$152.20
