Makita 4304T Electric Saw Parts

Makita 4304T Electric Saw Parts Image

Makita 4304T Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

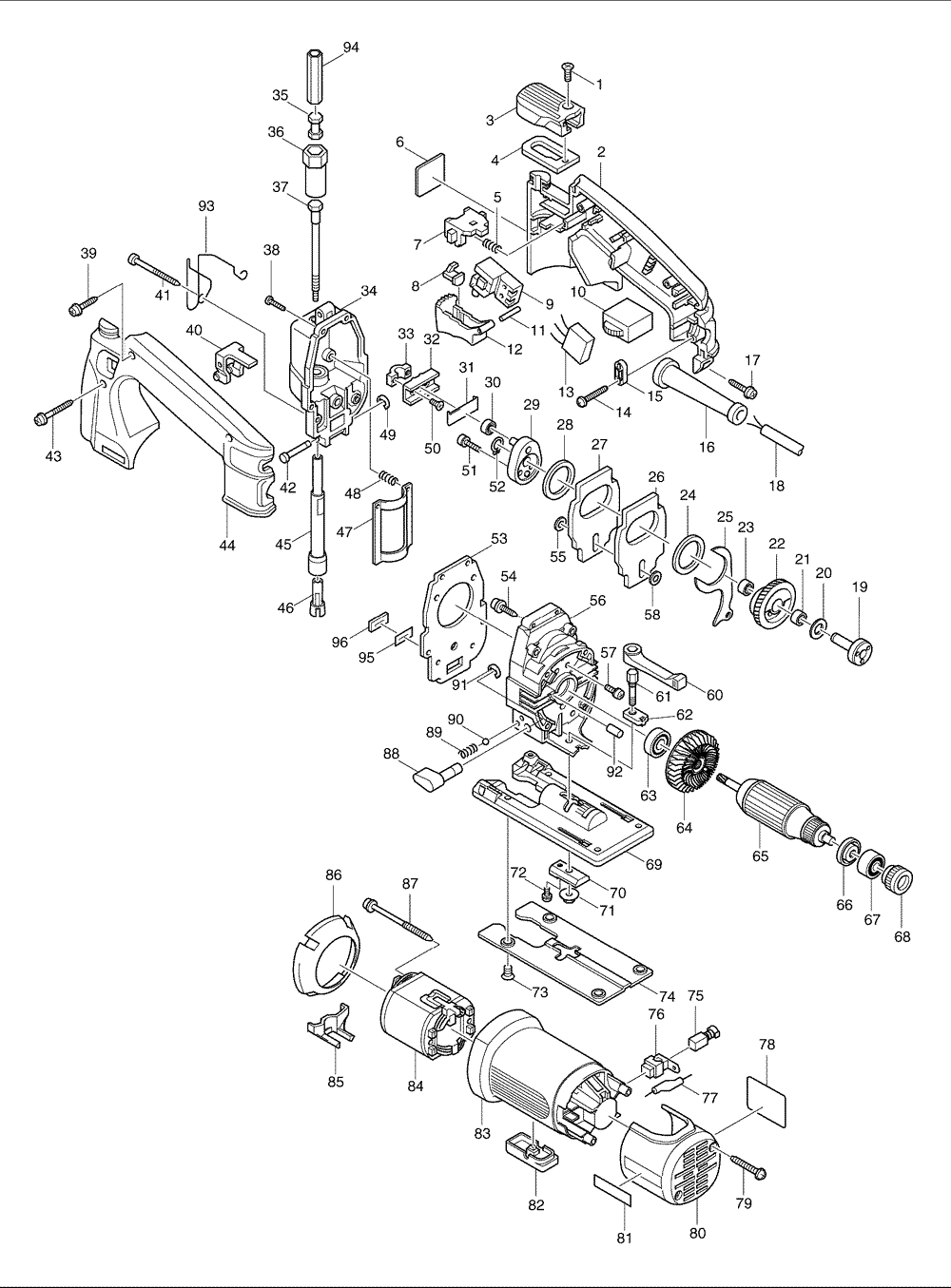

Makita 4304T Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 911109-2 P.H. SCREW M4X8, HR2210 $0.86
1 912102-9 C.S.H.SCREW M4X6,4304T $0.53
37 322826-3 DRIVER ROD, 4304T $5.92
2 182788-5 HANDLE SET, 4304T $15.93
3 416370-1 LEVER 51, 4304T $3.06
4 344331-0 INNER LEVER, 4304T $3.06
5 233101-1 COMPRESSION SPRING 4, 4304 $0.86
6 810835-9 CAUTION LABEL, 4304T $2.51
7 415880-5 LOCK ON LEVER, 4304T $1.63
8 415159-4 SPACER, 4304 $4.49
9 651922-3 SWITCH, HM1303B $19.45
10 631675-0 CONTROLLER, 4304 $18.35
11 256221-4 PIN 3, JR3020 $1.19
12 415158-6 SWITCH LEVER, JR3020 $4.49
14 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
15 687063-9 STRAIN RELIEF, 4323K $1.26
16 682502-4 CORD GUARD 8-85, HP2010N $2.51
16 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
17 266045-0 TAPPING SCREW 4X20, 9046 $1.19
18 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
18 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
19 322691-0 GEAR SHAFT, 4334DW $15.27
20 253139-0 F. WASHER 8, 6510LVR $1.34
21 212043-2 NEEDLE BEARING 8-10, N900 $3.06
22 226428-6 HELICAL GEAR 51, 4304 $43.86
23 212043-2 NEEDLE BEARING 8-10, N900 $3.06
24 253792-2 F. WASHER 26, 4304 $1.63
25 344134-2 PUSH PLATE, 4304 $3.06
26 344330-2 BALANCE PLATE, 4304 $5.92
26 344370-0 BALANCE PLATE, 4304T,T1 $3.61
27 344330-2 BALANCE PLATE, 4304 $5.92
27 344370-0 BALANCE PLATE, 4304T,T1 $3.61
28 253792-2 F. WASHER 26, 4304 $1.63
29 152454-8 CRANK COMPLETE, 4304 $10.32
30 212010-7 N. BEARING 607, 4330DWA $14.61
31 344232-2 THRUST PLATE, 4304 $0.97
32 310028-3 SLIDER, 4334D $17.47
33 316608-3 HOLDER, 4304 $5.92
34 153389-6 GEAR HOUSING COVER, 4334DWD $29.37
34 159716-5 GEAR HSG.COVER CPL., 4304, T1 $37.02
35 322839-4 CONNECTOR, 4304T $4.49
36 416351-5 JOINT, 4304T $1.52
37 322826-3 DRIVER ROD, 4304T $5.92
38 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
39 266045-0 TAPPING SCREW 4X20, 9046 $1.19
40 152947-5 RETAINER CPL.,4334DWD $8.12
41 266147-2 TAPPING SCREW 4X55, 6824 $1.96
42 256693-3 HEADED PIN 4, 4305 $5.37
43 266053-1 P.T. SCREW 4X35, 4304 $1.48
44 182788-5 HANDLE SET, 4304T $15.93
45 168282-1 ROD, 4304T $21.76
46 310005-5 BLADE CLAMP,4304T $13.29
47 344137-6 SLIDE PLATE, 4334DWD $3.06
48 233151-6 COMPRESSION SPRING 4, 4304T $1.48
49 961017-7 STOP RING E-3, 4304, SH01 $0.53
50 265035-0 C.S.H. SCREW M4X10, 4304 $1.48
51 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
52 961004-6 RETAINING RING S-8, DA391D $0.53
53 442123-2 PACKING, 4304,T2 $0.97
53 442119-3 PACKING, 4304,T1 $3.61
54 266045-0 TAPPING SCREW 4X20, 9046 $1.19
55 253715-0 F. WASHER 6, NHP1310 $1.34
56 151595-7 GEAR HOUSING CPL., 4304T,T2 $30.60
56 159852-7 GEAR HOUSING COMPLETE, 4304T,T1 $27.37
57 911111-5 P.H. SCREW M4X10, LS1011 $0.53
58 253715-0 F. WASHER 6, NHP1310 $1.34
60 272232-1 LEVER 65, 4304T $2.84
61 265434-6 HEX BOLT M5X24, 4304T $5.37
62 344332-8 NUT M6, 4304T $4.16
63 211031-6 BALL BEARING 608LLB, 9227C $10.98
64 241875-0 FAN 54, 4334DWD $2.84
64 240039-3 FAN 54, 4304 $1.63
65 517096-9 ARMATURE ASS'Y 115V, 4304 $92.10
66 681636-0 INSULATION WASHER, GA4030 $3.72
67 211021-9 BALL BEARING 607LLB, LS1013 $8.78
68 421494-0 LABYRINTH RUBBER RING,HR2455, DA3010F $4.49
69 316777-0 BASE, 4304T $17.47
70 344333-6 CLAMP PLATE, 4304T $4.49
71 252142-8 HEX NUT FLANGE M5, 4304T $3.61
72 911109-2 P.H. SCREW M4X8, HR2210 $0.86
73 912202-5 C.S.H. SCREW M5X8, 4110C $0.53
74 344443-9 BASE PLATE, 4304T $6.80
75 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
76 643923-5 BRUSH HOLDER, HR2410 $1.63
78 858235-5 NAME PLATE, 4304T $1.36
79 266050-7 P.T. SCREW 4X30, 4304 $1.19
80 415532-8 REAR COVER, 4304 $7.46
81 819080-3 MAKITA LABEL, 9565CV $1.48
82 415538-6 CAP, 4304 $1.52
83 415748-5 MOTOR HOUSING, 4304 $11.75
84 633286-7 FIELD 115V, 4304 $34.68
85 415879-0 AIR CAP, 4304T $1.52
86 415878-2 BAFFLE PLATE, 4304T $1.52
88 272231-3 LEVER 17, 4304 $8.78
89 233151-6 COMPRESSION SPRING 4, 4304T $1.48
90 216008-6 STEEL BALL 4.0, 5007NK $0.53
91 961018-5 STOP RING E-5, LS1011 $0.53
92 263002-9 RUBBER PIN 4, 5007NK $0.86
93 322893-8 SAFETY WIRE, 4304T $2.84
94 344537-0 HEX SLEEVE, 4304T $1.52
95 344784-3 SEAL PLATE, 4304T $0.97
96 443106-5 FELT 10-20, 4304T $0.75
1002 415887-1 PROTECTOR, 4304T $4.20
1003 415524-7 ANTI SPLINTERING PLATE, 4304 $4.40
1006 792729-9 JIG SAW BLADE, BR-13 5/PKG., 4304 $7.40
