Makita 4190D Cordless Saw Parts

Makita 4190D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

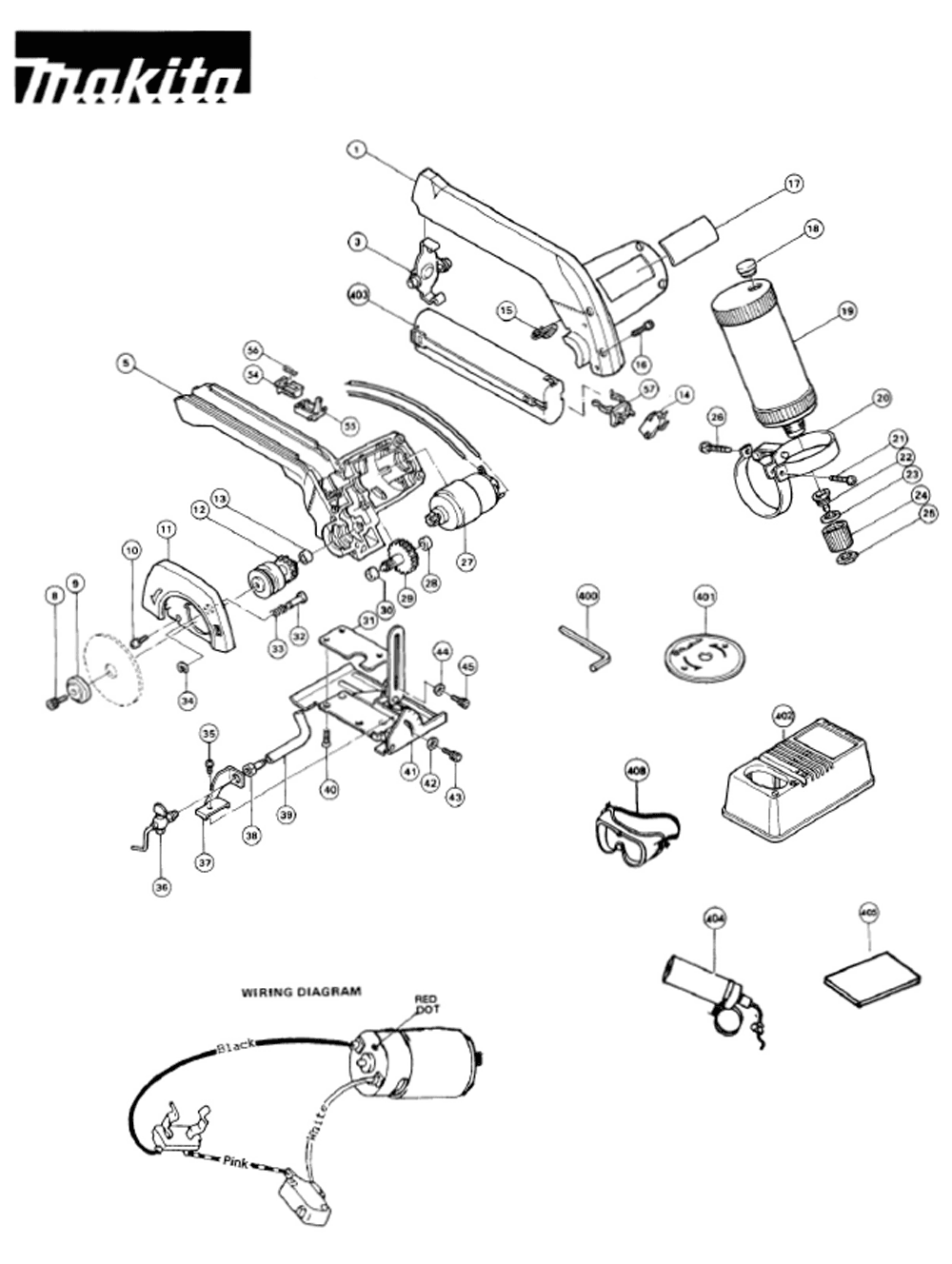

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	182025-7	HOUSING SET, 5081D	$40.29
1	183934-3	HOUSING SET, 5090DW	$29.58
2	256085-6	PIN 4, 4071D	$1.96
5	182025-7	HOUSING SET, 5081D	$40.29
5	183934-3	HOUSING SET, 5090DW	$29.58
8	922212-4	H.S.H. BOLT M5X12, HR3851	$1.08
9	224177-9	OUTER FLANGE, SH01W	$1.63
10	911121-2	P.H. SCREW M4X14, 9217SPC	$0.53
11	164872-8	BLADE CASE, 5090DW	$20.33
12	153132-3	GEAR, 5090DW	$26.72
13	214017-9	P. BEARING 5, 6043D	$1.26
15	232061-4	LEAF SPRING, 5090DW	$2.07
16	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
17	856034-9	NAME PLATE, 4190D	$1.12
18	421198-4	PLUG, 4190DW	$3.06
20	163159-5	TANK HOLDER, 4190DW	$11.97
21	911146-6	P.H. SCREW M4X25, 4200H	$0.53
22	321512-3	METALLIC CAP, 4190DW	$3.06
23	261056-0	RUBBER WASHER 12, 4190DW	$1.34
24	411988-3	CAP, 4190DW	$1.63
26	911146-6	P.H. SCREW M4X25, 4200H	$0.53
27	629574-8	MOTOR, 5090DW	$34.98
28	214019-5	P. BEARING 4, 6043D	$1.26
29	226053-3	GEAR 11-67, 5080DW (TYPE 1)	$13.84
30	214019-5	P. BEARING 4, 6043D	$1.26
31	423070-6	PACKING, 4190DW	$2.84
32	256625-0	PIN 5, 5090D	$3.61
33	231098-8	COMP. SPRING 6, 5090DW	$0.86
34	961011-9	STOP RING E-4, 4301BV	$1.48
35	911101-8	P.H. SCREW M4X6, LS1020	$0.53
37	343517-3	VALVE HOLDER, 4190DW	$4.49
38	323601-0	NUT, 4190DW	$4.71
40	912222-9	C.S.H. SCREW M5X16, BO3710	$0.86
41	163281-8	BASE, 5090DW	$26.92
42	253184-5	F. WASHER 5, 5090DW	$1.01
43	922206-9	H.S.H. BOLT M5X10, 5090DW	$1.34
44	253184-5	F. WASHER 5, 5090DW	$1.01
45	922206-9	H.S.H. BOLT M5X10, 5090DW	$1.34
54	414169-8	LOCK-OFF LEVER, 4390D	$0.97
55	414168-0	SWITCH LEVER, UH3000D	$1.41
56	231390-2	COMP. SPRING 3, UH3000D	$0.90
57	643909-9	BATTERY HOLDER, DA392D	$4.49
60	343530-1	BAND B, 4190DW	$4.49
400	783202-0	HEX WRENCH 4, JR3000V	$3.24
402	414938-7	BATTERY COVER, 6222DWE	$2.20
