Makita 3803A Electric Saw Parts

Makita 3803A Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

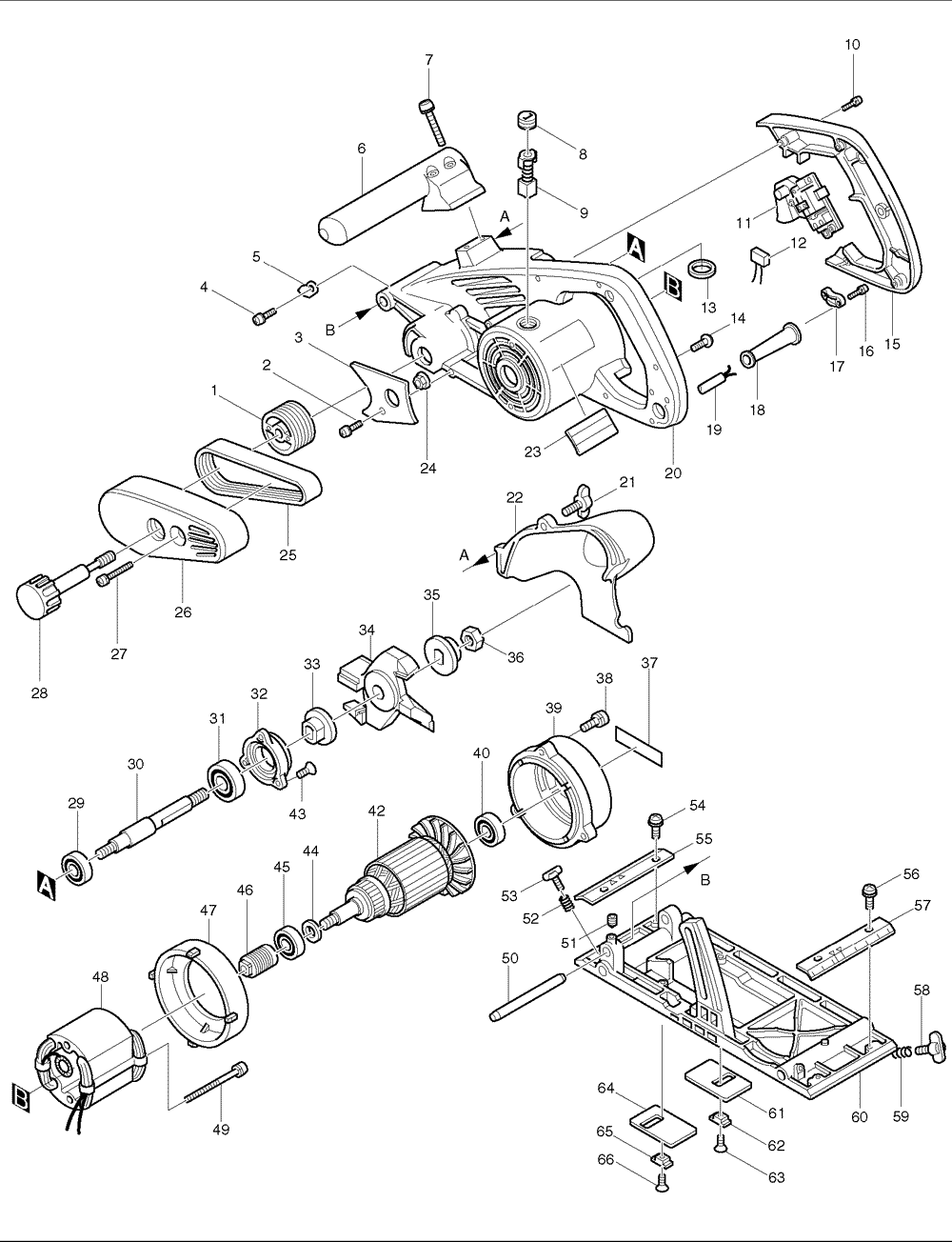

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	222124-4	V PULLEY 9-49, 3803A	$16.04
2	911109-2	P.H. SCREW M4X8, HR2210	$0.86
3	343873-1	INNER COVER, 3803A	$4.16
4	911109-2	P.H. SCREW M4X8, HR2210	$0.86
5	344032-0	POINTER, 3803A	$3.06
6	273502-1	GRIP 30, 3803A	$10.32
7	911363-8	P.H. SCREW M6X40, LS1211	$1.48
8	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
9	CB154	CARBON BRUSH SET, Replacement of 194986-9	$8.12
9	K21	Carbon Brush Set Replaces Makita (CB-154), 18104...	$8.50
10	911133-5	P.H. SCREW M4X18, N9501B	$0.86
11	651053-8	SWITCH, 3803A	$27.04
13	681002-1	INS. WASHER, 2012	$1.01
14	652014-1	P.H. SCREW M4X8, 2708	$0.75
15	316367-9	HANDLE COVER, 3803A	$18.90
16	911133-5	P.H. SCREW M4X18, N9501B	$0.86
17	687052-4	STRAIN RELIEF, HM1500B	$1.26
18	682505-8	CORD GUARD, 2711	$2.51
18	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
19	664754-9	CORD (3X16X16 SJ), 5201NA	$39.88
19	EC163	Power Tools Replacement Electical Cords (SJO) 16...	$15.19
20	159545-6	MOTOR HOUSING CPL.,3803A	$118.25
21	265708-5	SCREW M6X20, LS1011	$3.61
22	316368-7	CUTTER COVER, 3803A	$21.76
23	857170-4	NAME PLATE, 3803A	$1.36
24	252131-3	HEX NUT M8, 3803A	$1.34
25	225076-8	POLY V-BELT 9-362, 3803A	$48.75
26	343874-9	BELT COVER, 3803A	$17.47
27	911263-2	P.H. SCREW M5X40, 4131	$1.74
28	271295-4	KNOB 40, 3803A	$14.61
29	211106-1	B. BEARING 6201LLB, 9227C	$13.07
30	322584-1	SPINDLE, 3803A	$29.58
31	211211-4	BALL BEARING 6302LLB, HM1500	$19.56
32	316371-8	HOUSING W/O BEARING, 3803A	$8.78
36	931602-0	HEX NUT M12, 2708	$1.34
37	819064-1	MAKITA MARK, 5402NA	$1.26
38	911233-1	P.H. SCREW M5X20, TW1000	$0.86
39	316372-6	BRACKETT, 3803A	$21.76
40	211066-7	B. BEARING 6200LLB, BO4552	$10.98
41	241857-2	FAN 83, 3803A	$5.92
42	514981-7	ARMATURE ASS'Y 115V, 3803A	$149.48
43	912116-8	C.S.H. SCREW M4X12, 5201NA	$0.86
44	253071-8	F. WASHER 12, 8411DW	$1.34
45	211106-1	B. BEARING 6201LLB, 9227C	$13.07
46	222123-6	V PULLEY 9-21 (L), 3803A	$7.46
47	414926-4	BAFFLE PLATE, 3803A	$4.49
49	911290-9	P.H. SCREW M5X65, GA7911	$1.96
50	322585-9	ROD 10, 3803A	$4.49
51	911212-9	P.H. SCREW M5X12, 2711	$0.53
52	231005-1	COMP. SPRING 7, 3601B	$0.86
53	265708-5	SCREW M6X20, LS1011	$3.61
54	911109-2	P.H. SCREW M4X8, HR2210	$0.86
55	816735-1	SCALE PLATE, 3803A	$4.49
56	911109-2	P.H. SCREW M4X8, HR2210	$0.86
57	816736-9	SCALE PLATE, 3803A	$4.49
58	265708-5	SCREW M6X20, LS1011	$3.61
59	231005-1	COMP. SPRING 7, 3601B	$0.86
60	316369-5	BASE, 3803A	$90.50
61	414960-4	SIDE PLATE 21-30, 3803A	$4.49
62	313061-4	SIDE PLATE RETAINER, 3803A	$4.49
63	251388-3	C.S.H SCREW M4, 3803A	$1.48
64	414960-4	SIDE PLATE 21-30, 3803A	$4.49
65	313061-4	SIDE PLATE RETAINER, 3803A	$4.49
66	251388-3	C.S.H SCREW M4, 3803A	$1.48
1005	911308-6	SCREW M6X10, 2414NB	$1.19
1011	781029-2	WRENCH 21, 3601B	$4.40
