Makita 2705 Electric Saw Parts

Makita 2705 Electric Saw Parts Image

Makita 2705 Parts
10 Inch Contractor Table Saw (Replacement of 2703)

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 2705
10 Inch Contractor T...
$555.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Tool Diagram    (Click image to Zoom in) View larger Image

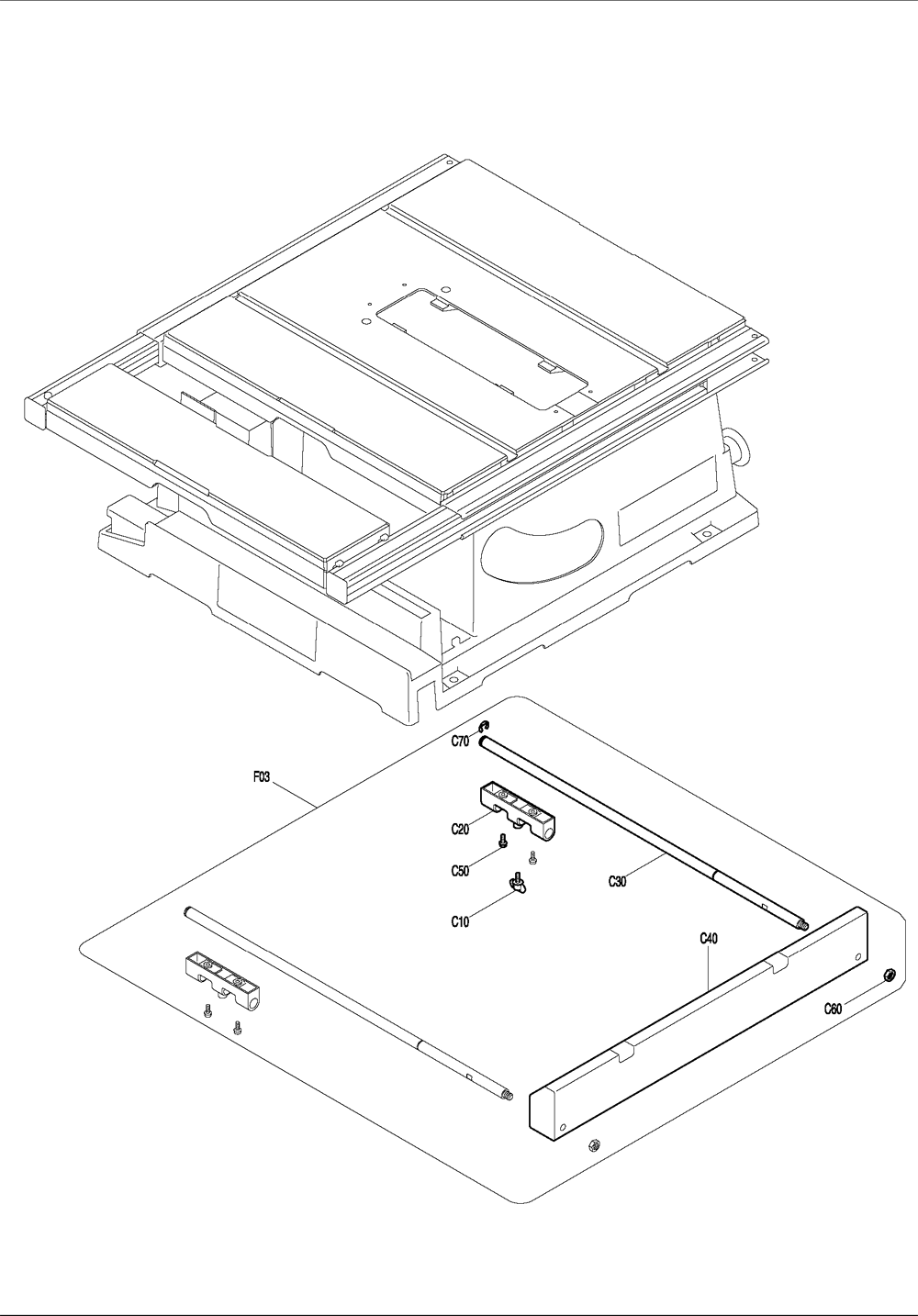

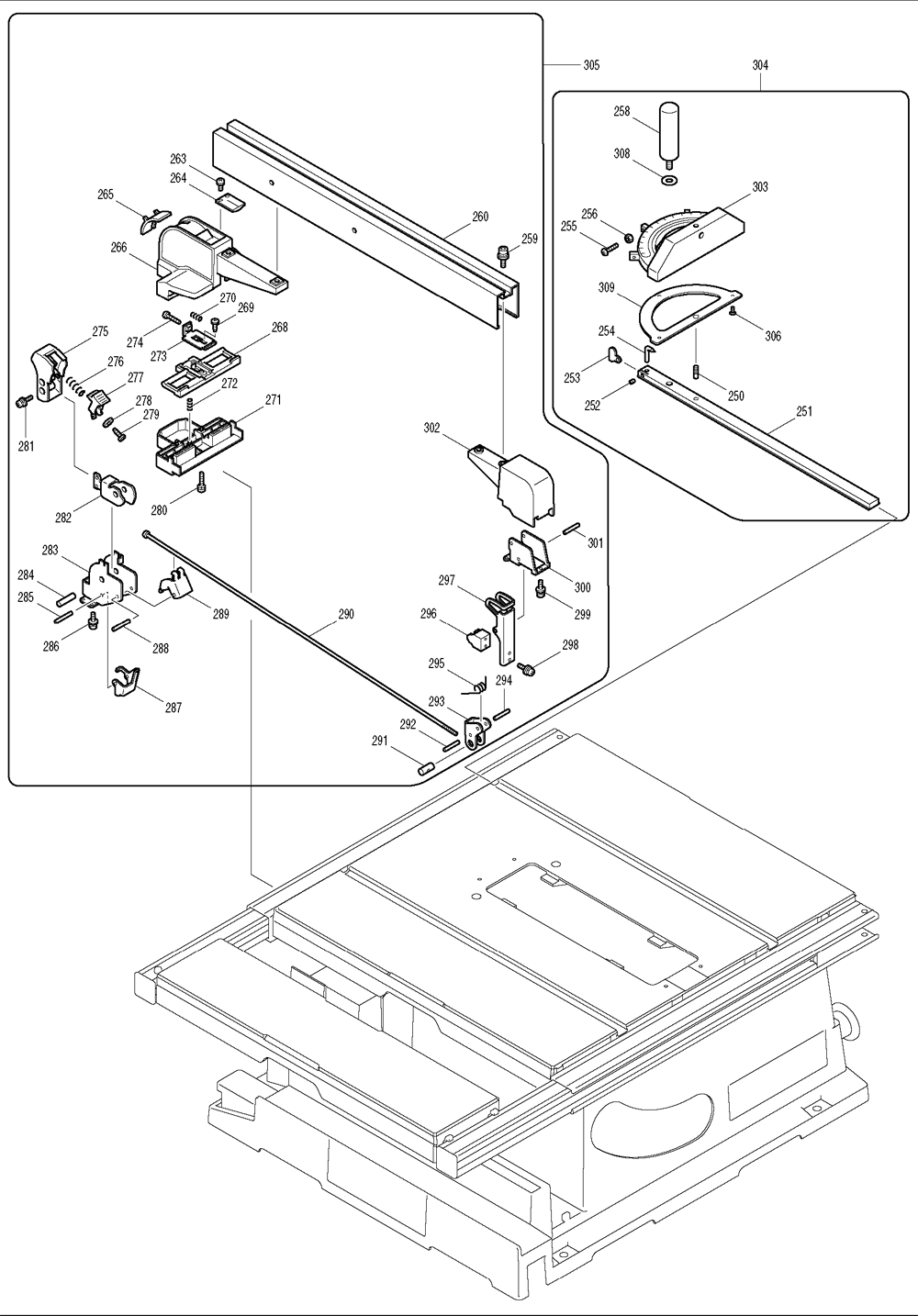

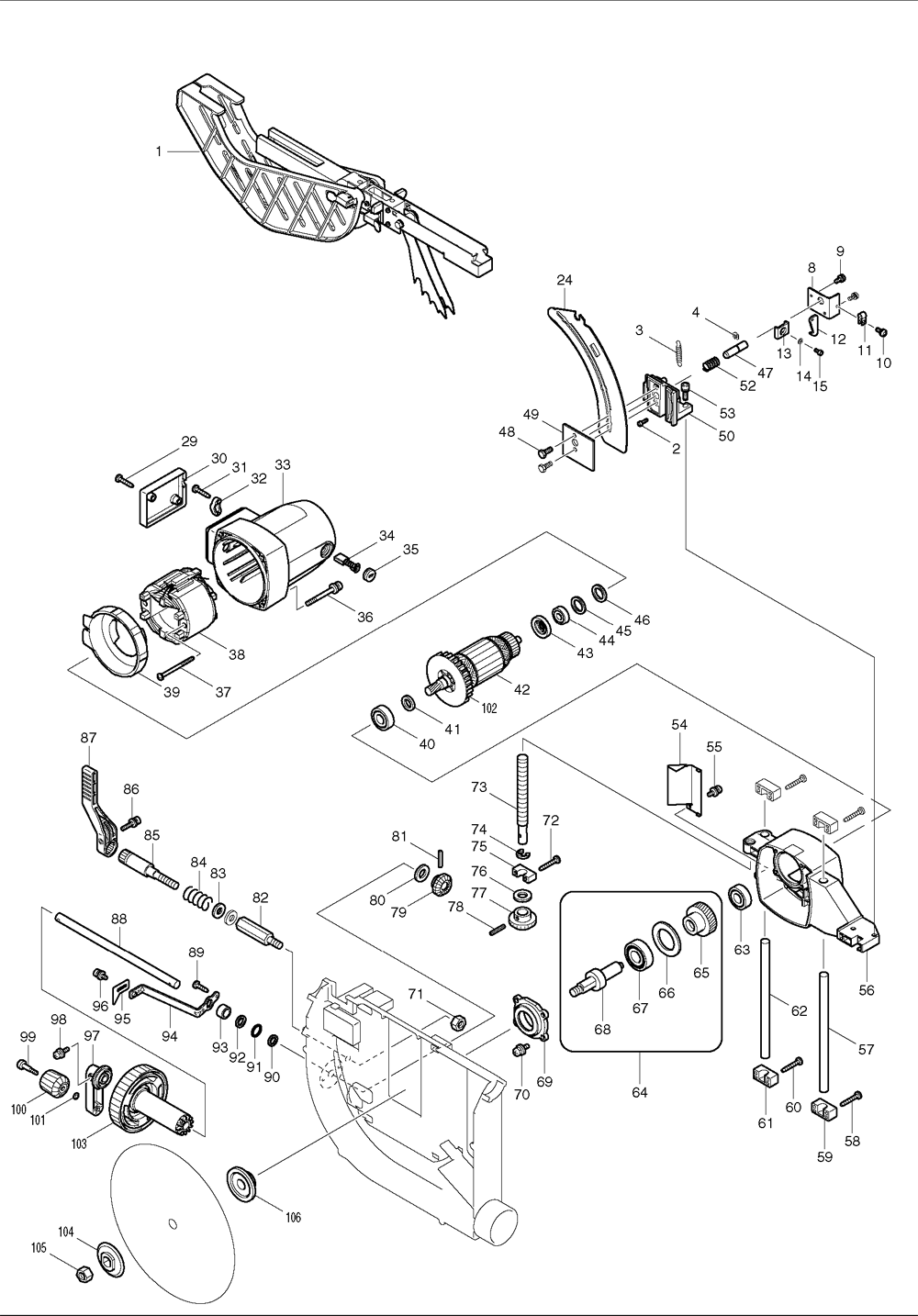

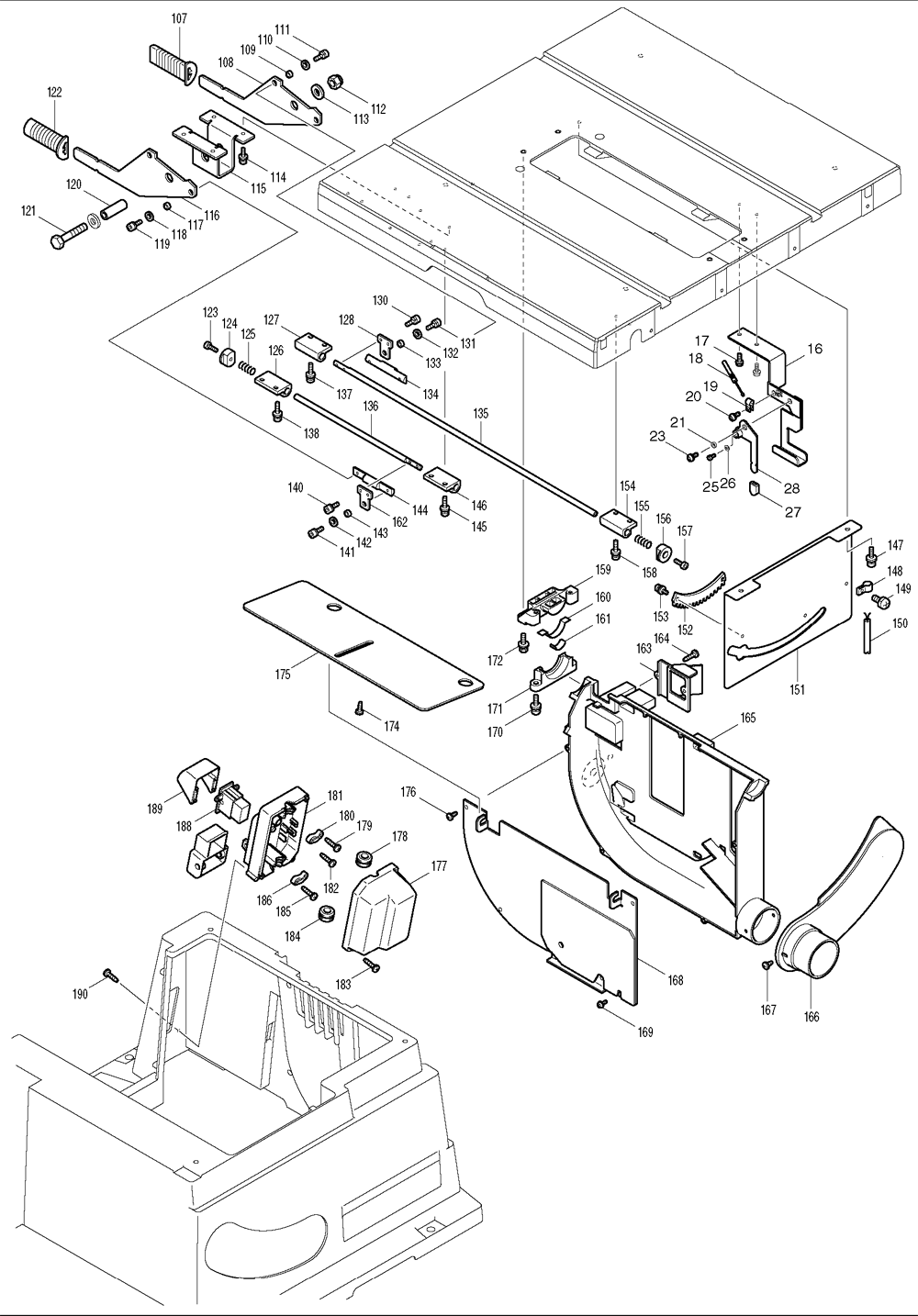

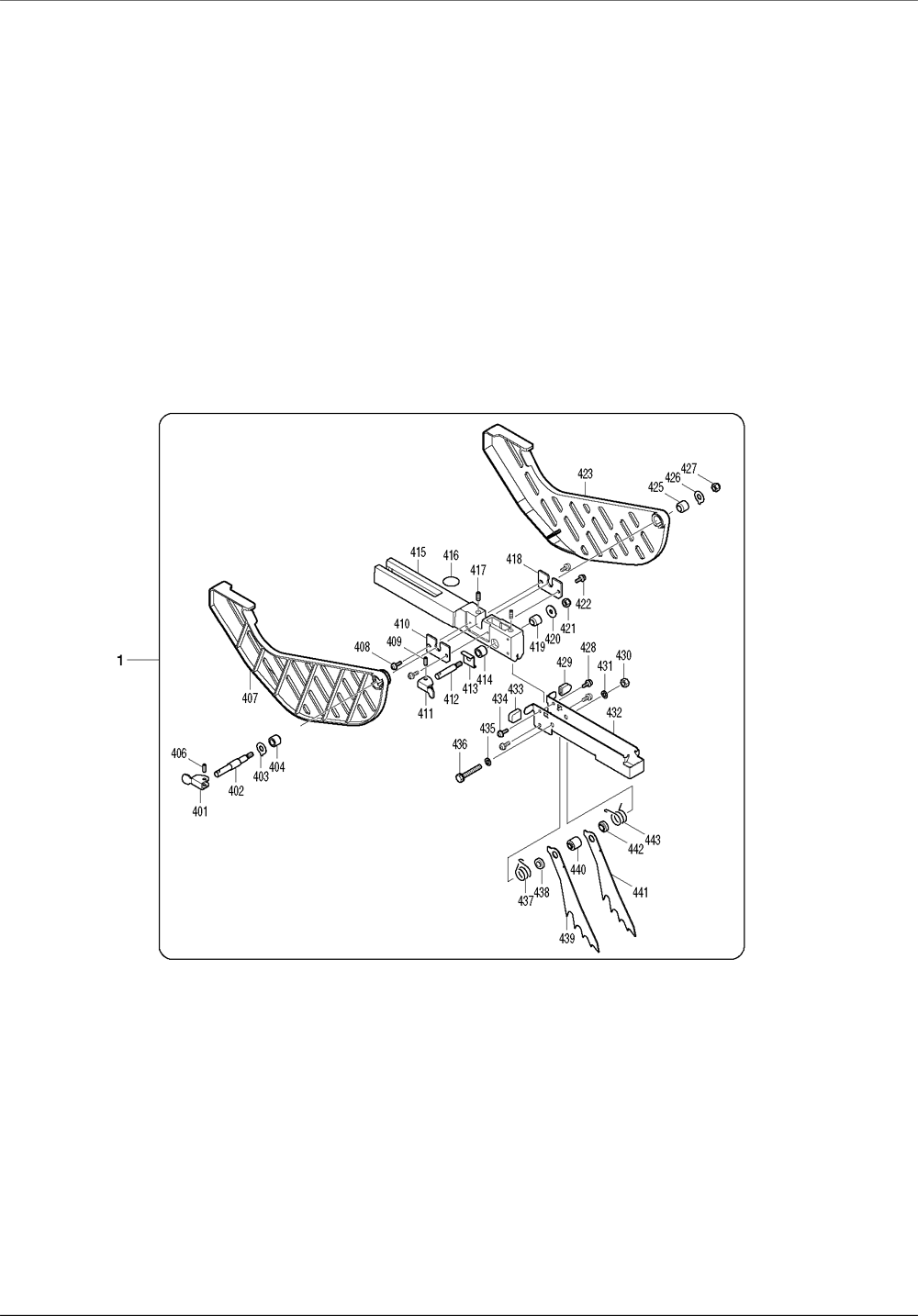

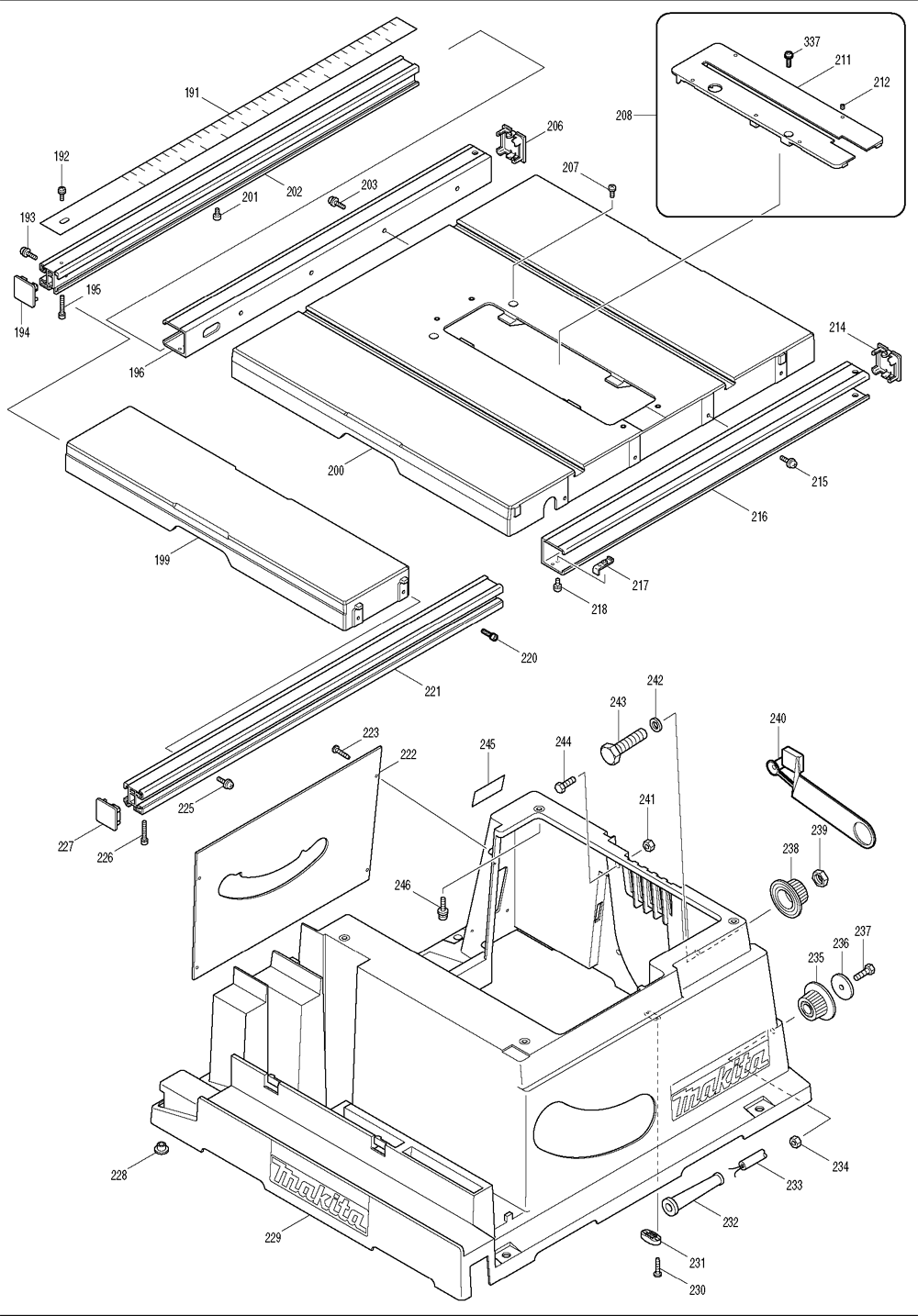

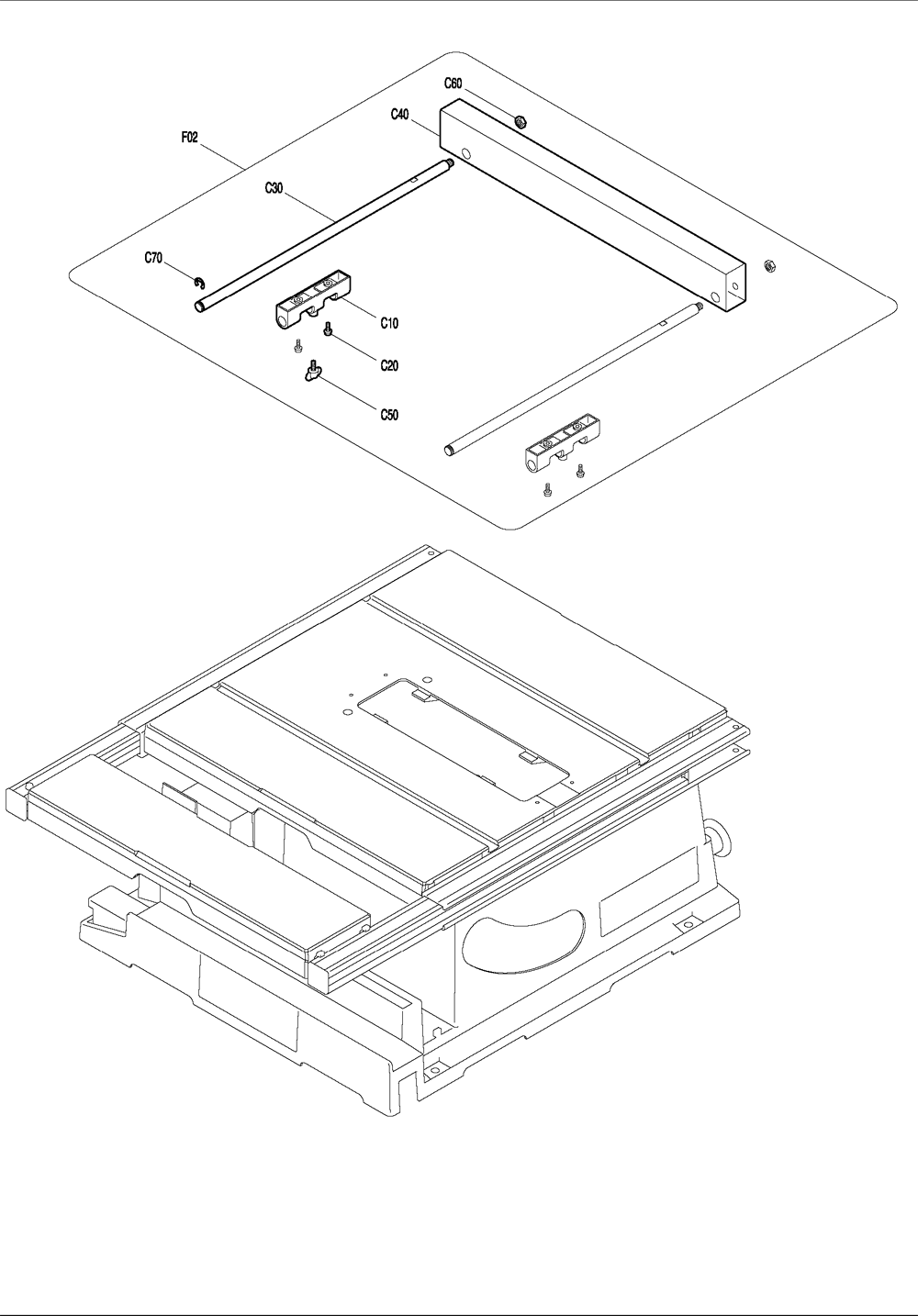

Makita 2705 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 122820-3 MODULAR BLADE GUARD SYSTEM, 2705 $86.80
00 346068-5 PLATE, 2705 $4.71
2 266273-7 H.S.H. BOLT M4X12, HR2450F $1.34
00 654164-8 INSULATED RECEPTACLE-250A, 2705 $0.90
3 231793-0 TENSION SPRING 5, AN451 $3.50
4 961013-5 STOP RING E-7, JN3200 $0.53
8 346089-7 SUPPORT PLATE, 2705 $1.34
9 911113-1 P.H. SCREW M4X10, 4301BV $0.86
10 911213-7 P.H. SCREW M5X12, LS1040 $0.86
11 687668-5 STRAIN RELIEF, 2705 $1.12
12 345938-5 HOOK PLATE, 2705 $0.90
13 346090-2 WIRE HOLDER, 2705 $0.90
14 941052-1 F. WASHER 4, 9218SB $0.75
15 911113-1 P.H. SCREW M4X10, 4301BV $0.86
15 922107-1 H.S.H. BOLT M4X8, 4329K $1.34
16 165531-7 LEVER STAY, 2705 $3.61
17 911213-7 P.H. SCREW M5X12, LS1040 $0.86
18 168479-2 WIRE, 2705 $3.61
19 687668-5 STRAIN RELIEF, 2705 $1.12
20 911213-7 P.H. SCREW M5X12, LS1040 $0.86
21 257672-4 SLEEVE 5, 2705 $1.34
23 911213-7 P.H. SCREW M5X12, LS1040 $0.86
24 345940-8 RIVING KNIFE, 2705 $4.71
25 922107-1 H.S.H. BOLT M4X8, 4329K $1.34
26 941052-1 F. WASHER 4, 9218SB $0.75
27 421818-0 RUBBER CAP, 3707FC $1.52
28 165509-0 RELEASE LEVER, 2705 $2.51
29 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
30 416341-8 COVER, 2702 $3.06
31 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
32 687054-0 STRAIN RELIEF, HM1800 $0.97
33 154602-5 MOTOR HOUSING CPL.,2704 $19.78
34 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
35 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
36 911383-2 P.H. SCREW M6X60, LS1030 $1.96
37 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
38 596181-1 FIELD ASS'Y 115V, 2702 $65.90
39 416331-1 BAFFLE PLATE, 2702 $3.06
40 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
41 253147-1 F. WASHER 15, 5037NB $1.63
42 510070-6 ARMATURE ASS'Y 115V, 2704 $75.20
43 681640-9 INSULATION WASHER, LS1040 $2.18
44 211088-7 BALL BEARING 6000DDW, 9005B $13.07
45 253198-4 F. WASHER 18, JS3200 $2.18
46 261129-9 URETHANE WASHER 18, 2704 $2.18
47 325674-9 PRESSURE SHAFT, 2705 $1.34
48 265381-1 HEX. BOLT M6X16, LS711DWBEK $1.48
49 345936-9 PRESSURE PLATE, 2705 $1.34
50 318282-3 KNIFE HOLDER, 2705 $8.12
52 234109-8 COMPRESSION SPRING 12, 2705 $0.66
53 922334-0 H.S.H.BOLT M6X20, LS1211 $2.40
54 344536-2 GEAR HOUSING PLATE, 2702 $3.17
55 911213-7 P.H. SCREW M5X12, LS1040 $0.86
56 158736-6 GEAR HOUSING COMPLETE, 2705 $26.27
57 323736-7 GUIDE BAR, 2702 $10.32
58 266040-0 TAPPING SCREW, 2012NB $0.86
59 416340-0 GUIDE BAR RETAINER, 2702 $1.26
60 266040-0 TAPPING SCREW, 2012NB $0.86
61 416340-0 GUIDE BAR RETAINER, 2702 $1.26
62 323736-7 GUIDE BAR, 2702 $10.32
63 211051-0 BALL BEARING 609LLB HR2400 $15.27
64 154595-6 SPINDLE CPL.,2704 $25.06
65 226602-6 HELICAL GEAR 42, 2704 $10.21
66 267170-0 FLAT WASHER 34, 2702 $2.18
67 211278-2 BALL BEARING 6203DDW, 5077B (T2) $10.98
68 324556-2 SPINDLE, 2704 $7.02
69 316933-2 HOUSING W/O BEARING, 2702 $5.48
70 911233-1 P.H. SCREW M5X20, TW1000 $0.86
71 931502-4 HEX NUT M10, 2711 $1.34
72 266040-0 TAPPING SCREW, 2012NB $0.86
73 322968-3 SCREW BAR, 2702 $7.46
74 961016-9 STOP RING E-10, BJR182 $0.86
75 416339-5 SCREW BAR RETAINER, 2702 $0.97
76 941302-4 F. WASHER 12, 2702 $1.01
77 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
78 951116-3 SPRING PIN 4-20, 9031 $1.48
79 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
80 941302-4 F. WASHER 12, 2702 $1.01
81 951116-3 SPRING PIN 4-20, 9031 $1.48
82 324562-7 LOCK LEVER CONNECTOR, 2704 $2.84
83 253024-7 F. WASHER 10, LS0714 $1.34
84 231315-6 COMP. SPRING 14, 2702 $2.07
85 322967-5 LOCK LEVER SHAFT, 2702 $10.32
86 922232-8 H.S.H. BOLT M5X20, JS3200 $1.08
87 272248-6 LEVER 120, 2705 $4.16
88 324563-5 HANDLE SHAFT, 2704 $2.84
89 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
90 253143-9 F. WASHER 12, 2702 $1.63
91 213107-5 O RING 12, JR3000V $0.86
92 253052-2 F. WASHER 12, 9031 $1.34
93 214114-1 PLANE BEARING 12, 6410 $1.63
94 345520-0 STAY, 2704 $1.52
95 344543-5 POINTER, 2702 $1.63
96 922103-9 H. S. H. BOLT M4X6,2702 $1.34
97 271074-0 ARM 60, 2704 $2.84
98 911223-4 P.H. SCREW M5X16, 5007NK $0.86
99 251382-5 P.H.SCREW M5, 2704 $1.74
100 271423-1 KNOB 32, 2704 $2.84
101 267010-2 F. WASHER 5, AN451 $1.63
102 240003-4 FAN 80, 5007NK $4.16
103 271073-2 HANDLE 100, 2704 $5.26
104 224347-0 OUTER FLANGE 53, 2702 $5.92
105 252155-9 HEX NUT M12-19, 2702 $1.96
106 224401-0 INNER FLANGE 53, 2704 $4.16
107 273523-3 GRIP, 2704 $1.26
108 345534-9 HANDLE PLATE, 2704 $4.16
109 257161-9 RING 4, 2704 $4.16
110 941051-3 F. WASHER 4, 2107F $0.75
111 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
112 252130-5 HEX LOCK NUT M10 LS1211 $4.16
113 941251-5 F. WASHER 10, LS1030 $1.01
114 911223-4 P.H. SCREW M5X16, 5007NK $0.86
115 345539-9 HANDLE PLATE HOLDER, 2704 $4.16
116 345534-9 HANDLE PLATE, 2704 $4.16
117 257161-9 RING 4, 2704 $4.16
118 941051-3 F. WASHER 4, 2107F $0.75
119 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
120 257753-4 SLEEVE 10, 2704 $1.26
121 265536-8 HEX. BOLT M16X65, 2704 $3.28
122 273523-3 GRIP, 2704 $1.26
123 265382-9 H.S.H BOLT M5X20, 2704 $1.59
124 324559-6 HOOK RING, 2704 $1.26
125 233229-5 COMP. SPRING 8, 2704 $1.63
126 418655-1 ROD HOLDER, 2704 $2.84
127 418655-1 ROD HOLDER, 2704 $2.84
128 345535-7 JOINT PLATE, 2704 $0.97
130 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
131 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
132 941051-3 F. WASHER 4, 2107F $0.75
133 257161-9 RING 4, 2704 $4.16
134 324675-4 ROD JOINT, 2704 $2.84
135 324673-8 ROD R, 2704 $2.84
136 324674-6 ROD F, 2704 $2.84
137 911128-8 P.H. SCREW M4X16, 1902 $1.48
138 911128-8 P.H. SCREW M4X16, 1902 $1.48
140 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
141 922116-0 H.S.H.BOLT M4X12, 2704 $1.34
142 941051-3 F. WASHER 4, 2107F $0.75
143 257161-9 RING 4, 2704 $4.16
144 324675-4 ROD JOINT, 2704 $2.84
145 911128-8 P.H. SCREW M4X16, 1902 $1.48
146 418655-1 ROD HOLDER, 2704 $2.84
147 911323-0 P.H. SCREW M6X16, LS1211 $1.19
148 687049-3 STRAIN RELIEF, 2703 $0.75
149 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
150 664084-8 POWER CORD (#14-3-0.5), 2704 $7.02
151 345628-0 PLATE, 2703 $5.92
152 416333-7 RACK PLATE, 2702 $3.06
153 911213-7 P.H. SCREW M5X12, LS1040 $0.86
154 418655-1 ROD HOLDER, 2704 $2.84
155 233229-5 COMP. SPRING 8, 2704 $1.63
156 324559-6 HOOK RING, 2704 $1.26
157 265382-9 H.S.H BOLT M5X20, 2704 $1.59
158 911128-8 P.H. SCREW M4X16, 1902 $1.48
159 318020-3 ADJUST BLOCK, 2704 $4.16
160 344529-9 SLIDE SEAT, 2702 $1.26
161 232174-1 LEAF SPRING, 2702 $1.96
162 345535-7 JOINT PLATE, 2704 $0.97
163 416439-1 DUST GUIDE, 2702 $3.06
164 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
165 318253-0 FRAME,2705 $19.45
166 418917-7 DUST JOINT, 2704 $5.48
167 266061-2 T. SCREW BIND CT4X8, JN1601 $0.53
168 154599-8 FRAME COVER CPL.,2704 $9.33
169 911114-9 P.H. SCREW M4X10, LS1013FL $0.86
170 911333-7 SCREW M6X20, 2414B $1.19
171 416332-9 FRAME RETAINER, 2702 $3.06
172 265460-5 HEX BOLT M6X20, 2702 $1.34
174 266300-0 TAPPING SCREW 4X18, 2704 $1.74
175 413097-4 SLIDE COVER, 2704 $10.65
176 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
177 418918-5 SWITCH BOX, 2704 $4.16
178 682511-3 GROMMET, 2704 $1.23
179 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
180 687054-0 STRAIN RELIEF, HM1800 $0.97
181 418911-9 SWITCH BASE, 2704 $4.16
182 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
183 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
184 682511-3 GROMMET, 2704 $1.23
185 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
186 687052-4 STRAIN RELIEF, HM1500B $1.26
188 651573-2 SWITCH ART-2220-1C, 2704 $7.02
189 418909-6 SWITCH COVER, 2704 $2.84
190 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
191 816835-7 E PLATE, 2704 $2.84
192 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
193 911253-5 P.H. SCREW M5X30, 2030S $1.19
194 418908-8 INNER RAIL END, 2704 $2.84
195 922146-1 H.S.H. BOLT M4X25, 6830 $1.34
196 154596-4 F. OUTER RAIL CPL.,2704 $15.93
199 317877-9 SUB TABLE, 2704 $47.53
200 158735-8 TABLE COMPLETE, 2705 $167.04
201 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
202 158104-3 FRONT INNER RAIL COMPLETE, 2705 $31.72
203 911233-1 P.H. SCREW M5X20, TW1000 $0.86
206 418907-0 OUTER RAIL END, 2704 $2.84
207 265045-7 P.H. SCREW M5X18, 2704 $1.19
208 125279-3 CENTER COVER, 2704 $20.20
211 317875-3 CENTER COVER, 2704 $8.67
212 266264-8 H.S.H.SCREW M5X8, BSS730SH $1.19
214 418907-0 OUTER RAIL END, 2704 $2.84
215 911233-1 P.H. SCREW M5X20, TW1000 $0.86
216 317867-2 R.OUTER RAIL, 2704 $14.61
217 345529-2 RAIL STOPPER, 2704 $0.97
218 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
220 922126-7 H.S.H. BOLT M4X16, 4330DWA $1.34
221 158103-5 REAR INNER RAIL COMPLETE, 2705 $31.72
222 345635-3 BASE FRONT COVER, 2704 $8.01
223 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
225 911253-5 P.H. SCREW M5X30, 2030S $1.19
226 922146-1 H.S.H. BOLT M4X25, 6830 $1.34
227 418908-8 INNER RAIL END, 2704 $2.84
228 286212-1 CAP 20, LS1013FL $0.97
229 154601-7 BASE CPL.,2704 $78.10
230 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
231 687052-4 STRAIN RELIEF, HM1500B $1.26
232 682504-0 CORD GUARD 10-85, 4200H $2.51
233 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
233 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
234 931302-2 HEX NUT M6, HR2400 $0.79
235 271318-8 KNOB 37, 2704 $2.84
236 941151-9 F. WASHER 6, 5007NB $0.75
237 921342-8 HEX BOLT M6X25, 2114C $1.08
238 271320-1 KNOB 37, 2704 $4.16
239 252197-3 HEX. NUT M14, 2704 $1.96
240 421926-7 HOLDER, 2704 $5.48
241 931402-8 HEX NUT M8, 5037NB $1.34
242 253797-2 F. WASHER 14,JR3030T $1.63
243 265537-6 HEX. BOLT M14X65, 2704 $6.47
244 921462-8 HEX BOLT M8X40, 9031 $1.96
245 865270-6 2705 NAME PLATE $1.30
246 911344-2 P.H. SCREW M6X25, 2711 $1.19
250 256769-6 PIN 6, 2704 $1.48
251 317872-9 ANGLE RAIL, 2704 $13.29
252 266378-3 H.S.S. SCREW M5X5, 2704 $0.86
253 345523-4 ANGLE STOPPER, 2704 $1.52
254 324530-0 SCALE PIN, 2704 $1.52
255 911138-5 P.H. SCREW M4X20, 9218SB $0.86
258 273527-5 GRIP 28, 2705 $28.56
259 922333-2 H.S.H. BOLT M4X12, 2704 $1.74
260 317897-3 RULER, 2704 $30.49
263 911108-4 P.H. SCREW M4X8, LS1013 $0.86
264 418945-2 LENS, 2704 $2.84
265 418943-6 COVER (RULLER ASS'Y), 2704 $1.52
266 154594-8 RULE HOLDER CPL.,2704 $34.17
266 317895-7 RULER TOP HOLDER, 2704 $6.80
268 418948-6 SQUARE GUIDE, 2704 $2.84
269 265954-0 TAPPING SCREW BIND PT3X8, GA4030 $0.53
270 231485-1 COMPRESSION SPRING 4, 5402NA $0.86
271 418947-8 RULE HOLDER GUIDE, 2704 $6.80
272 231485-1 COMPRESSION SPRING 4, 5402NA $0.86
273 345560-8 LOCK PLATE, 2704 $2.84
274 265155-0 P.H. SCREW M5X25, 2704 $1.48
275 418946-0 LEVER, 2704 $2.84
276 231297-2 COMP. SPRING 9, 5007NK $1.63
277 418944-4 LOCK LEVER, 2704 $1.52
278 253874-0 F. WASHER 4, LS1016L $1.34
279 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
280 911133-5 P.H. SCREW M4X18, N9501B $0.86
281 911238-1 P.H. SCREW M5X22, GA7001L $0.82
282 345566-6 HANDLE CAM, 2704 $5.48
283 345559-3 HANDLE CAM SUPPORT, 2704 $5.48
284 256029-6 PIN 8, HR3851 $3.61
285 256200-2 PIN 5, 2704 $3.28
286 911118-1 P.H. SCREW M4X12, 6221D $0.86
287 345564-0 LOCK PLATE STAY, 2704 $4.16
288 256200-2 PIN 5, 2704 $3.28
289 345565-8 HOOK JOINT, 2704 $4.16
290 265154-2 P.H. SCREW M5X655, 2704 $6.47
291 324555-4 NUT M5, 2704 $3.61
292 256262-0 PIN 5, 2704 $3.28
293 345562-4 RULER TOP CONNECTOR, 2704 $2.84
294 256262-0 PIN 5, 2704 $3.28
295 231683-7 TORSION SPRING 8, 2704 $1.63
296 313123-8 RULER TOP, 2704 $4.16
297 345563-2 RULER TOP GUIDE, 2704 $5.48
298 911118-1 P.H. SCREW M4X12, 6221D $0.86
299 911118-1 P.H. SCREW M4X12, 6221D $0.86
300 345561-6 RULER TOP SUPPORT, 2704 $2.84
301 256262-0 PIN 5, 2704 $3.28
302 154594-8 RULE HOLDER CPL.,2704 $34.17
302 317895-7 RULER TOP HOLDER, 2704 $6.80
303 317873-7 ANGLE RULE, 2704 $23.74
304 122838-4 MITER GAUGE, 2705 $76.20
305 122740-1 RULER ASS'Y, 2704 $144.40
306 265160-7 C.S.H. SCREW M4X8, 2704 $0.86
308 267305-3 "FLAT WASHER 5/16"", 2704" $1.01
309 419219-4 ANGLE RULE COVER, 2704 $2.84
337 911233-1 P.H. SCREW M5X20, TW1000 $0.86
401 345933-5 LOCK LEVER, 2705 $1.34
402 324902-9 LOCK SHAFT L, 2705 $1.34
403 941201-0 F. WASHER 8, 5007NK $0.75
404 257771-2 SLEEVE 8, 2705 $1.12
406 951104-0 SPRING PIN 4-12, 2114C $1.48
407 188697-6 GUARD SET, 2705 $20.55
408 911113-1 P.H. SCREW M4X10, 4301BV $0.86
409 951104-0 SPRING PIN 4-12, 2114C $1.48
410 345932-7 GUARD SUPPORT, 2705 $0.90
411 345933-5 LOCK LEVER, 2705 $1.34
412 324903-7 LOCK SHAFT S, 2705 $1.12
413 345934-3 LEVER HOLDER, 2705 $0.90
414 257771-2 SLEEVE 8, 2705 $1.12
415 318281-5 TOP GUARD BASE, 2705 $11.53
416 817283-3 CAUTION LABEL, LS1220 $1.21
418 345932-7 GUARD SUPPORT, 2705 $0.90
419 257771-2 SLEEVE 8, 2705 $1.12
420 253011-6 F. WASHER 6, 2030S $1.01
421 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
422 911113-1 P.H. SCREW M4X10, 4301BV $0.86
423 188697-6 GUARD SET, 2705 $20.55
425 257771-2 SLEEVE 8, 2705 $1.12
426 941201-0 F. WASHER 8, 5007NK $0.75
427 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
428 911113-1 P.H. SCREW M4X10, 4301BV $0.86
429 421818-0 RUBBER CAP, 3707FC $1.52
430 931302-2 HEX NUT M6, HR2400 $0.79
431 941151-9 F. WASHER 6, 5007NB $0.75
432 345942-4 TOP GUARD PLATE, 2705 $3.61
433 421818-0 RUBBER CAP, 3707FC $1.52
434 911113-1 P.H. SCREW M4X10, 4301BV $0.86
435 941151-9 F. WASHER 6, 5007NB $0.75
436 921361-4 HEX BOLT M6X40, 2705 $1.01
438 331825-4 RING 8, 2705 $1.12
439 345939-3 FINGER, 2705 $2.51
440 331834-3 SLEEVE 6, 2705 $1.34
441 345939-3 FINGER, 2705 $2.51
442 331825-4 RING 8, 2705 $1.12
1001 257060-5 RING 15.88,LS1013 $3.06
1002 416772-1 PUSH STICK, 2703 $10.60
1003 781038-1 WRENCH 19, 2704 $6.40
1004 782024-5 WRENCH 13-22, 2704 $6.40
1006 A-94948 10 32T CARBIDE-TIPPED SAW BLADE, 2705 $66.20
