Makita 2703 Electric Saw Parts

Makita 2703 Electric Saw Parts Image

Makita 2703 Parts
10 Inch Table Saw with Carbide Blade

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita 2703
10 Inch Table Saw wi...
$323.99
Page-1

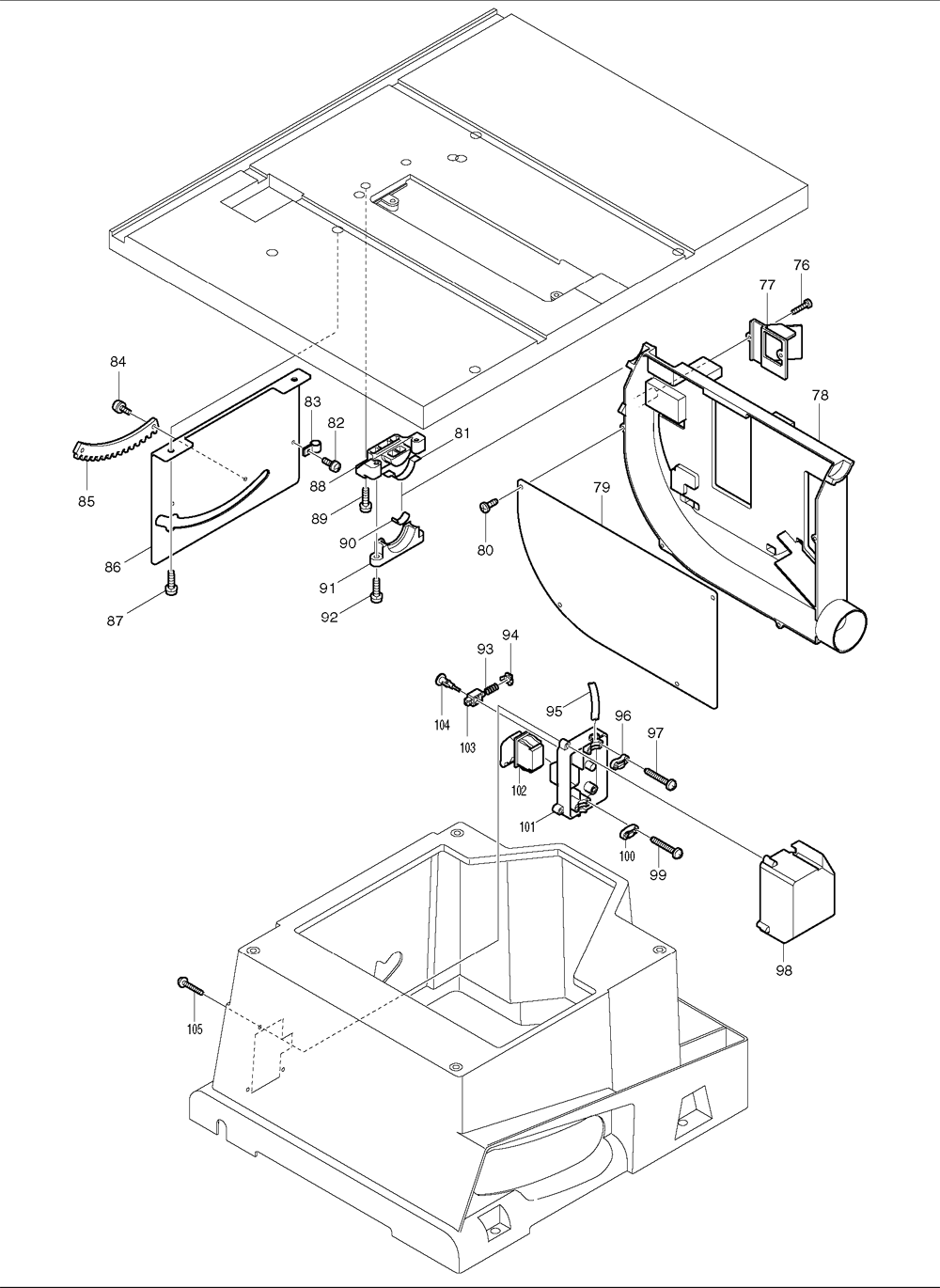

Page-2

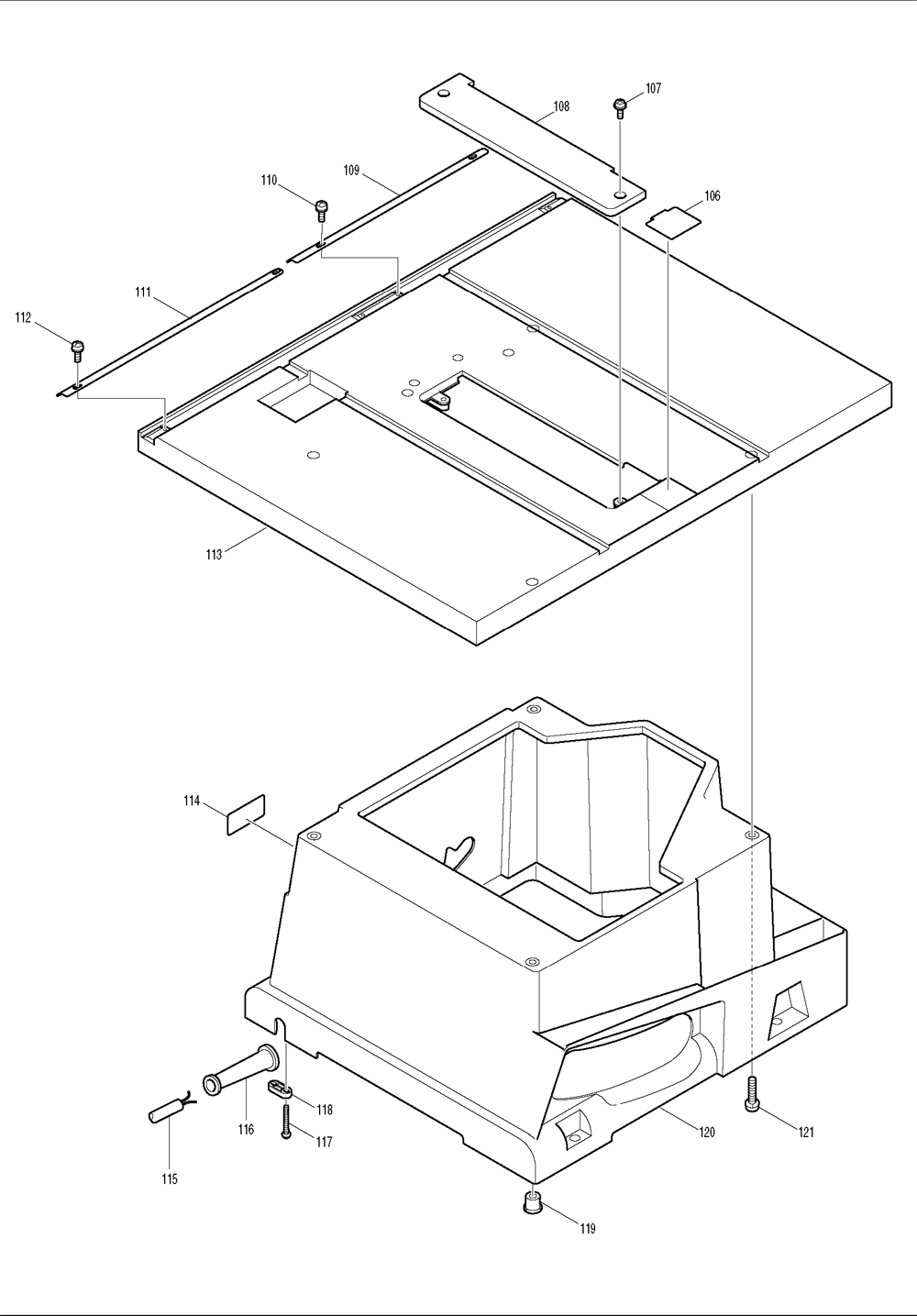

Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

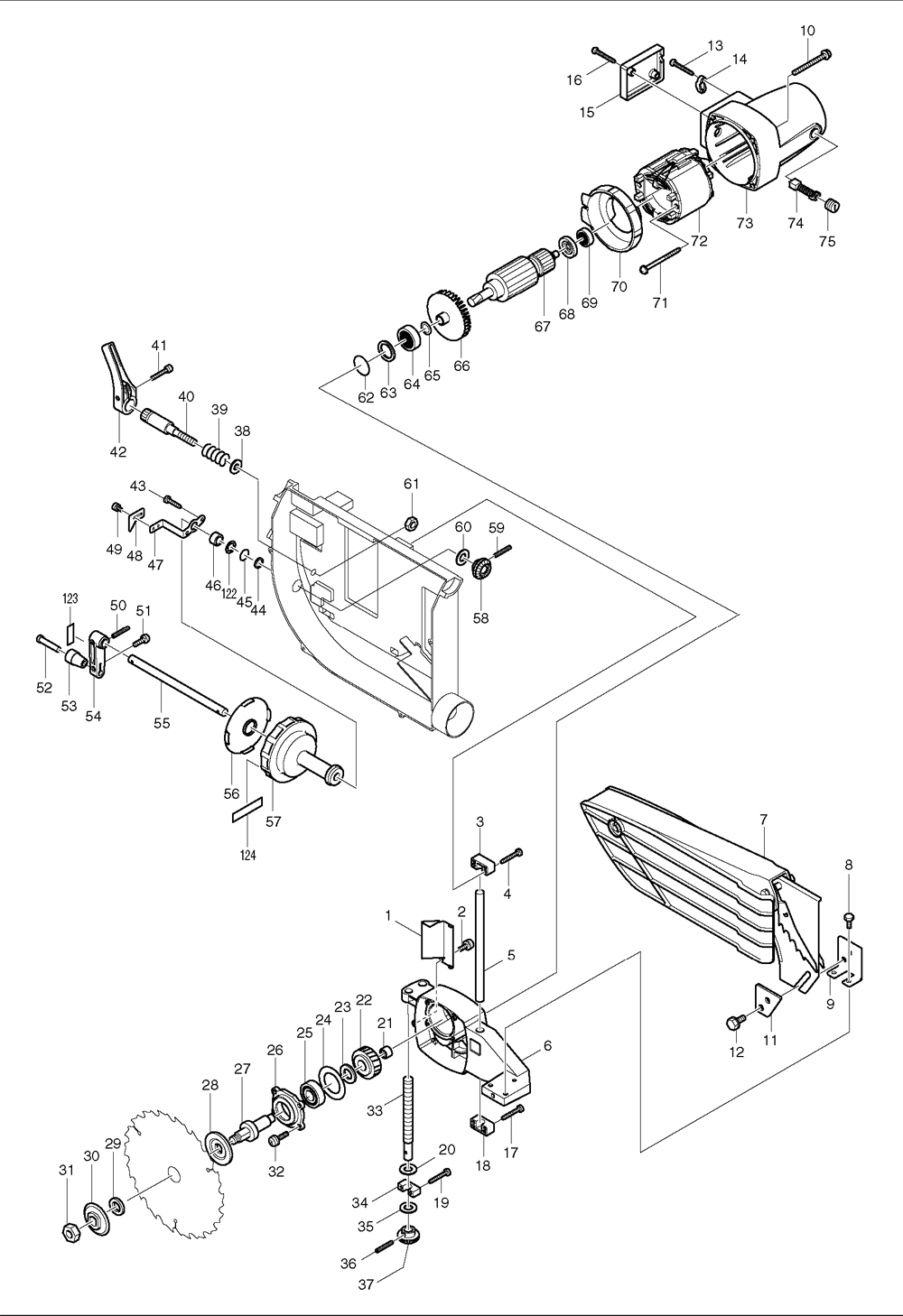

Makita 2703 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 344536-2 GEAR HOUSING PLATE, 2702 $3.17

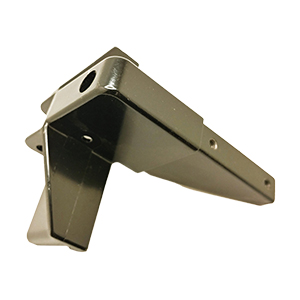

00 316936-6 RULE HOLDER, 2703 $11.97
2 911213-7 P.H. SCREW M5X12, LS1040 $0.86
00 323739-1 ADJUST NUT, 2703 $4.16
3 416340-0 GUIDE BAR RETAINER, 2702 $1.26
00 256258-1 PIN 6, 2703 $1.74
4 266040-0 TAPPING SCREW, 2012NB $0.86
00 256259-9 PIN 8, 2703 $3.28
5 323736-7 GUIDE BAR, 2702 $10.32
00 266175-7 SQ. NECK BOLT M5X590,2703 $4.93
6 159999-7 GEAR HOUSING COMPLETE, 2702 $44.88
90 232175-9 LEAF SPRING, 2703 $1.96
7 168309-7 SAFETY GUIDE, 2703 $69.60
00 344530-4 HOOK PLATE, 2703 $2.84
8 265391-8 HEX BOLT M6X16, 2708, T2 $1.34
11 344531-2 PRESSURE PLATE, 2703 $4.16
9 165206-8 STAY, 2702 $4.49
00 344580-9 CAM, 2703 $4.16
10 911383-2 P.H. SCREW M6X60, LS1030 $1.96
00 416342-6 RULER TOP, 2703 $2.84
11 344545-1 PRESSURE PLATE, 2702 $1.63
00 816776-7 BEVEL SCALE LABEL, 2703 $9.10
12 921431-9 HEX BOLT M8X20, 2702 $1.96
13 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
14 687054-0 STRAIN RELIEF, HM1800 $0.97
15 416341-8 COVER, 2702 $3.06
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 266040-0 TAPPING SCREW, 2012NB $0.86
18 416340-0 GUIDE BAR RETAINER, 2702 $1.26
19 266040-0 TAPPING SCREW, 2012NB $0.86
20 961016-9 STOP RING E-10, BJR182 $0.86
21 212121-8 NEEDLE BEARING 1210, 2702 $3.06
22 226499-3 HELICAL GEAR 42, 2702 $19.01
23 267176-8 FLAT WASHER 17, 2702 $2.18
24 267170-0 FLAT WASHER 34, 2702 $2.18
25 211256-2 B. BEARING 6203LLB, GA7001L $10.98
26 316933-2 HOUSING W/O BEARING, 2702 $5.48
27 153264-6 SPINDLE COMPLETE, 2702 $42.94
28 224333-1 FLANGE 53, LS1040 $4.49
30 224347-0 OUTER FLANGE 53, 2702 $5.92
31 252155-9 HEX NUT M12-19, 2702 $1.96
32 911233-1 P.H. SCREW M5X20, TW1000 $0.86
33 322968-3 SCREW BAR, 2702 $7.46
34 416339-5 SCREW BAR RETAINER, 2702 $0.97
35 941302-4 F. WASHER 12, 2702 $1.01
36 951116-3 SPRING PIN 4-20, 9031 $1.48
37 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
38 253024-7 F. WASHER 10, LS0714 $1.34
39 231315-6 COMP. SPRING 14, 2702 $2.07
40 322967-5 LOCK LEVER SHAFT, 2702 $10.32
41 922243-3 H. S. H. BOLT M5X25,2702 $1.96
42 272237-1 LEVER 90, 2702 $3.06
43 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
44 253143-9 F. WASHER 12, 2702 $1.63
45 213107-5 O RING 12, JR3000V $0.86
46 214114-1 PLANE BEARING 12, 6410 $1.63
47 344544-3 STAY, 2702 $1.63
48 344543-5 POINTER, 2702 $1.63
49 922103-9 H. S. H. BOLT M4X6,2702 $1.34
50 951116-3 SPRING PIN 4-20, 9031 $1.48
51 911218-7 P.H. SCREW M5X14, DA6300 $0.86
52 268031-7 PIN 8, 2702 $1.48
53 271408-7 KNOB 20, 2012 $1.63
54 271071-6 HANDLE 120, 2702 $1.63
55 323735-9 HANDLE SHAFT, 2702 $10.32
56 344581-7 CAP 92, 2702 $2.84
57 271070-8 HANDLE 100, 2702 $5.92
58 226747-0 STRAIGHT BEVEL GEAR, 2702 $3.17
59 951116-3 SPRING PIN 4-20, 9031 $1.48
60 941302-4 F. WASHER 12, 2702 $1.01
61 931502-4 HEX NUT M10, 2711 $1.34
62 213423-5 O RING 30, AN451 $1.08
63 253792-2 F. WASHER 26, 4304 $1.63
64 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
65 253147-1 F. WASHER 15, 5037NB $1.63
66 240003-4 FAN 80, 5007NK $4.16
67 516761-7 ARMATURE ASS'Y 115V, 2702 $120.29
68 681640-9 INSULATION WASHER, LS1040 $2.18
69 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
70 416331-1 BAFFLE PLATE, 2702 $3.06
71 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
72 596181-1 FIELD ASS'Y 115V, 2702 $65.90
73 159998-9 MOTOR HOUSING COMPLETE, 2703 $27.59
74 CB154 CARBON BRUSH SET, Replacement of 194986-9 $8.12
75 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
76 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
77 416439-1 DUST GUIDE, 2702 $3.06
78 318253-0 FRAME,2705 $19.45
78 316931-6 FRAME, 2702-T1 $31.72
79 344519-2 FRAME COVER, 2702 $5.92
80 266035-3 TAPPING SCREW BIND CT5X12, 9031 $0.86
81 344529-9 SLIDE SEAT, 2702 $1.26
82 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
83 687049-3 STRAIN RELIEF, 2703 $0.75
84 911213-7 P.H. SCREW M5X12, LS1040 $0.86
85 416333-7 RACK PLATE, 2702 $3.06
86 345628-0 PLATE, 2703 $5.92
87 911323-0 P.H. SCREW M6X16, LS1211 $1.19
88 318020-3 ADJUST BLOCK, 2704 $4.16
89 265460-5 HEX BOLT M6X20, 2702 $1.34
90 232174-1 LEAF SPRING, 2702 $1.96
91 416332-9 FRAME RETAINER, 2702 $3.06
92 911333-7 SCREW M6X20, 2414B $1.19
93 231240-1 COMP. SPRING 7, 2414B $0.79
94 416375-1 CAP, 2702 $1.26
95 664080-6 POWER SUPPLY CORD, 2702 $7.02
96 687054-0 STRAIN RELIEF, HM1800 $0.97
97 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
99 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
100 687052-4 STRAIN RELIEF, HM1500B $1.26
102 651567-7 SWITCH, 2702 $20.55
103 416377-7 SLIDE PIN, 2702 $1.26
104 416376-9 SWITCH BUTTON, 2702 $1.26
106 344547-7 PLATE, 2702 $1.63
107 911323-0 P.H. SCREW M6X16, LS1211 $1.19
108 316935-8 CENTER COVER, 2703 $18.35
109 816332-3 SCALE PLATE L, 2702 $4.49
110 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
111 816331-5 SCALE PLATE R, 2702 $4.49
112 251308-7 PAN HEAD SCREW M4X10, 2702 $0.86
113 316930-8 TABLE, 2702 $112.33
114 859121-3 NAME PLATE, 2703 $1.48
115 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
115 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
116 682504-0 CORD GUARD 10-85, 4200H $2.51
117 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
118 687052-4 STRAIN RELIEF, HM1500B $1.26
119 286202-4 CAP 20, 2708 $0.97
120 150825-3 BASE COMPLETE, 2702 $53.90
121 911344-2 P.H. SCREW M6X25, 2711 $1.19
122 253052-2 F. WASHER 12, 9031 $1.34
1001 122556-4 RIP FENCE, 2702 $62.00
1002 781027-6 WRENCH 19, 2702 $4.80
1003 782021-1 WRENCH 13-22, 2702 $6.40
1004 783009-4 HOLDER CAP OPENER, 2702 $2.20
1006 163024-8 GUIDE PLATE, 2708 $10.32
1007 271401-1 KNOB 32, 2708 $3.06
1008 253047-5 F. WASHER 6, 2708 $1.01
1009 122555-6 ANGLE RULE ASS'Y, 2702 $20.80
1010 416376-9 SWITCH BUTTON, 2702 $1.26
5007 193920-6 STAND SET, 2702,2703 $123.80
