Makita 2106 Electric Saw Parts

Makita 2106 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

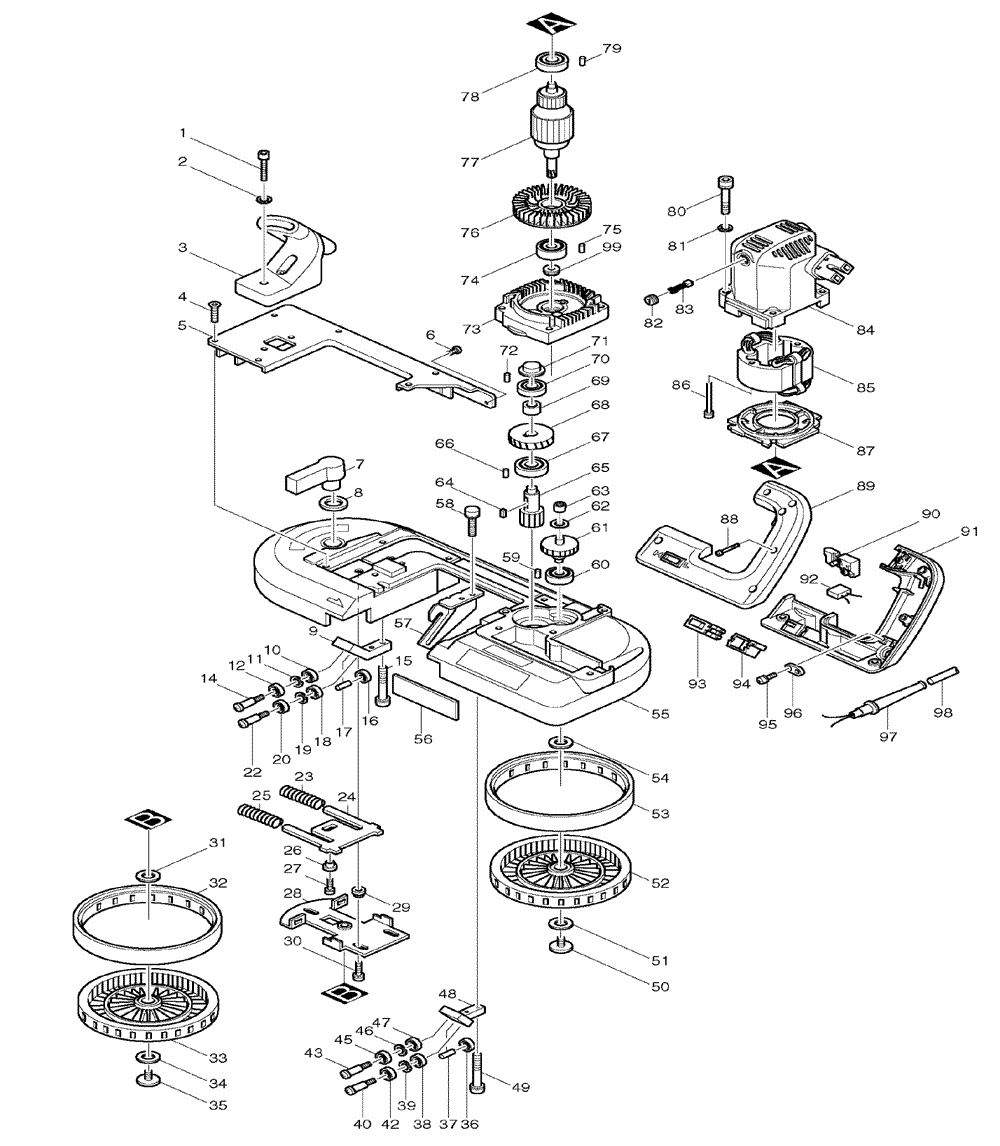

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	922361-7	H.S.H. BOLT M6X40, HM1303B	$1.48
77	512946-3	ARMATURE ASSEMBLY, 2106	$109.42
2	941152-7	F. WASHER 6, HM1500	$0.75
3	273624-7	GRIP 80, 2106	$8.78
4	265899-2	H.S.H. BOLT M5X22, 2106	$1.34
5	164933-4	FRAME COVER, 2106 (T2)	$40.29
6	251951-2	H.S.C.H. SCREW M5X10, 4320	$1.48
7	272223-2	LEVER 60, 2107F	$10.32
8	267041-1	F. WASHER 20, 9077SL	$1.63
9	316025-7	UPPER HOLDER, 2106	$15.71
10	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
11	941152-7	F. WASHER 6, HM1500	$0.75
12	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
14	251337-0	P.H. SCREW M5, 2106	$1.96
15	911248-8	P.H. SCREW M5X28, HM1500	$1.19
16	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
17	256033-5	PIN 6, 6905B	$1.48
18	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
19	941152-7	F. WASHER 6, HM1500	$0.75
20	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
22	251337-0	P.H. SCREW M5, 2106	$1.96
23	231449-5	COMP. SPRING 11, 2106	$4.16
24	343489-2	TENSION PLATE, 2106	$4.16
25	231449-5	COMP. SPRING 11, 2106	$4.16
26	343494-9	SLEEVE 5, 2107F	$1.52
27	911221-8	P.H. SCREW M5X16, JR3000V	$0.86
28	163276-1	SLIDE PLATE, 2106	$17.47
29	343494-9	SLEEVE 5, 2107F	$1.52
30	911244-6	P.H. SCREW M5X25, 2711	$1.19
31	253749-3	F. WASHER 16, 2107F	$1.63
32	421333-4	RUBBER TIRE, 2107	$10.32
33	152325-9	WHEEL COMPLETE, 2107F	$32.23
34	253749-3	F. WASHER 16, 2107F	$1.63
35	265900-3	H.S.H. BOLT M6X12, 2106	$7.13
36	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
37	256033-5	PIN 6, 6905B	$1.48
38	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
39	941152-7	F. WASHER 6, HM1500	$0.75
40	251337-0	P.H. SCREW M5, 2106	$1.96
42	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
43	251337-0	P.H. SCREW M5, 2106	$1.96
45	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
46	941152-7	F. WASHER 6, HM1500	$0.75
47	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
48	316026-5	LOWER HOLDER, 2106	$17.47
49	911248-8	P.H. SCREW M5X28, HM1500	$1.19
50	265900-3	H.S.H. BOLT M6X12, 2106	$7.13
51	253749-3	F. WASHER 16, 2107F	$1.63
52	152325-9	WHEEL COMPLETE, 2107F	$32.23
53	421333-4	RUBBER TIRE, 2107	$10.32
54	253749-3	F. WASHER 16, 2107F	$1.63
55	151323-0	FRAME, 2106(T2)	$93.10
56	856050-1	NAME PLATE, 2106	$1.36
57	343490-7	STOPPER PLATE, 2106	$5.92
58	922241-7	H.S.H. BOLT M5X25, AN451-T2	$1.41
59	263002-9	RUBBER PIN 4, 5007NK	$0.86
60	211034-0	BALL BEARING 608, 2106	$13.07
61	226080-0	GEAR 11-45, 2106	$32.33
62	253139-0	F. WASHER 8, 6510LVR	$1.34
63	212004-2	N.BEARING 810,4200N	$5.92
64	254202-2	KEY 4, 9924DB	$1.26
65	221980-9	SPUR GEAR 9, 2106	$29.47
66	263005-3	RUBBER PIN 6, BHP452	$0.86
67	211108-7	B. BEARING 6201LB, N9514B	$10.98
68	221765-3	HELICAL GEAR 42, 2106	$22.20
69	257619-8	SLEEVE 12, 2106	$2.51
70	211064-1	B. BEARING 6000, 2414B	$10.98
71	286028-4	CAP 26, 2106	$1.12
72	263002-9	RUBBER PIN 4, 5007NK	$0.86
73	157916-1	GEAR HOUSING, 2106	$15.27
74	211092-6	B. BEARING 629DDW, BO4556	$10.98
75	263002-9	RUBBER PIN 4, 5007NK	$0.86
77	512946-3	ARMATURE ASSEMBLY, 2106	$109.42
78	211033-2	B. BEARING 608LB, 5091D	$8.78
79	263002-9	RUBBER PIN 4, 5007NK	$0.86
80	922381-1	H.S.H. BOLT M6X60, HR4041C	$3.61
81	941152-7	F. WASHER 6, HM1500	$0.75
82	643600-9	BRUSH CAP 6-10, 9005B	$1.63
83	194982-7	CARBON BRUSH SET CB-124 (2/PK), 9045B	$5.92
84	157915-3	MOTOR HOUSING, 2106	$37.53
86	911275-5	P.H. SCREW M5X50, 6300LR	$1.74
87	414067-6	BAFFLE PLATE, 2106	$4.16
88	911248-8	P.H. SCREW M5X28, HM1500	$1.19
89	182034-6	HANDLE SET, 2106	$26.92
90	651225-5	SWITCH,JN3200	$21.76
91	182034-6	HANDLE SET, 2106	$26.92
93	651562-7	SWITCH, 2106	$25.17
94	421338-4	SWITCH PROTECTOR, 2106	$2.84
95	911133-5	P.H. SCREW M4X18, N9501B	$0.86
96	687002-9	STRAIN RELIEF, 9217SPC	$0.97
97	682502-4	CORD GUARD 8-85, HP2010N	$2.51
97	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
98	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
98	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
99	331328-8	SEAL, 2106	$3.61
402	783209-6	HEX WRENCH 4, 2106	$3.20
403	191897-9	CUTTING WAX 4.25X1.625, BPB180	$16.60
