Makita 2030S Electric planer parts

Makita 2030S Electric planer parts Image

Makita 2030S Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3

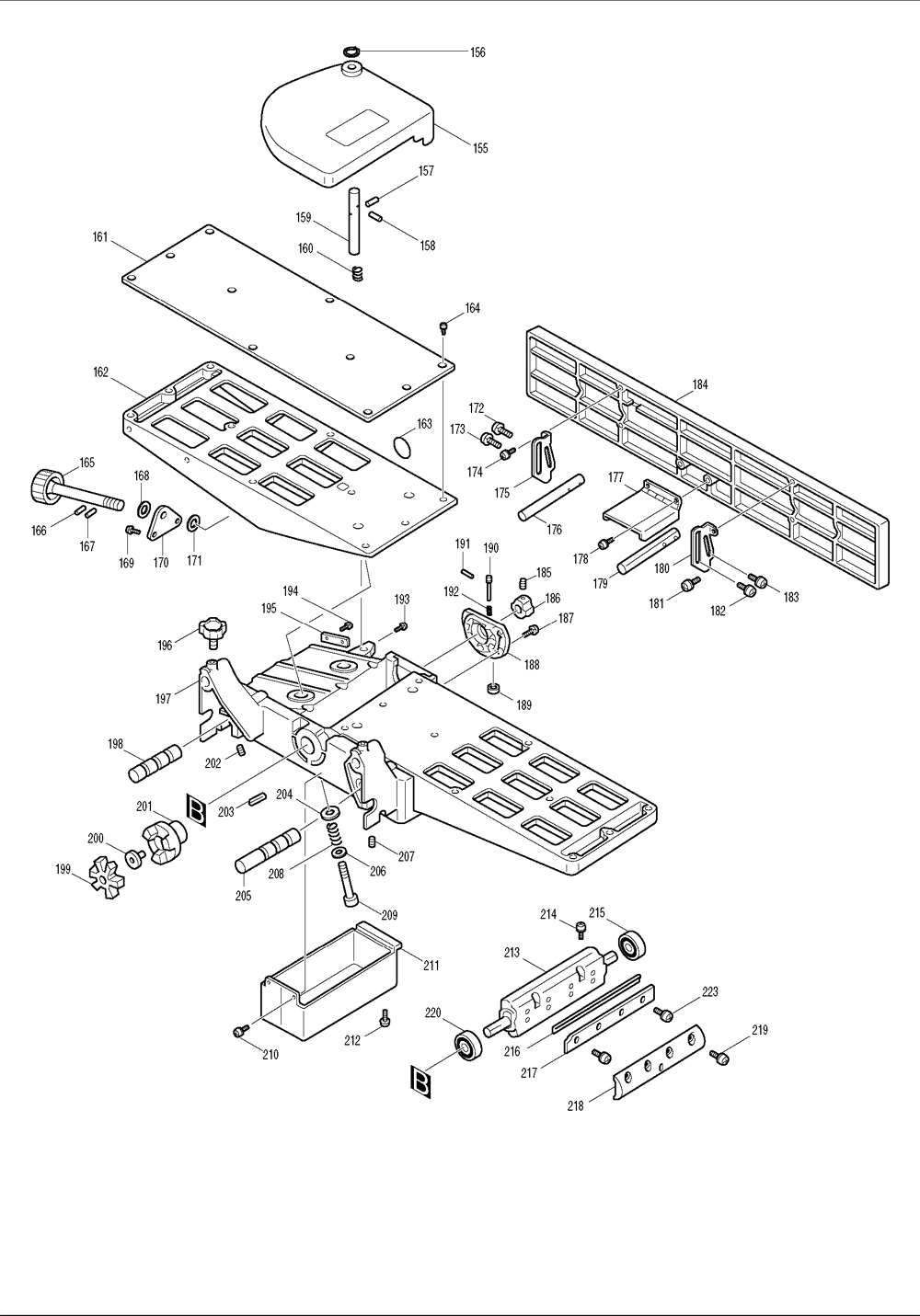

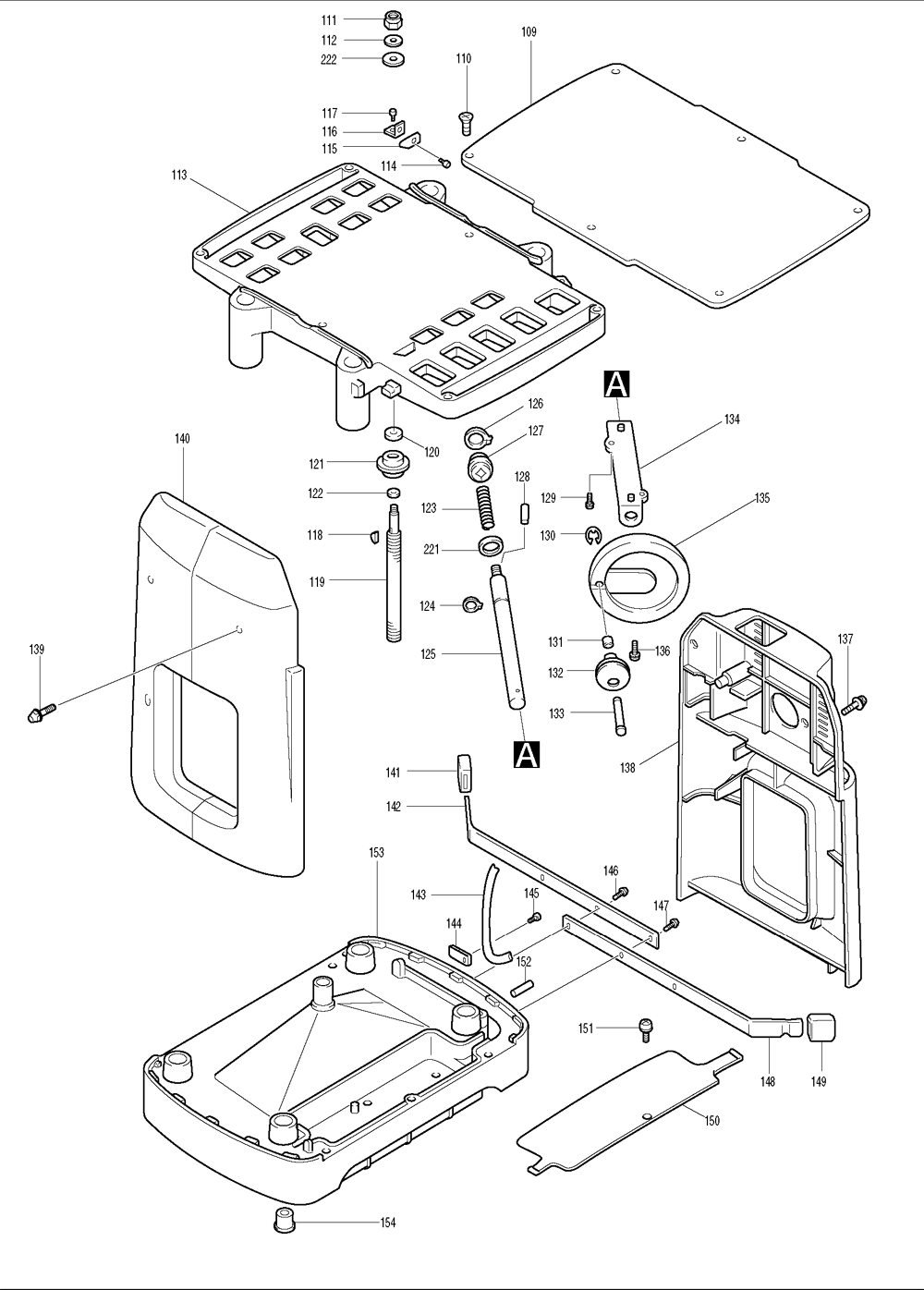

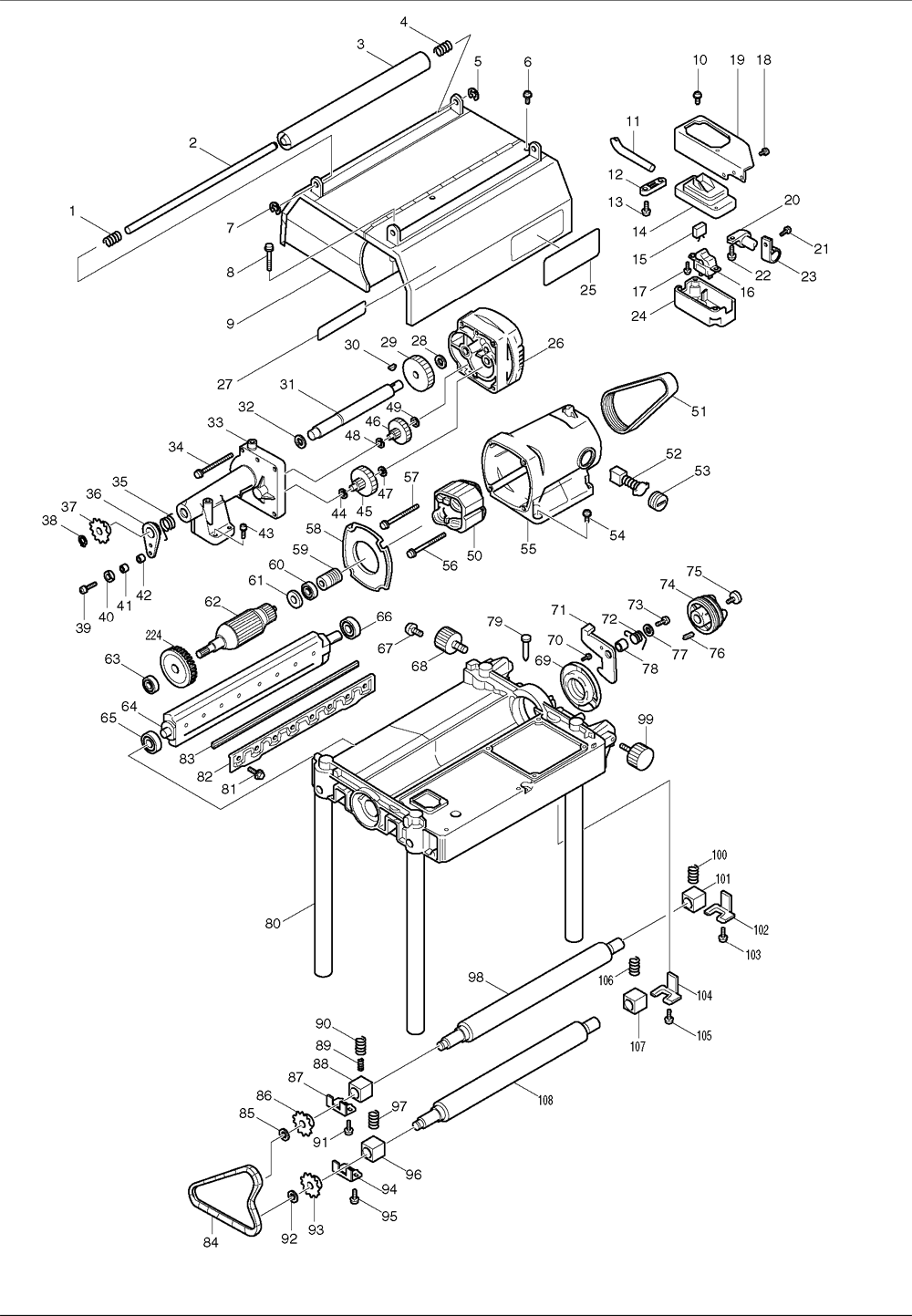

Tool Diagram    (Click image to Zoom in) View larger Image
Makita 2030S Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 231070-0 COMP. SPRING 14, 2030S $0.86
9 134801-5 CHIP COVER ASS'Y, 2030S $153.85
102 341685-6 METAL COVER A, 2012NB $1.52
2 322646-5 ROLLER SHAFT, 2030S $5.92
3 163354-7 ROLLER 29-300, 2030S $23.19
4 231070-0 COMP. SPRING 14, 2030S $0.86
5 961012-7 STOP RING E-6, 2030S $0.53
6 911223-4 P.H. SCREW M5X16, 5007NK $0.86
7 961012-7 STOP RING E-6, 2030S $0.53
8 911283-6 P.H. SCREW M5X60, 2030S $1.48
9 134801-5 CHIP COVER ASS'Y, 2030S $153.85
10 912157-4 C.S.H. SCREW M4X30,2030S $0.86
11 683240-1 PROTECTING TUBE, 2030SZ $3.06
12 687052-4 STRAIN RELIEF, HM1500B $1.26
13 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
14 416012-7 SWITCH BOX, 2030SZ $7.46
16 651529-5 SWITCH, 2012NB $26.62
17 265954-0 TAPPING SCREW BIND PT3X8, GA4030 $0.53
18 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
19 344065-5 SWITCH SUPPORTER, 2030S, $10.32
20 687042-7 STRAIN RELIEF, 2711 $1.26
21 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
22 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
23 687042-7 STRAIN RELIEF, 2711 $1.26
24 415337-6 SWITCH BOX COVER, 2030S $7.46
25 857342-1 NAME PLATE, 2030SZ $1.36
26 159646-0 GEAR HOUSING COMPLETE, 2030S $50.80
27 819034-0 TRADE MARK LABEL, 2030SZ $1.36
28 253744-3 F. WASHER 12, HR2410 $1.34
29 226418-9 HELICAL GEAR 45, 2030S $24.51
30 254001-2 WOODRUFF KEY 4, HM1810 $1.26
31 322645-7 DRIVE SHAFT, 2030S $29.58
32 253760-5 F. WASHER 14, 2030S $1.63
33 159647-8 GEAR HOUSING COVER COMPLETE, 2030S $61.80
34 911937-5 P.H. SCREW M5X85, 2030S $1.96
35 231616-2 TORSION SPRING 23, 2030S $7.13
36 152436-0 TENSIONER COMPLETE, 2030S $7.46
37 221520-3 SPROCKET 12, 2030S $8.78
38 961052-5 RETAINING RING S-12, 9218PBL $0.86
39 911233-1 P.H. SCREW M5X20, TW1000 $0.86
40 322519-2 TENSION ROLLER, 2030S $4.49
41 214021-8 P. BEARING 5, 6820V $1.63
42 257140-7 RING 6, 2030S $3.06
43 911243-8 P.H. SCREW M5X25, GA7911 $1.19
44 253215-0 F. WASHER 8, PV7001C $1.34
45 226121-2 GEAR COMPLETE 8-44, 2030S $42.02
46 226120-4 GEAR COMPLETE 8-47, 2030S $37.84
47 253215-0 F. WASHER 8, PV7001C $1.34
48 253715-0 F. WASHER 6, NHP1310 $1.34
49 253715-0 F. WASHER 6, NHP1310 $1.34
50 636036-9 FIELD 115V, 2030S $48.04
51 225003-5 POLY V-BELT 9-374,2030S $50.89
52 194991-6 CARBON BRUSH SET CB-203, LS1211 $10.43
53 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
54 911243-8 P.H. SCREW M5X25, GA7911 $1.19
55 159645-2 MOTOR HOUSING COMPLETE, 2030S $60.40
56 911944-8 P.H.SCREW M5X80, LS1211 $3.61
57 911944-8 P.H.SCREW M5X80, LS1211 $3.61
58 415339-2 BAFFLE PLATE, 2030S $4.49
59 222128-6 V-PULLEY 9-25L, 2030S $13.18
62 516556-8 ARMATURE 115V,2030S $142.11
64 322638-4 MAIN DRUM, 2030S $191.00
65 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
66 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
67 265323-5 H.F.H. BOLT M5X10, 2030S $1.34
68 271270-0 KNOB 40, 2114C,2030S $5.92
69 316511-8 HOUSING W/O BEARING, 2030S $9.33
70 912222-9 C.S.H. SCREW M5X16, BO3710 $0.86
71 344066-3 LOCK PLATE, 2030S $4.49
72 231617-0 TORSION SPRING 12, 2030S $7.57
73 911243-8 P.H. SCREW M5X25, GA7911 $1.19
74 222127-8 V-PULLEY 9-58, 2030S $21.76
75 265854-4 H.S.H. BOLT M6X12, 2030S $7.13
76 254221-8 KEY 4, 2030S $1.63
77 253011-6 F. WASHER 6, 2030S $1.01
78 257658-8 SLEEVE 5, 2030S $1.63
79 322229-1 GAUGE, 2030S $3.06
80 150700-3 MAIN FRAME COMPLETE, 2030S $266.76
81 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
82 344075-2 SET PLATE 310,2030S $30.90
83 B-02870 HSS PLANER BLADE 312MM,KP312 $63.60
84 225519-0 CHAIN 35-50, 2030S $14.61
85 961052-5 RETAINING RING S-12, 9218PBL $0.86
86 221520-3 SPROCKET 12, 2030S $8.78
87 343844-8 METAL COVER B, 2030S $4.49
88 214251-1 P. BEARING 17, 2030S $5.92
89 231460-7 COMP. SPRING 7, 2030S $2.07
90 231459-2A COMP. SPRING 13, 2030S $4.16
91 922221-3 HEX BOLT M5X16, 6906 $1.34
92 961052-5 RETAINING RING S-12, 9218PBL $0.86
93 221520-3 SPROCKET 12, 2030S $8.78
94 343844-8 METAL COVER B, 2030S $4.49
95 922221-3 HEX BOLT M5X16, 6906 $1.34
96 214251-1 P. BEARING 17, 2030S $5.92
97 231459-2A COMP. SPRING 13, 2030S $4.16
98 162164-9 ROLLER 34-295, 2030S $122.03
99 271270-0 KNOB 40, 2114C,2030S $5.92
100 231459-2A COMP. SPRING 13, 2030S $4.16
101 214251-1 P. BEARING 17, 2030S $5.92
102 341685-6 METAL COVER A, 2012NB $1.52
103 922221-3 HEX BOLT M5X16, 6906 $1.34
104 341685-6 METAL COVER A, 2012NB $1.52
105 922221-3 HEX BOLT M5X16, 6906 $1.34
106 231459-2A COMP. SPRING 13, 2030S $4.16
107 214251-1 P. BEARING 17, 2030S $5.92
108 162164-9 ROLLER 34-295, 2030S $122.03
109 344063-9 TABLE PLATE, 2030S $50.89
110 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
111 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
112 253851-2 F. WASHER 8, 6012HDW $1.63
112 267142-5 FLAT WASHER 10, 2030S $2.18
113 152434-4 TABLE COMPLETE, 2030S $200.02
114 911203-0 P.H. SCREW M5X8, 4101RH $1.19
115 344068-9 POINTER, 2030S $3.06
116 342906-9 SET PLATE, 2030N $3.06
117 911203-0 P.H. SCREW M5X8, 4101RH $1.19
118 254002-0 WOODRUFF KEY 3, 9005B $0.97
119 322785-1 SCREW M16, 2030S $23.19
120 212057-1 T.N. BEARING 1023, 6801DBV $7.46
121 226706-4 STRAIGHT BEVEL GEAR 16, 2030S $9.22
122 253024-7 F. WASHER 10, LS0714 $1.34
123 233122-3 COMPRESSION SPRING 15, 2030S $4.16
124 961062-2 STOP RING E-12, UM401DW $0.82
125 322647-3 HANDLE SHAFT, 2030S $14.61
126 961006-2 RETAINING RING S-10, N9501B $0.86
127 226706-4 STRAIGHT BEVEL GEAR 16, 2030S $9.22
128 951113-9 SPRING PIN 4-18, LS1020 $1.48
129 911223-4 P.H. SCREW M5X16, 5007NK $0.86
130 961012-7 STOP RING E-6, 2030S $0.53
131 253215-0 F. WASHER 8, PV7001C $1.34
132 271296-2 KNOB 45, 2030S $4.49
133 256688-6 PIN 8, 2030S $7.13
134 165058-7 HANDLE SUPPORTER, 2030S $11.75
135 271054-6 WHEEL 125, 2030S $13.18
136 265323-5 H.F.H. BOLT M5X10, 2030S $1.34
137 911253-5 P.H. SCREW M5X30, 2030S $1.19
138 417690-6 SIDE COVER (L), 2030SZ $26.52
139 911253-5 P.H. SCREW M5X30, 2030S $1.19
140 152982-3 SIDE COVER (R), 2030S $26.52
141 421483-5 FOOT, 2030S $3.06
142 344070-2 LEG, 2030S $8.78
143 664463-0 CORD (2X14X8 SJ), 5007NK $21.76
143 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
144 687064-7 STRAIN RELIEF, 2030S $0.97
145 911119-9 P.H. SCREW M4X12, BO6040 $0.86
146 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
147 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
148 344070-2 LEG, 2030S $8.78
149 421483-5 FOOT, 2030S $3.06
150 344069-7 BASE COVER, 2030S $11.75
151 911223-4 P.H. SCREW M5X16, 5007NK $0.86
152 951222-4 SPRING PIN 6-36, 2030S $1.96
153 316519-2 BASE, 2030S $171.60
154 286202-4 CAP 20, 2708 $0.97
155 151412-1 DRUM COVER COMPLETE, 2030S $13.18
156 961052-5 RETAINING RING S-12, 9218PBL $0.86
157 951110-5 SPRING PIN 4-16, 2030S $0.86
158 951125-2 SPRING PIN 4-32, 2030S $1.48
159 256928-2 ROD 12-95, 2030S $8.78
160 231521-3 TOR. SPRING 14, 2030S $2.07
161 344064-7 BED PLATE, 2030S $26.92
162 316517-6 ADJUST BED, 2030S $165.20
163 812074-7 INDICATION LABEL, 2030 $0.46
164 912117-6 C.S.H. SCREW M4X12, BO4556 $0.53
165 271274-2 KNOB 40, 2030S $27.59
166 951113-9 SPRING PIN 4-18, LS1020 $1.48
167 951113-9 SPRING PIN 4-18, LS1020 $1.48
168 253758-2 F. WASHER 10, 9901 $1.01
169 911223-4 P.H. SCREW M5X16, 5007NK $0.86
170 344073-6 SCREW HOLDER, 2030S $3.06
171 253758-2 F. WASHER 10, 9901 $1.01
172 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
173 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
174 911223-4 P.H. SCREW M5X16, 5007NK $0.86
175 344072-8 GUIDE FENCE HOLDER(L), 2030S $4.49
176 322644-9 GUIDE FENCE BAR, 2030S $11.75
177 163331-9 SAFETY COVER, 2030S $11.75
178 911223-4 P.H. SCREW M5X16, 5007NK $0.86
179 322644-9 GUIDE FENCE BAR, 2030S $11.75
180 344071-0 GUIDE FENCE HOLDER (R), 2030S $4.49
181 911223-4 P.H. SCREW M5X16, 5007NK $0.86
182 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
183 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
184 150701-1 GUIDE FENCE COMPLETE, 2030S $139.88
185 913206-0 SET SCREW M5X8, GA7911 $1.19
186 313068-0 LOCK SLEEVE, 2030S $8.78
187 911223-4 P.H. SCREW M5X16, 5007NK $0.86
188 415340-7 BEARING COVER, 2030S $5.92
189 252415-9 NUT N4-12, 2030S $1.96
190 322643-1 STOPPER PIN, 2030S $5.92
191 256724-8 PIN 2, 2030S $1.19
192 231303-3 COMP. SPRING 5, 2030S $1.48
193 265323-5 H.F.H. BOLT M5X10, 2030S $1.34
194 911203-0 P.H. SCREW M5X8, 4101RH $1.19
195 816665-6 SCALE PLATE, 2030S $1.63
196 251895-6 SCREW M6X19, 2030S $7.13
197 150704-5 FIX BED COMPLETE, 2030S $232.51
198 322649-9 ROD 17-63, 2030S $10.32
199 421482-7 COUPLING CUSHION, 2030S $4.49
200 265854-4 H.S.H. BOLT M6X12, 2030S $7.13
201 316512-6 COUPLING, 2030S $16.04
202 913217-5 SET SCREW M5X12, 2030S $1.48
203 254221-8 KEY 4, 2030S $1.63
204 267712-0 CUP WASHER 8, 2030S $2.18
205 322648-1 ROD 17-90, 2030S $11.75
206 941201-0 F. WASHER 8, 5007NK $0.75
207 913217-5 SET SCREW M5X12, 2030S $1.48
208 233082-9 COMPRESSION SPRING 9, 2030S $7.13
209 922472-8 H.S.H. BOLT M8X50, 2030S $2.40
210 911223-4 P.H. SCREW M5X16, 5007NK $0.86
211 344076-0 CHIP GUIDE, 2030S $11.75
212 911223-4 P.H. SCREW M5X16, 5007NK $0.86
213 161133-7 SUB DRUM, 2030S $119.51
214 251212-0 SCREW 5X13, 2030S $0.86
217 344340-9 SET PLATE 155, 2030S $7.46
218 345027-6 DRUM PLATE SET, 2030S $14.61
219 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
220 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
221 253837-6 F. WASHER 14, 2030S $1.63
222 253311-4 WASHER 10, 2030S $1.63
223 911113-1 P.H. SCREW M4X10, 4301BV $0.86
224 240003-4 FAN 80, 5007NK $4.16
1001 762014-4 MAGNETIC HOLDER, 2012 $10.60
1009 961012-7 STOP RING E-6, 2030S $0.53
1010 322663-5 ROD, 2030S $5.92
1011 344110-6 LEG, 2030S $34.88
1012 252637-1 WING NUT M8, LP1812C $8.12
1013 931403-6 HEX NUT M8, 406 $1.34
1014 934401-9 WING NUT M8, 4110C $1.96
1015 271294-6 KNOB 40, LP1812C $4.71
1016 251871-0 SCREW M5X10, 1050DWA $1.96
1017 251609-3 H.F.H. BOLT M6X17, 2030S $1.96
1019 251668-7 HEX. BOLT M10X90, LS1013 $3.61
1020 253134-0 F. WASHER 11, 2030N $1.63
1021 941251-5 F. WASHER 10, LS1030 $1.01
5001 654532-5 TERMINAL BLOCK, BO4556 $3.06
5002 654077-3 INSULATED TERMINAL, 5007NK $0.75
5006 231433-0 COMP. SPRING 4, 6233D $0.86
5007 231623-5 TORSION SPRING $2.51
5008 232148-2 LEAF SPRING, 2030S $5.37
5009 253874-0 F. WASHER 4, LS1016L $1.34
5010 265954-0 TAPPING SCREW BIND PT3X8, GA4030 $0.53
5011 415349-9 SWITCH BOX, 2030S $10.32
5012 415715-0 KEY, 2030S $3.06
5013 415746-9 LOCK PIN, 2030SZ $2.51
5014 155508-0 PUSH BLOCK, 2708 $16.37
5015 683962-3 VINYL TUBE $3.61
5017 911119-9 P.H. SCREW M4X12, BO6040 $0.86
5018 684470-7 TUBE $2.51
5019 687064-7 STRAIN RELIEF, 2030S $0.97
