Makita 1050D Electric planer parts

Makita 1050D Electric planer parts Image

Makita 1050D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

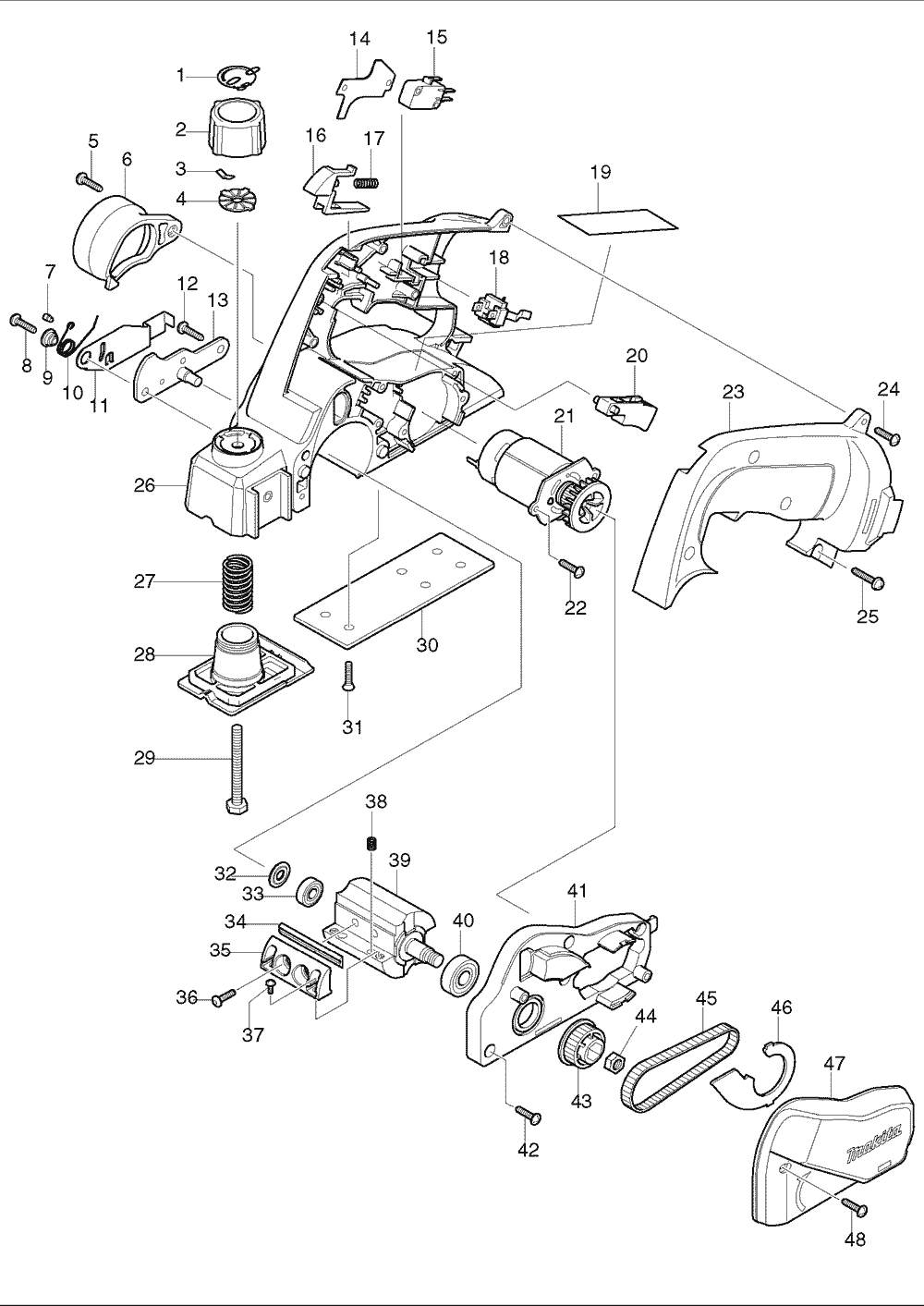

Makita 1050D Electric planer parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 816348-8 SCALE LABEL, 1051DWD $1.48
2 271312-0 KNOB 35, 1050DWA $5.48
3 232185-6 LEAF SPRING, 1050DWA $4.16
4 344710-2 CAM PLATE, 1050DWA $3.06
5 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
6 416787-8 NOZZLE, 1050DWA $4.49
7 951051-5 SPRING PIN 3-8, JR3060T $0.86
8 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
8 266045-0 TAPPING SCREW 4X20, 9046 $1.19
9 257215-2 SHOULDER RING 4, 1050DWA $2.84
10 231504-3 TOR. SPRING 10, 1050DWA $2.07
11 344708-9 DRUM COVER, 1050DWA $4.49
12 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
13 165242-4 DRUM HOLDER, 1050DWA $8.01
14 413074-6 LEAD GUIDE, 1050DWA $1.26
15 651942-7 SWITCH, UC120DWA $8.12
16 416789-4 LOCK OFF BUTTON, 1050DWA $3.06
17 233194-8 COMPRESSION SPRING 4, 5620DWA $1.48
18 643909-9 BATTERY HOLDER, DA392D $4.49
19 851453-4 NAME PLATE, 1050D/DWA $2.51
20 416788-6 SWITCH LEVER, 1050DWA $3.06
21 629732-6 DC MOTOR, 1050DWA $50.08
22 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
23 416784-4 HANDLE COVER, 1050DWA $10.32
24 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
25 911148-2 P.H. SCREW M4X25, 5057KB $0.86
25 911158-9 P.H. SCREW M4X30, 9045B $0.86
26 416783-6 MAIN FRAME, 1050DWA $29.37
27 231356-2 COMP. SPRING 15, 1050DWA $2.07
28 317119-1 FRONT BASE, 1050DWA $18.90
29 921382-6 HEX BOLT M6X60, 1050DWA $1.48
30 344707-1 BASE, 1050DWA $5.48
31 912127-3 C. HEAD SCREW M4X16, 1050DWA $0.53
32 285691-0 BEARING RETAINER 6-18, 1050DWA $2.84
33 211016-2 B. BEARING 626LLB, 6300LR $10.98
34 A-90401 PLANER BLADE, 1050DWA $11.20
35 310073-8 DRUM PLATE, 1050DWA $23.74
36 265484-1 H.S.HEAD BOLT M6X18,1051DWD $1.34
37 265069-3 PAN HEAD SCREW M4X10, 1050DWA $1.19
38 231317-2 COMP. SPRING 3, HR3851 $0.86
39 161134-5 DRUM, 1050DWA $53.70
40 211088-7 BALL BEARING 6000DDW, 9005B $13.07
41 416785-2 BRACKET, 1050DWA $8.78
42 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
43 222152-9 PULLEY 8-30, 1050DWA $15.93
44 931402-8 HEX NUT M8, 5037NB $1.34
45 225082-3 SYNCHRO BELT 6-210, 1050DWA $5.92
46 344711-0 BAFFLE PLATE, 1050DWA $3.06
47 151617-3 BELT COVER CPL., 1050DWA $9.33
48 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
49 941051-3 F. WASHER 4, 2107F $0.75
1001 122469-9 DUST BAG ASS'Y, LS1211 $31.20
1002 251871-0 SCREW M5X10, 1050DWA $1.96
1003 253807-5 F. WASHER 5, 6012HDW $1.01
1004 343579-1 SET PLATE, 6211D $3.06
1007 414938-7 BATTERY COVER, 6222DWE $2.20
1008 783202-0 HEX WRENCH 4, JR3000V $3.24
1010 192598-2 BATTERY 1222, 12VDC 2.0AH,6213DWAE $96.20
