Jet 414454 Electric Saw Parts

Jet 414454  Electric Saw Parts Image

Jet 414454 Parts
J-3410 7-Inch by 12-Inch 3/4-Horsepower 115-Volt Single Phase Horizontal Wet Bandsaw
Time to buy a new tool?

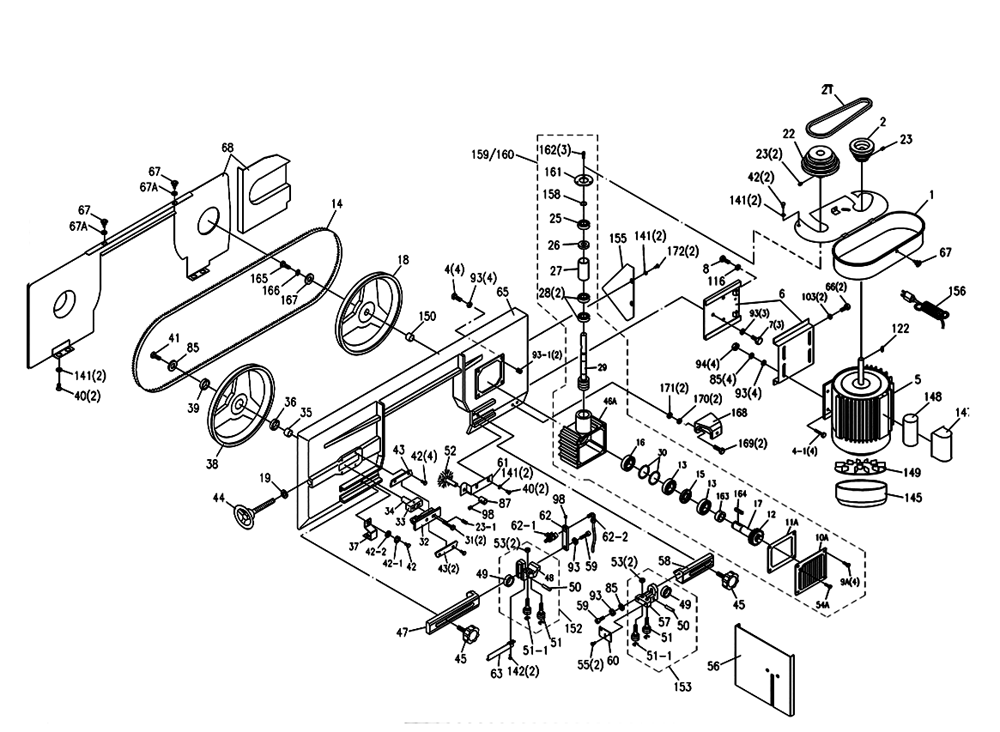

http://www.toolpartspro.com/image/414454/414454-jet-PB Breakdown Diagram
Page-1

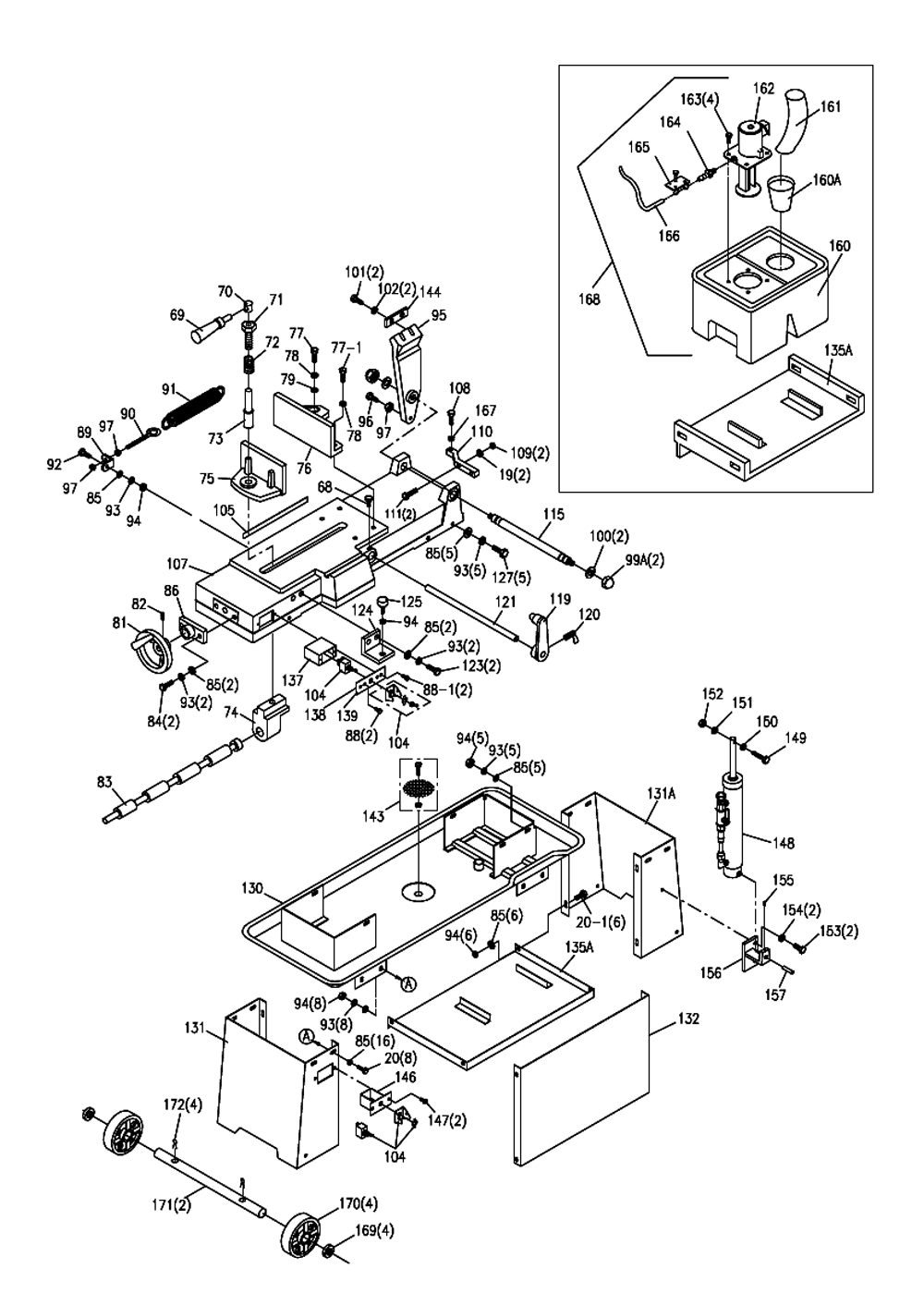

414454-jet-PB-1 Breakdown Diagram
Page-2

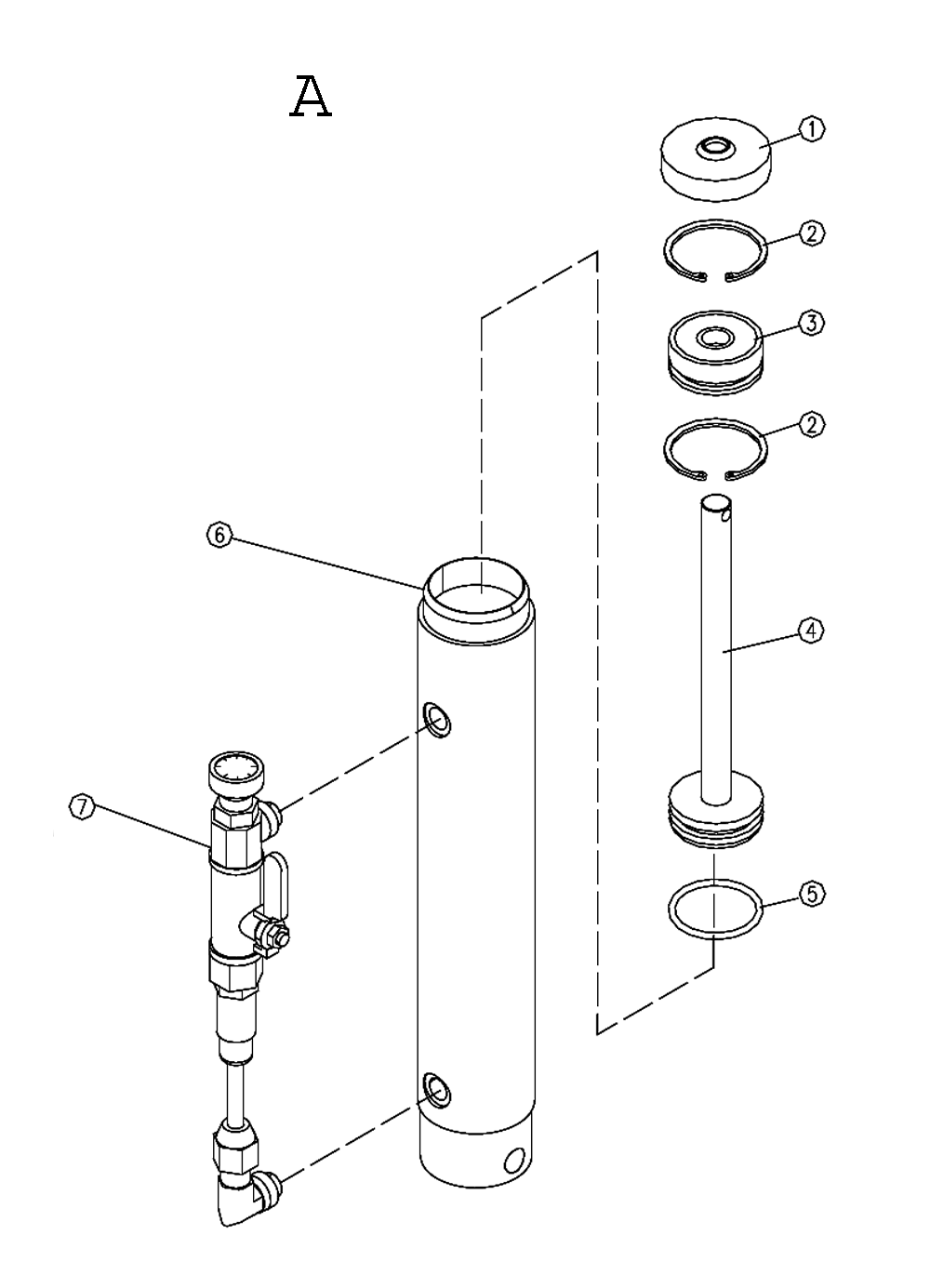

414454-jet-PB-2 Breakdown Diagram
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 J-5710011 Pulley cover $63.15
2 5710021 Motor pulley $24.40
4-1 5710041 HH screw 5/16X1 $0.00Disc
5 J-5710051 Motor 3/4 HP 115V 1 PH $293.02
6 J-5710061 Motor mount plate assy. $53.43
7 5710071 HH screw 5/16x5/8 $0.00Disc
8 5710081 HH screw 5/16x1-1/4 $0.00Disc
9A 5710091 Tapping screw 6mmx2O $0.00Disc
9A 6714158 Hex Head Cap Screw 1/4-20 x 5/8 $3.45
00 J-5710111 Gearbox cover $17.05
11A 5710121 Gearbox gasket $8.45
12 5710131 Trnsmsion gear 20mm bore $0.00Disc
12 5711921 Trnsmsion gear 25mm bore $0.00Disc
13 5710141 Ball bearing 6005 $79.30
14 5632141 "3/4X.035X93"" 8TPI" $0.00Disc
14 5632151 "3/4X.035X93"" 8TSTND 14TPI" $0.00Disc
14 5632161 "3/4X.035X93""" $0.00Disc
14 HVBS7MW-82 "3/4 X.035 X 93"" 5/8T Bi-Metal" $0.00Disc
15 5710161 Oil seal 20.42.7 $18.32
00 5711881 Oil seal 25.47.7 $13.18
16 5635271 Ball bearing 6004Z $30.98
00 5680391 Ball bearing 6005Z $0.00Disc
00 BB-6005Z Ball Bearing $28.76
17 5710181 Trnsmsion Shaft - 5/8 bore $116.11
00 5711931 Trnsmsion Shaft - 7/8 bore $72.20
18 5710191 Blade whl rear 20mm bore $78.70
00 5711831 Blade whl rear 25mm bore $69.20
19 5710211 Washer 3/8 $3.45
21 5710231 Belt 3V-270 $27.69
22 5710241 Worm pulley $62.20
23 5710251 Set screw 5/16x3/8 $3.45
23-1 5517501 Set screw 5/16x3/4 $0.00Disc
25 9100451 Ball bearing 6003 $9.78
26 5710281 Oil seal 17.35.7 $9.06
27 5710291 Bearing bushing $12.74
28 5710311 Ball bearing 6003 $0.00Disc
29 5710321 Worm gear shaft $63.66
30 5710331 Snap ring 42mm $6.25
30 5711871 Snap ring 47mm $6.53
31 9052181 HH screw 5/16x1-1/2 $42.02
32 5710351 Blade tension sliding plate $32.84
33 5710361 Sliding plate draw block $0.00Disc
33 HVBS7MW-115 Sliding Draw Block $20.55
34 5710371 Blade wheel shaft - front $0.00Disc
34 HVBS7MW-115 Sliding Draw Block $20.55
35 5710381 Bearing bushing $3.78
36 9100331 Bearing $26.60
37 5710411 Switch actuator $19.01
38 5710421 Blade wheel - front $59.20
39 9100331 Bearing $26.60
40 5710441 Phillips screw 1/4x1/2 $0.00Disc
41 5710451 HH screw 5/16x3/4 $0.00Disc
42 5710461 HH screw 1/4x1/2 $0.00Disc
42-1 5517502 Spring washer 1/4 $3.45
42-2 5517503 Washer 1/4 $3.45
43 5710471 Blade tension sliding guides $13.95
44 5710481 Blade tension adj. knob $38.45
45 5630601 Knob $40.99
46 J-5710511 Transmission gearbox 42mm $0.00Disc
00 J-5711861 Transmission gearbox 47mm $121.84
47 5710521 Adjustable bracket bar - front $37.43
48 5710531 Blade adjustable seat - front $36.92
49 5632831 Bearing, 608ZZ $0.00Disc
50 5710551 Bearing pin $7.63
51 5710561 Eccentric shaft assy. $56.70
51-1 5517504 Center shaft assy. $54.20Disc
51-1 HVBS7MW-91A Center Shaft Assembly(inside)(S/N: 80910747 and ... $27.69
52 5710571 Brush $38.96
53 5710581 Hex nut 3/8x24 $3.45
54A 5710591 Oil plug $67.20
55 5710611 Phillips screw 1/4x3/8 $0.00Disc
56 5710621 Vertical cutting plate $27.70
57 5710631 Blade adjustable sear - rear $36.92
58 5710641 Adjustable bracket bar - rear $35.39
59 5710651 SHCS 5/16x1-1/8 $3.45
60 5710661 Vertical cutting plate (small) $7.63
61 5710671 Brush bracket $16.15
62 5710681 Nozzle bracket $9.88
62-1 5517505 Valve $16.15
62-2 5517506 Nozzle cock $11.74
63 J-5710691 Blade guard $13.72
65 J-5710721 Saw bow (arm)-rounded style $188.22
00 J-5711821 Saw bow (arm)-square style $268.91
66 5710731 HH screw 5/16x2-1/2 $0.00Disc
67 5710741 Thumb screw $6.53
67A 5711561 Washer 1/4 $0.00Disc
68 J-5710751 Blade cover assy early style $85.72
00 J-5711811 Blade cover assy later style $85.72
85 5710941 Washer 5/16 $3.45
87 5710961 Collar $9.55
93 5711031 Spring washer 5/16 $3.45
93-1 5517507 Adj. Screw 1/4x3/8 $0.00Disc
93-1 TS-0267041 Set Screw $3.45
94 5711041 Nut 5/16 $0.00Disc
98 5711081 Set screw 1/4x1/4 $0.00Disc
103 5711141 Washer 5/16 $0.00Disc
116 5711281 Hex nut 5/16 $0.00Disc
122 5711351 Key 5mm $3.78
141 5711561 Washer 1/4 $0.00Disc
142 5711571 Screw 3/16x1/4 $3.45
145 J-5711391 Cooling fan cover $37.64
147 J-5711431 Capacitor cover $12.31
148 5711471 Capacitor $22.20
149 5711481 Cooling fan $9.55
150 5711841 Bushing $8.13
152 5710531A Blade guide assy left side $174.80
153 5710631A Blade guide assy right side $172.59
155 5711951 Rubber flap $9.28
156 5711251 Cord $38.96
158 5711991 C-clip $5.70
159 5710511A Cmplte gearbox 42mm bore $0.00Disc
160 5711801 Cmplte gearbox 47mm bore $0.00Disc
160 5711801A GEAR BOX 3400 INCLUDES 5711831 IN ASSY $368.80
161 5517509 Block plate $7.22
162 5517510 Hex soc. screw 3/16x1/2 $3.45
163 5517511 Bearing bushing $7.63
164 5517512 Key 6x20 $0.00Disc
165 5517513 HH screw 3/8x1 $3.45
166 5517514 Spring washer 3/8 $3.45
167 5517515 Washer 3/8x35x4 $3.45
168 5517516 Top support $36.41
169 5517517 HH screw 3/8x1-1/2 $0.00Disc
170 5517518 Spring washer 3/8 $0.00Disc
171 5517519 Nut 3/8 $0.00Disc
172 5517508 HH screw 1/4x3/8 $0.00Disc
00 5711421 Junction box cvr (not shown) $18.95
19 5710211 Washer 3/8 $3.45
20 5710221 HH screw 5/16x3/4 $0.00Disc
20-1 5517520 HH screw 5/16x1/2 $3.45
68 5517521 Set screw 5/16x3/8 $3.45
70 5710771 Nut $9.55
71 5710781 Vise screw $15.56
72 5710791 Spring $5.70
73 5710811 Vise thrust shaft $16.70
74 5710821 Nut seat $45.59
75 J-571083 Vice jaw movable $0.00Disc
76 J-571084 Vice jaw stationary $0.00Disc
77 5710851 HH screw 1/2x1-1/2 $0.00Disc
77-1 5517522 HH screw 1/2x1-1/4 $3.45
78 5628371 Washer, Spring, 1/2 $29.78
79 5507523 Washer 1/2 $3.45
81 5710891 Handle wheel 13mm $41.00

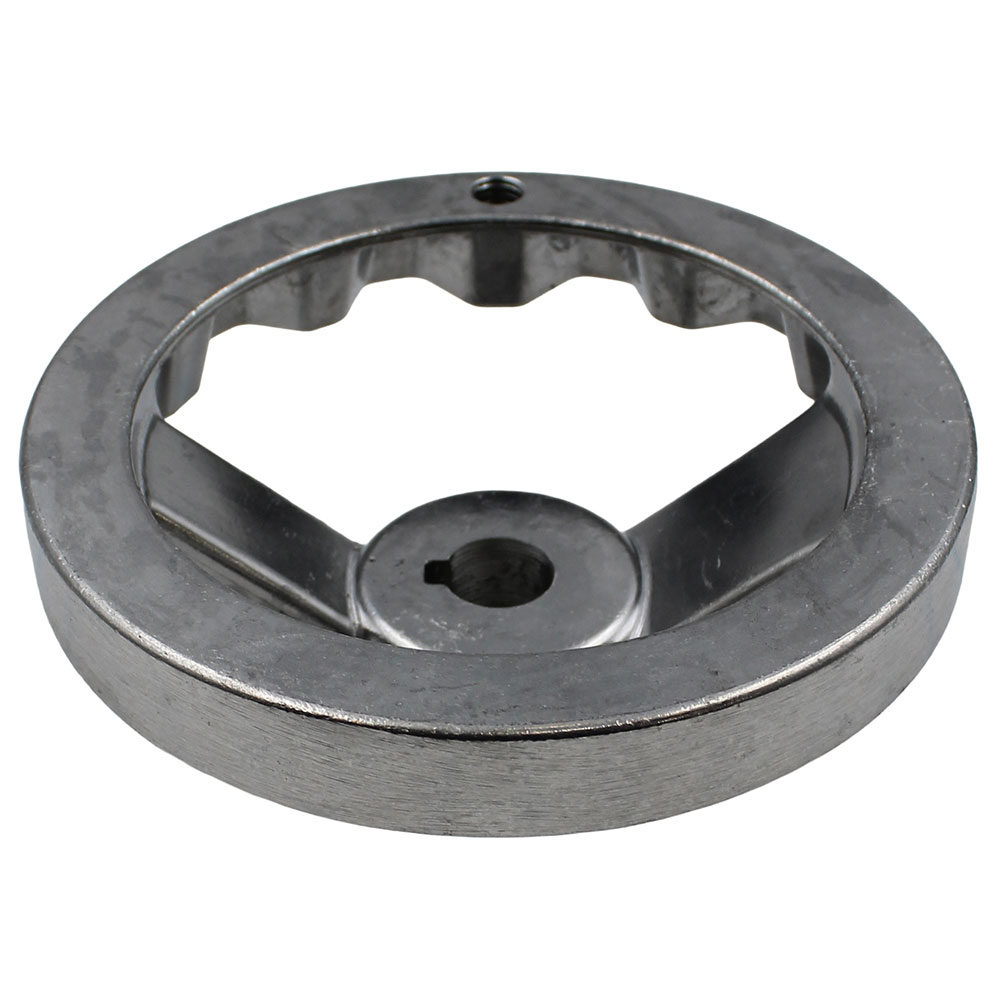

00 5711781 Handle wheel 15mm $45.08
82 5710911 Set screw 5/16x3/8 $0.00Disc
83 5710921 Lead screw - 13mm $69.20
83 5711791 Lead screw - 15mm $57.20
84 5710931 HH screw 5/16x1 $0.00Disc
85 5710941 Washer 5/16 $3.45
86 J-571095 Lead screw seat $0.00Disc
88 5517523 RH Ph. Screw 3/16x1/4 $3.45
88-1 5517524 RH Ph. Screw 3/16x3/8 $3.45
89 5710981 Spring handle mount - rear $4.05
90 5710991 Spring adjustable rod $9.86
91 5711011 Spring $51.20
92 5711411 HH screw 5/16x1-1/4 $4.60Disc
92 6715034 Hex Head Cap Screw 5/16-18 x 1-1/4 $6.80
93 5711031 Spring washer 5/16 $3.45
94 5711041 Nut 5/16 $0.00Disc
95 J-5711051 Pivot arm - 5/8 bore $61.41
00 J-5711751 Pivot arm - 7/8 bore $45.59
96 5517525 HH screw 3/8x1 3/4 $3.45
97 5517526 Nut 3/8 $3.45
99A 5517527 Fiber hex. nut 1/2 $3.45
100 5711111 Washer 1/2 $0.00Disc
101 5711061 HH screw 3/8x1-1/2 $4.50
102 5711131 Spring Washer 3/8 $0.00Disc
104 J-5711151 Power switch Assembly $34.55
105 5711161 Angle scale $4.33
107 J-5711181 Table - 5/8 bore $286.35
00 J-5711761 Table - 7/8 bore $236.84
108 5711191 HH screw 3/8x1 $0.00Disc
109 9056991 Nut 3/8x7x14 $3.45
110 5711221 90 degree support $11.20
111 5517529 HH screw 3/8x1-3/4 $3.45
115 5711271 Support shaft -5/8 $25.28
00 5711771 Support shaft - 7/8 $46.10
119 5711321 Stock stop $14.62
120 5711331 Thumb screw $3.71
121 5711341 Stock stop rod $11.20
123 5517530 HH screw 5/16x3/4 $3.45
124 5711371 Horizontal stop screw support $9.28
125 5711381 Horizontal stop screw $17.80
127 5517531 HH screw 5/16x1 $0.00Disc
130 J-5711441 Trough $122.94
131 J-5711451 Floor stand, left $96.39
131 J-5711451 Floor stand, left $96.39
132 J-5711461 Skirt $65.86
135 J-5711491 Shelf $53.43
137 5711521 Enclosure $30.80
138 5711531 Gasket $7.63
139 5711541 Cover plate $8.07
143 5711261 Screen $9.88
144 5711961 Spacer $26.60
161 5711941 Drain hose $12.74
146 5711971 Switch box $19.01
147 5711981 Round head screw 3/16x3/8 $9.00
148 5517535 Cylinder $233.00
149 5517536 Hex. soc. screw M10x40 $0.00Disc
150 5517537 Washer 3/8 $0.00Disc
151 5517538 Spring washer 3/8 $0.00Disc
152 5517539 Nut M10 $0.00Disc
153 5517540 HH screw 3/8x1 $0.00Disc
154 5517541 Spring washer 3/8 $0.00Disc
155 5517542 Set screw $0.00Disc
156 5517543 Bottom support $36.41
157 5517544 Support rod $18.90
160 5042291 Modular box (gray) $56.20
00 HVBS7MW-6N Coolant tank (blue) $0.00Disc
160 5711452 Plastic funnel $8.07
162 J-5042281 Coolant pump 120V/240V submersible - for machine... $185.89
00 HBS916W-CP Coolant Pump $199.05
163 5517532 HH. screw 1/4x1/2 $0.00Disc
164 5517533 Hose fitting $19.01
165 5517534 Hose Clamp 13mm $0.00Disc
166 9307291 Hose $4.33
167 5517528 Jam nut 3/8 $3.78
168 5635500 Wet kit $0.00Disc
169 5518228N Flat Washer 23.8 x 13.3 x 2.7mm $3.45
170 5518229N "Wheel 8"" (s/n 11122829 and higher)" $32.84
171 5518230N Wheel shaft (s/n 11122829 and higher) $26.60
172 5518231N ... Cotter pin $3.45
00 J3410-WA Wheel Assembly (#169-172) (sin 11122829 and high... $160.25
1-A 5517547 Dust cover $10.65
2-A 5517548 Retaining ring $4.33
3-A 5517549 Oil-seal $7.63
4-A 5517550 Oil-piston $65.20
5-A 5517551 O-ring $3.78
6-A 5517552 Cylinder body $77.20
7-A 5517553 Oil pressure regulator $0.00Disc
8-A 5517554 Oil duct $22.20
