Jet GH-1840ZX with 2-axis ACU-RITE DRO 200S & Taper Attachment & Collet Closer Installed Lathes Machines Parts

Brand: Jet

Model: 321454

Jet 321454 Parts Schematic

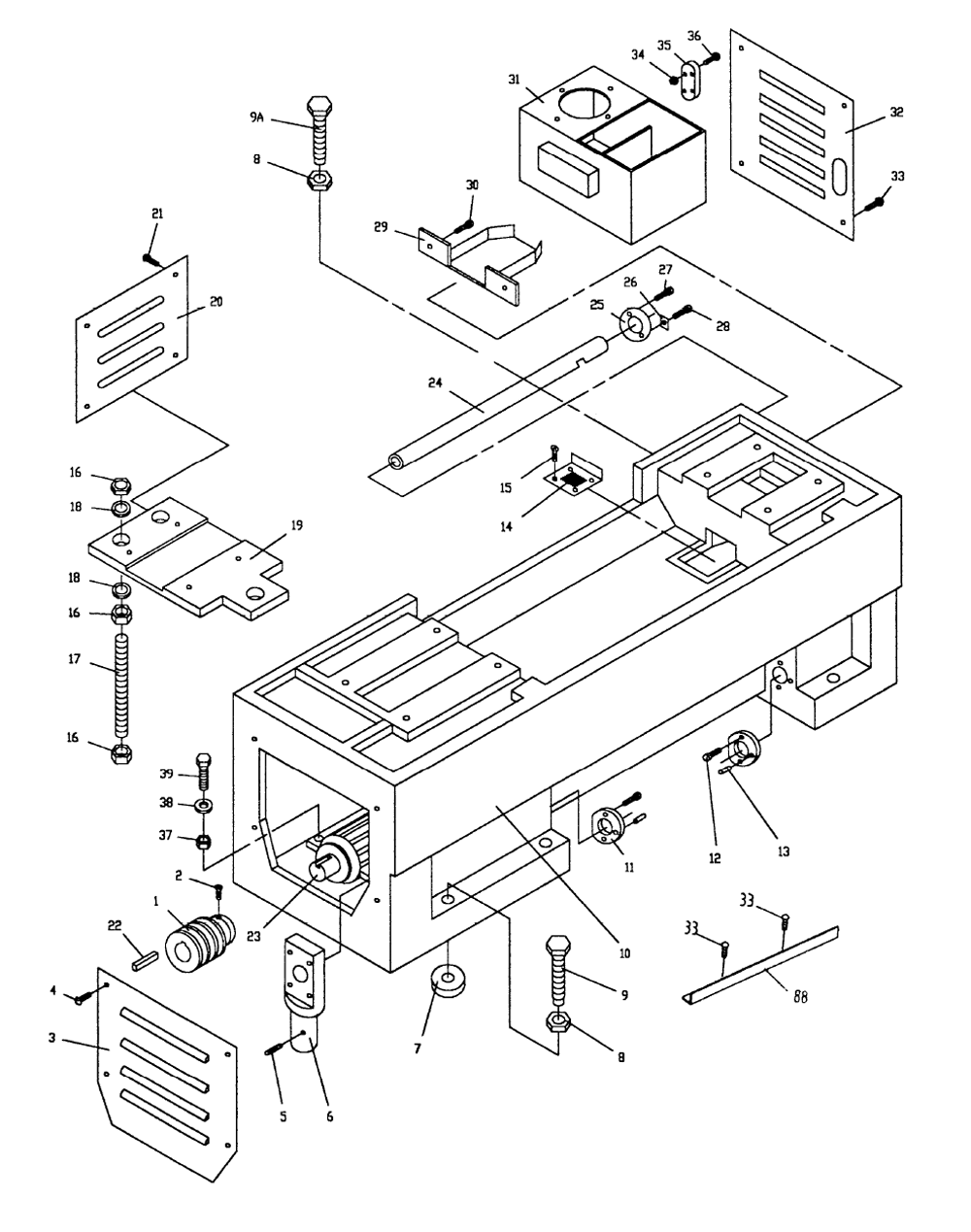

  • Fig-0

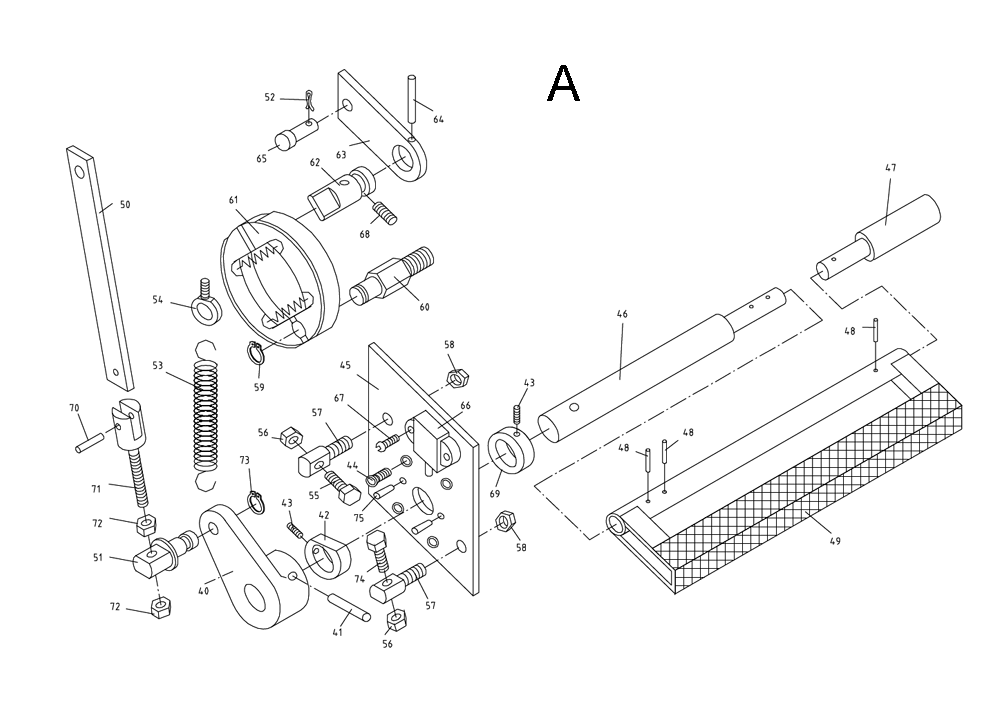

  • Fig-1

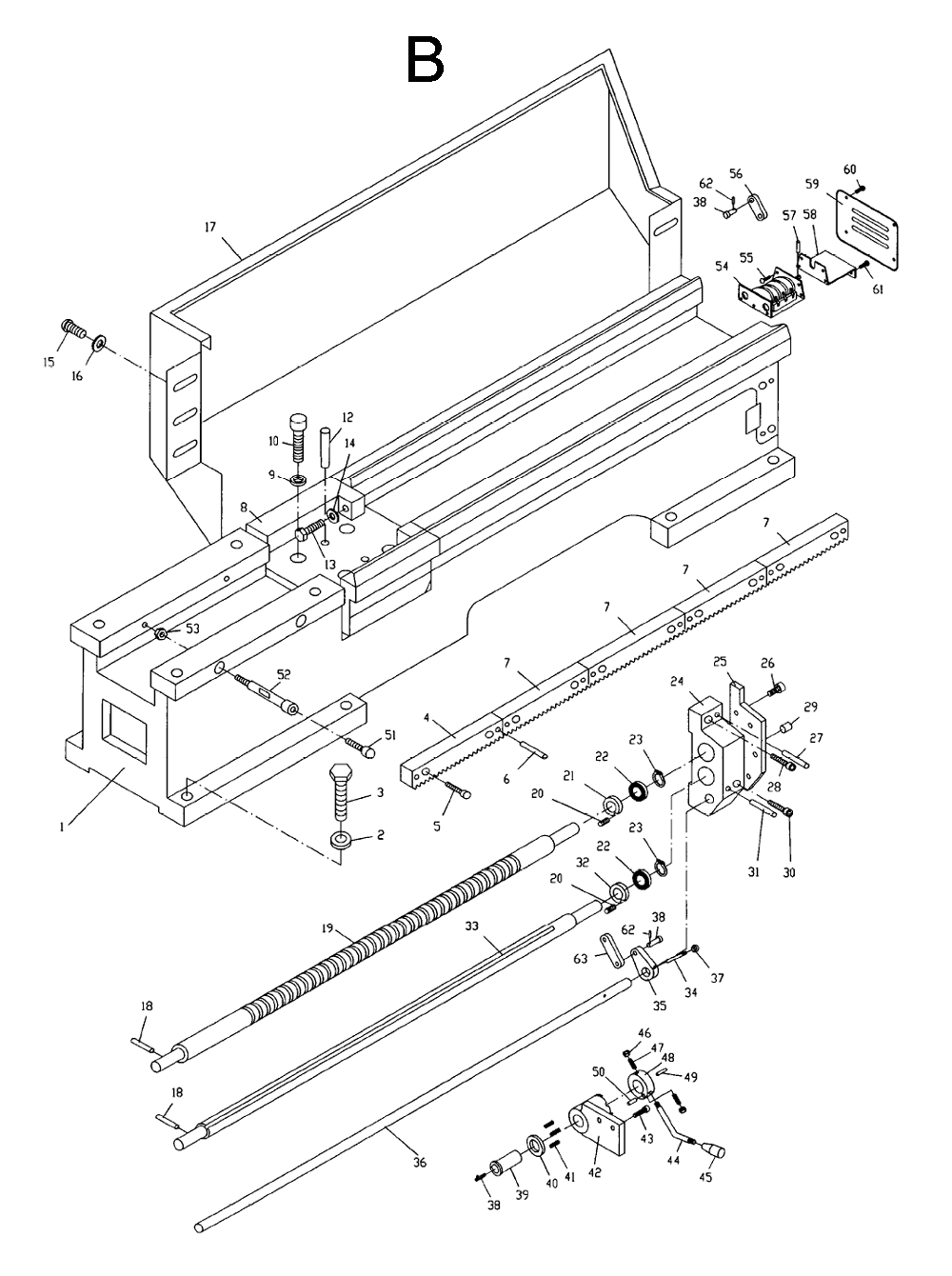

  • Fig-2

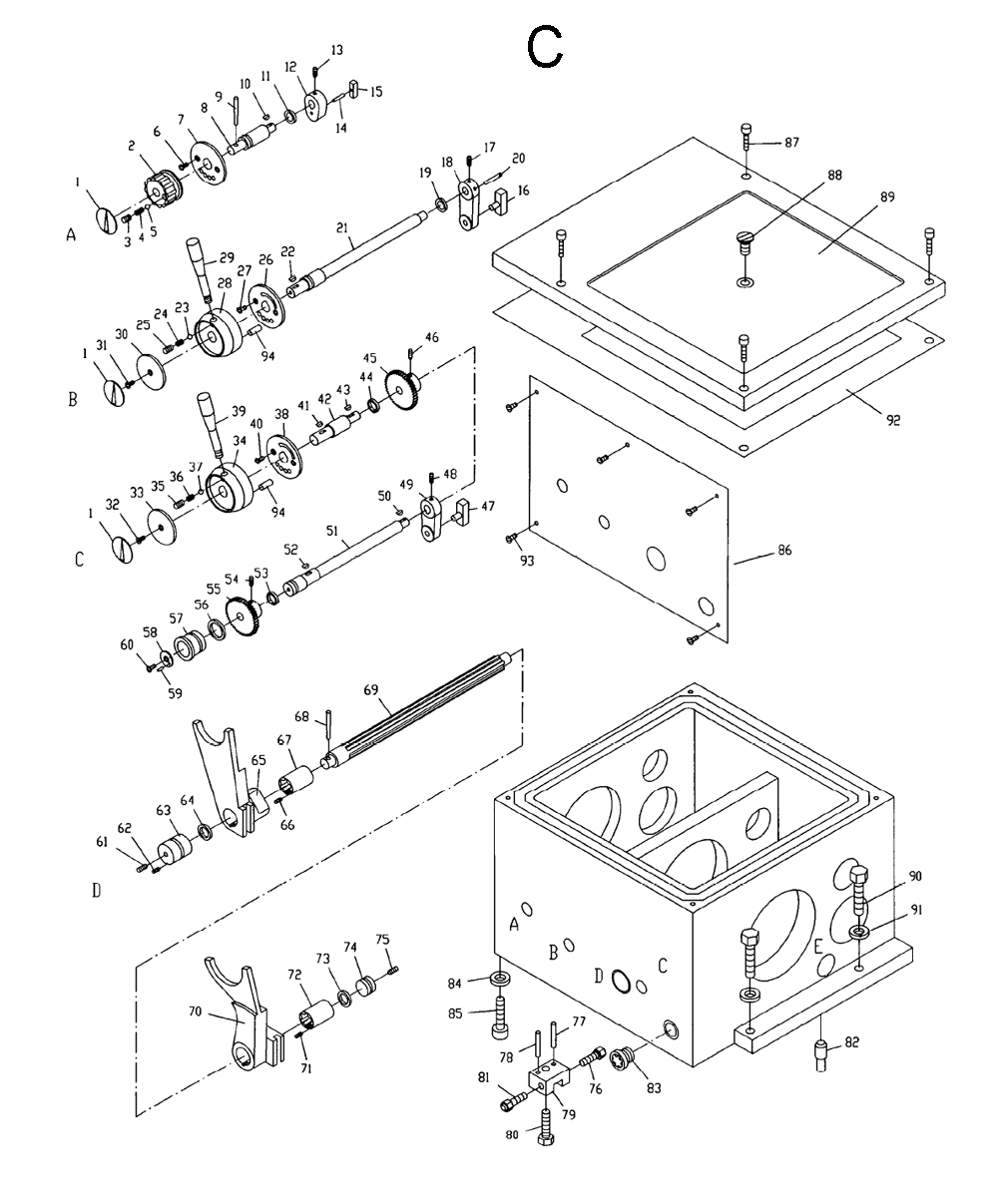

  • Fig-3

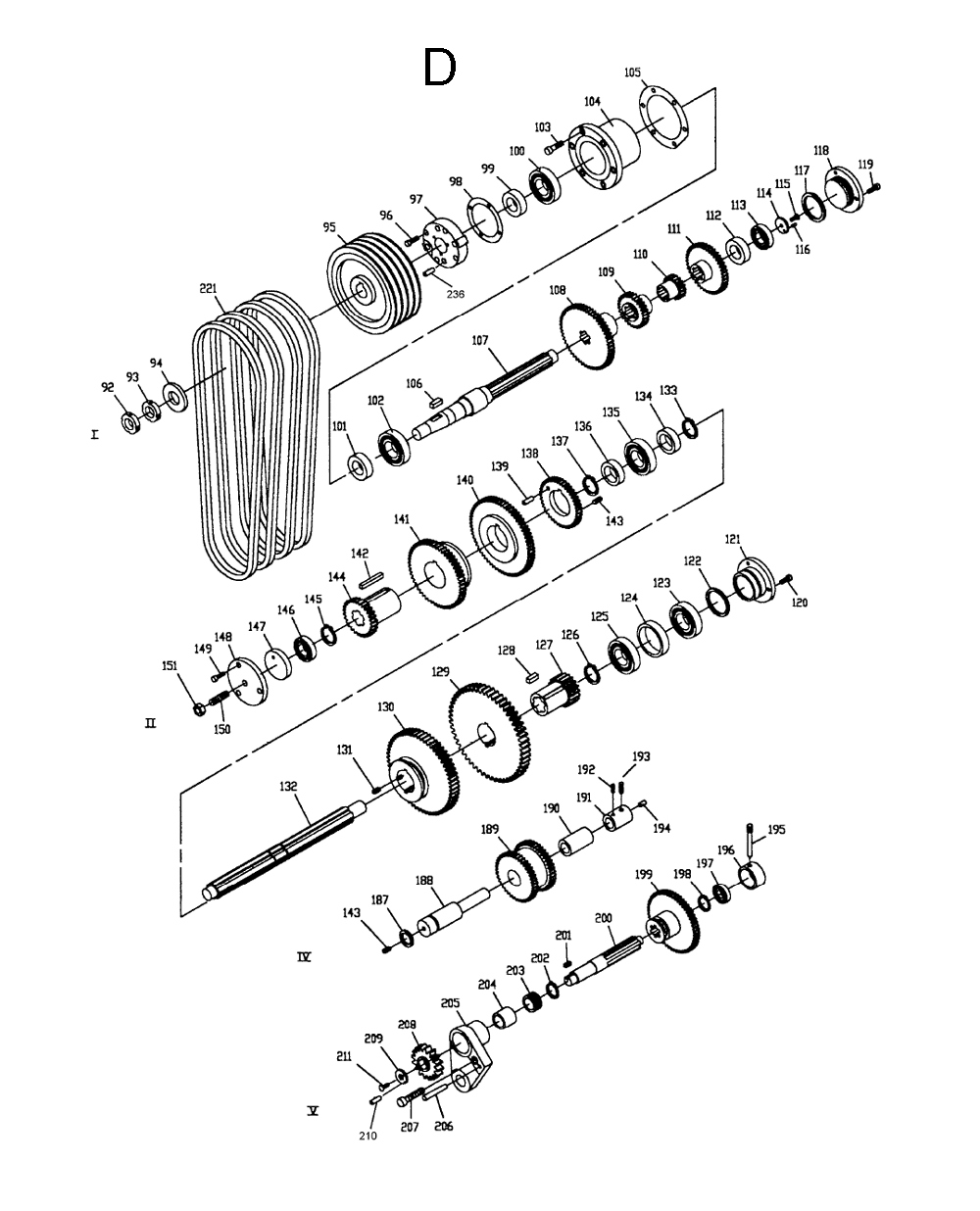

  • Fig-4

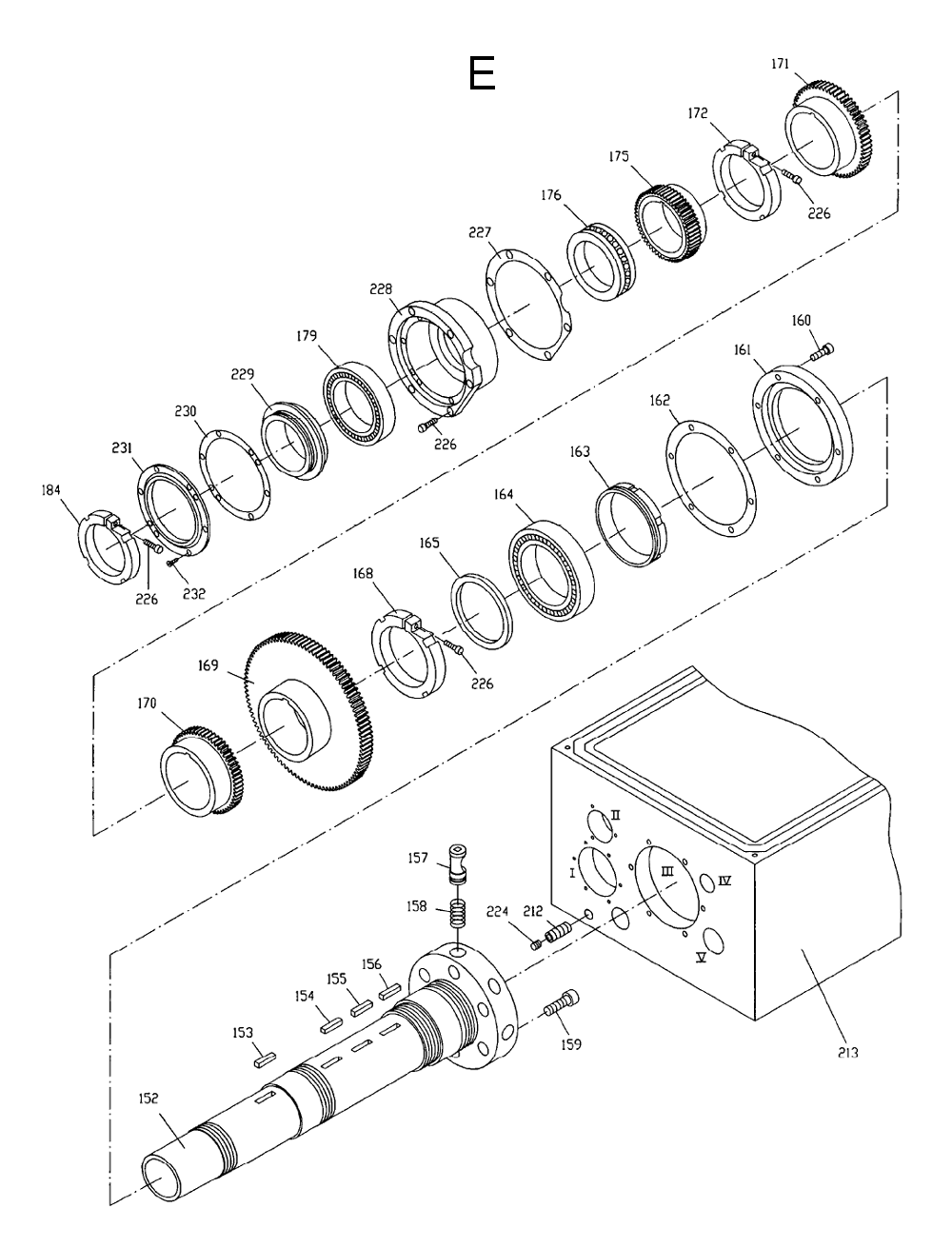

  • Fig-5

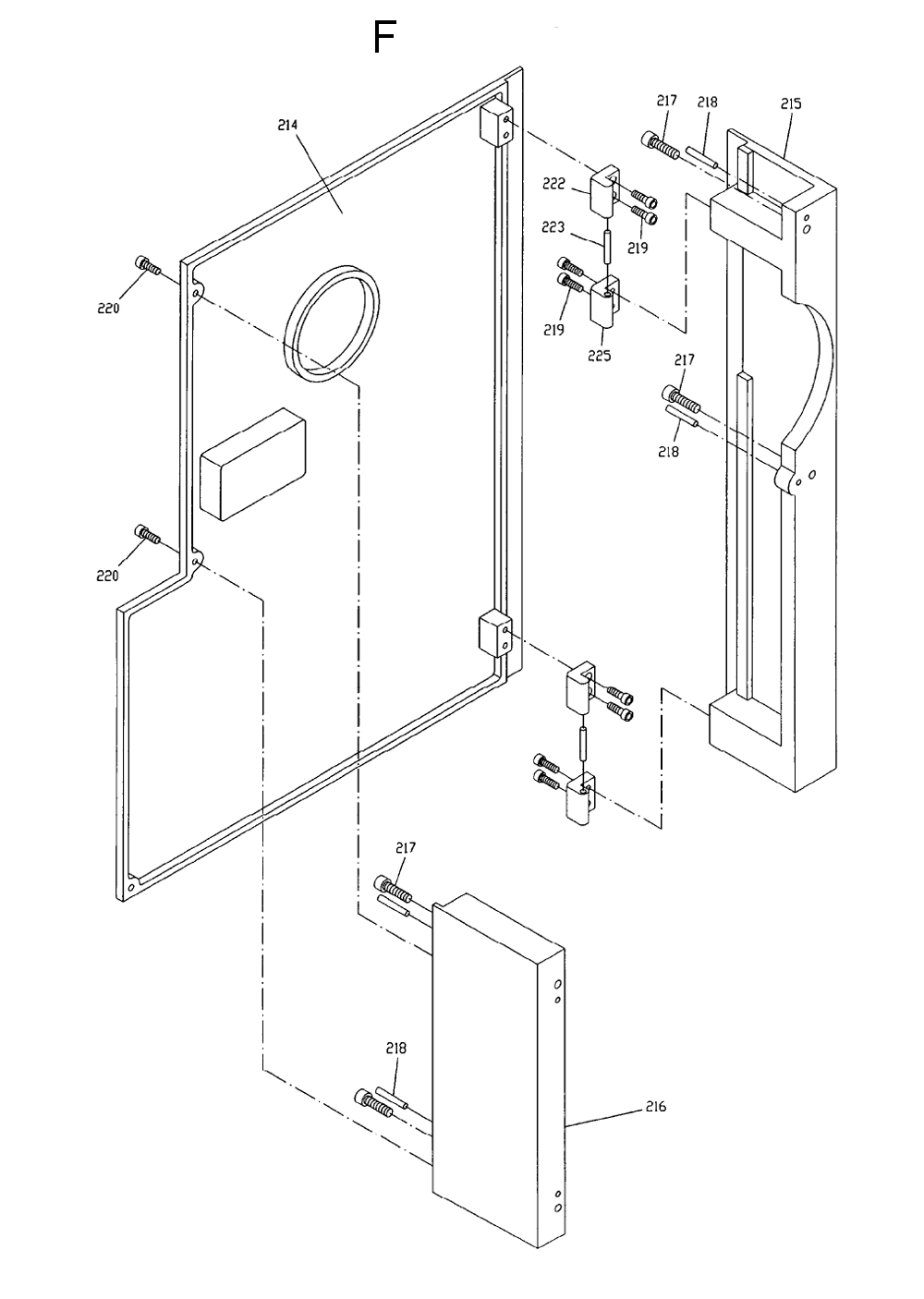

  • Fig-6

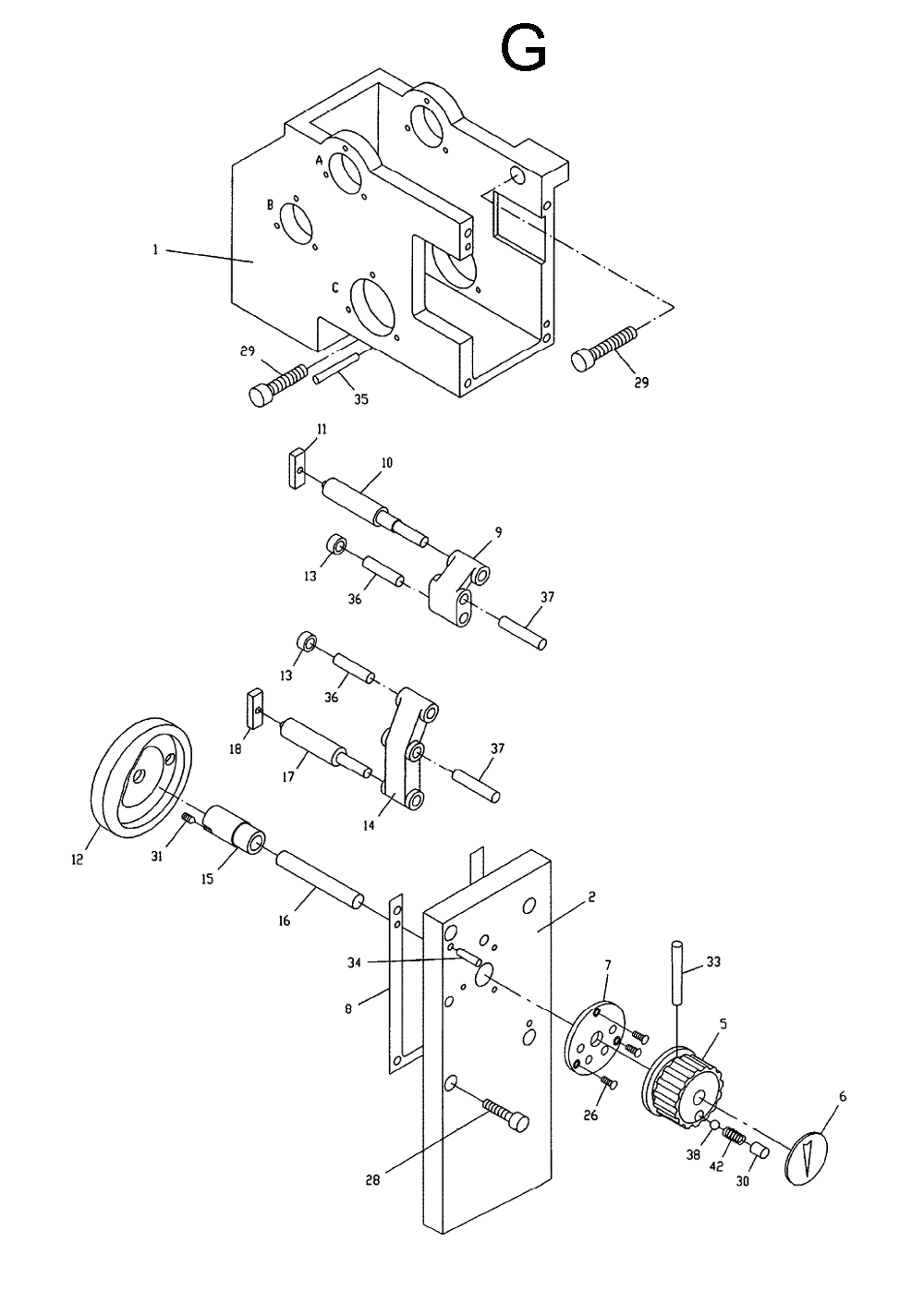

  • Fig-7

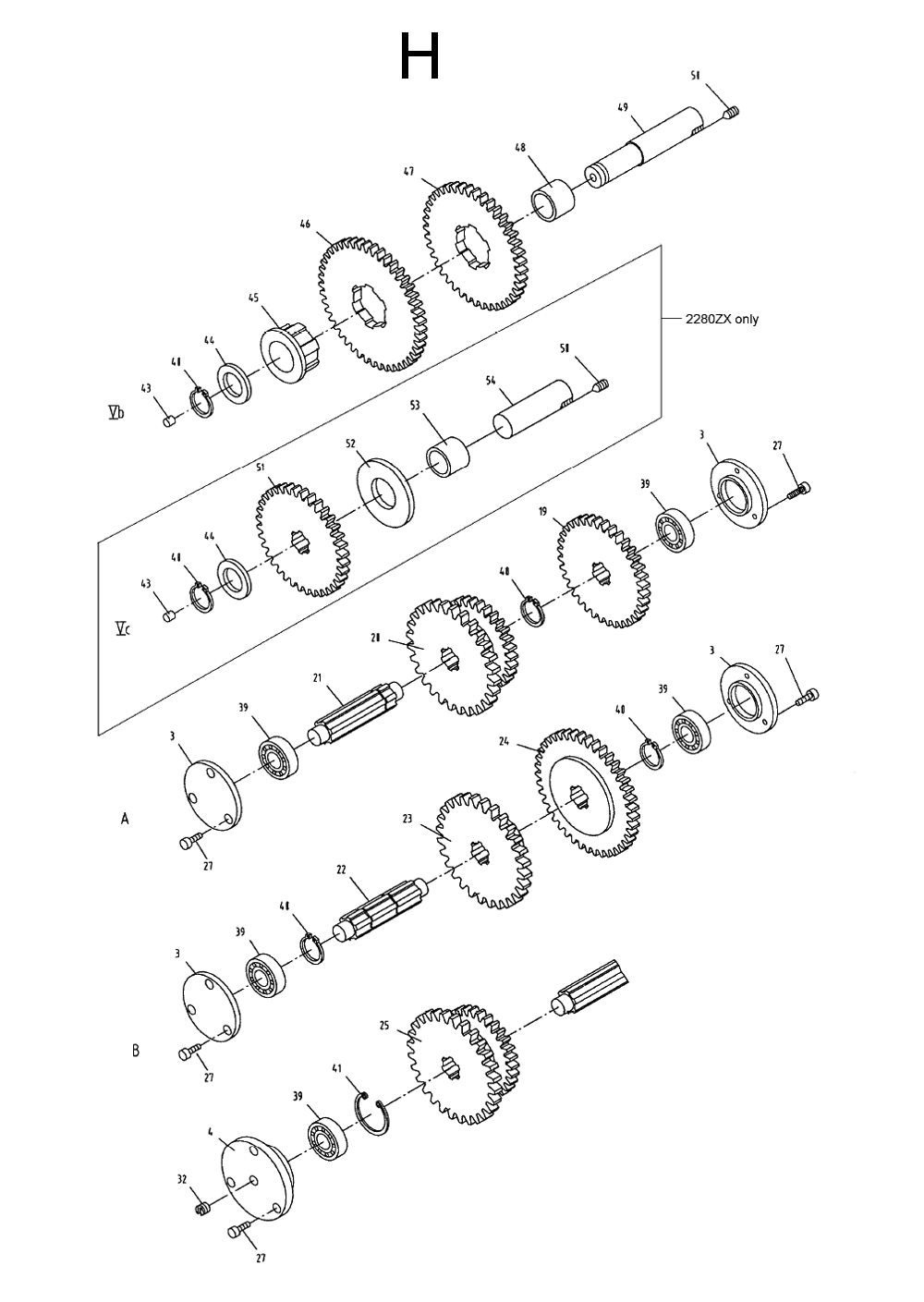

  • Fig-8

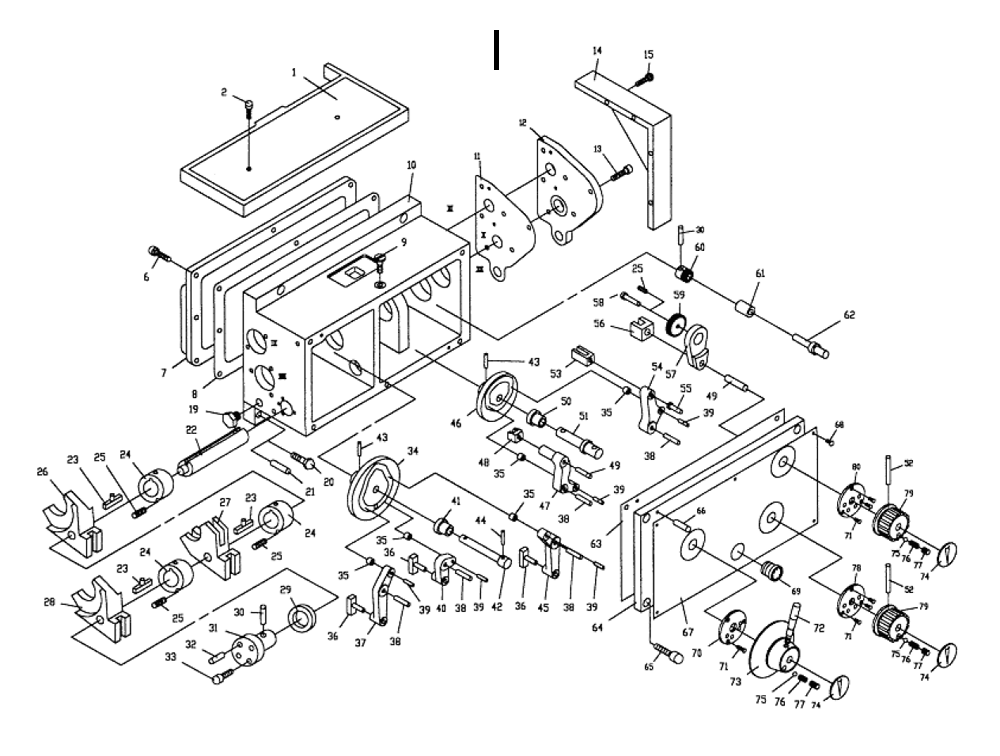

  • Fig-9

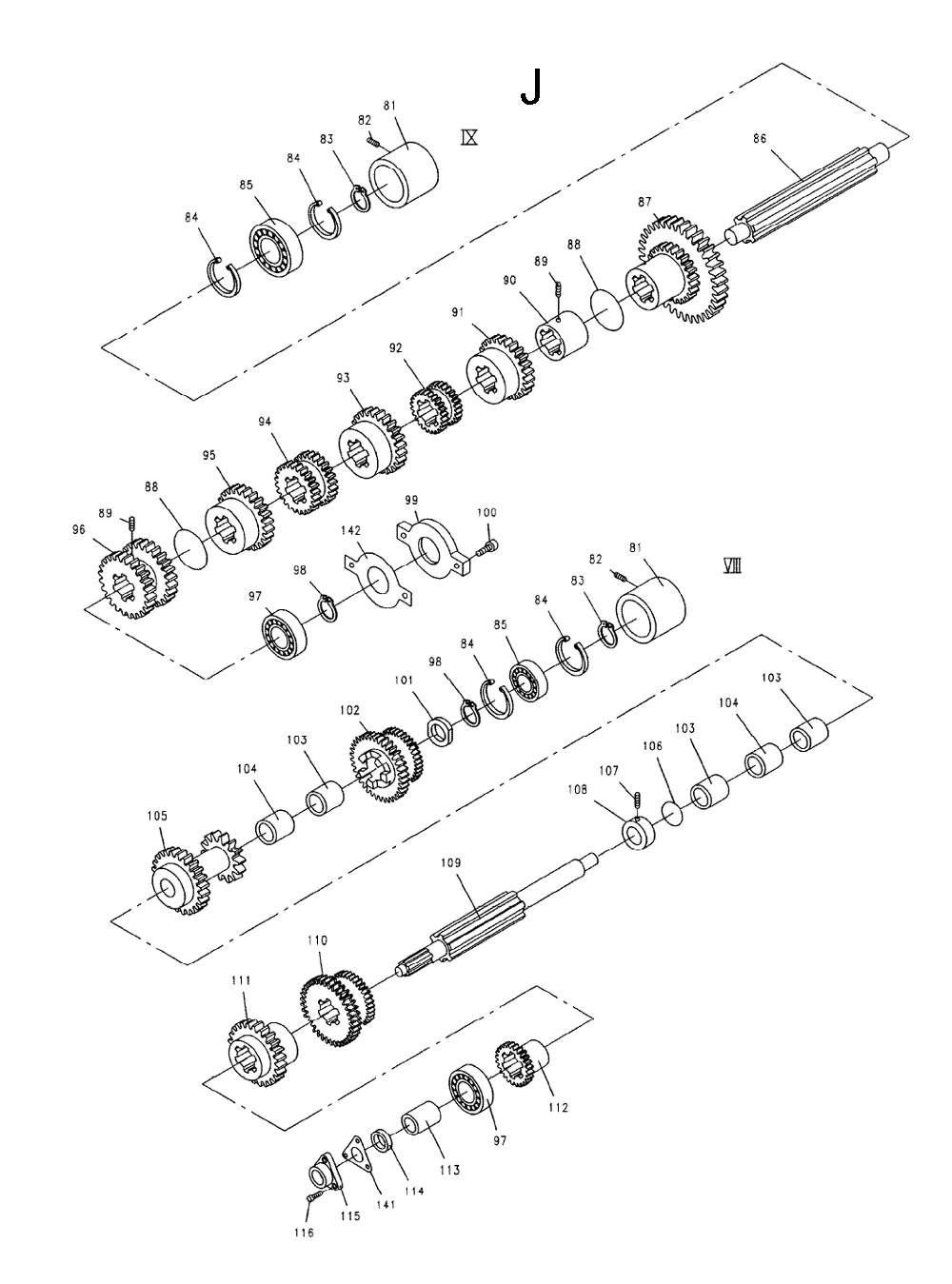

  • Fig-10

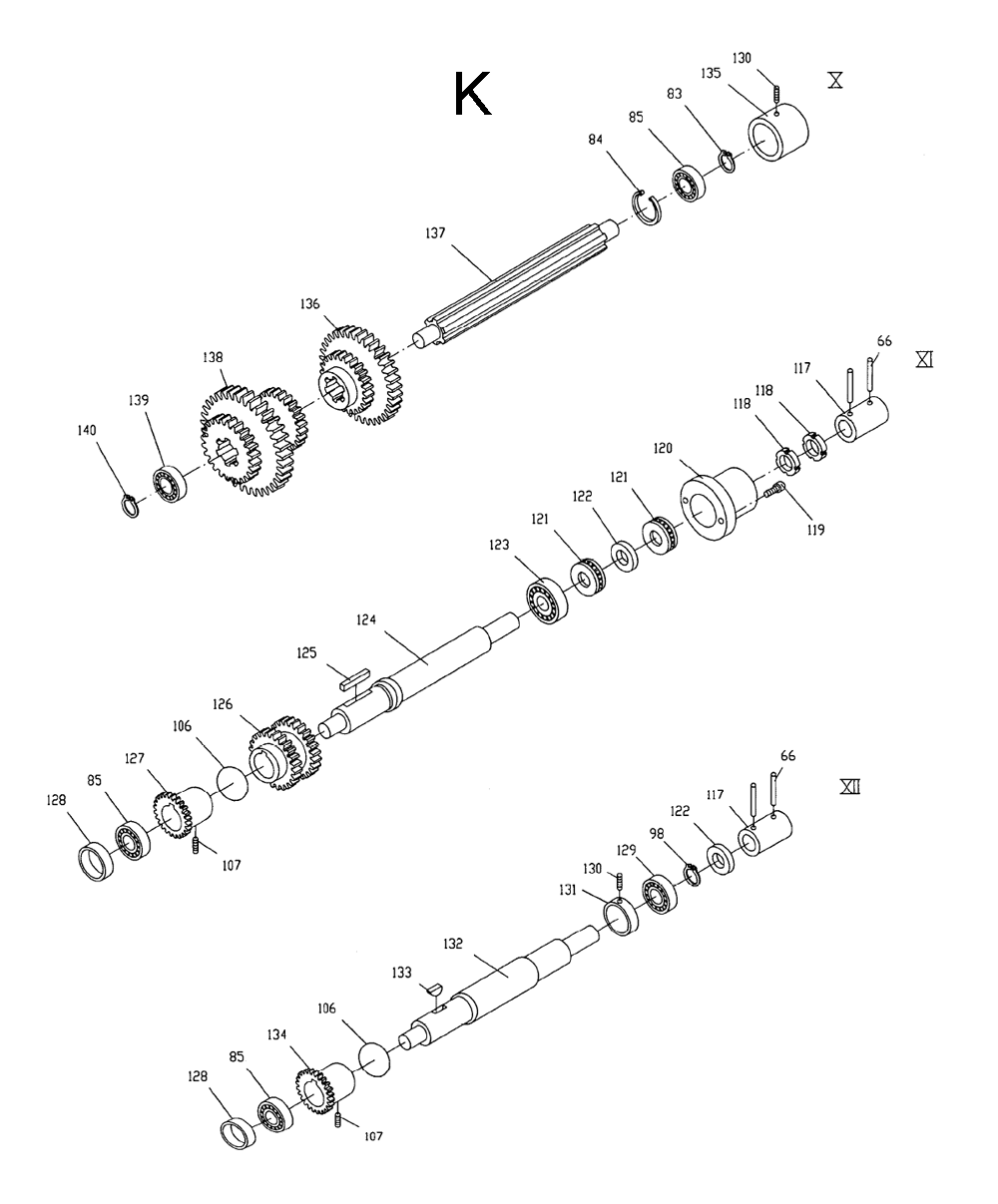

  • Fig-11

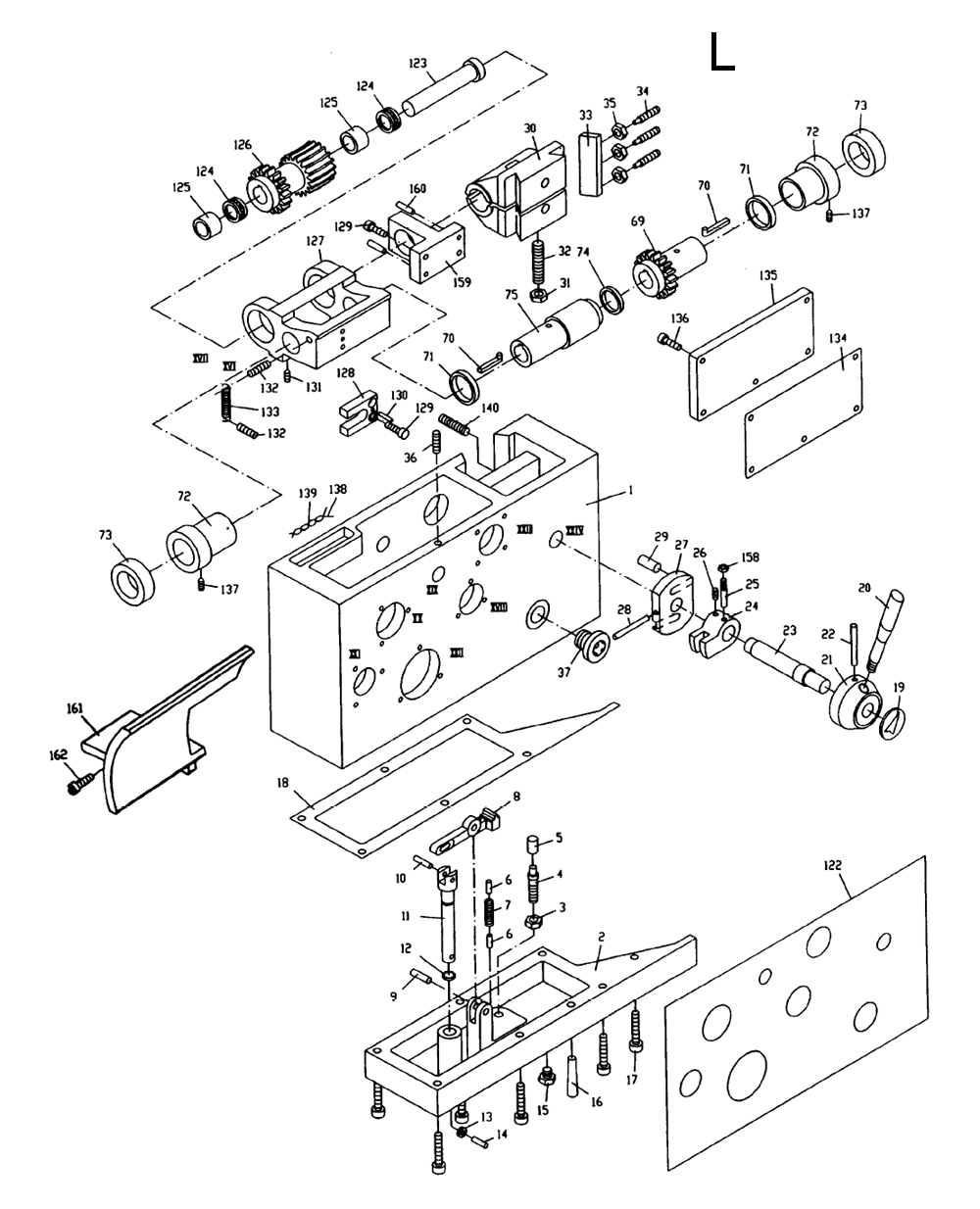

  • Fig-12

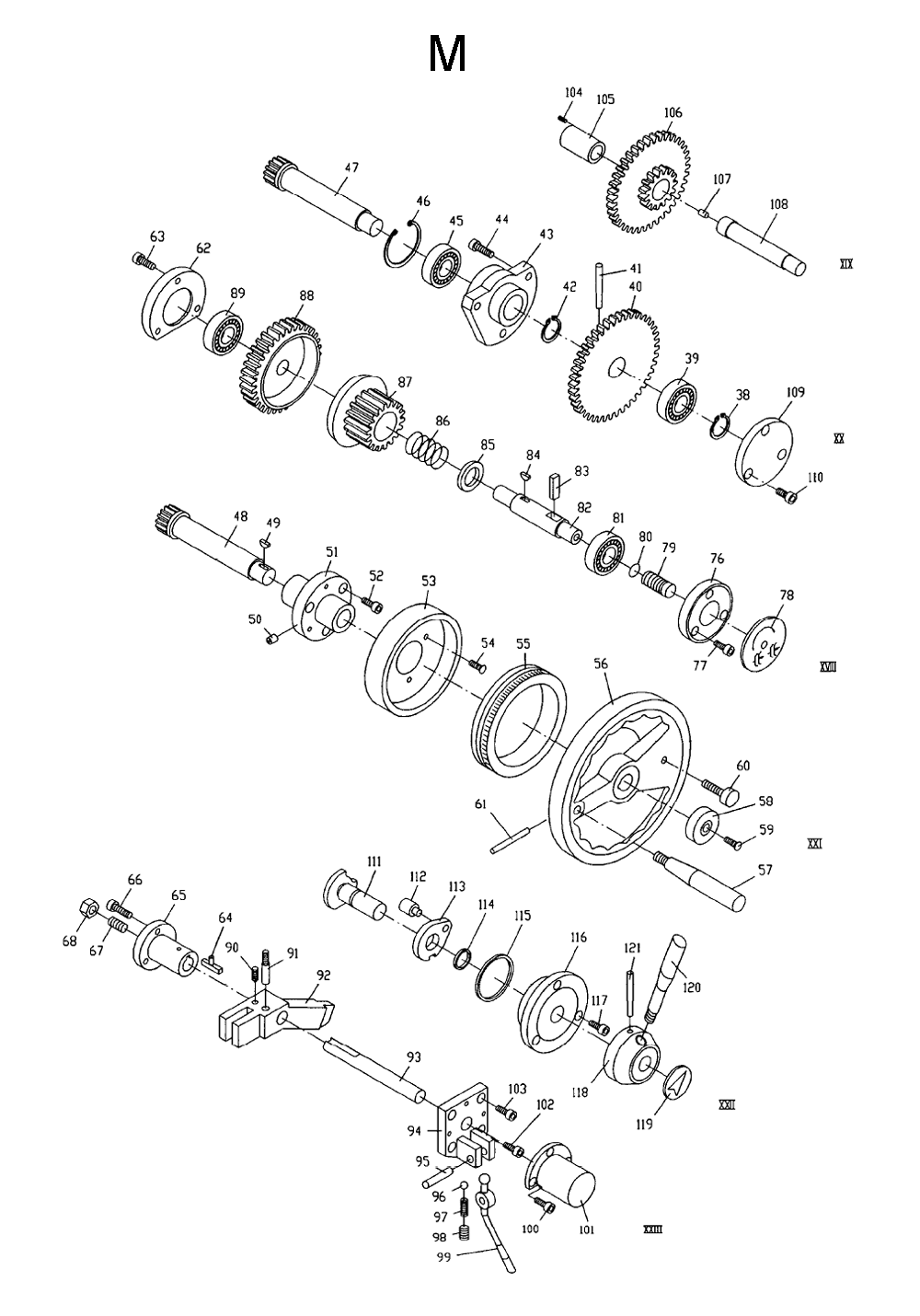

  • Fig-13

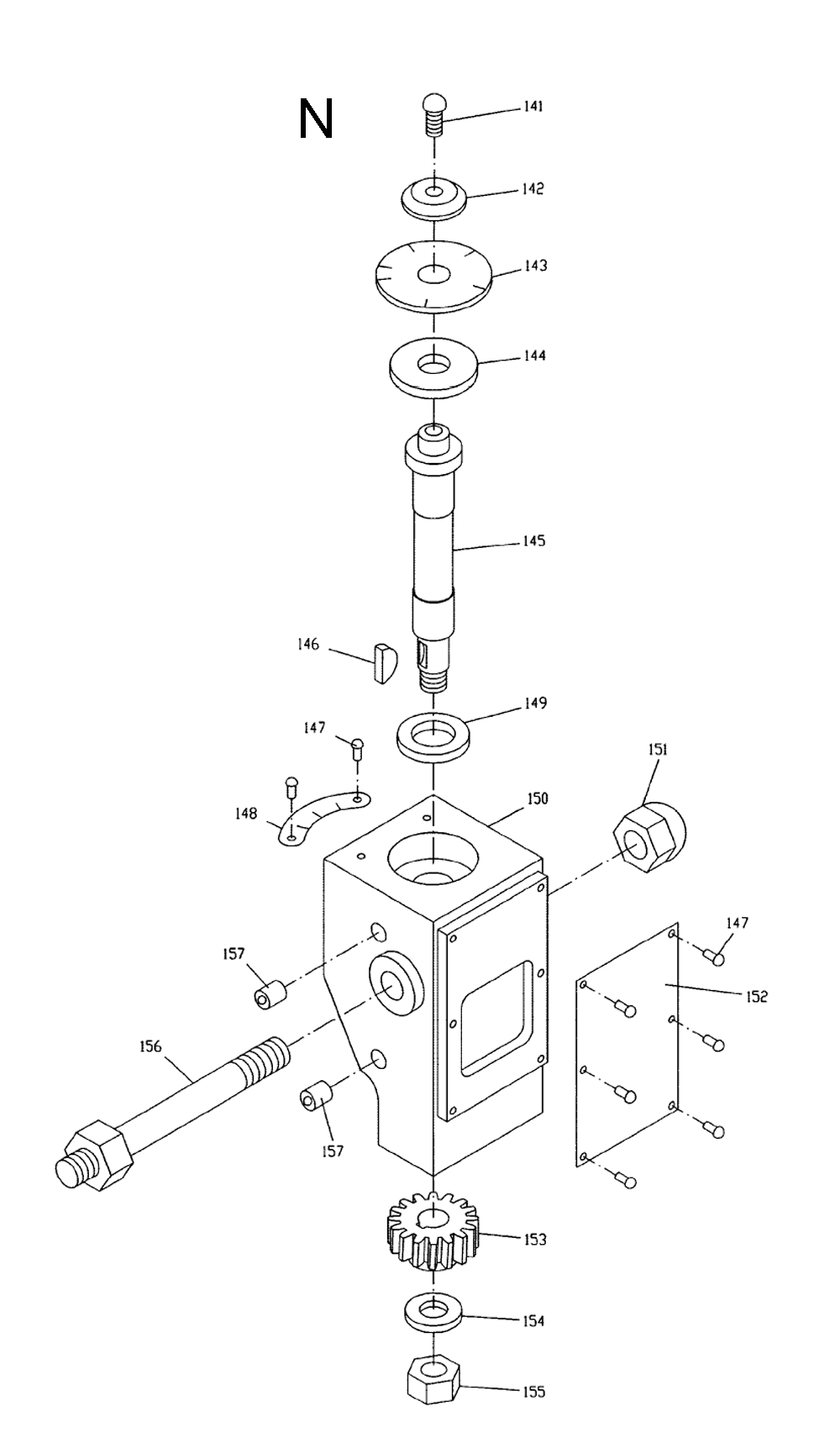

  • Fig-14

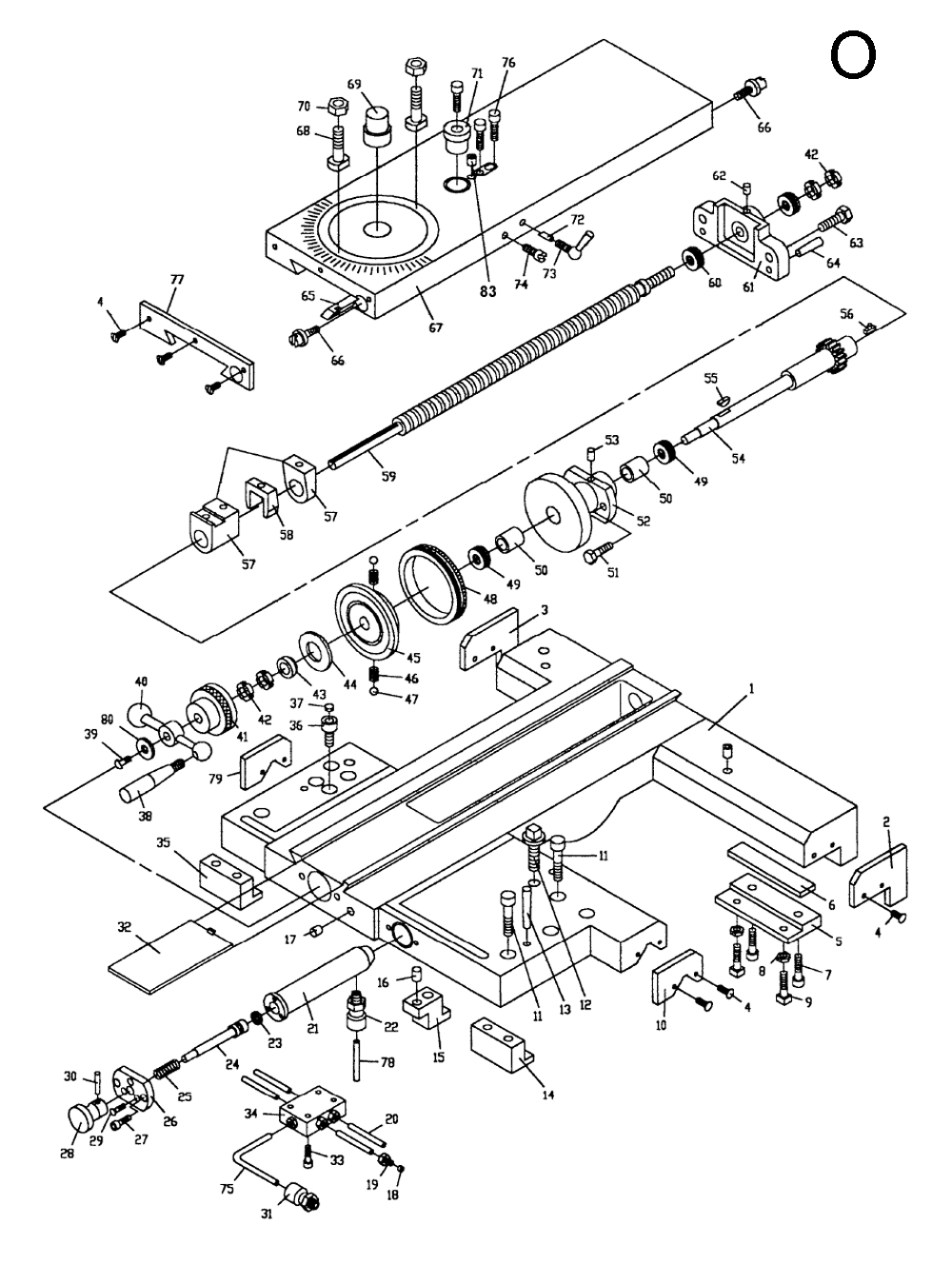

  • Fig-15

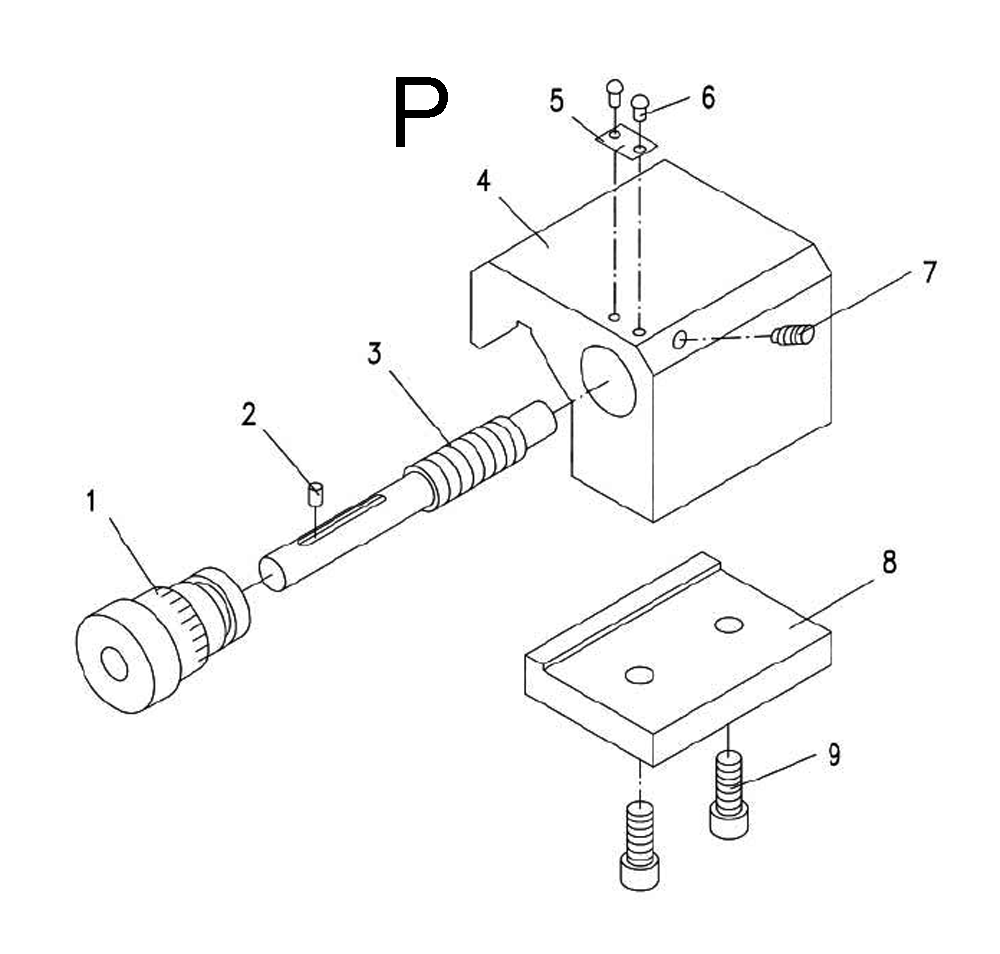

  • Fig-16

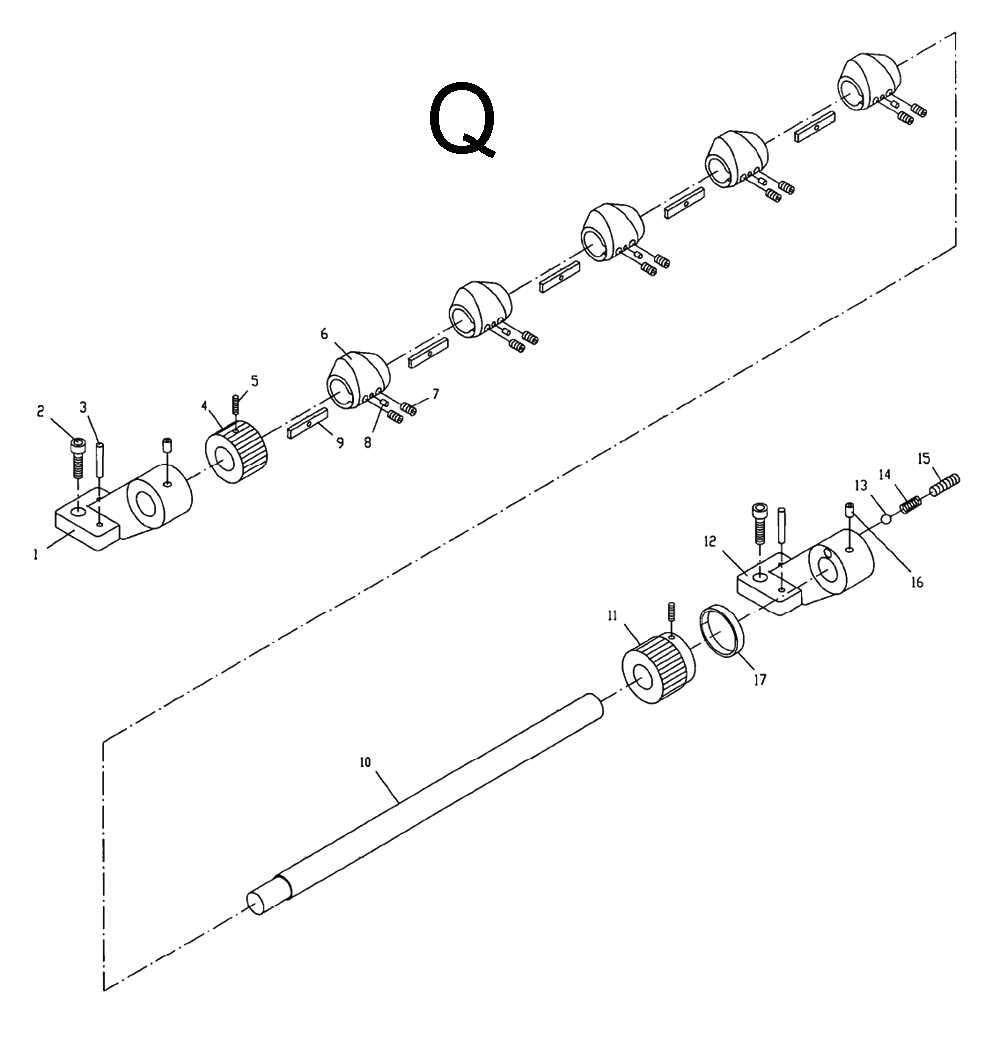

  • Fig-17

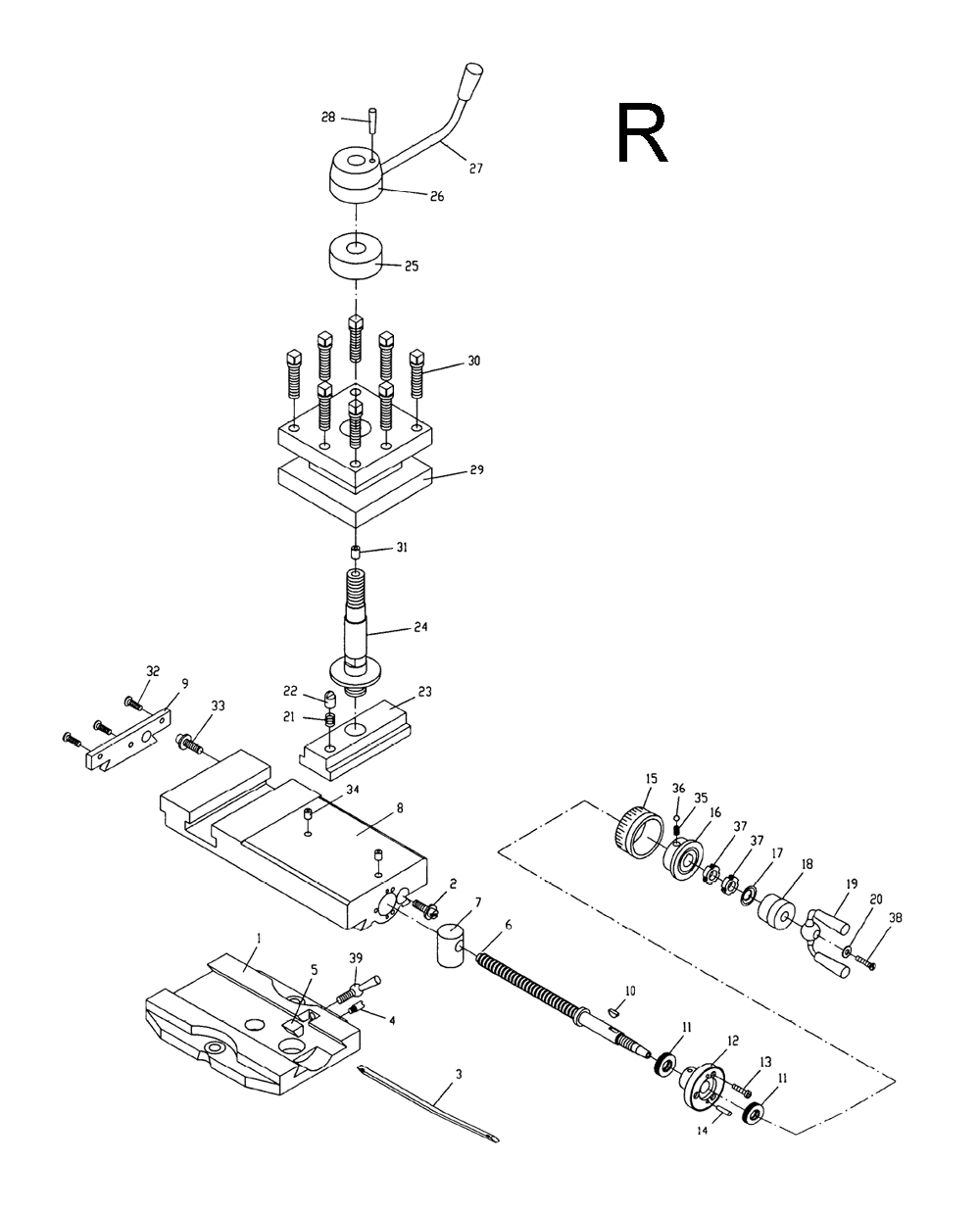

  • Fig-18

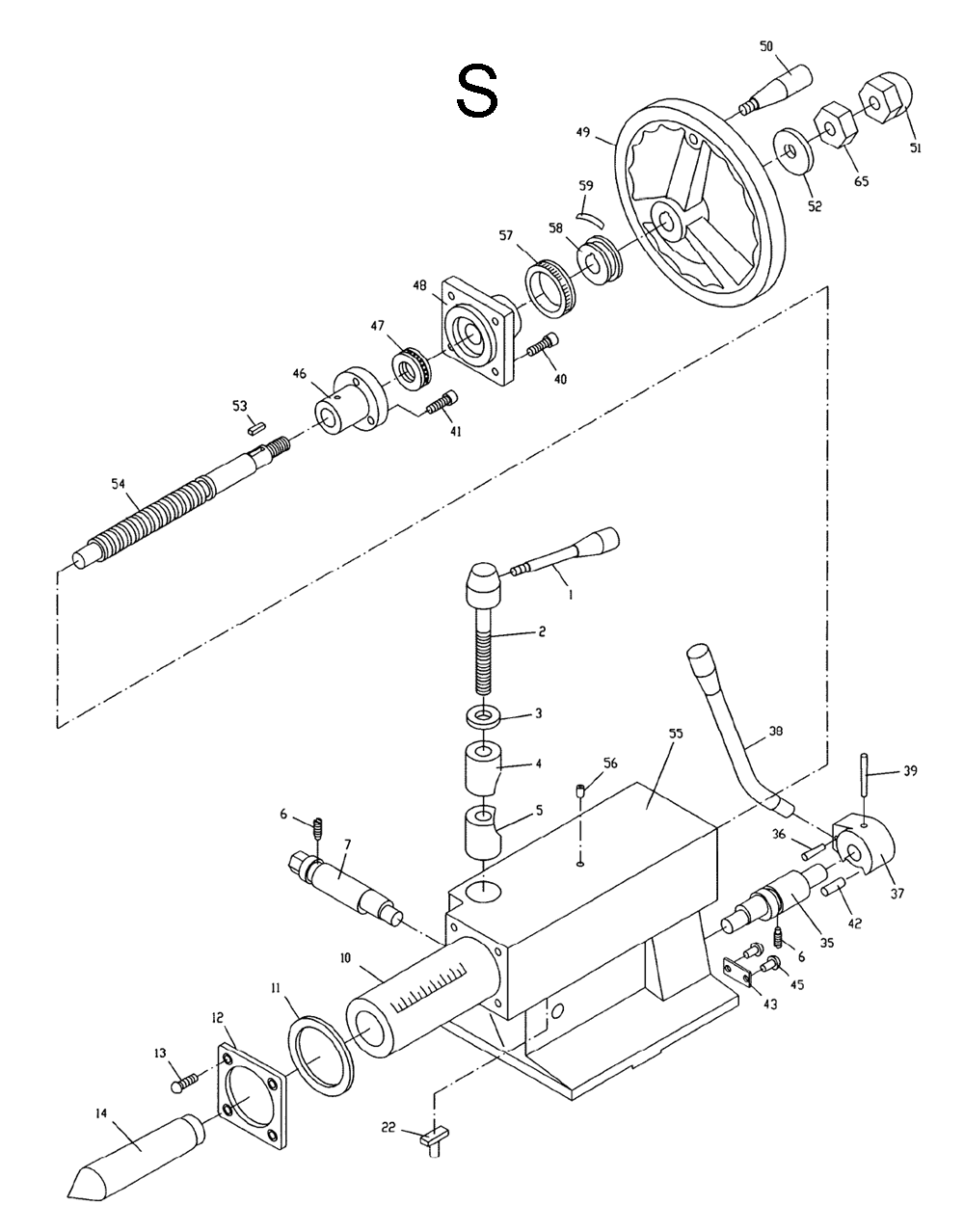

  • Fig-19

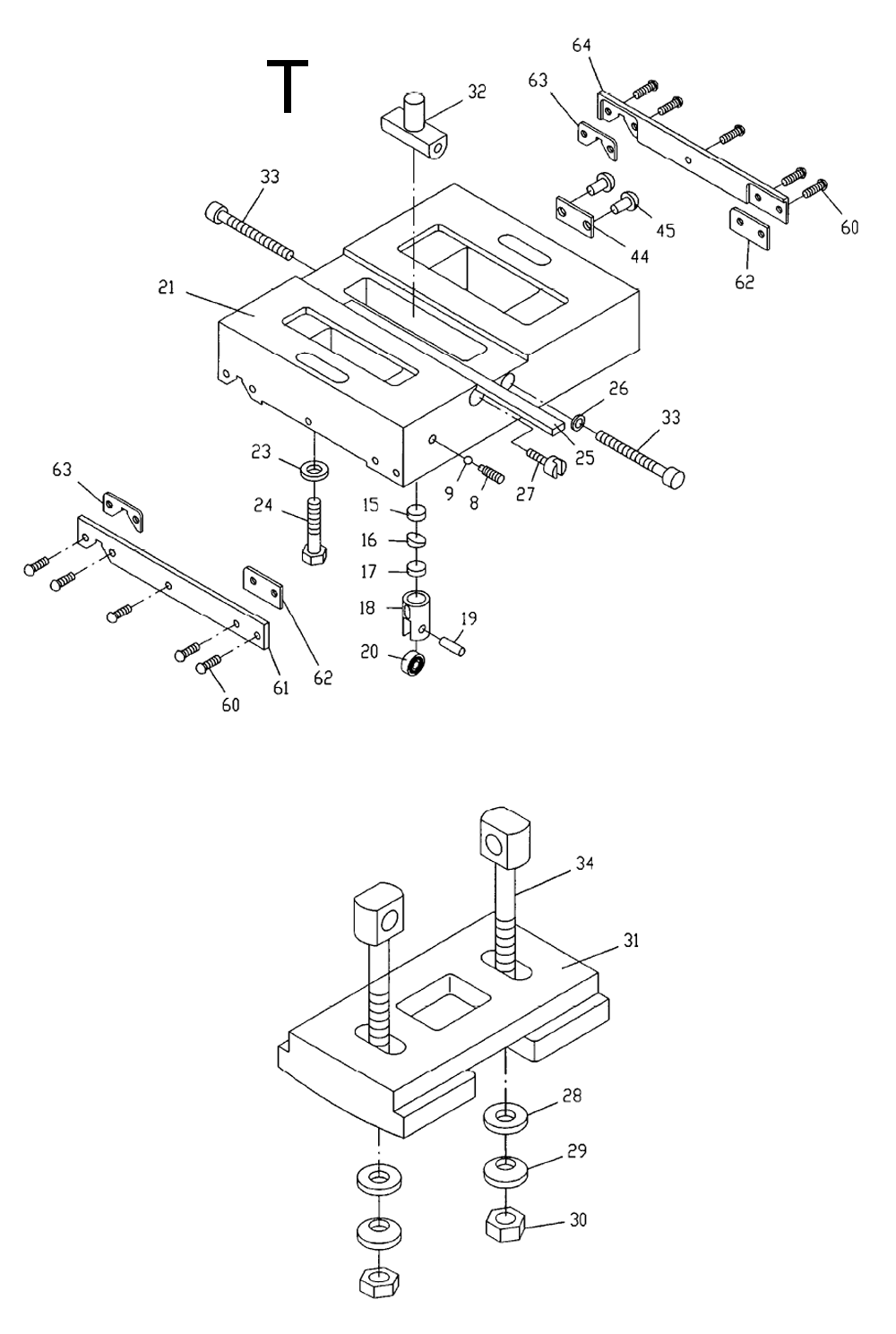

  • Fig-20

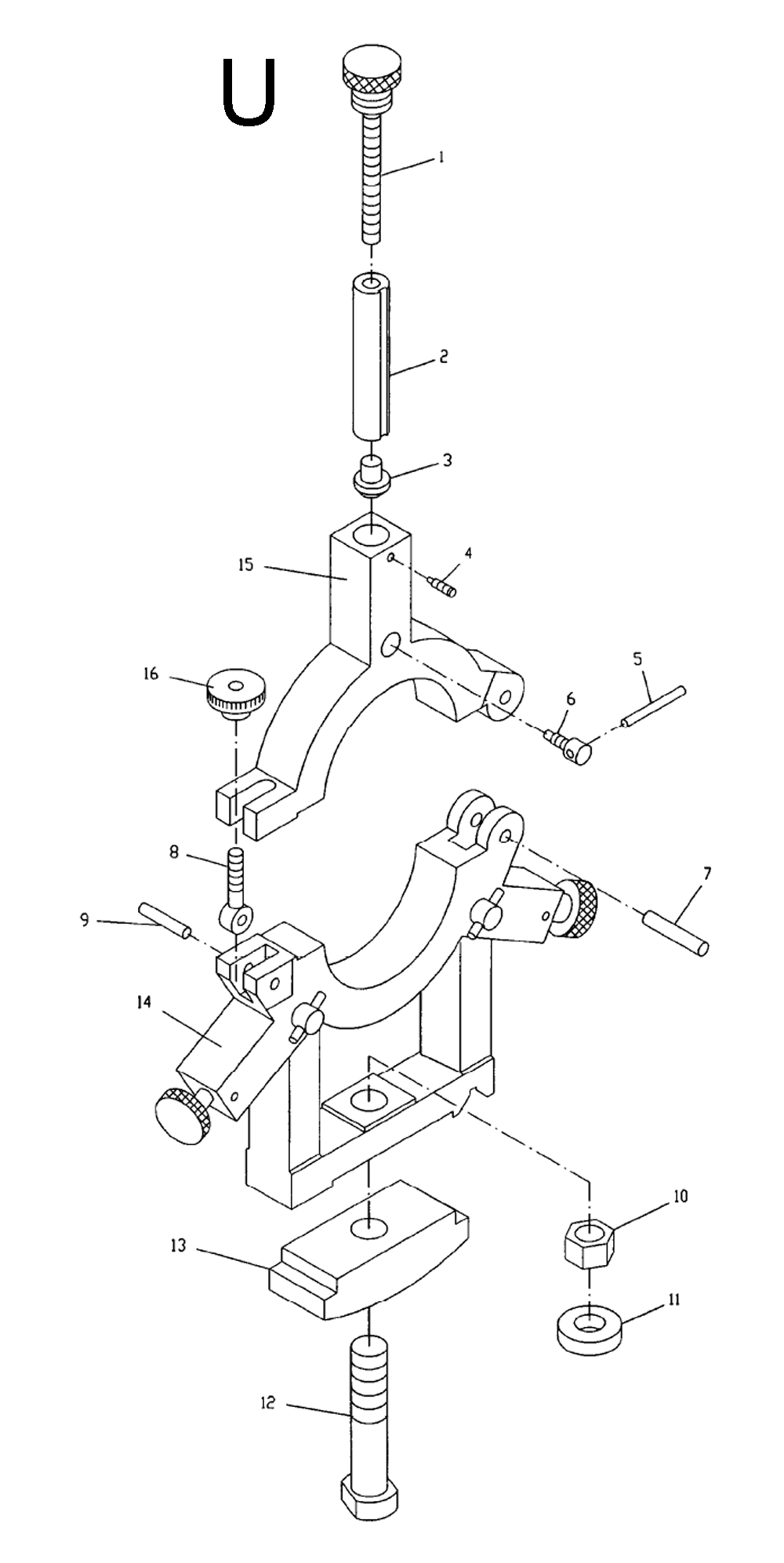

  • Fig-21

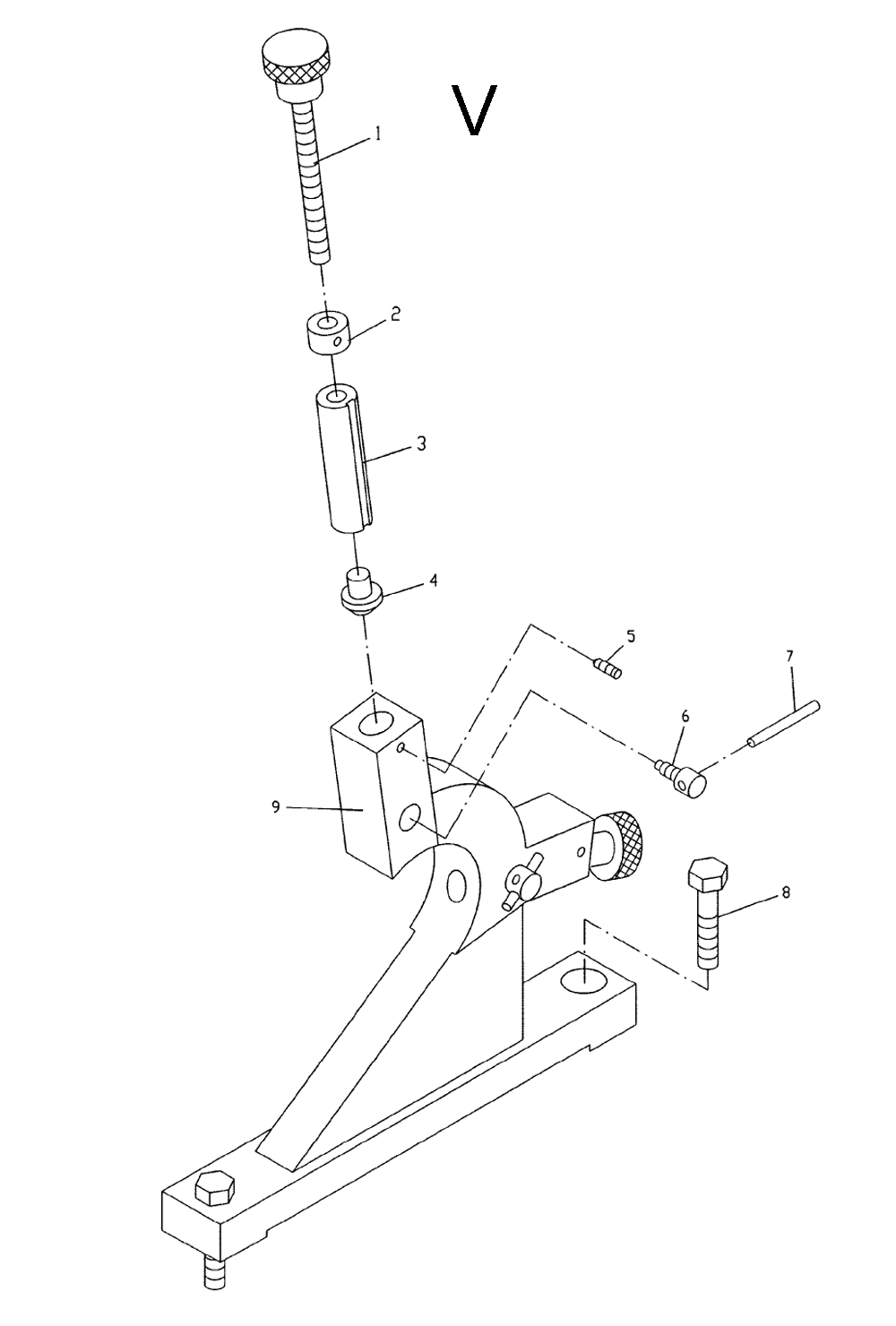

  • Fig-22

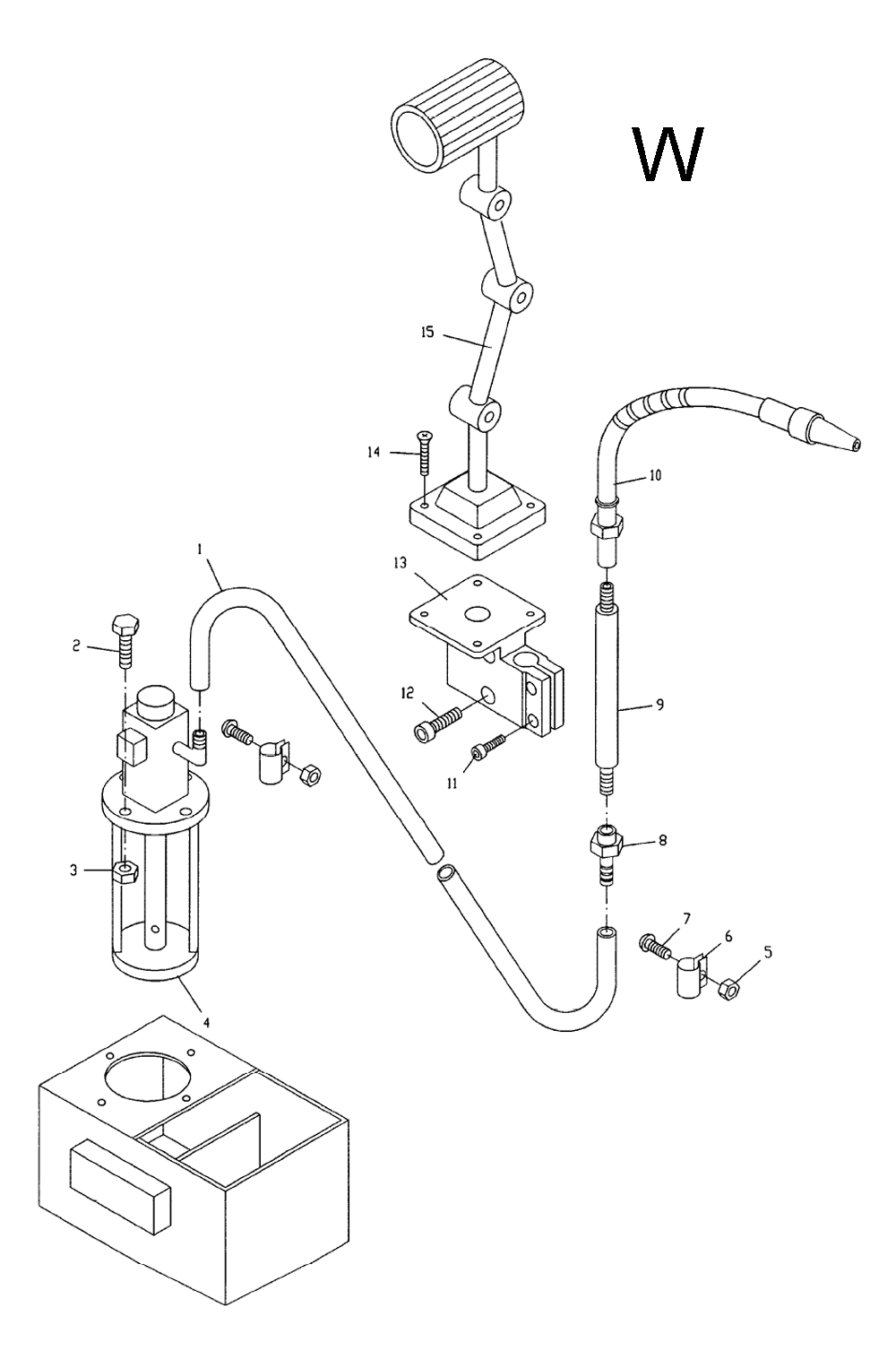

  • Fig-23

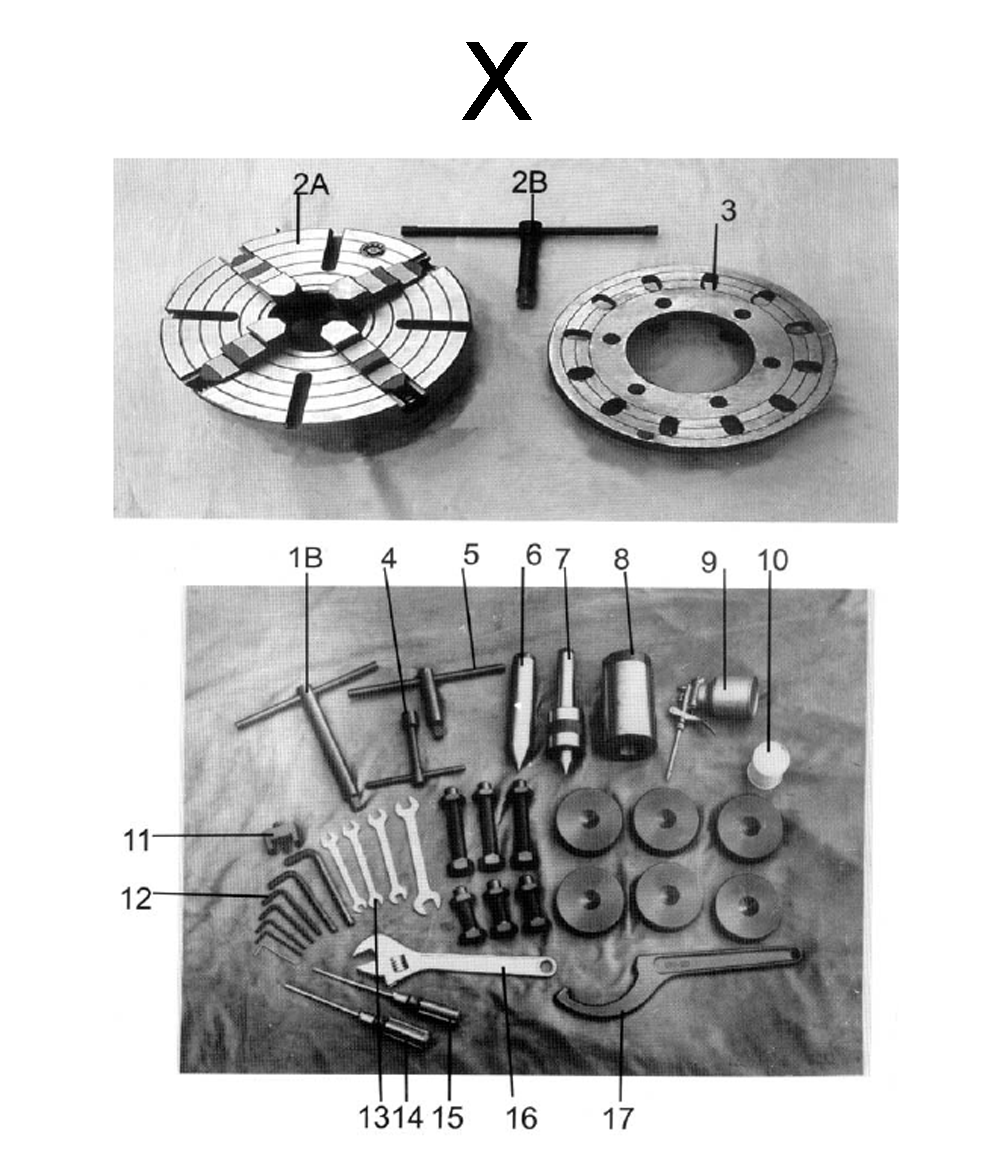

  • Fig-24

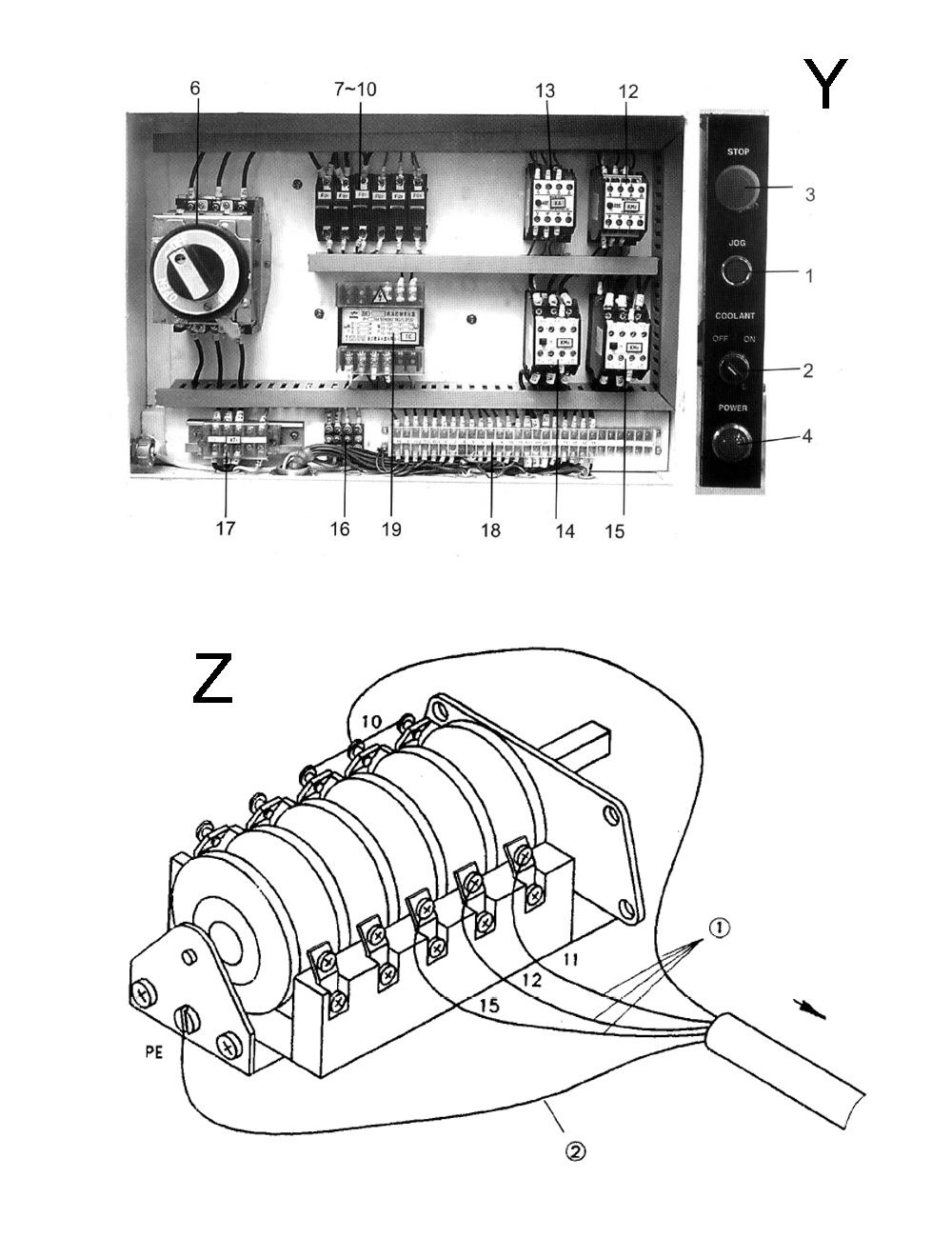

  • Fig-25

Download Jet 321454 Parts Diagram!

Jet 321454 Replacement Parts List  Other tools in Jet Lathes Machines Parts category

Fig# Image Part No Part Name Price Add To Cart
00. JX21004 Terminal Board (not shown) $8.54
00. 18301 Junction Box (not shown) $39.94
00. D97-4 Plastic Fitting (not shown) $4.64
00. ZX-22712B Pedal (for 1460/1660/1860ZX) $167.73
00. ZX-22712C Pedal (for 1880/2280ZX) $209.80
00. ZX-22710B Draw Bar (for 16" models) $26.69
00. ZX-22710C Draw Bar (for 18" models) $26.69
00. GH2280ZX-22710 Draw Bar (for 22" model) $31.92
00. ZX-01741B Splash Guard (for 1460ZX) $330.85
00. ZX-01741C Splash Guard (for 1640ZX) $268.47
00. ZX-01741D Splash Guard (for 1660ZX) $442.18
00. ZX-01741E Splash Guard (for 1840ZX) $268.47
00. ZX-01741F Splash Guard (for 1860ZX) $314.61
00. ZX-01741G Splash Guard (for 1880ZX) $743.30
00. GH2280ZX-12701 Splash Guard (for 2280ZX) $419.38
00. ZX-01708AN New Lead Screw (for 40" models, serial # 010618ZX350 and higher) $975.82
00. ZX-01708B Lead Screw (for 60" models, serial # 010611ZX349 and lower) $763.11
00. ZX-01708BN New Lead Screw (for 60" models, serial # 010618ZX350 and higher) $763.11
00. ZX-01708C "Lead Screw (for 80"" models, serial #010611ZX349 and lower) " $935.97
00. ZX-01708CN "New Lead Screw (for 80"" models, serial #010618ZX350 and higher)" $964.32
00. ZX-01109N New Sleeve (serial # 010618ZX350 and higher) $22.26
00. ZX-01110N New Bracket (serial # 010618ZX350 and higher) $127.92
00. ZX-01108N New Sleeve (serial # 010618ZX350 and higher) $22.26
00. ZX-01709AN New Feed Rod (for 40" models, serial # 010618ZX350 and higher) $328.40
00. ZX-01709B Feed Rod (for 60" models, serial # 010611ZX349 and lower) $594.68
00. ZX-01709BN New Feed Rod (for 60" models, serial # 010618ZX350 and higher) $606.22
00. ZX-01709C "Feed Rod (for 80"" models, serial # 010611ZX349 and lower) " $692.13
00. ZX-01709CN "New Feed Rod (for 80"" models, serial # 010618ZX350 and higher)" $723.31
00. ZX-01707B Control Rod (for 1460/1660/1860ZX) $503.18
00. ZX-01707C Control Rod (for 1880/2280ZX) $547.85
00. ZX-02301B Label (for 1460ZX) $110.42
00. ZX-02301C Label (for 1640ZX) $125.63
00. ZX-02301D Label (for 1660ZX) $118.82
00. ZX-02301E Label (for 1840ZX) $127.21
00. ZX-02301F Label (for 1860ZX) $125.11
00. ZX-02301G Label (for 1880ZX) $149.76
00. GH2280ZX-02301 Label (for 2280ZX) $159.49
00. ZX-02754X/6P Gear (for 16"/18"/22" models) $167.73
00. ZX-02753X/6P Gear (for 16"/18"/22" models) $224.85
00. ZX-02751X/6P Gear (for 16"/18"/22" models) $179.69
00. ZX-02756/6P Gear (for 16"/18"/22" models) $151.36
00. ZX-02757/6P Gear (for 16"/18"/22" models) $215.60
00. ZX-02758/6P Gear (for 16"/18"/22" models) $184.42
00. ZX-02755X/6P Gear (for 16"/18"/22" models) $167.73
00. ZX-08106B Bracket (for Shaft V, Vb) (for 18" models) $78.13
00. GH2280ZX-08106 Bracket (for Shaft V, Vb, Vc) (for 22" model) $83.50
00. TNMP08706B(N) Gear (for 18" models) $80.18
00. VB-A76 V-Belt (for 16" models) $35.47
00. VB-A77 V-Belt (for 18" models) $26.39
00. VB-A85 V-Belt (for 22" model) $65.13
00. ZX-H212 Drain Plug (14" models, serial # 001204ZX258 and lower) $4.97
00. ZX-H212A Drain Plug (14" models, serial # 010105ZX263 and higher) $13.50
00. ZX-02101AN Headstock Casting (14" models, serial # 010105ZX263 and higher) $273.64
00. ZX-02101BN Headstock Casting (16" models, serial # 010319ZX294 and higher, except for serial # 010319ZX298 and 299)… $2,991.72
00. ZX-02101C Headstock Casting (18" models, serial # 010416ZX313 and lower) $3,217.40
00. ZX-02101CN Headstock Casting (18" models, serial # 010514ZX323 and higher) $3,217.40
00. GH2280ZX-02101 Headstock Casting (22" model) $2,238.95
00. ZX-08302B Back Cover (for 16" models) $243.33
00. ZX-08302C Back Cover (for 18" models) $260.09
00. GH2280ZX-08301 Back Cover (for 22" model) $272.68
00. ZX-08114B Rear Side Plate (for 16" models) $194.39
00. ZX-08114C Rear Side Plate (for 18" models) $101.92
00. GH2280ZX-08114 Rear Side Plate (for 22" model) $109.67
00. ZX-08113B Front Side Plate (for 16" models) $84.61
00. ZX-08113C Front Side Plate (for 18" models) $155.76
00. GH2280ZX-08113 Front Side Plate (for 22" model) $93.27
00. TNMP08501B Gear (for 18" models) $126.16
00. ZX-06302N New Half Nut (serial # 010618ZX350 and higher) $457.11
00. TL06727N New Gear (serial # 010618ZX350 and higher) $73.29
00. TL06121N New Spacer (serial # 010618ZX350 and higher) $4.97
00. TL06304N New Positioning Sleeve (serial # 010618ZX350 and higher) $39.94
00. TL06729N New Sleeve (serial # 010618ZX350 and higher) $39.94
00. TL06726N New Worm (serial # 010618ZX350 and higher) $118.80
00. TL06122N New Worm Support (serial # 010618ZX350 and higher) $73.29
00. ZX-06127N New Bearing Support (serial # 010618ZX350 and higher) $27.07
00. ZX-10101B Lower Part of Steady Rest (for 16" models) $306.20
00. ZX-10101C Lower Part of Steady Rest (for 18" models) $318.76
00. GH2280ZX-10101 Lower Part of Steady Rest (for 22" model) $335.55
00. ZX-10102BS Upper Part of Steady Rest (for 16"/18" models) $149.76
00. ZX-10102F Upper Part of Steady Rest (for 22" model) $141.60
00. ZX-FRA14 Follow Rest Assembly, 14" (includes #1-7,9) $331.90
00. ZX-FRA16 Follow Rest Assembly, 16" (includes #1-7,9) $539.69
00. ZX-FRA18 Follow Rest Assembly, 18" (includes #1-7,9) $568.69
00. ZX-FRA22 Follow Rest Assembly, 22" (includes #1-7,9) $335.55
00. ZX-10102B Follow Rest Casting (for 16" models) $228.68
00. ZX-10102C Follow Rest Casting (for 18" models) $243.33
00. GH2280ZX-10102 Follow Rest Casting (for 22" model) $260.10
00. RT-001B Rubber Tube (for 1460/1660/1860ZX) $26.64
00. RT-001C Rubber Tube (for 1880/2280ZX) $61.88
00. ZX-CW10-1 Coolant Tap $16.46
00. ZX-CW16 Bulb $18.04
00. ZX-LA Light Assembly (includes # 13-15) $319.30
00. ZX-OP-03N 16" Face Plate (for 18"/22" models) $960.77
00. ZX-OP-07N MT-5 Live Center (for 18"/22" models) $151.11
00. ZX-18TBCP Tool Box Complete (not shown) $641.44
00. ZX-FB Fuse Block $22.26
00. GH-2280ZX-KM3 AC Contactor (for 22" models) $115.77
00. GH2280ZX-04109B Screw Support (for 2280ZX) $64.69
00. ZX-04707-1A Gear Sliding Sleeve(for 2280ZX) $100.55
00. GH2280ZX-04707-2 Lead Screw (for 2280ZX) $180.45
00. GH2280ZX-04102 Cross Slide (for 2280ZX) $289.44
00. ZX-04714C Screw (for 14"/16" models, T-Slot) $8.24
00. GH2280ZX-04701 Sleeve (for 2280ZX) $9.96
00. GH2280ZX-04502 Wipe Plate (for 2280ZX) $13.50
00. ZX-CSNA Crossfeed Screw & Nut Assy (includes # 57- 59 for 14/16/18") $262.21
00. ZX-CSNA-GH2280ZX Crossfeed Screw & Nut Assy (includes #57-59, for 22") $293.64
00. ZX-CDA Crossfeed Dial Assy (includes # 41-50, 51-56 for 14/16/18") $230.75
00. ZX-CDA-GH2280ZX Crossfeed Dial Assy (includes # 41-50, 51-56 for 22") $211.98
00. ZX-26701B Travel Setting Rod (for 1460/1660/1860ZX) $555.06
00. ZX-26701C Travel Setting Rod (for 1880/2280ZX) $597.11
00. ZX-04103B Revolving Plate (for 16" models) $265.41
00. ZX-04103C Revolving Plate (for 18" models) $296.63
00. GH2280ZX-04103 Revolving Plate (for 22" model) $151.11
00. ZX-04107B Top Slide (for 16"/18" models) $384.36
00. GH2280ZX-04107 Top Slide (for 22" model) $188.83
00. ZX-04713B Tool Post (for 16"/18"/22" models) $467.12
00. ZX-F30B Clamping Screw (for 14" models) $4.01
00. ZX-TA14 Toolholder Assembly 14" (includes # 29 & 30) $457.44
00. ZX-CPA14 Compound Assembly 14" (includes # 1-20,32-39) $572.26
00. ZX-CPA16 Compound Assembly 16" (includes # 1-20,32-39) $662.45
00. ZX-CPA18 Compound Assembly 18" (includes # 1-20,32-39) $1,117.56
00. ZX-03701B Center Sleeve (for 14"/16" models) $396.46
00. ZX-T14B Center Morse (for 14"/16" models) $83.50
00. ZX-03710B Lead Screw (for 14"/16" models) $237.11
00. ZX-03101B Tailstock Casting (for 16" models) $595.44
00. ZX-03101C Tailstock Casting (for 14" models) $570.27
00. GH2280ZX-03101 Tailstock Casting (for 22" model) $637.36
00. ZX-03102B Sliding Base (for 16" models) $392.84
00. ZX-03102C Sliding Base (for 14" models) $347.45
00. ZX-03705B Pulling Rod (for 16" models) $26.69
00. ZX-03705C Pulling Rod (for 14" models) $26.69
00. ZX-TSA14 Tailstock Assembly, 14" (includes # 1-13,15-64) $1,464.48
00. ZX-TSA16 Tailstock Assembly, 16" (includes # 1-13,15-64) $1,569.43
00. ZX-TSA18 Tailstock Assembly, 18" (includes # 1-13,15-64) $1,674.40
00. ZX-TSA22 Tailstock Assembly, 22" (includes # 1-13,15-64) $1,884.34
00. ZX-SRA14 Steady Rest Assembly, 14" (includes # 1-16) $627.84
00. ZX-SRA16 Steady Rest Assembly, 16" (includes # 1-16) $652.04
00. ZX-SRA18 Steady Rest Assembly, 18" (includes # 1-16) $687.72
00. ZX-SRA22 Steady Rest Assembly, 22" (includes # 1-16) $754.73
00. ZX-10702B Screw (for 16" models) $15.88
00. ZX-10702C Screw (for 18"/22" models) $15.68
00. ZX-10705D Sliding Sleeve $33.31
00. TL06704N New Shaft (serial # 010618ZX350 and higher $78.13
00. GH2280ZX-14101 Saddle Casting (for 2280ZX) $721.19
00. GH2280ZX-01101 Pulley (for 2280ZX) $80.81
00. ML-2080-01701 Cover (for 2280ZX) $39.94
00. ML-2080-01703 Pedal Rod Support (for 2280ZX) $58.64
00. ZX-01102AN New Bed Stand (for 40" models, serial # 010618ZX350 and higher) $2,187.69
00. ZX-01102B Bed Stand (for 60" models, serial # 010611ZX349 and lower) $5,085.78
00. ZX-01102BN New Bed Stand (for 60" models, serial # 010618ZX350 and higher) $5,552.88
00. GH2280ZX-01102 Bed Stand (for 2280ZX) $3,727.37
00. ZX-01102C Bed Stand (for 1880ZX, serial # 010611ZX349 and lower) $572.79
00. ML-2080-01704 Bolt (for 2280ZX) $9.73
00. ZX-01122B Motor Mounting Plate (for 16"/18" models) $265.28
00. ML-2080-01122 Motor Mounting Plate (for 22" model)) $100.55
00. ZX-017609B Wire Conduit (for 1460/1660/1860ZX) $39.94
00. ZX-017609C Wire Conduit (for 1880/2280ZX) $39.94
00. GH2280ZX-01701 Cover $33.31
00. ZX-S23A Main Motor (for 14" models) $1,583.07
00. ZX-S23B Main Motor (for 16"/18" models) $1,231.16
00. ML-2080-01702 Cover (for 2280ZX) $59.32
00. ZX-01716B Stand Front Cover (for 1460/1660/1860ZX) $98.61
00. ZX-01716C Stand Front Cover (for 1880/2280ZX) $98.61
00. TS-1491081 Hex Cap Screw $0.00

Discontinued

00. TS-1491121 Hex Cap Screw $4.76
1. ZX-01101A Pulley $120.93
2. ZX-S2 Cylindrical End Set Screw $3.61
3. ZX-01734 Cover $39.94
4. ZX-S4 Cross Head Screw $3.61
5. ZX-S2 Cylindrical End Set Screw $3.61
6. ZX-01701 Pedal Rod Support $58.64
7. ZX-01715 Lining $21.63
8. TS-1540231 Hex Nut $7.64
9. ZX-01712 Hex Cap Bolt $21.63
10. ZX-01102A Bed Stand (for 40" models, serial # 010611ZX349 and lower) $2,094.26
10. ZX-01102CN New Bed Stand (for 1880ZX, serial # 010618ZX350 and higher) $0.00

Discontinued

11. ZX-01703 Fixed Support $8.54
12. TS-150341 Socket Head Cap Screw $0.00

Discontinued

13. ZX-S13 Taper Pin $3.61
14. ZX-01705 Water Leaking Chip Guard $13.30
15. ZX-S15A Cross Head Screw $3.61
16. TS-1540121 Hex Nut $0.00

Discontinued

17. ZX-01702 Bolt $9.73
18. TS-1550111 Flat Washer $3.61
19. ZX-01122A Motor Mounting Plate (for 14" models) $171.75
20. ZX-01726 Cover $33.31
21. ZX-S4 Cross Head Screw $3.61
22. ZX-S22 Key $3.61
23. ZX-S23BC Main Motor (for 22" model) $0.00

Discontinued

24. ZX-017609A Wire Conduit (for 1440/1640/1840ZX) $39.94
25. ZX-01708 Wire Conduit Support $21.63
26. ZX-01706 Locking Plate $6.15
27. ZX-S27 Cross Head Screw $3.61
28. ZX-S15 Cross Head Screw $3.61
29. ZX-01711 Water Reception Plate $14.48
30. ZX-S4 Cross Head Screw $3.61
31. ZX-01510 Coolant Tank $100.55
32. ZX-01714 Cover $65.13
33. ZX-S4 Cross Head Screw $3.61
34. ZX-S34 Nut $3.61
35. ZX-S35 Coolant Indicator $9.96
36. ZX-S36 Cross Head Screw $3.61
37. TS-1540072 "Hex Nut $3.61
38. 5051911 Washer, M10 Flat $3.61
38. TS-1550071 Flat Washer $0.00

Discontinued

39. TS-1491041 Hex Cap Screw $3.61
80. ZX-01716A Stand Front Cover (for 1440/1640/1840ZX) $98.61
81. ZX-01501 Gasket $122.88
82. ZX-S82 Hex Nut $3.61
83. ZX-01740 Left Tray $46.56
84. ZX-01741 Right Tray $46.56
85. ZX-01511 Gasket $13.50
86. ZX-S86 Cross Head Screw $3.61
87. ZX-01512 Gasket $13.50
88. ZX-05753 Extending Plate $22.37
00-R. ZX-TA16/18/22 "Toolholder Assembly 16"/18""/22"" (includes # 29 & 30) " $0.00

Discontinued

00-R. ZX-CPA22 Compound Assembly 22" (includes # 1-20,32-39) $0.00

Discontinued

1-B. ZX-01104A Bed (for 1440/1640/1840ZX) $441.59
1-B. ZX-01104B Bed (for 1460/1660/1860ZX) $0.00

Discontinued

1-B. ZX-01104C Bed (for 1880/2280ZX) $0.00

Discontinued

1-C. ZX-02306 Round Sign Plate $6.15
1-G. ZX-08101 Change Gear Box Casting $228.66
1-I. ZX-05153A Upper Cover $179.93
1-L. TL06101 Apron Casting $1,140.37
1-O. ZX-04101A Saddle Casting $721.19
1-P. ZX-09709 Dial $44.25
1-Q. ZX-26101 Left Support $58.64
1-R. ZX-04103A Revolving Plate (for 14" models) $156.08
1-S. ZX-03711 Handle $21.63
1-U. ZX-10702A Screw (for 14" models) $13.50
1-V. ZX-10710 Screw $13.50
1-W. RT-001A Rubber Tube (for 1440/1640/1840ZX) $21.63
1-Y. ZX-SB1 Jog Button $27.54
1-Z. ZX-XT2 Wiring Board $113.43
10-B. TS-1506091 Socket Head Cap Screw $7.32
10-C. ZX-H10 Woodruff Key $3.61
10-G. ZX-08705 Connecting Rod $13.50
10-I. ZX-05101 Feedbox Casting $914.02
10-L. ZX-A10 Pin $3.61
10-O. ZX-04506 Wipe Plate $18.33
10-Q. ZX-26701A Travel Setting Rod (for 1440/1640/1840ZX) $493.52
10-R. ZX-F10 Half Circle Key $3.61
10-S. ZX-03701A Center Sleeve (for 18"/22" models) $336.09
10-U. ZX-SR10 Hex Nut $3.61
10-W. ZX-CW10 Coolant Device $0.00

Discontinued

10-W. ZX-CW10-1 Coolant Tap $16.46
10-X. ZX-OP-10 Touchup Paint Can $9.73
10-Y. ZX-FU5 Fuse (2A) $13.50
100-D. BB-6207/P5 Ball Bearing $34.12
100-J. TS-1504041 Socket Head Cap Screw $3.61
100-M. ZX-A100 Cross Head Screw $3.61
101-D. ZX-H102 Sleeve $13.50
101-J. ZX-05704 Spacer $113.43
101-M. TL06117 Cover $21.63
102-D. BB-6207/P5 Ball Bearing $34.12
102-J. ZX-05705 Double Gear $155.43
102-M. ZX-A102 Adjusting Screw $3.61
103-D. TS-1504051 Socket Head Cap Screw $4.37
103-J. ZX-05502C Oil Bushing $9.96
103-M. TS-1503051 Socket Head Cap Screw $3.61
104-D. ZX-02105 Bearing Support $34.12
104-J. ZX-05105 Sleeve $9.96
104-M. ZX-A104 Flat Head Set Screw $3.61
105-D. ZX-02502 Gasket $3.61
105-J. ZX-05707 Double Gear $155.43
105-M. TL06301 Sleeve $33.31
106-D. ZX-H106 Flat Key $3.61
106-J. ZX-Q106 Iron Wire $3.61
106-K. ZX-Q106 Iron Wire $3.61
106-M. TL06710 Gear $131.47
107-D. ZX-02709 Shaft $161.74
107-J. TS-1524031 Socket Set Screw $4.37
107-K. TS-1524031 Socket Set Screw $4.37
107-M. ZX-A107 Pin $3.61
108-D. ZX-02754X Gear (for 14" models) $176.54
108-J. ZX-05714C Fixed Bushing $8.54
108-M. TL06711 Shaft $21.63
109-D. ZX-02753X Gear (for 14" models) $137.18
109-J. ZX-05710 Shaft $222.69
109-M. TL06108 End Cover $15.68
11-C. ZX-H11 Ring Seal $4.97
11-G. ZX-08304 Sliding Block $15.68
11-I. ZX-05501 Gasket $3.61
11-L. TL06701-A Pushing Rod $33.31
11-O. TS-1505071 Socket Head Cap Screw $3.61
11-Q. ZX-26705 Control Ring $26.69
11-R. BB-51102 Thrust Bearing $47.24
11-S. ZX-T11 Ring Seal $6.15
11-U. ZX-SR11 Flat Washer $3.61
11-W. TS-1514021 Flat Head Socket Screw $3.61
11-X. ZX-OP-11 Gap Bridge Pin Driver $22.37
11-Y. ZX-Q Temperature Relay $20.89
110-D. ZX-02752X Gear $115.67
110-J. ZX-05709 Double Gear $131.47
110-M. TS-1503031 Socket Head Cap Screw $3.61
111-D. ZX-02751X Gear (for 14" models) $178.81
111-J. ZX-05711 Sliding Gear $106.76
111-M. TL06723 Control Shaft $39.94
112-D. ZX-H112 Sleeve $13.50
112-J. ZX-05712 Sliding Gear $106.76
112-M. TL06725 Pin $7.80
113-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $49.88
113-J. ZX-05713 Sleeve $9.96
113-M. TL06724 Control Block $44.25
114-D. ZX-H114 Shaft End Lock Ring $6.85
114-J. ZX-G51-1 Spacer $3.75
114-M. ZX-A114 Oil Seal $4.97
115-D. ZX-H115 Countersunk Head Screw $3.61
115-J. ZX-05106 Bearing Support $27.07
115-M. ZX-A115 Oil Seal $4.97
116-D. ZX-H59 Pin $3.61
116-J. TS-1504051 Socket Head Cap Screw $4.37
116-M. TL06119 Lever Flange $26.69
117-D. ZX-H117 Ring Seal $5.26
117-K. ZX-05113C Shaft Coupling $20.89
117-M. TS-1503031 Socket Head Cap Screw $3.61
118-D. ZX-02104 Blocking Flange $21.63
118-K. ZX-Q118 Round Nut $3.61
118-M. TL06118 Lever Support $27.07
119-D. TS-1503041 Socket Head Cap Screw $3.61
119-K. TS-1503021 Socket Head Cap Screw $3.61
119-M. TL06307 Sign Plate $4.97
12-B. ZX-B12 Thread Taper Pin $6.15
12-C. ZX-02116 Crank $21.63
12-G. ZX-05103C Cam $26.69
12-I. ZX-05108 Flange $179.93
12-L. ZX-A12 Oil Seal $4.67
12-O. ZX-CA12 Square Cap Bolt $4.67
12-Q. ZX-26104 Right Support $21.63
12-R. ZX-04115 Sleeve $19.60
12-S. ZX-03703 Front Cover $21.63
12-U. ZX-10708 Tightening Screw $13.50
12-W. TS-1515051 Hex Socket Cap Screw $3.61
12-X. ZX-OP-12 Hex Wrench $22.37
12-Y. ZX-KM2 AC Contactor $115.67
120-D. TS-1503041 Socket Head Cap Screw $3.61
120-K. ZX-05114C Cover $21.63
120-M. TL06716 Lever $20.89
121-D. ZX-02103 Blocking Flange $22.37
121-K. BB-51105 Thrust Bearing $51.01
121-M. ZX-B27 Taper Pin $3.61
122-D. ZX-H117 Ring Seal $5.26
122-K. ZX-Q122 Spacer $3.75
122-L. TL06302 Sign Plate $3.61
123-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $49.88
123-K. BB-6305 Ball Bearing $33.31
123-L. TL06730 Shaft $27.07
124-D. ZX-H124 Sleeve $13.50
124-K. ZX-05725 Shaft $58.64
124-L. BB-51104 Thrust Bearing $49.88
125-D. BB-6305/P5 BEARINGS PRECISION ZX LATHE $49.88
125-K. ZX-Q125 Key $3.61
125-L. TL06305 Sleeve $24.59
126-D. ZX-H126 Circle Clip For Shaft $0.00

Discontinued

126-D. ZX-H133 C-Clip $3.61
126-K. ZX-05724 Double Gear $155.76
126-L. TL06726 Worm (serial # 010611ZX349 and lower) $152.39
127-D. ZX-02705 Gear $137.18
127-K. ZX-05723 Gear $155.76
127-L. TL06122 Worm Support (serial # 010611ZX349 and lower) $83.81
128-D. ZX-H128 Flat Key $3.61
128-K. ZX-05107 Sleeve $3.61
128-L. TL06720 Control Plate $14.83
129-D. ZX-02706 Gear $235.32
129-K. BB-6005 Ball Bearing $25.62
129-L. TS-1514031 Hex Socket Cap Screw $3.61
13-B. TS-1491101 Hex Cap Bolt $3.61
13-C. TS-1523051 Socket Set Screw $3.61
13-G. ZX-05702C Roller $6.85
13-I. TS-1504031 Socket Head Cap Screw $3.61
13-L. BB60016 Ball Bearing $29.02
13-O. ZX-CA13 Taper Pin $3.75
13-Q. ZX-H5 Steel Ball $3.61
13-R. ZX-F13 Slotted Cheese Head Screw $3.61
13-S. ZX-T13 Cross Recessed Countersunk Head Screw $3.61
13-U. ZX-10103D Clamping Plate $46.56
13-W. ZX-CW13 Lamp Support $65.13
13-X. ZX-OP-13 Double End $13.50
13-Y. ZX-KA AC Contactor $105.17
130-D. ZX-02707 Gear $241.10
130-K. TS-1525021 Socket Set Screw $3.61
130-L. ZX-A130 Taper Pin $3.61
131-D. ZX-H62 Flat End Set Screw $3.61
131-K. ZX-05103 Bearing Support $13.50
131-L. TS-1524031 Socket Set Screw $4.37
132-D. ZX-02708 Shaft $194.39
132-K. ZX-05701 Shaft $52.14
132-L. ZX-A132 Screw $3.61
133-D. ZX-H133 C-Clip $3.61
133-K. ZX-Q133 Half Circle Key $3.61
133-L. ZX-A133 Cylindrical Tensile Spring $3.61
134-D. ZX-H134 Sleeve $13.50
134-K. ZX-05703 Gear $106.76
134-L. TL06503 Gasket $3.61
135-D. BB-6007/P5 Ball Bearing $46.45
135-K. ZX-05102 Bearing Support $13.50
135-L. TL06114 Back Cover $27.07
136-D. ZX-H134 Sleeve $13.50
136-K. ZX-05702 Double Gear $141.51
136-L. TS-1514011 Socket Head Flat Screw $3.61
137-D. ZX-H133 C-Clip $3.61
137-K. ZX-05708 Shaft $155.76
137-L. ZX-A137 Set Screw $3.61
138-D. ZX-02756 Gear (for 14" models) $161.74
138-K. ZX-05706 Triple Gear $266.41
138-L. ZX-A138 Iron Wire $3.61
139-D. ZX-H139 Pin $3.61
139-K. BB-6203 Ball Bearing $16.96
139-L. ZX-A139 Oil Conducting Cord $3.61
14-B. TS-1550071 Flat Washer $0.00

Discontinued

14-B. 5051911 Washer, M10 Flat $3.61
14-C. ZX-H14 Pin $3.61
14-G. ZX-08109 Crank $21.63
14-I. ZX-05151 Extending Plate $120.93
14-L. ZX-A6 Pin $3.61
14-O. ZX-04729 Clamping Block $27.16
14-Q. ZX-CS14 Compression Spring $15.68
14-R. ZX-F14 Taper Pin $3.61
14-S. ZX-T14A Center Morse (for 18"/22" models) $84.84
14-U. ZX-10101A Lower Part of Steady Rest (for 14" models) $289.45
14-W. ZX-S04 Cross Head Screw $3.61
