Jet BDB-1340A 13 Inch Swing 40 Inch Centers, 2HP, 1Ph, 230V Bench Metalworking Lathes Machines Parts

Brand: Jet

Model: 321360A

Jet 321360A Parts Schematic

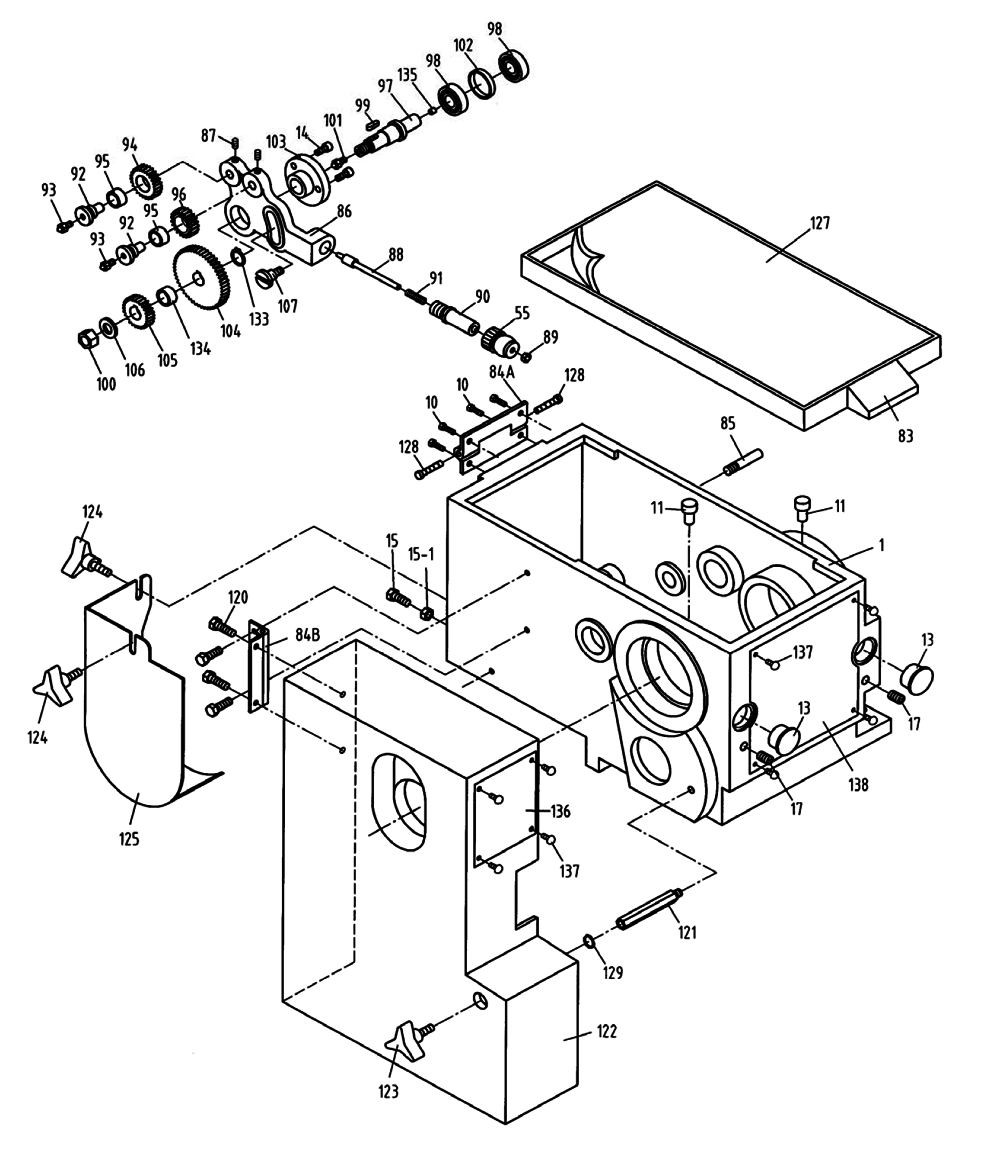

  • Fig-0
  • Fig-1

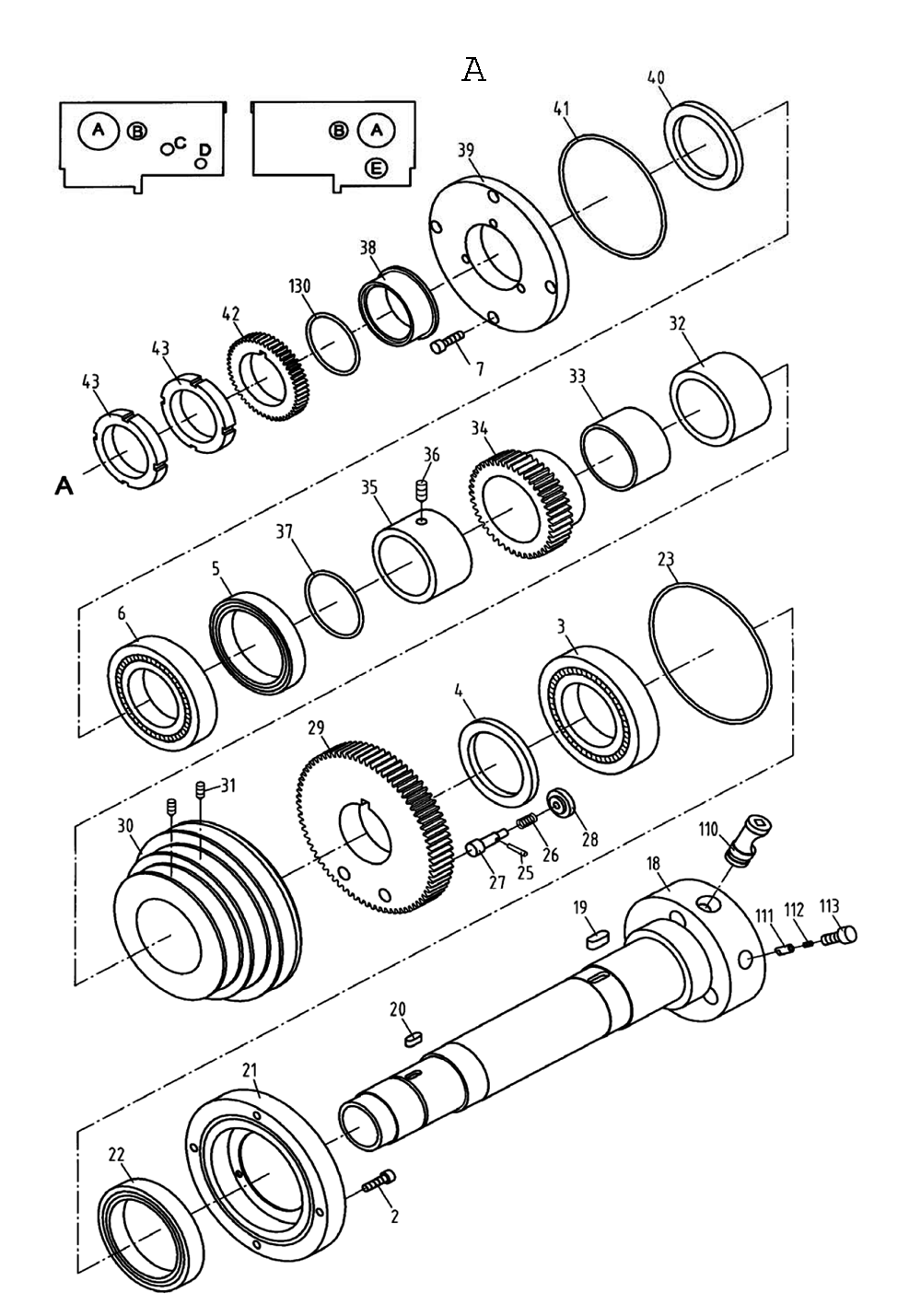

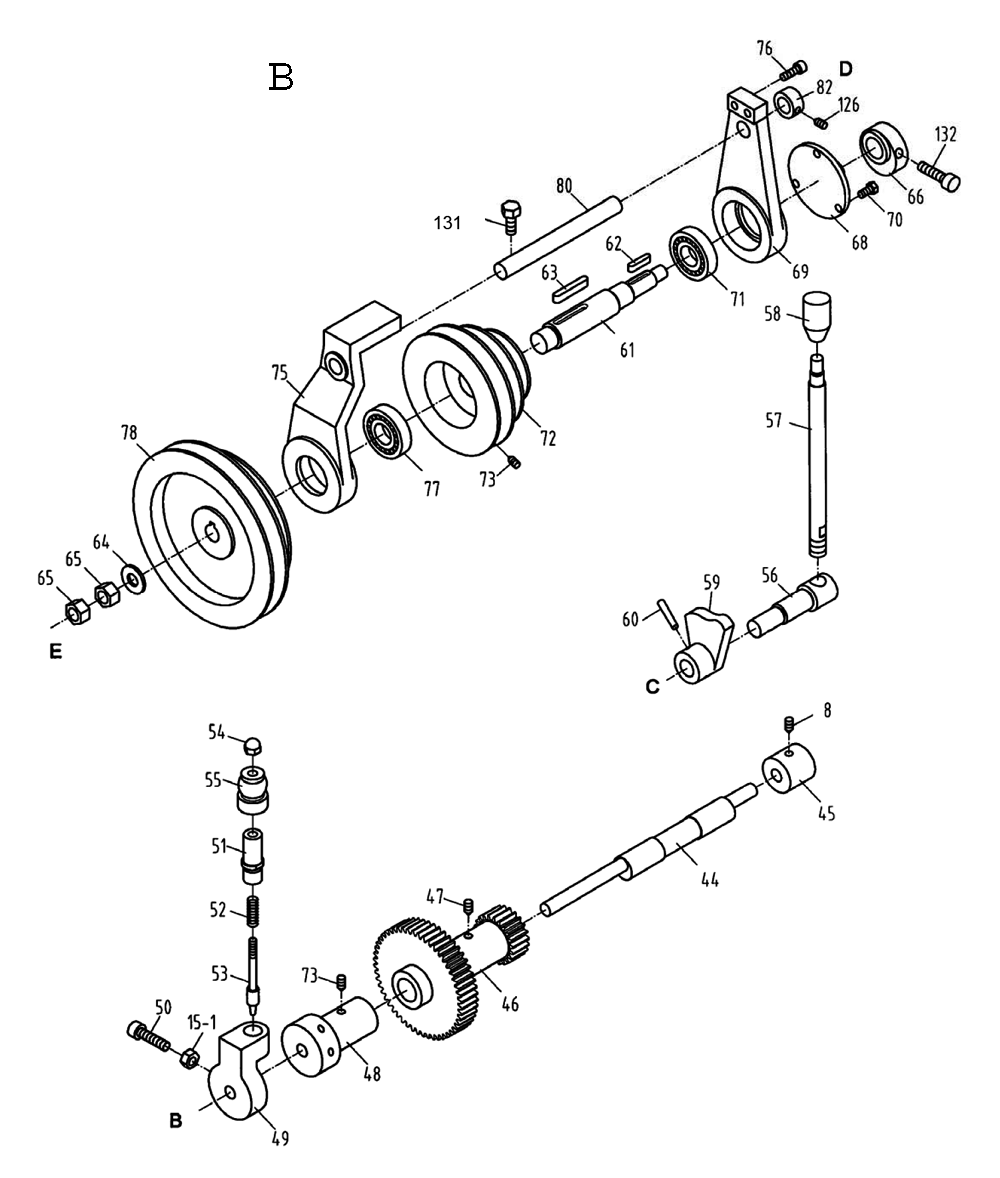

  • Fig-2

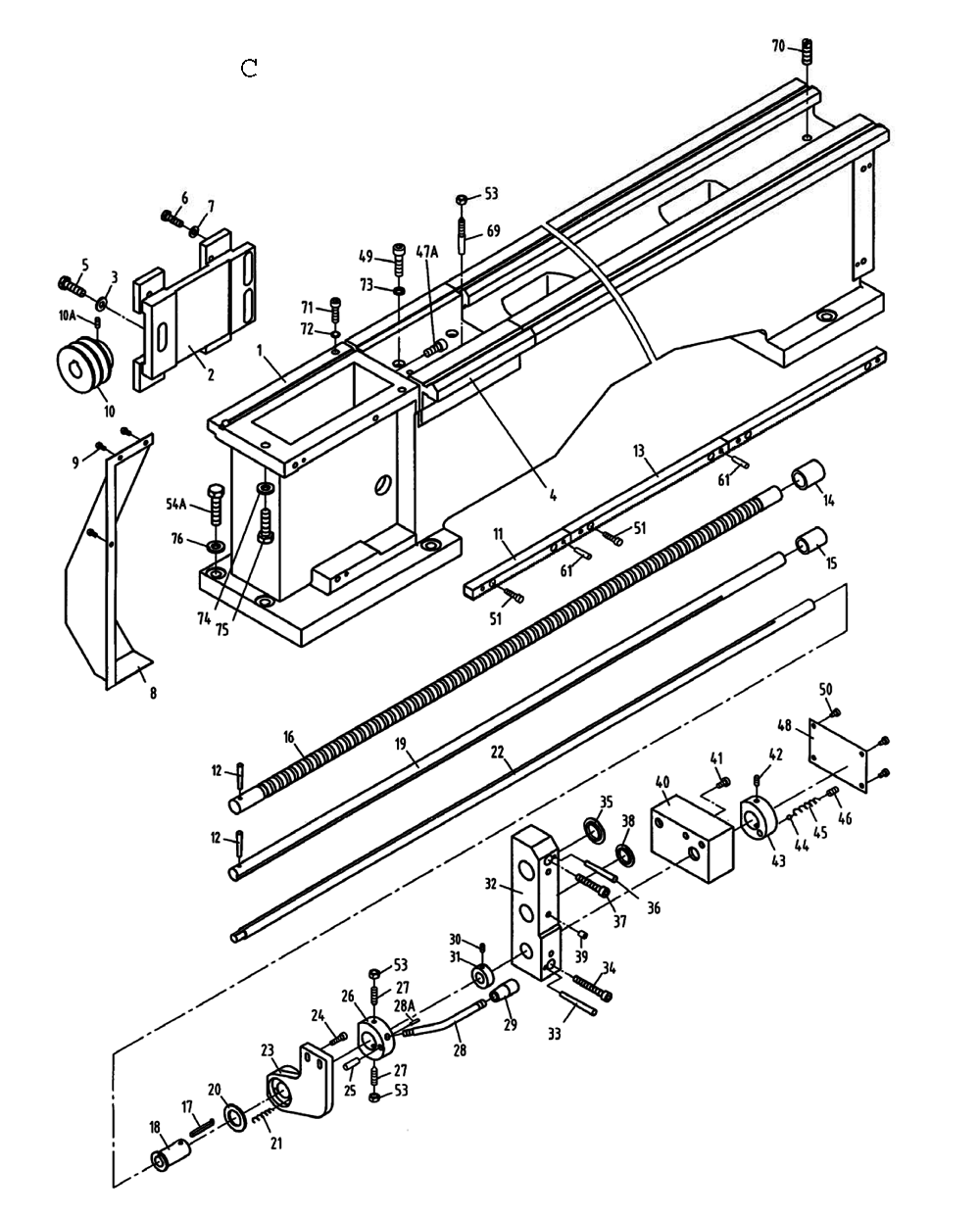

  • Fig-3

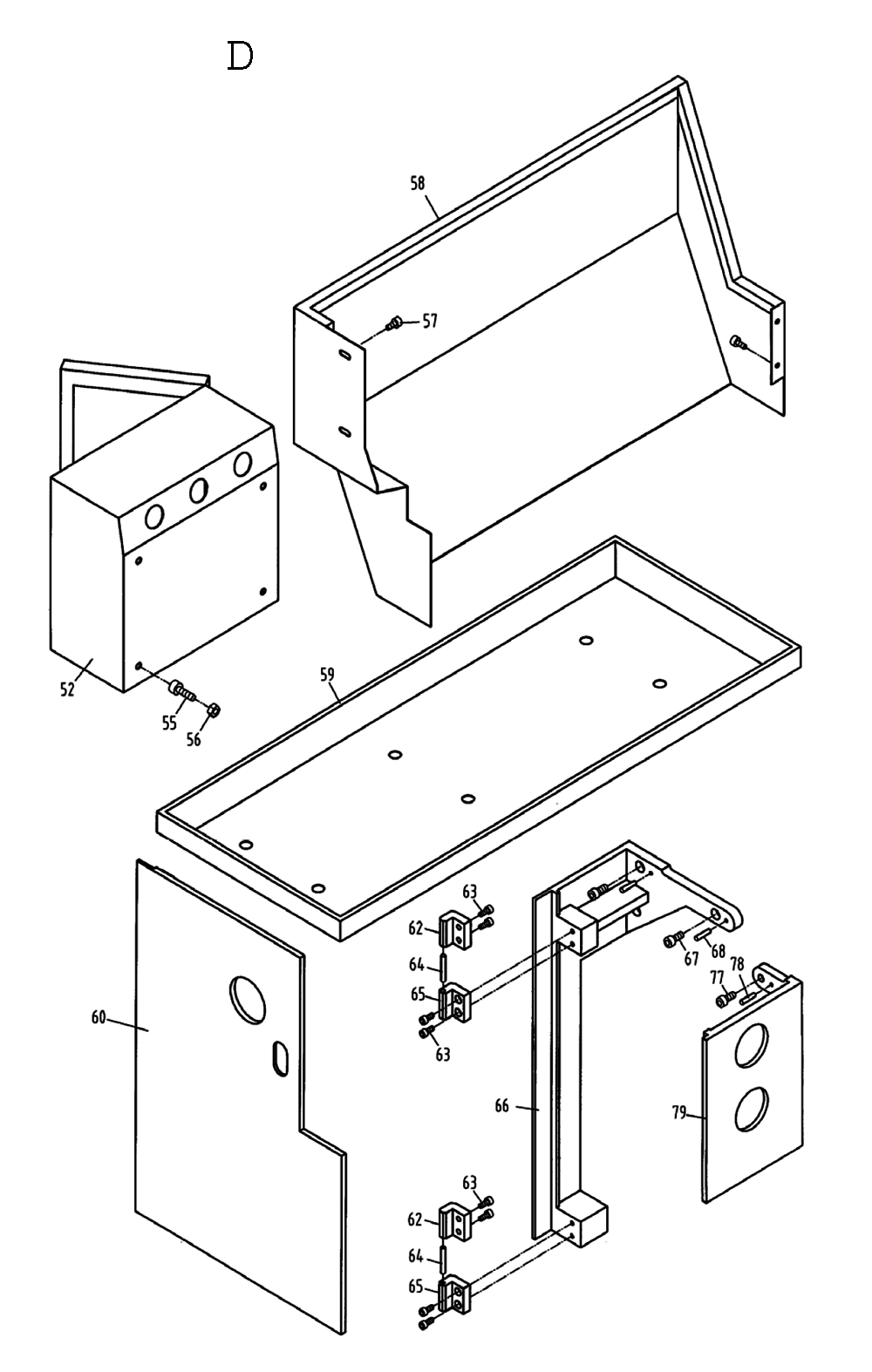

  • Fig-4

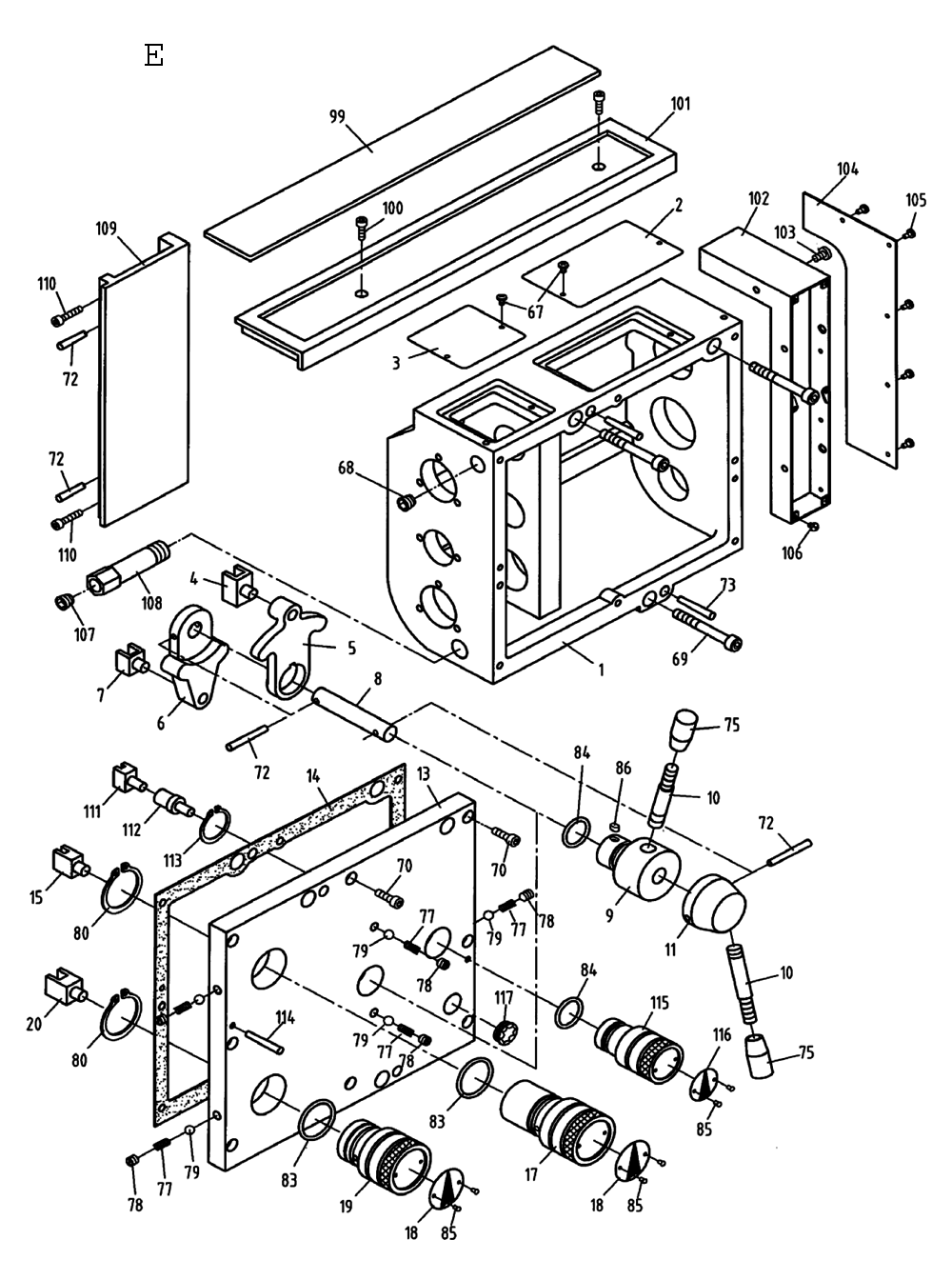

  • Fig-5
  • Fig-6

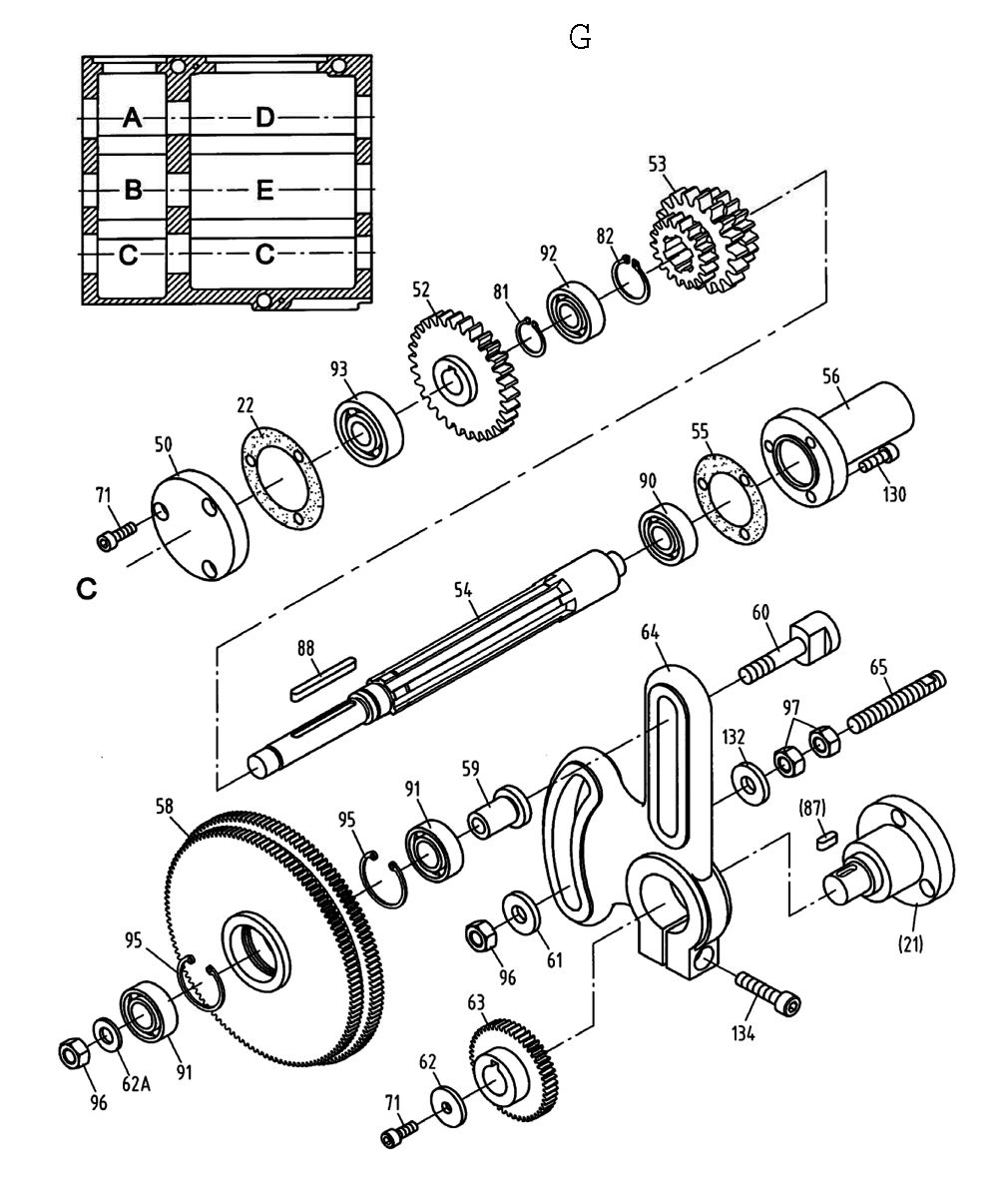

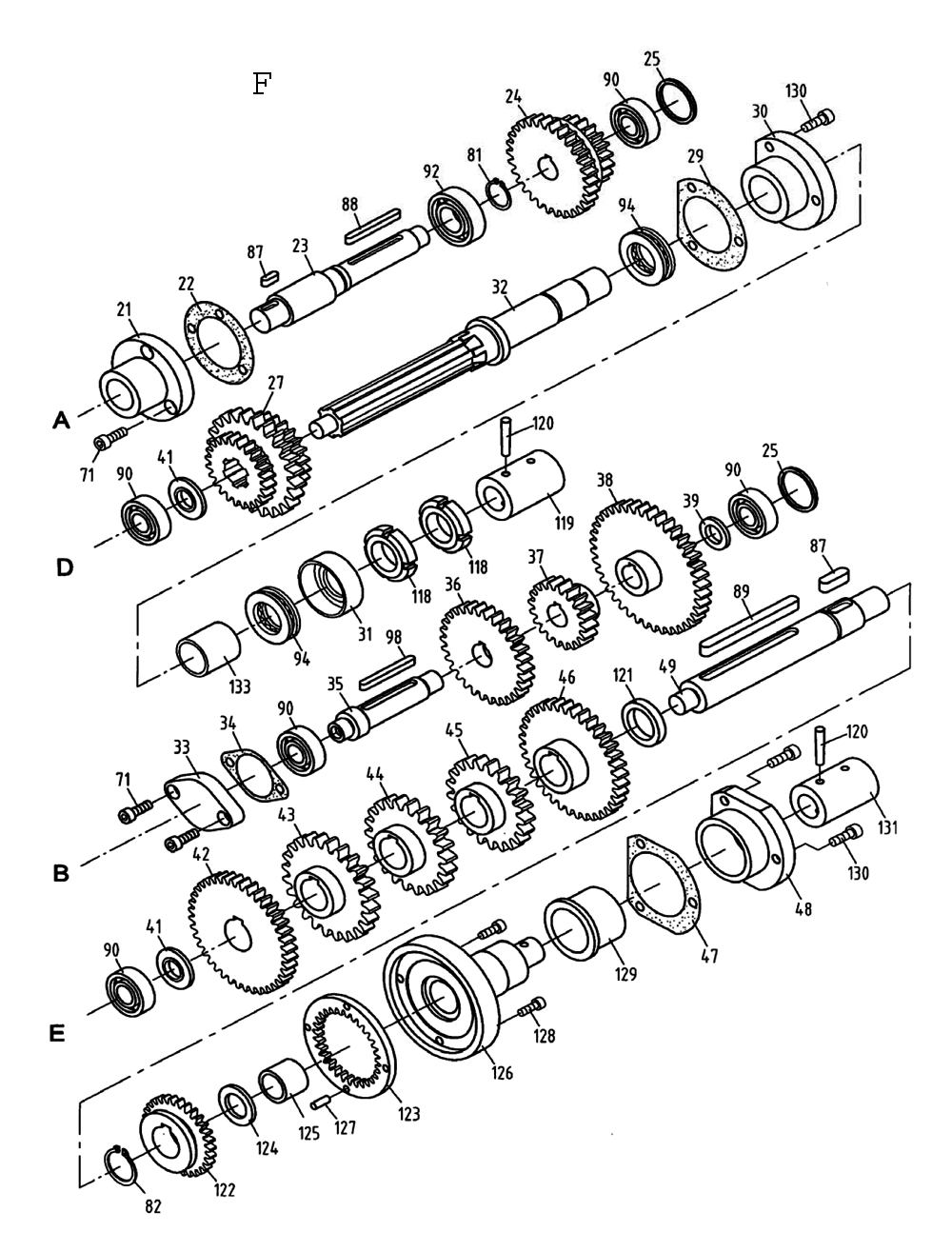

  • Fig-7

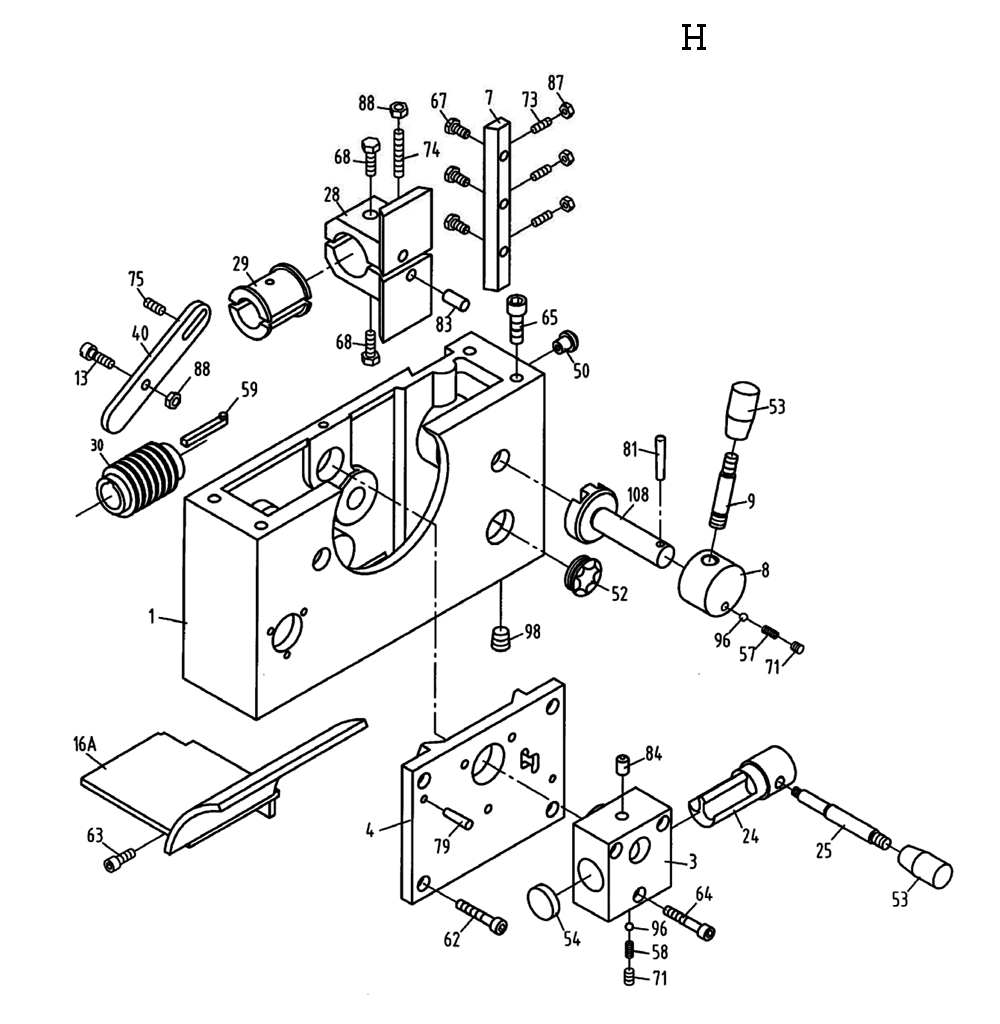

  • Fig-8
  • Fig-9

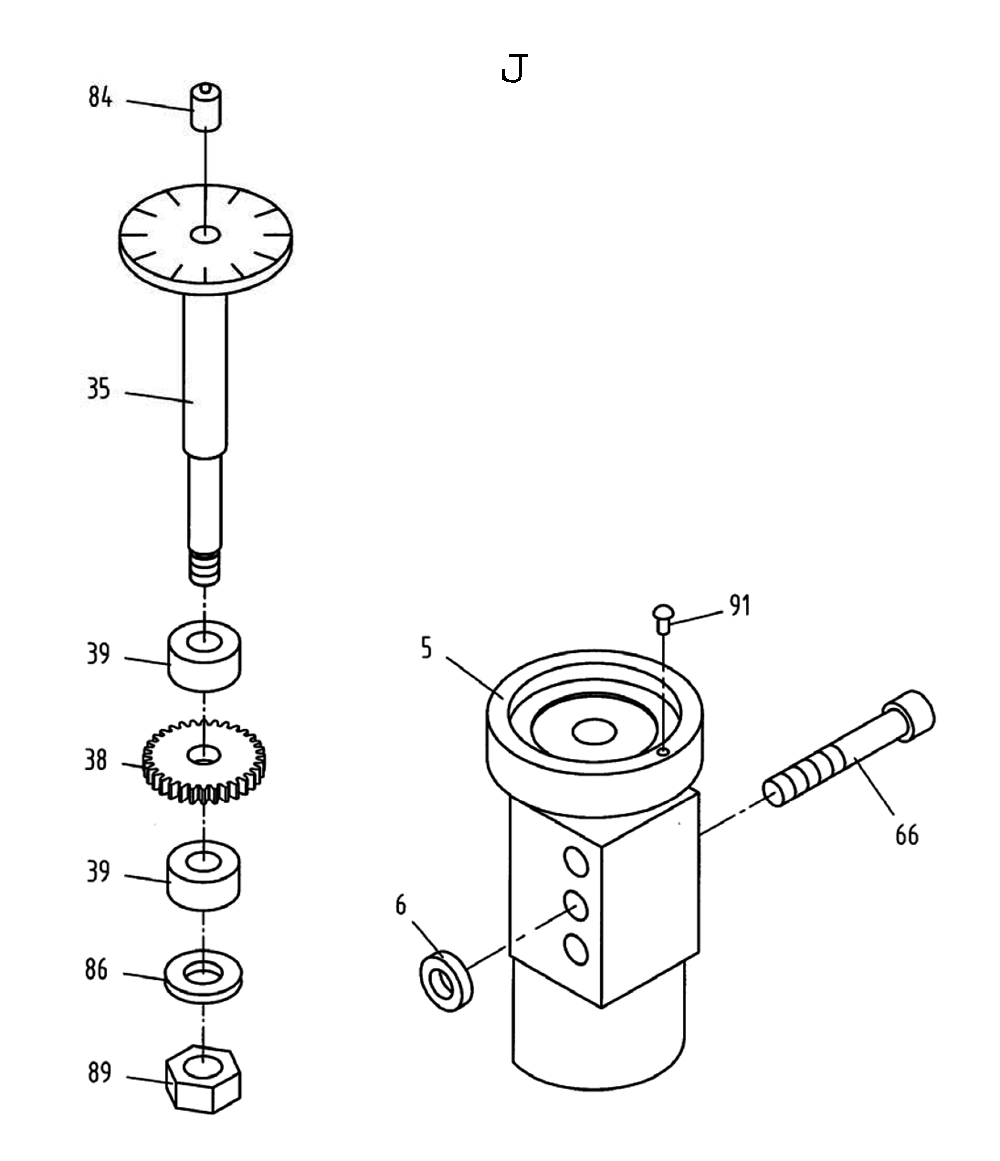

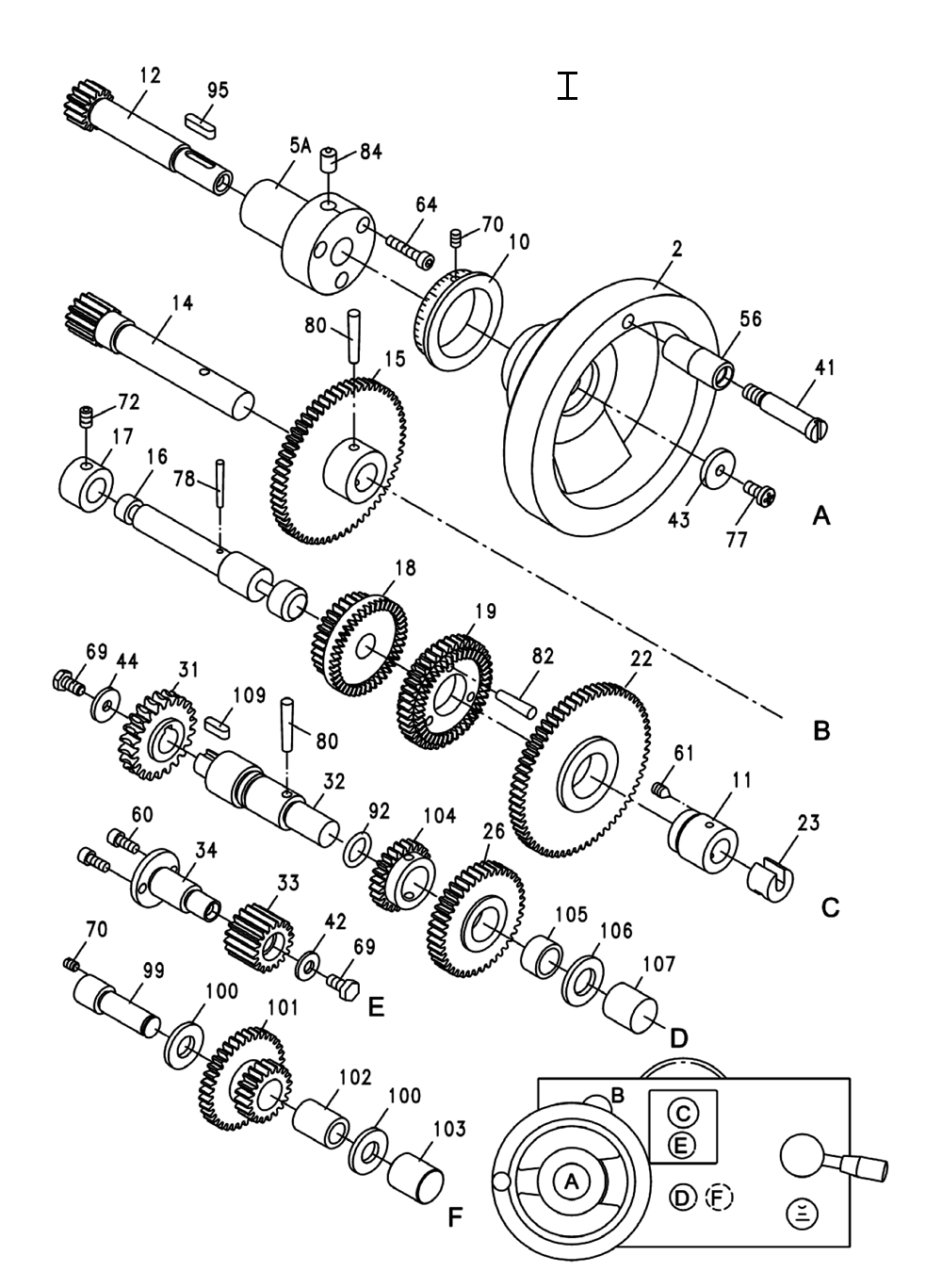

  • Fig-10

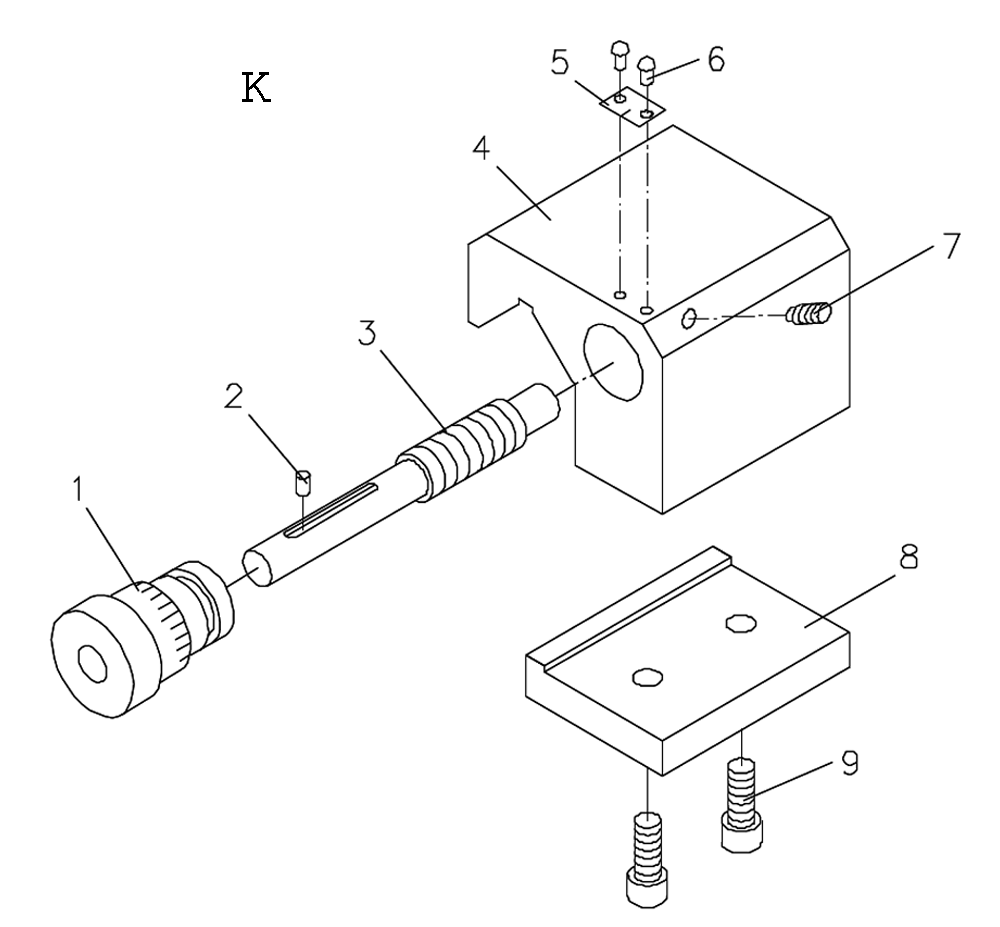

  • Fig-11
  • Fig-12

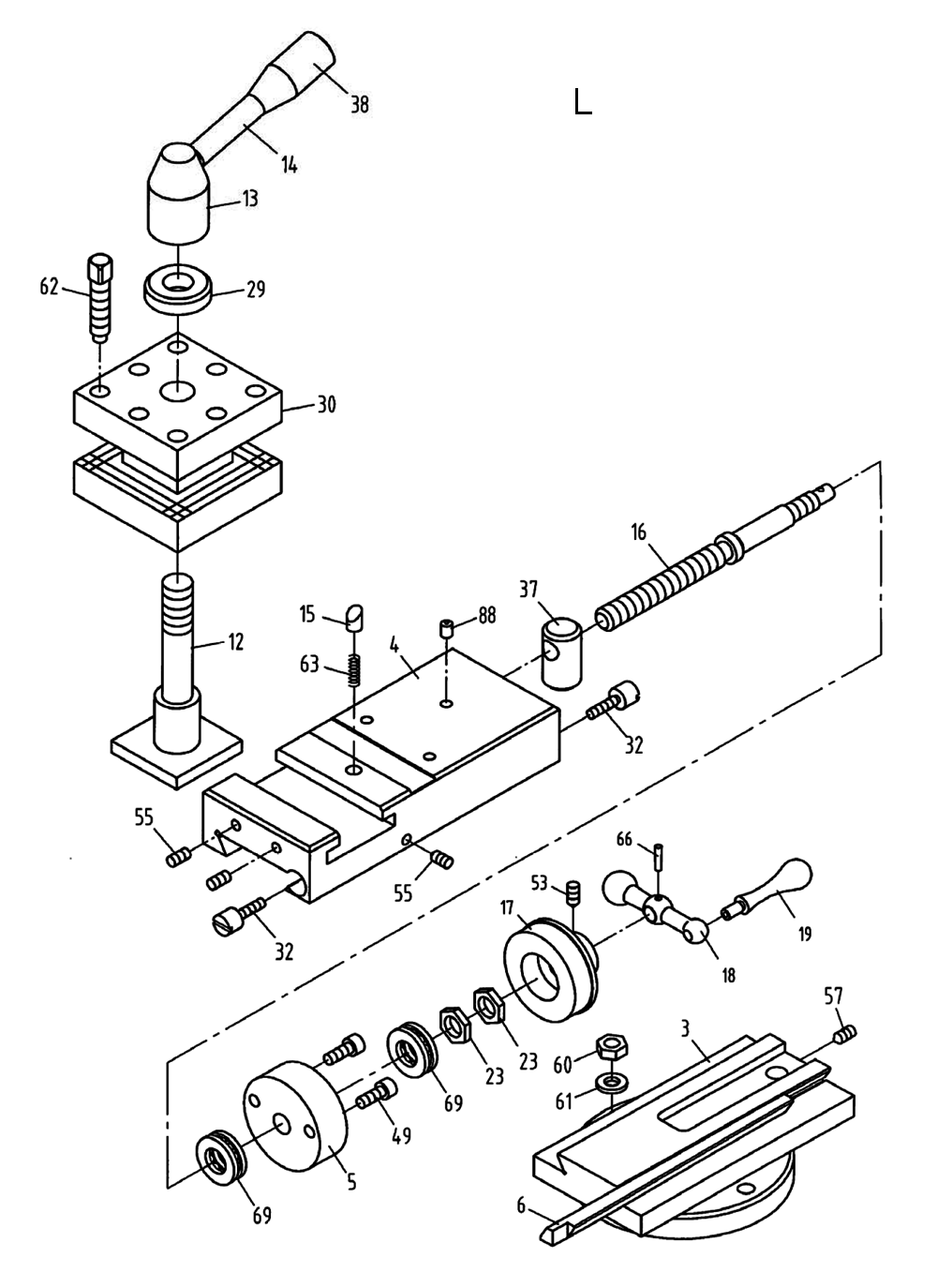

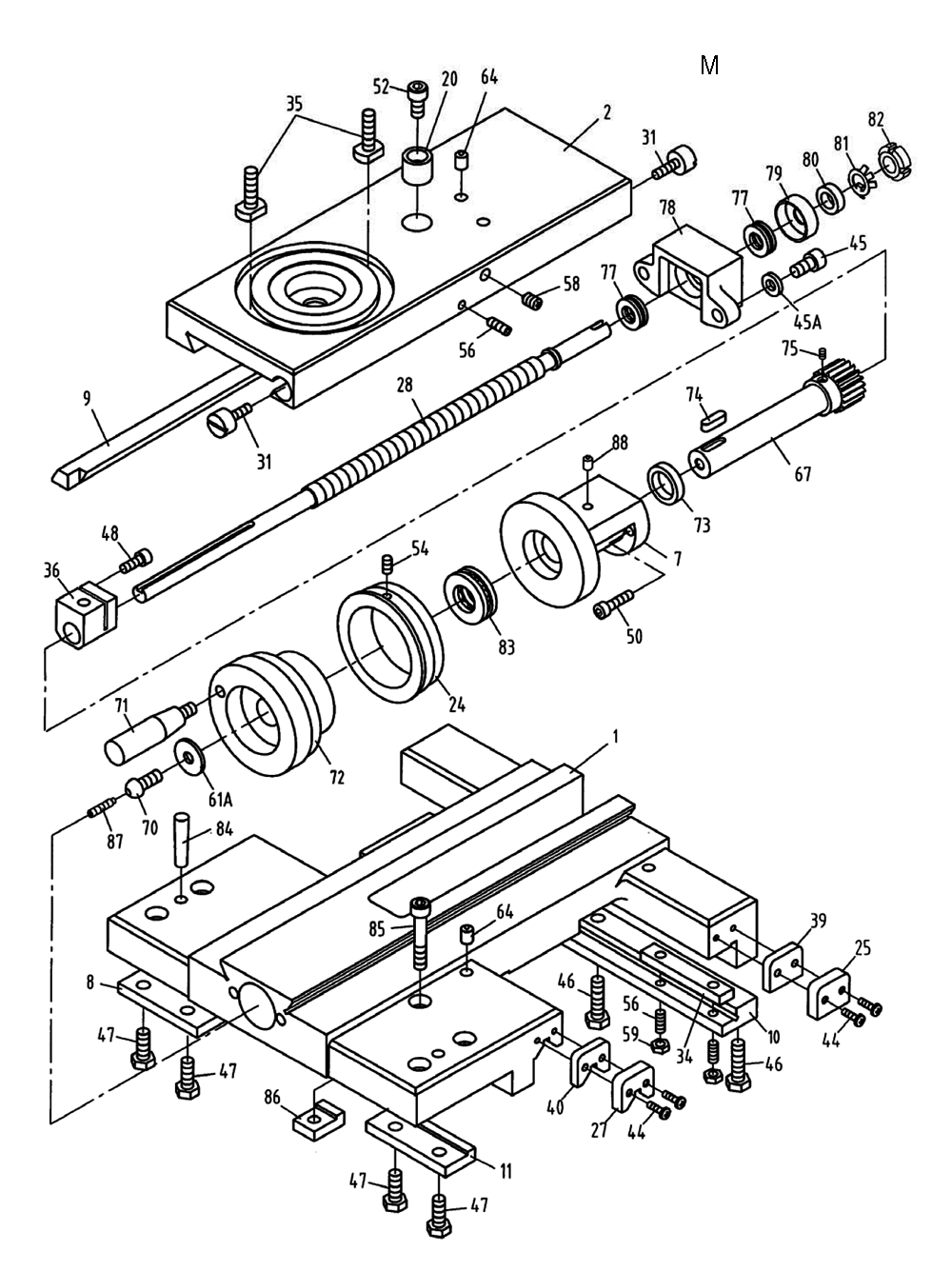

  • Fig-13

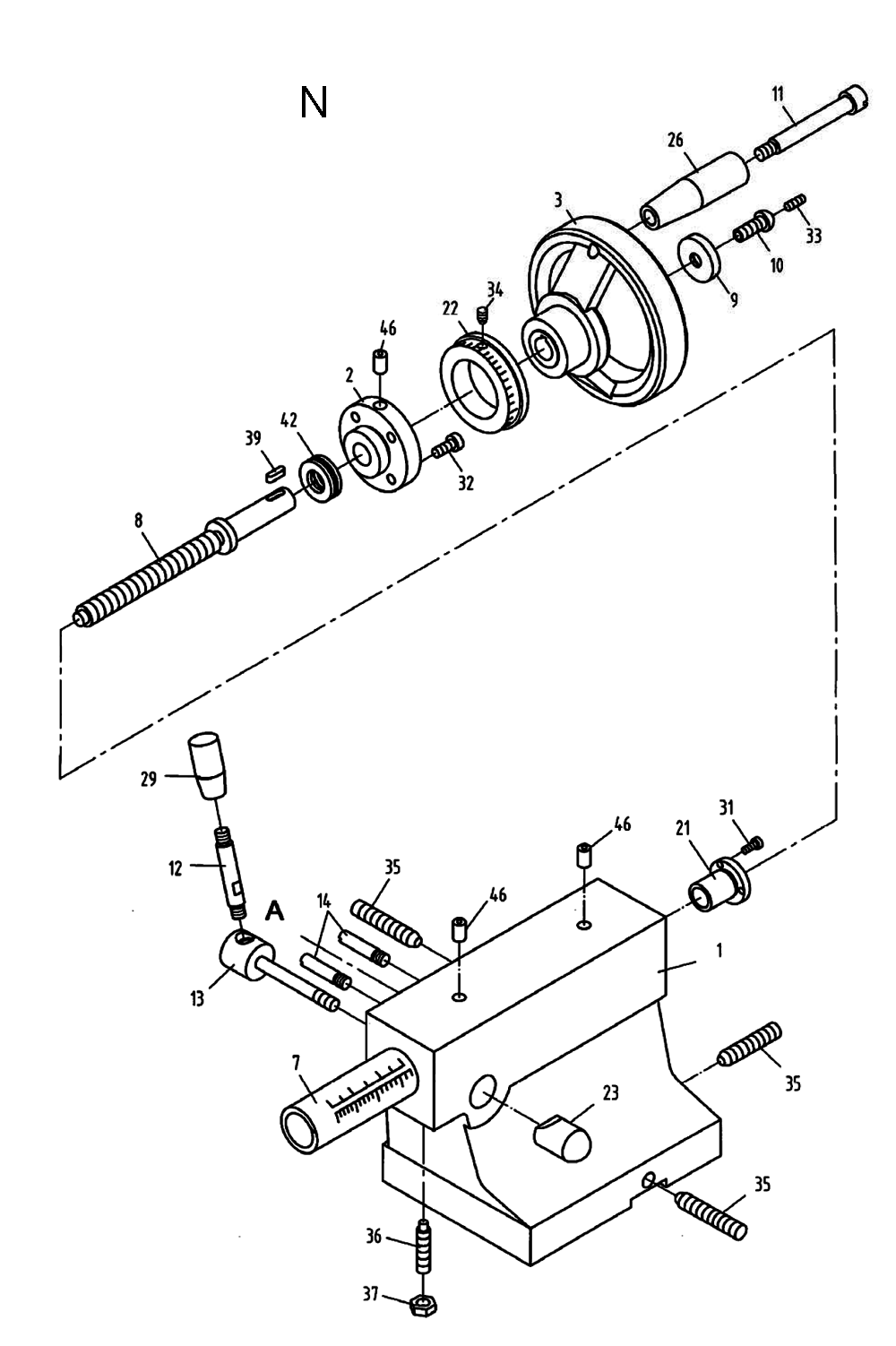

  • Fig-14
  • Fig-15

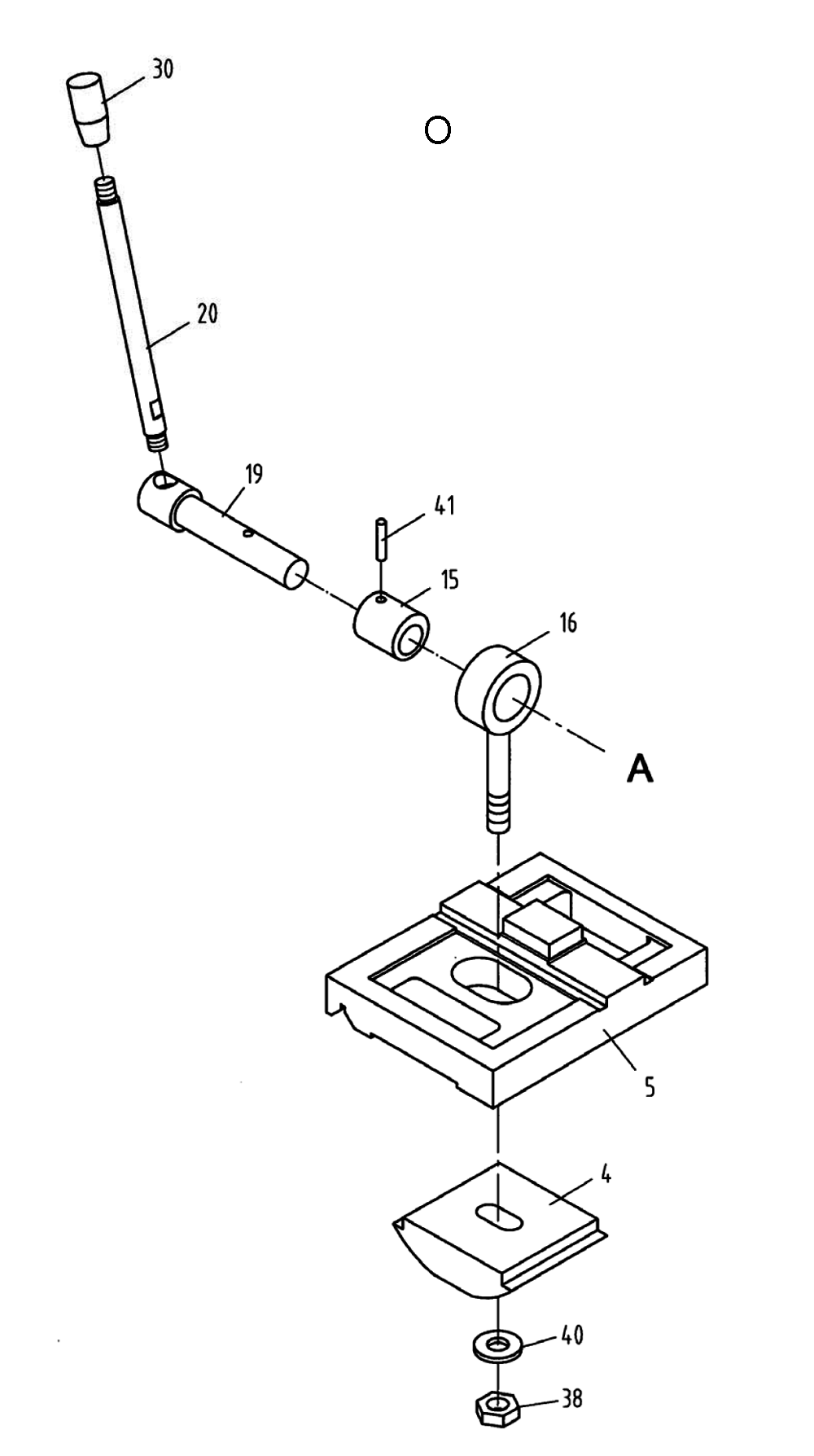

  • Fig-16

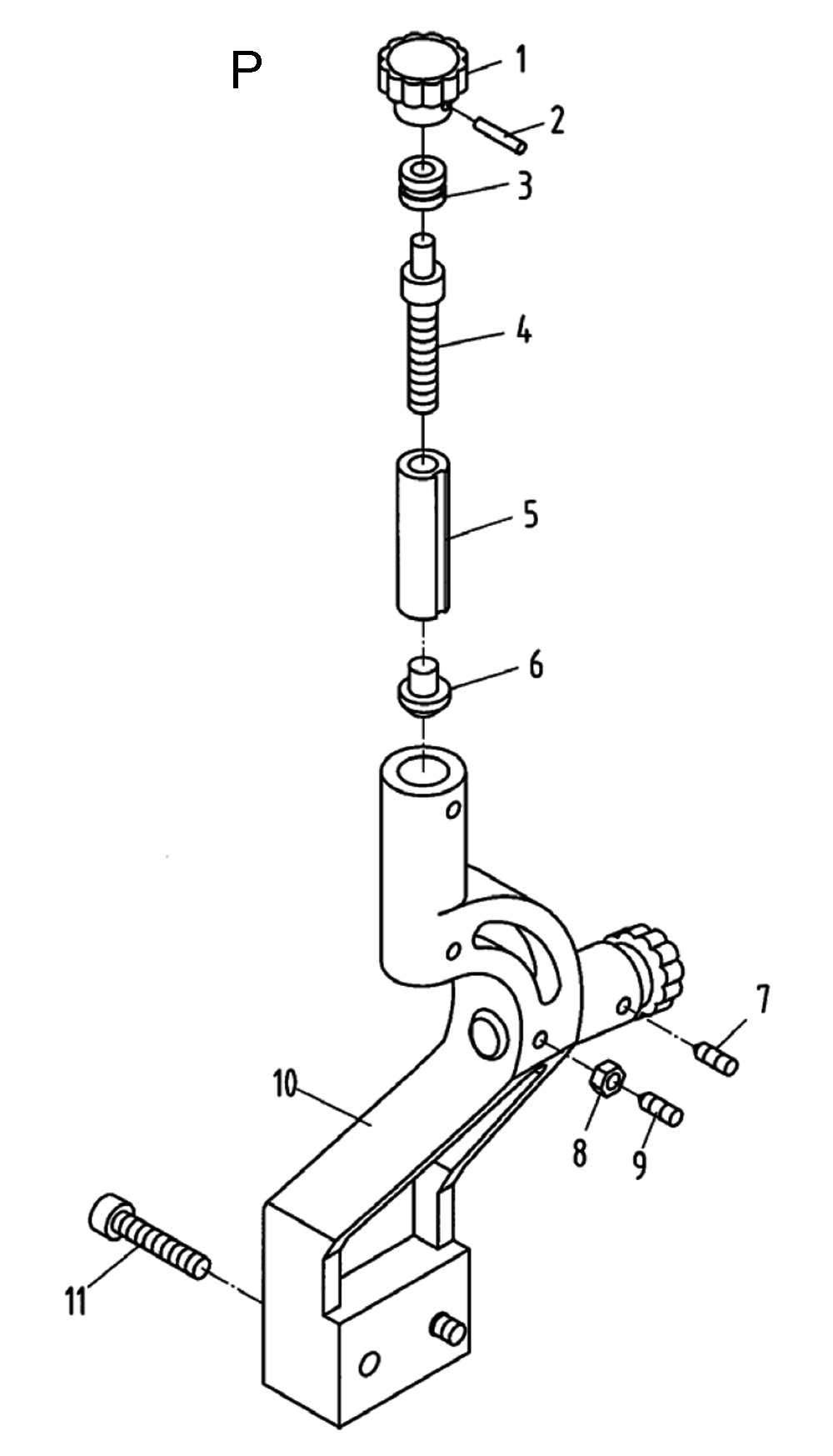

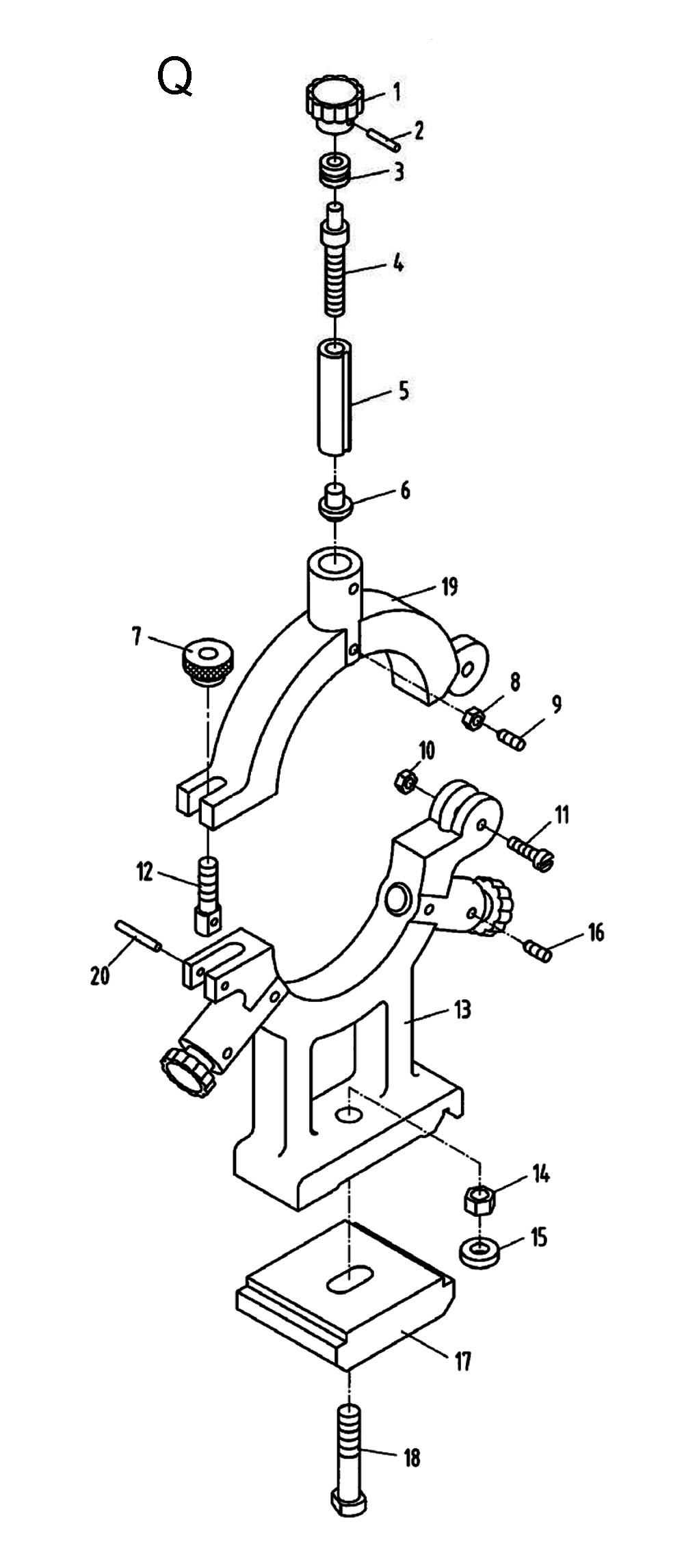

  • Fig-17
  • Fig-18

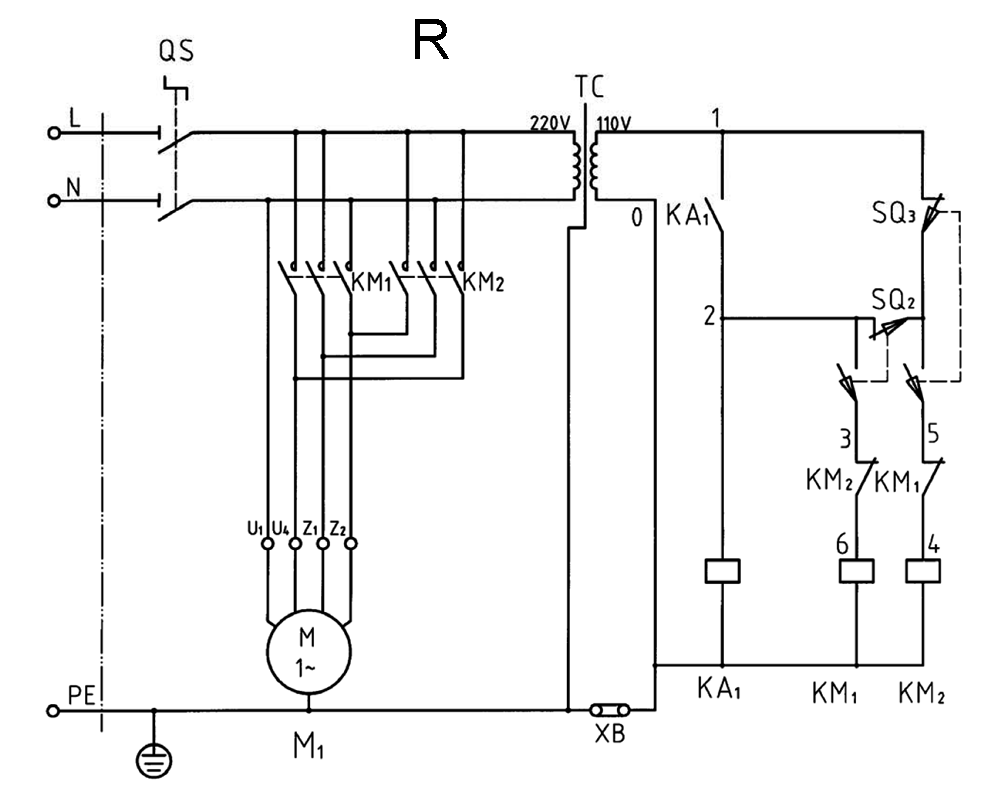

Download Jet 321360A Parts Diagram!

Jet 321360A Replacement Parts List  Other tools in Jet Lathes Machines Parts category

Fig# Image Part No Part Name Price Add To Cart
00. BDB1340A-1701 Lead Screw $462.49
00. BDB1340A-1702 Feed Rod $240.46
00. BDB1340A-1703 Shaft $160.36
00. GHB1340A-18701 Electrical Box $43.38
00. BDB1340A-18701 Electrical Box $37.92
00. BDB1340A-12701B Splash Guard $132.44
00. BDB1340A-01701B Oil Plate $215.99
00. BDB1340A-05503 Rubber Mat $13.24
00. BDB1340A-05105 Top Cover $70.34
00. BDB1340A-05713 Connecting Sleeve $19.41
00. BDB1340A-05712 Connecting Sleeve $19.41
00. 32A5726A Gear $39.50
00. GHB1340-TSA Top Slide Assembly w/o Tool Post $387.93
00. Z08201 Live Center (not shown) $84.30
00. 8404 Arrow Plate (not shown) $3.54
00. 8405 Scale Plate (not shown) $3.54
00. GHB1340-FR Follow Rest Complete $199.38
00. GHB1340-SR Steady Rest Complete $271.59
00. GHB1340-FP Face Plate $201.49
00. GHB1340-TBC Tool Box Complete $371.58
00. 321449 Chuck $612.50
00. 321430 Chuck $560.35
00. GHB1340A-CG1 Change Gear $39.25
00. GHB1340A-CG2 Change Gear $39.50
00. GHB1340A-CG3 Change Gear $39.50
00. GHB1340A-CG4 Change Gear $39.25
00. GHB1340A-CG5 Change Gear $39.25
00. BDB1340-QS1 Main Power Switch (BDB-1 340A Only) $127.78
00. BDB1340-QS1-A Faceplate For Power Switch (BDB-1340A Only) $11.17
00. BDB1340-QS1-B Knob For Power Switch (BDB-1340A Only) $37.92
00. GHB1340-MP Motor Pulley $48.90
00. BDB1340-MP Motor Pulley $50.50
00. GHB1340-C Capacitor (same with BDB-1340A) $21.31
00. GHB1340-CC Capacitor Cover (same with BDB-1340A) $28.66
00. GHB1340-CSF Centrifugal Switch Fixture (same with BDB-1340A) $13.18
00. GHB1340-CSR Centrifugal Switch Rotor $11.93
00. BDB1340-CSR Centrifugal Switch Rotor $9.59
00. GHB1340A-EBC Electrical Box Complete $541.71
00. BDB1340A-EBC Electrical Box Complete $418.72
00. GHB1340-JB Motor Junction Box $9.54
00. BDB1340-JB Motor Junction Box $7.19
00. GHB1340A-RSB Rotary Switch Box $48.90
00. GHB1340A-SP Electric Switch Plate (GHB-1340A Only) $60.49
00. BDB1340A-32A5726A Gear $42.40
00. BDB1340A-02311 Nameplate (not shown) $9.54
00. BDB1340A-02304A Nameplate (not shown) $9.54
00. 4308 Nameplate (not shown) $9.54
00. VB-B32 V-Belt (not shown) $27.48
00. 321320 Motor (2HP, 1Ph, 60HZ 230V only for GHB-1340A) $406.68
00. 321321 Motor (2HP,1 Ph,60HZ 230V only for BDB-1 340A) … $324.36
00. TS-1550061 Flat Washer $3.54
00. TS-1504081 Socket Head Cap Screw $3.54
1. 04101B Headstock Casting $921.22
10. TS-1482021 Hex Head Bolt $3.54
11. 04501A Inlet Plug $8.89
13. BDB1340-H13 Oil Sight Glass $9.01
14. TS-1503031 Socket Head Cap Screw $3.54
15. TS-1490081 Hex Cap Screw $3.54
17. BDB1340-H17 Screw $3.54
55. 04733B Knob $21.21
83. 4310 Cover $836.94
85. 4705 Strut $3.54
86. BDB1340A-02118A Arm $81.82
87. TS-1523031 Set Screw $3.54
88. 04725B Plunger $9.54
89. BDB1340-H89 Cap Nut $4.95
90. 04734B Spring Sleeve $21.82
91. BDB1340-H91 Spring $3.54
92. 4721 Idle Shaft $47.25
93. BDB1340-H93 Oil Nipple $5.45
94. 4719 Gear $41.69
95. 4303 Bushing $18.12
96. 4720 Gear $55.67
97. BDB1340A-02717A Output Shaft $33.40
98. BB-6202ZR Ball Bearing $0.00

Discontinued

99. BDB1340A-H99 Key $3.54
100. TS-1540081 Hex Nut $3.54
101. BDB1340-H93 Oil Nipple $5.45
102. 4716 Spacer $5.42
103. 04119A Flange $3.54
104. BDB1340A-02718A Gear $49.24
105. GH1340A-05735 Gear $49.24
106. BDB1340-H106 Washer $3.54
107. 4714 Bolt $7.79
120. TS-1482021 Hex Head Bolt $3.54
121. BDB1340A-02722A Stud $4.95
122. BDB1340A-02305A End Cover $579.57
123. BDB1340-H123 Knob $20.58
124. BDB1340-H124 Knob $22.61
125. 4724 Cover $54.20
127. BDB1340-H127 Rubber Mat $24.61
128. TS-1503081 Socket Head Cap Screw $3.54
129. BDB1340-H129 C-Clip $3.54
133. BDB1340A-H133 C-clip for Shaft $3.54
134. BDB1340A-02124 Spacer $4.95
135. BDB1340A-H135 Plug $4.95
136. BDB1340A-H136 Sign Plate $0.00

Discontinued

137. BDB1340A-H137 Half Round Cap Screw $0.00

Discontinued

138. BDB1340A-H138 Sign Plate $98.58
00-B. VB-B33 V-Belt $0.00

Discontinued

1-C. GHB1340A-01101 Bed $2,811.03
1-E. 05101A Casting $614.93
1-H. GHB1340A-06101A Casting $612.50
1-K. GHB1340A-01707 Dial $43.38
1-M. 7101 Saddle $453.01
1-N. Z08101 Casting $445.62
1-P. GHB1340-1FR Knob $4.87
1-Q. GHB1340-1FR Knob $4.87
1-R. GHB1340-KA1 Magnetic Starter $69.16
10 -E. 32A5701 Lever $43.38
10 -I. 6510 Index Ring $43.38
10 -M. 7132 Strip $57.49
10 -Q. TS-2311061 Hex Nut $3.54
10 -Q. TS-1540041 Hex Nut $0.00

Discontinued

10-C. 01112 Pulley $0.00

Discontinued

10-N. Z08205 Screw $5.16
10-P. 10104 Base Casting $0.00

Discontinued

100 -I. GHB1340A-06114 Washer $7.65
100-E. TS-1502041 Socket Head Cap Screw $3.54
101 -E. GHB1340A-05105 Top Cover $65.75
101 -I. GHB1340A-06734 Gear $48.90
102 -E. 5723 Cover $39.16
102 -I. GHB1340A-06115 Collar $21.93
103 -E. GHB1340A-G103 Screw $3.54
103 -I. GHB1340A-A103 Shaft Plug $3.54
104 -E. 5722 Plate $16.14
104 -I. GHB1340A-06731 Gear $32.66
105 -E. GHB1340A-G105 Screw $3.54
105 -I. GHB1340A-06113 Collar $16.14
106 -E. GHB1340A-G106 Screw $3.54
106 -I. GHB1340A-06111 Washer $7.65
107 -E. GHB1340A-G107 Tapered Tap $3.54
107-I. GHB1340A-06112 Shaft Plug $20.76
108-E. 5724 Oil Drain Pipe $9.54
108-H. 6261 Half Nut Controlling Shaft $25.90
109 -E. 5108 Extending Plate $148.39
109-I. GHB1340A-A109 Key $6.03
10A-C. TS-1523041 Socket Set Screw $3.54
11 -E. 32A5110 Handle Base $43.38
11-C. 1203 Rack $30.84
11-I. Z06111 Cover $16.14
11-M. 7141 Front Strip $23.38
11-N. 8206 Screw $9.31
11-P. TS-1504071 Socket Head Cap Screw $3.54
11-Q. GHB1340-11SR Bolt $10.70
110 -A. 4729 Cam $31.64
110 -E. TS-1502061 "Socket Head Cap Screw $3.54
111-A. 4741 Pin $8.89
111-E. 5305 Slipper $20.48
112 -A. BDB1340-H112 Spring $3.99
112 -E. 5721 Slipper Shaft $13.24
113 -A. TS-1504041 Socket Head Cap Screw $3.54
113 -E. GHB1340A-G113 C-clip $3.54
114 -E. GHB1340A-G114 Pin $3.54
115 -E. 5107 Lever $21.93
116 -E. 5304 Sig n Disc $4.55
117-E. GHB1340A-G117 Oil Sight Glass $20.76
118 -F. GHB1340A-G118 Round Nut $4.87
119 -F. 5713 Connecting Sleeve $16.14
12 -I. 6212 Shaft $36.96
12 -L. 7205 Screw $27.25
12 -N. Z08207 Lever $8.40
12 -Q. 10206 Pivot Bolt $0.00

Discontinued

12-C. GHB1340A-12B Pin $3.54
120 -F. GHB1340A-G120 Pin $3.54
121 -F. 5707 Washer $3.54
122-F. 05708 Gear $0.00

Discontinued

123 -F. 5709 Inner Gear $39.16
124 -F. 5711 Washer $7.65
125-F. 5302 Oil Light Bushing $16.14
126-B. TS-1523011 Socket Set Screw $3.54
126-F. 05710 XI B Shaft $0.00

Discontinued

127 -F. GHB1340A-G127 Pin $3.54
128 -F. GHB1340A-G128 Screw $3.54
129 -F. 5301 Sliding Bearing $21.82
13 -C. 01204-2 Rack $331.64
13 -E. GHB1340A-05106 Cover $166.04
13 -L. 7206 Handle Base $21.82
13 -N. 8208 Shaft $36.47
13-H. 6213 Gear Pin $3.54
13-Q. 10102 Base Casting $0.00

Discontinued

130 -A. BDB1340-H130 0-Ring $5.45
130-F. TS-1503031 Socket Head Cap Screw $3.54
130-G. TS-1503031 Socket Head Cap Screw $3.54
131 -B. TS-1490041 Hex Cap Screw $3.54
131 -F. GHB1340A-05712 Connecting Sleeve $3.54
132 -B. TS-1504041 Socket Head Cap Screw $3.54
132 -G. TS-2360121 Flat Washer $3.54
133 -F. 5303 Bearing Housing $21.82
134-G. GHB1340A-G134 Hex Socket Cap Screw $3.54
14 -E. 5504 Gasket $9.47
14 -L. 7207 Handle Shaft $10.63
14 -N. 8209 Screw $9.31
14 -Q. TS-1540081 Hex Nut $3.54
14-C. 32A1105 Collar $13.24
14-I. 6214 Gear Shaft $30.84
15 -E. 32A5305 Slipper $16.14
15 -I. 6215 Gear $53.25
15 -L. 7209 Stop $16.14
15-1. TS-1540061 Hex Nut $3.54
15-1 -B. TS-1540061 Hex Nut $3.54
15-C. 32A1106 Collar $13.24
15-O. 8211 Collar $19.04
15-Q. TS-1550081 Washer $3.54
16 -C. GHB1340A-1701 Lead Screw $338.05
16 -I. 6216 Shaft $48.90
16 -L. 7210 Screw $44.54
16 -O. 8212 Screw $22.97
16-Q. TS-1523021 Socket Head Set Screw $3.54
16A-H. 6415 Bracket $12.34
17 -E. 32A5106 Lever $57.49
17 -L. 7212 Index Ring $32.66
17-C. 321728 Key $3.54
17-I. 6417 Collar $26.17
17-Q. 10103 Clamp Rod $0.00

Discontinued

18 -A. 4701 Spindle $906.83
18 -C. 321706 Collar $39.16
18 -E. 32A5302 Plate $4.87
18 -I. 6218 Gear $63.85
18-L. 7213 Ball Handle $32.66
18-Q. TH1340-18SR Clamp Screw $45.65
19 -A. BDB1340-H19 Key $9.76
19 -C. GHB1340A-1702 Feed Rod $172.41
19 -E. 32A5103 Handle $51.12
19 -I. 6219 Gear $48.90
19 -L. 7214 Handle $16.35
19 -O. 8213 Shaft $26.28
19 -Q. 10101 Top Casting $0.00

Discontinued

2-A. TS-1503051 Socket Head Cap Screw $3.54
2-C. 11-10 Break Block $529.69
2-E. 5715 Right cover $9.54
2-I. 6102 Handwheal $46.16
2-K. GHB1340A-MS02 Pin $3.54
2-M. 7102 Cross Slide $220.42
2-N. Z08102 Flange Cover $27.66
2-P. GHB1340-2FR Pin $3.54
2-Q. GHB1340-2FR Pin $3.54
2-R. GHB1340-KM1 Magnetic Starter $113.40
20 -A. BDB1340-H20 Key $7.79
20 -E. 32A5306 Slipper $21.21
20 -O. 8214 Lever $16.14
20-C. 1707 Brake Ring $7.65
20-M. 7216 Collar $8.89
20-Q. GHB1340-20SR Pin $3.54
21 -A. 4102 Collar $30.38
21 -C. GHB1340A-21B Spring $3.54
21 -F. 32A5113 Cover $21.93
21 -G. 32A5113 Cover $21.93
21-N. 08401 Nut $0.00

Discontinued

22 -A. BDB1340-H22 Oil Seal $13.28
22 -C. GHB1340A-1703 Shaft $152.71
22 -F. 32A5503 Gasket $4.86
22 -G. 32A5503 Gasket $4.86
22 -I. 6220 Gear $6.11
22 -N. 8402 Index Ring $36.47
23 -A. BDB1340-H23 0-Ring $8.89
23 -C. 32A1103A Bracket $3.54
23 -F. 32A5712 Shaft $51.12
23 -I. 6421 Shift Fork $16.14
23 -L. 7221 Nut $6.71
23 -N. 8403 Pivot Block $39.16
24 -H. 6222 Shift Lever $43.38
24 -M. 07222N Index Ring $45.54
24-C. TS-1503061 Socket Head Cap Screw $3.54
24-F. 32A5710A Gear $99.67
25 -A. BDB1340-H25 Shaft Pin $3.54
25 -F. 32A5719 Washer $75.58
25 -M. 7224 Plate $9.54
25-C. GHB1340A-25B Pin $3.54
25-H. 6223 Shift Handle $21.93
26 -A. BDB1340-H26 Spring $3.54
26 -C. 32A1710 Handle Hub $14.54
26 -I. GHB1340A-06704 Gear $43.38
26 -N. 8501 Handle $10.63
27 -A. 4703 Pin $5.45
27 -F. 5718 Gear $116.47
27 -M. 7227 Plate $4.87
27-C. TS-1524061 Socket Set Screw $3.54
28 -A. 4702 Nut $5.45
28 -C. 01710A Handle $16.35
28 -H. 6126 Bracket $46.00
28 -M. 07229N Screw $152.50
28A-C. GHB1340A-77 Pin $16.08
29 -A. 04117A Gear $232.77
29 -F. 5502 Gasket $4.55
29 -L. 7233 Washer $7.65
29-C. GHB1340A-29B Knob $4.86
29-H. 6427 Half Nut $47.17
29-N. GHB1340-29TS Handle $0.00

Discontinued

3 -K. GHB1340A-01716 Axle $21.93
3-A. BB-30212 Taper Roller Bearing $97.96
3-C. TS-1550071 Flat Washer $0.00

Discontinued

3-C. 5051911 Washer, M10 Flat $3.54
3-E. 5720 Left cover $7.65
3-H. 6103 Housing $51.12
3-L. 7103 Swivel Slide $103.11
3-N. 8103 Hand Wheel $33.45
3-P. 10208 Bushing $0.00

Discontinued

3-Q. 10203 Bushing $272.32

Discontinued

3-R. GHB1340-KM2 Magnetic Starter $113.40
30 -F. 5104 Bushing $65.50
30 -L. 7234 Post Base $184.34
30 -O. GHB1340-147 Knob $5.16
30-A. 4116 Pulley $86.49
30-C. TS-1522031 Socket Set Screw $3.54
30-H. 6228 Worm $69.16
31 -A. TS-1523031 Set Screw $3.54
31 -C. 1708 Collar $13.24
31 -F. 5714 Washer $21.21
31 -I. 6429 Gear $84.01
31 -M. 7236 Gib Adjusting Screw $5.16
31 -N. TS-1501031 Socket Head Cap Screw $3.54
32 -A. 4302 Bushing $84.68
32 -C. 32A1104A Bracket $123.06
32 -F. 5716 Shaft $98.58
32 -I. GHB1340A-06714 Shaft $26.07
32-L. 7237 Gib Adjusting Screw $4.75
32-N. TS-1503041 Socket Head Cap Screw $3.54
33 -A. 4301 Bushing $29.18
33 -I. 6231 Gear $43.38
33-C. GHB1340A-33B Pin $4.87
33-F. 32A5114 End cover $16.14
33-N. TS-1522061 Socket Set Screw $3.54
34 -A. 4115 Gear $224.07
34 -F. 32A5504 Gasket $4.86
34 -I. 6232 Shaft $22.23
34 -M. 7239 Gib Strip $6.03
34-C. TS-1504131 Socket Head Cap Screw $9.83
34-N. TS-1523031 Set Screw $3.54
35 -A. 4114 Spacer $20.04
35 -C. 32A1502 Plug $3.54
35 -F. 32A5716 Shaft $39.16
35 -M. 7240 T-Bolt $8.66
35-J. 6233 Threading Dial Shaft $65.34
35-N. GHB1340-35TS Set Screw $4.58
36 -N. GHB1340-36TS Screw $3.54
36-A. TS-1524021 Socket Set Screw $3.54
36-C. GHB1340A-36B Pin $4.86
36-F. 32A5714A Gear $51.12
36-M. 07415N Block $0.00

Discontinued

37 -A. BDB1340-H37 0-Ring $5.45
37 -L. 7430 Nut $32.66
37 -N. TS-1540061 Hex Nut $3.54
37-C. TS-1504121 Socket Head Cap Screw $3.54
37-F. 32A5715A Gear $39.16
38 -A. 04112A Spacer $16.14
38 -C. 32A1502 Plug $3.54
38 -L. 7508 Knob $5.16
38 -O. TS-1540081 Hex Nut $3.54
38-F. 32A5713A Gear $57.49
38-J. 6236 Gear $21.93
39 -F. 32A5708 Washer $9.54
39 -J. 6237 Spacer $8.89
39 -M. 7526 Wiper $8.08
39-A. 4113 Bearing Cover (rear) $59.37
39-C. GHB1340A-39B Oil Ball $3.54
39-N. GHB1340-39TS Key $6.62
4 -K. GHB1340A-01107 Stop $69.16
4-A. BDB1340-H4 Oil Seal $0.00

Discontinued

4-C. 01102 Gap $0.00

Discontinued

4-E. 32A5308 Slipper $21.21
4-H. 6104 Cover $72.56
4-L. 7104 Top Slide $139.12
4-O. 8104 Clamp Plate $22.23
4-P. 10204 Screw $0.00

Discontinued

4-Q. 10204 Screw $0.00

Discontinued

4-R. GHB1340-TC Control Transformer $111.34
40 -C. 32A1301 Switch Box $27.41
40 -H. 6238 Bar $21.93
40 -M. 7528 Wiper $6.75
40 -O. TS-2360121 Flat Washer $3.54
40-A. BDB1340-H40 Oil Seal $0.00

Discontinued

41 -A. BDB1340-H41 0-Ring $8.89
41 -C. TS-1504041 Socket Head Cap Screw $3.54
41 -F. 5719 Washer $7.65
41 -I. 6239 Screw $9.31
41 -O. GHB1340-41TS Pin $3.54
42 -A. 4713 Gear $55.66
42 -I. TS-1550041 Flat Washer $3.54
42 -N. BB-51102 Thrust Bearing $46.31
42-C. TS-1523051 Socket Set Screw $3.54
42-F. 05702 Gear $0.00

Discontinued

43 -A. 4743 Locking Nut $26.61
43 -C. 32A1705 Bushing $13.24
43 -F. 5703 Gear $62.37
43-I. Z06241 Washer $4.58
44 -B. 4704 Eccentric Shaft $193.09
44 -I. 6242 Washer $8.89
44-C. SB-6MM Steel Ball $3.54
44-F. 05704 Gear $0.00

Discontinued

44-M. GHB1340-44T Screw $3.54
45 -B. 04103A Bushing $9.54
45-C. GHB1340A-45B Spring $3.54
45-F. 5705 Gear $58.16
45-M. TS-1504051 Socket Head Cap Screw $4.28
45A-M. TS-1551061 Lock Washer $3.54
46 -B. 04109A Gear $117.51
46-C. TS-1524041 Socket Set Screw $3.54
46-F. 05706 Gear $0.00

Discontinued

46-M. GHB1340-46T Screw $3.54
46-N. GHB1340-43TS Oil Ball $0.00

Discontinued

47 -F. 5501 Gasket $30.94
47-B. TS-1523011 Socket Set Screw $3.54
47-M. GHB1340-47T Screw $3.54
47A-C. TS-1525021 Socket Set Screw $3.54
48 -F. 5103 Flange $65.34
48-B. 04111A Bushing $16.14
48-C. 32A1504 Switch Box Cover $76.80
48-M. TS-1503041 Socket Head Cap Screw $3.54
49 -F. 5717 Shaft $57.49
49-B. 4110 Moving Arm $24.61
49-C. TS-1505051 Socket Head Cap Screw $3.54
49-L. TS-1503051 Socket Head Cap Screw $3.54
5 -E. 32A5111A Lever $51.12
5-A. OS-709012 Oil Seal $27.71
5-C. TS-149105 Hex Cap Screw $0.00

Discontinued

5-J. Z06105 Threading Dial Body $94.11
5-K. ZX-03302 Sign Plate $3.54
5-L. 7111 Collar $26.17
5-O. 8105 Base $79.77
5-P. 10201 Sleeve $218.58

Discontinued

5-Q. 10201 Sleeve $218.58

Discontinued

5-R. GHB1340A-SQ2 Stroke Switch $12.45
50 -G. 32A5115 End Cover $21.21
50-B. TS-1504071 Socket Head Cap Screw $3.54
50-C. TS-1502021 Socket Head Cap Screw $3.54
50-H. 6548 Oil Filler Plug $3.54
50-M. TS-1503061 Socket Head Cap Screw $3.54
51 -B. 4726 Sleeve $3.54
51 -C. TS-1503061 Socket Head Cap Screw $3.54
52 -B. BDB1340-H52 Spring $7.19
52 -D. GHB1340A-18701 Electrical Box $43.38
52 -G. 32A5718A Gear $97.96
52 -H. 6551 O it Sight $8.85
52-M. TS-1504031 Socket Head Cap Screw $3.54
52A-D. BDB1340A-18701 Electrical Box $37.92
53 -B. 4725 Shaft $3.54
53 -G. 32A5721A Gear $132.37
53-C. TS-1540061 Hex Nut $3.54
53-H. 6553 Knob $5.16
53-L. TS-1523011 Socket Set Screw $3.54
54 -B. BDB1340-H54 Cap Nut $4.95
54 -G. 5701 Key shaft $109.76
54 -H. Z06554 Plug $3.54
54-M. TS-1523021 Socket Head Set Screw $3.54
54A-C. TS-1492061 Hex Cap Bolt $4.37
55 -B. 04733B Knob $21.21
55 -G. 5505 Gasket $4.55
55-D. GHB1340A-55B Screw $0.00

Discontinued

55-L. TS-1523031 Set Screw $3.54
56 -B. 4706 Shaft $14.18
56 -G. 5102 Cover $15.37
56 -I. 6556 Handle $10.63
56-D. GHB1340A-56B Nut $0.00

Discontinued

56-M. TS-1523071 Socket Set Screw $3.54
57 -B. 4707 Handle $19.59
57 -H. 6257 Spring $5.79
57-D. GHB1340A-57B Screw $0.00

Discontinued

57-L. TS-1524011 Set Screw $3.54
58 -B. BDB1340-H58 Knob $8.89
58 -D. GHB1340A-12701 Splash Guard $185.43
58 -G. 40A5736 Gear $146.33
58 -H. 6258 Spring $8.08
58-M. TS-1524021 Socket Set Screw $3.54
59 -B. 04104A Cam $45.65
59 -D. GHB1340A-01701 Oil Plate $160.93
59 -G. 40A5738 Collar $16.14
59 -H. 6260 Key $22.23
59-M. TS-2311061 Hex Nut $3.54
59-M. TS-1540041 Hex Nut $0.00

Discontinued

5A-I. 06105A Hub $8.89
6 -E. 32A5108A Lever $51.12
6-A. BB-30211 Taper Roller Bearing $97.96
6-C. TS-1490041 Hex Cap Screw $3.54
6-J. 6206 Washer $8.64
6-K. ZX-MS06 Pin $3.54
6-L. 7117 Gib $26.28
6-P. 10401 Brass Finger $26.17
6-Q. 10401 Brass Finger $26.17
6-R. GHB1340A-SQ3 Stroke Switch $43.38
60 -B. BDB1340-H60 Spring Pin $3.54
60 -D. GHB1340A-02302 Back Cover $80.30
60 -G. 40A5739 Screw $9.54
60-I. TS-1502031 Socket Head Cap Screw $3.54
60-L. TS-1540061 Hex Nut $3.54
61 -B. 4712 Input Shaft $129.34
61 -C. GHB1340-61B Pin $3.54
61 -G. 321719 Washer $4.55
61 -I. TS-1523011 Socket Set Screw $3.54
61 -L. TS-1550061 Flat Washer $3.54
61 -M. TS-1550061 Flat Washer $3.54
61A-M. GHB1340-65T Washer $0.00

Discontinued

62 -B. BDB1340-H62 Key $3.54
62 -G. 40A5740 Washer $8.08
62 -L. GHB1340-62T Screw $5.16
62-D. ZX-8712 Upper Hinge $0.00

Discontinued

62-H. TS-1503031 Socket Head Cap Screw $3.54
62A-G. 40A5740A Washer $7.79
63 -B. BDB1340-H63 Key $3.54
63 -G. 32A5726A Gear $39.50
63 -L. GHB1340-63T Spring $3.54
63-D. TS-1503041 Socket Head Cap Screw $3.54
63-H. TS-1503041 Socket Head Cap Screw $3.54
64 -G. 32A5119 Gear Frame $53.94
64 -M. GHB1340-64T Oil Ball $3.54
64-B. TS-1550081 Washer $3.54
64-D. GHB1340A-64B Pin $0.00

Discontinued

64-H. TS-1503061 Socket Head Cap Screw $3.54
64-I. TS-1503061 Socket Head Cap Screw $3.54
65 -G. 321718 Screw rod $9.54
65-B. TS-1540081 Hex Nut $3.54
65-D. ZX-8711 Lower Hinge $0.00

Discontinued

65-H. TS-1504061 Socket Head Cap Screw $3.54
66 -B. 4708 Cam $27.05
66 -D. GHB1340A-02105 Rear Side plate $152.71
66 -L. GHB1340-66T Pin $3.54
66-J. TS-1504101 Socket Head Cap Screw $3.54
67 -M. 7530 Gear Shaft $95.68
67-D. TS-1504031 Socket Head Cap Screw $3.54
67-E. GHB1340A-G67 Screw $4.87
67-H. GHB1340-A67 Screw $3.54
68 -B. 4709 Strut $13.24
68 -E. GHB1340A-G68 Tapered Tap $3.54
68-D. GHB1340A-68B Pin $0.00

Discontinued

68-H. TS-1523041 Socket Set Screw $3.54
69 -B. 04105A Swing Arm $43.38
69 -E. GHB1340A-G69 Socket Head Cap Screw $3.54
69 -L. GHB1340-69T Ball Bearing $16.14
69-C. GHB1340-69B Pin $6.03
69-I. TS-1503021 Socket Head Cap Screw $3.54
7-A. TS-1503041 Socket Head Cap Screw $3.54
7-C. TS-1550061 Flat Washer $3.54
7-E. 32A5307 Slipper $21.21
7-H. 6107 Gib $19.74
7-K. TS-1523031 Set Screw $3.54
7-M. 07120N Bearing Housing $48.35
7-N. 8202 Quill $210.13
7-P. TS-1523011 Socket Set Screw $3.54
7-Q. 10205 Lock Knob $332.05

Discontinued

7-R. GHB1340-XT1 Wiring Board $21.93
70-B. TS-1482021 Hex Head Bolt $3.54
70-C. GHB1340A-74B Set Screw $3.54
70-E. TS-1503061 Socket Head Cap Screw $3.54
70-I. TS-1522011 Socket Set Screw $3.54
70-L. 7545 Screw $7.21
70-M. TS-1504041 Socket Head Cap Screw $3.54
71 -C. TS-1504071 Socket Head Cap Screw $3.54
71 -F. TS-1504031 Socket Head Cap Screw $3.54
71 -G. TS-1504031 Socket Head Cap Screw $3.54
71 -H. TS-1523011 Socket Set Screw $3.54
71 -M. 7531 Handle $13.85
71-B. BB-6204ZR Ball Bearing $0.00

Discontinued

72 -B. 4107 Pulley $131.28
72 -C. TS-1551061 Lock Washer $3.54
72-E. GHB1340A-G72 Pin $4.87
72-I. TS-1523031 Set Screw $3.54
72-M. 7532 Compound Handle $38.07
73 -E. GHB1340A-G73 Pin $4.87
73 -M. 7533 Spacer $7.49
73-B. TS-1524021 Socket Set Screw $3.54
73-C. TS-1551071 Lock Washer $3.54
73-H. TS-1522051 Set Screw $3.54
74 -M. 7534 Key $8.08
74-C. TS-1550061 Flat Washer $3.54
74-H. GHB1340-A74 Set Screw $3.54
75 -B. 04106A Swing Arm $43.38
75 -E. GHB1340A-G75 Knob $3.54
75-C. TS-1504091 Socket Head Cap Screw $3.54
75-H. TS-1523031 Set Screw $3.54
75-M. 7535 Set Screw $7.21
76 -M. 7536 Key $6.91
76-B. TS-1503051 Socket Head Cap Screw $3.54
76-C. TS-2360121 Flat Washer $3.54
77 -E. GHB1340A-G77 Spring $3.54
77-B. BB-6204 Ball Bearing $19.82
77-D. TS-1502041 Socket Head Cap Screw $3.54
77-I. GHB1340A-77 Pin $16.08
77-M. BB-8101 Replaced by BB-51101 - Thrust Bearing $0.00

Discontinued

78-B. BDB1340A-04108 Pulley $58.63
78-D. GHB1340A-78B Pin $0.00

Discontinued

78-E. TS-1524021 Socket Set Screw $3.54
78-I. GHB1340-A78 Pin $3.54
78-M. 7538 Bearing Housing $43.38
79 -D. GHB1340A-02104 Front Side plate $103.05
79-E. SB-6.5MM STEEL BALL 6.5MM $3.54
79-H. GHB1340-A79 Pin $3.54
79-M. 7539 Bearing Dust Cover $9.76
8 -H. 6208 Handle Hub $22.23
8 -P. TS-1540041 Hex Nut $0.00

Discontinued

8 -P. TS-2311061 Hex Nut $3.54
8 -Q. TS-2311061 Hex Nut $3.54
8 -Q. TS-1540041 Hex Nut $0.00

Discontinued

8-B. TS-1524021 Socket Set Screw $3.54
8-C. GHB1340A-02703 End Cover $16.14
8-E. 32A5702 Shaft $9.54
8-K. GH1340A-01108 Clamping Plate $21.93
8-M. 7123 Strip $17.59
8-N. Z08203 Screw $0.00

Discontinued

8-R. GHB1340-XT2 Wiring Board $39.16
80 -B. 4711 Shaft $10.77
80 -E. GHB1340A-G80 C-clip $3.54
80 -M. 7540 Washer $8.08
80-I. GHB1340-A80 Pin $3.54
81 -F. GHB1340A-G81 C-clip $3.54
81 -G. GHB1340A-G81 C-clip $3.54
81 -H.
