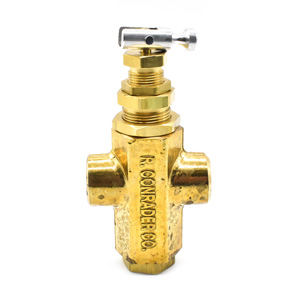

Pilot Valves are used on compressed air systems to control other devices using a pneumatic signal. The pilot valve is factory set in a pressure range with an unload (cut-out) and load (cut-in) setting. As the system pressure increases and the unload (cut-out) pressure is achieved, the pilot valve opens and pressurizes the line downstream of the pilot. As the system pressure deceases and the load (cut-in) pressure is achieved, the pilot valve closes and depressurizes the line downstream of the pilot valve.

Specifications:

• Preset at 95-125 PSI
• Operating Pressure: 20-1200 PSI
• Operating Temperature Range: -15° to 400° F
• Inlet Connection Port: 1/4″ Female NPT
• Outlet Connection Port: 1/8″ Female NPT
• Outlet Connection Port: 3/8-16" UNC Mount
• Body/Fittings: Brass
• O-Rings: Silicone/Viton
• Poppets: Reinforced PTFE
• Springs: Stainless Steel
• Made in USA
