Tool Diagram    (Click image to Zoom in) View larger Image

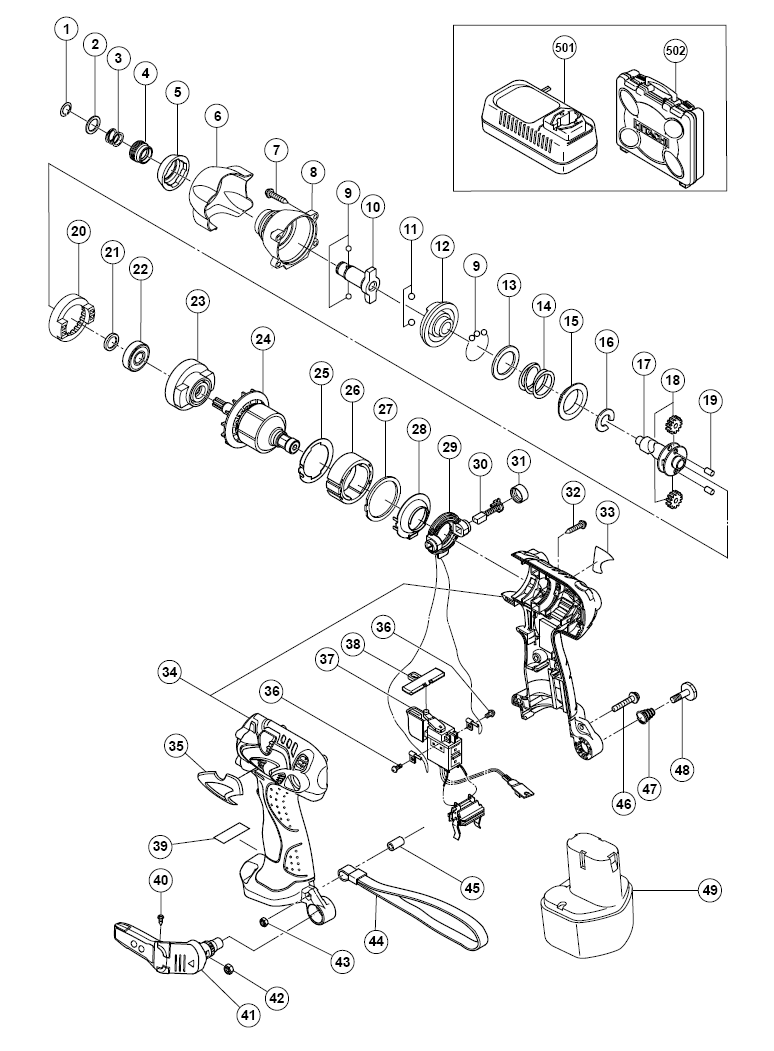

Hitachi WH9DM2 Cordless Impact Wrenches & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 995-933 RETAINING RING WH8DC2 WH9DM2 $1.24
2 322-739 WASHER (F) WH9DM2 $1.84
3 322-737 GUIDE SPRING (C) WH9DM2 WH10DL $1.84
4 322-738 GUIDE SLEEVE (C) WH9DM2 $6.77
5 322-249 FRONT CAP (A) GREEN WH12DM2 $3.53
6 322-749 PROTECTOR (B) WH9DM2 $6.77
7 319-917 TAPPING SCREW(W/WASHER) WH12DM $1.88
8 322-748 HAMMER CASE WH9DM2 $36.65
9 959-148 STEEL BALL D3.175 WH16 10PS $1.20
10 322-750 ANVIL (T) WH9DM2 $42.69
11 959-154 STEEL BALL D5.556 DH24PE 10PS $1.59
12 322-735 HAMMER (E) WH9DM2 $27.39
13 315-978 WASHER (J) WH/WR12DH WH8DH $1.88
14 322-741 HAMMER SPRING (E) WH9DM2 $5.11
15 316-172 WASHER (S) WH/WR12DH WH10DL $1.88
16 322-740 STOPPER (A) WH9DM2 WH10DL $1.84
17 322-742 SPINDLE (E) WH9DM2 $33.56
18 318-444 IDLE GEAR SET 2ps WH10DL $28.62
19 319-914 NEEDLE ROLLER WH9DM WH12DM $1.88
20 322-746 RING GEAR (D) WH9DM2 $3.46
21 319-911 WASHER (E) WH9DM WH12DM/2 $1.88
22 690-1VV BALL BEARING WH9DM WH12DM/2 $10.36
23 321-664 INNER COVER (A) WH12DM2 $3.53
24 360-643 ARMATURE ASS'Y(w/BALL BEARING) $77.60
26 322-744 MAGNET (D) WH9DM2 WH14DSL $42.69
27 322-736 MAGNET SPACER WH9DM2 $1.84
28 321-663 DUST GUARD FIN (A) WH12DM2 $1.88
29 321-662 BRUSH BLOCK WH12DM2 WR12DM2 $11.65
30 999-054 CARBON BRUSH (pair) WH/WR18DL $6.98
31 319-918 BRUSH CAP WH9DM WH/WR18DL $3.58
32 302-086 SCREW W/FLANGE D4x20 WR12DM2 $1.27
34 322-751 HOUSING (A)(B) SET WH/WR9DM2 $29.96
35 322-743 HITACHI PLATE WH9DM2 WR9DM2 $3.46
36 994-532 MACHINE SCREW W/SP WASHER M3x5 $1.24
38 321-661 PUSHING BUTTON (A) WH/WR12DM2 $1.88
40 321-672 TAPPING SCREW D2x6 WH12DM2 $1.88
42 320-288 LOCK NUT M5 WH9DM WH/WR14DM $1.88
43 949-565 LOCK NUT M4 CE16 10PS WR14DM $1.55
44 306-952 STRAP DN10DYK DS10DV2/ DS13DV2 $6.98
45 322-718 SLEEVE (A) WH9DM2 WR9DM2 $1.84
47 319-926 HOOK SPRING WH9DM WH12DM $1.88
48 319-927 SPECIAL SCREW M5 WH9DM WH12DM $1.88
