Hitachi VH650 Nailer Parts

Hitachi VH650 Nailer Parts Image

Hitachi VH650 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi VH650
2-1/2 Inch Fencing C...
$619.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

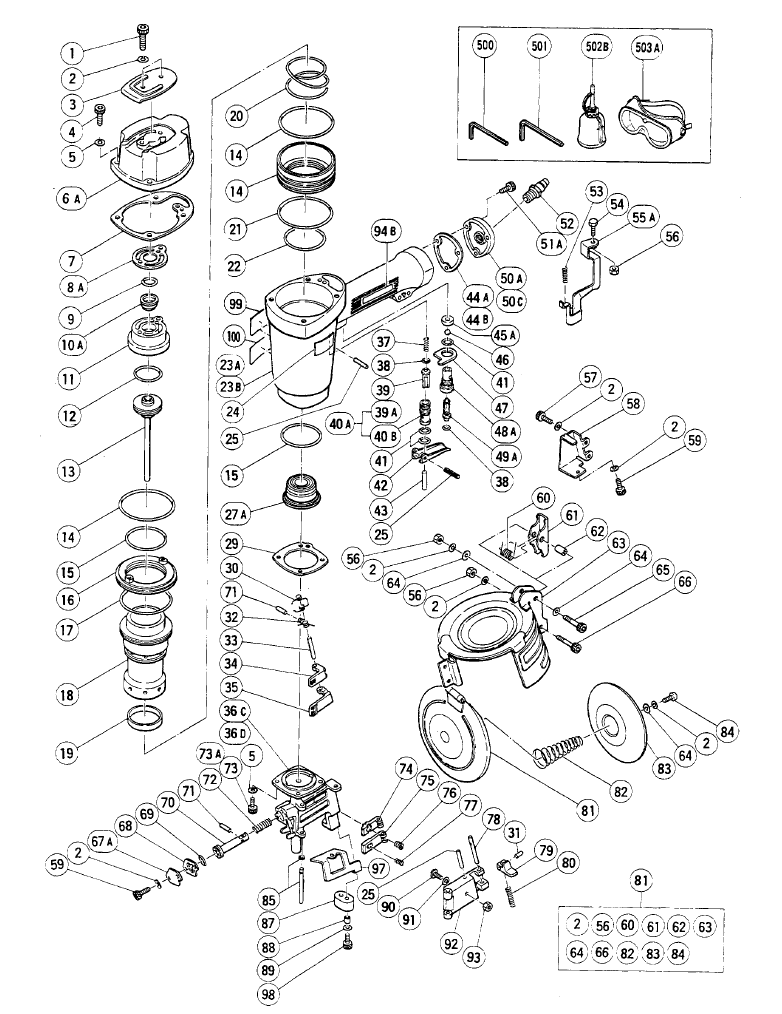

Hitachi VH650 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 949451 LOCK WASHER M3 (10pc) CB75F $1.55
2 949451 LOCK WASHER M3 (10pc) CB75F $1.55
3 876-444 TOP COVER VH650 $1.88
4 949451 LOCK WASHER M3 (10pc) CB75F $1.55
5 949451 LOCK WASHER M3 (10pc) CB75F $1.55
6A 876-441 GASKET (B) N5008AA $3.23
7 876- 747P GASKET (F) VH650 $3.23
7 876- 769 EXHAUST COVER (D) VH650 $122.29
8A 876 - 749 GASKET (G) VH650/N5008AA $1.19
11 876- 442 HEAD CAP (C) N5008AA $37.77
11 876- 748P HEAD CAP (D) VH650 $37.77
12 931 - 835 O-RING (P-36) VH650 $1.88
13 876- 734 PISTON VH650 $152.02
13 876- 750 PISTON (H) VH650 $297.95
14 874 - 104 CYLINDER O-RING VH650 N5008AA $4.29
15 875- 602 CYLINDER O-RING (I.D. 50.9) $8.93
16 876- 435 CYLINDER PLATE VH650 N5008AA $18.41
18 876-732 CYLINDER VH650 $125.25
19 876- 434 CYLINDER RING VH650 N5008AA $3.23
20 875- 605 CYLINDER SPRING VH650 N5008AA $4.29
21 876-731 CYLINDER GUIDE VH650/N5008AA $73.86
22 876- 433 CYLINDER O-RING (B) I.D 55.9 $12.05
24 876 - 756Z NAME PLATE VH650 $1.88
25 949451 LOCK WASHER M3 (10pc) CB75F $1.55
27A 876- 766 PISTON BUMPER (A) VH650 $28.72
29 876-737 GASKET (A) VH650 $1.19
30 876- 717 MAIN FEEDER SPRING (A) NV50AA $6.98
31 949451 LOCK WASHER M3 (10pc) CB75F $1.55
32 876- 691 SUB FEEDER SPRING NV50AA VH650 $4.29
33 876- 689 FEEDER SHAFT NV50AA VH650 $3.90
34 876- 688 MAIN FEEDER NV50AA VH650 $26.18
35 876- 707 SUB FEEDER NV50AA VH650 $27.75
38 876- 764 VALVE BUSHING ASS'Y NV50A1 $28.72
39 878- 266 VALVE BUSHING NV65AC NV50AA $26.51
39A 876- 752 NOSE ASSEMBLY VH650 $491.48
40B 874-820 PLUNGER O-RING NV45AB/2 NR83A $1.88
42 876-203 TRIGGER NR83A/AA NV45AB NV65AC $2.88
43 875-642 SAFETY PLUNGER (B) NV50A1/AP $9.39
44A 876-447 GASKET (D) VH650 $1.88
44B 877-331 GASKET (D) NR83A/2 NR83AA/2/3 $1.20
45A 878-734 VALVE PACKING NR83A NR83AA $1.20
46 875-645 URETHANE BALL (C) D7.14 NR83A $4.29
47 875-644 VALVE PLATE NR83A/AA NV45AB/2 $1.20
48A 877-335 TRIGGER VALVE BUSHING NR83A $7.97
49A 878-121 TRIGGER PLUNGER NR83A NR83AA $1.87
50C 878-311 CAP NR83A/2 NR83AA/2/3 NV65AC $5.26
51A 949-658 HEX SOCKEHD BOLT M5x18 10PS $2.87
52 872-035 DUST CAP N3824A/NC65AC/NR83A/ $1.19
53 876-676 SAFETY SPRING $1.20
54 875-650 SAFETY BOLT NR83A/AA NT65A/A2 $1.20
55A 876-763 PUSHING LEVER (G) VH650 $44.04
56 949-555 Hex Nut M5 NR83A NV50A1 10PS $1.24
57 949-765 HEX SOCKET HD BOLT M5x12 10PS $2.87
58 876-696 SAFETY GUARD VH650 $6.26
59 949-819 HEX SOCKET HD BOLT M5x10 10PS $2.88
60 876-703 MAGAZINE LOCK SPRING VH650 $4.29
61 876-702 MAGAZINE STOPPER VH650 $7.67
62 876-743 COLLAR VH650 $2.59
63 876-742 MAGAZINE PRIMARY VH650 $217.55
64 876-205 WASHER NT65A NV45AB/AC NV45AB2 $1.20
65 949-664 HEX SOCKETHD BOLT M5x30 10PCS $3.87
66 949-662 HexSockHDBoltM5x25 NV45AB 10PS $3.23
67A 876-661 FEED PISTON COVER VH650 $26.18
68 876-695 GASKET (E) VH650 $1.19
69 873-095 O-RING (P16) CJ65V2/VA2 DH40FA $1.19
70 876-692 FEED PISTON NV50AA VH650 $14.39
71 949-551 ROLL PIN D2.5x10 10PS VH650 $1.88
72 876-693 FEED SPRING NV50A1 VH650 $2.87
73 949451 LOCK WASHER M3 (10pc) CB75F $1.55
73A 877-947 NYLOCK HEX SKT HD BLT M6x20 $1.59
74 877-143 MAIN NAIL HOLDER VH650 NV50AA $21.08
75 876-679 SUB NAIL STOPPER NV50AA VH650 $28.41
76 876-681 MAIN STOPPER SPRING NV45AB/2 $1.88
77 876-685 SUB STOPPER SPRING VH650 $1.88
78 876-682 LOCK SHAFT NV50A1/VH650/NV50AP $4.29
79 877-374 GUIDE LOCK VH650 NV50AA NV50A1 $10.99
80 877-372 SPRING NV45AB/AB2 NV50AP/A1/AA $2.59
81 876-741 MAGAZINE ASSY VH650 $238.38
82 876-701 HOLDER SPRING VH650 $2.87
83 876-700 NAIL HOLDER VH650 $9.39
84 876-705 HexSockSetScrewM5x10 NV50AA $1.19
85 876-760 NAIL GUIDE SHAFT (A) VH650 $10.99
87 876-697 GUARD BUMPER VH650 $3.58
88 876-706 BUMPER COLLAR VH650 $2.59
89 949-431 BOLT WASHER M5 (10 PCS.) $1.88
90 876-680 STOPPER BOLT VH650 $3.87
91 876-686 THRUST WASHER VH650 $1.19
93 874-780 NYLON NUT M3 VH650 $1.19
94B 878-312 HITACHI LABEL NR83A NR83AA $1.19
98 949-665 HEX SOCKET HD BOLT M5x14 10PS $2.87
