Hitachi NT65M Nailer Parts

Hitachi NT65M Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	949-830	HexSockHDBoltM6x10 NT65M 10PS	$3.23
2	880-515	PLATE NR90AC/AA NV65AH NT65MA2	$6.98
3	884-332	TOP COVER NT65MA2 NT65M NV75AG	$6.97

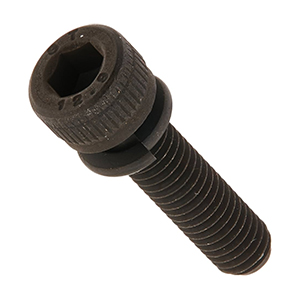

4	885-196	HEX SOCKET HD BOLT M5x20 NT65M	$0.51
5	885-197	EXHAUST COVER NT65M	$45.94
6	885-198	GASKET NT65M	$5.14
7	885-199	HEAD VALVE SPRING (A) NT65M	$0.83
8	885-200	HEAD VALVE SPRING (B) NT65M	$0.55
9	885-201	O-RING (I.D. 15.5) NT65M	$0.29
10	885-202	HEAD VALVE NT65M	$10.53
11	885-203	O-RING (I.D. 40.9) NT65M	$0.51
12	885-204	O-RING (I.D. 32.9) NT65M	$1.00
13	885-205	PISTON NT65M	$34.69

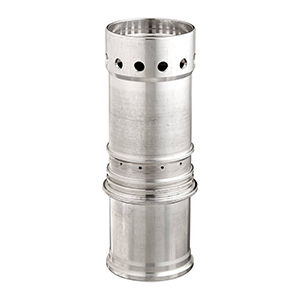

14	885-206	CYLINDER NT65M	$38.05
15	885-207	O-RING (I.D. 37.5) NT65M	$0.66
16	885-208	O-RING (I.D. 57.7) NT65M	$0.78

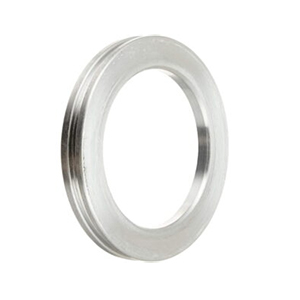

17	885-209	CYLINDER PLATE NT65M	$7.42
18	885-210	CYLINDER RING NT65M	$1.00
19	885-211	PISTON BUMPER NT65M	$9.28
20	885-212	BUMPER SHEET NT65M	$0.55
21	881-711	VALVE PACKING NT65MA NT65MA2	$2.25
22	881-900	SPRING NT65MA NT65MA2 NT65M	$1.88
23	884-333	PLUNGER NT65MA2 NT65M NT65M2	$3.53
25	881-715	O-RING (S3) NT65MA NT65MA2	$1.27
26	987-105	O-RING NC65AC/NT65MA NT65MA2	$1.19
27	882-701	VALVE BUSHING NT65MA2 NT65M	$19.09
28	968-643	RETAINING RING H90SB D4SHAFT	$2.25
29	884-334	KNOB NT65MA2 NT65M NT65M2	$1.88
30	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
31	884-070	WARNING LABEL NR83A/2 NR83AA2	$1.88
32	885-213	BODY ASS'Y NT65M	$84.61
33	884-336	PUSHING LEVER GUIDE NT65MA2/MA	$3.53
34	885-214	PUSHING LEVER SPRING NT65M	$0.29
35	885-215	PUSHING LEVER (B) NT65M	$13.70
36	884-325	ADJUSTER NT65MA2 NT65M NT65M2	$3.53
37	881-765	RATCHET SPRING NT65MA2 NT65MA	$2.25
38	884-324	PUSHING LEVER (A) NT65MA3	$6.97
42	885-217	O-RING (I.D. 43) NT65M	$1.06
43	885-218	CAP NT65M	$10.06
44	885-219	DUST CAP NT65M	$0.74
46	885-221	WASHER NT65M	$0.74
47	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23
48	884-145	TRIGGER (A) NT65MA2 NT65M	$6.97
49	959-155	STEEL BALL D3.97 10PS DH38YE	$1.19
50	982-454	SPRING (C) NR90AC/2/3 NV50AP3	$1.19
51	884-335	CHANGE KNOB NT65MA2 NT65M	$5.26
52	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
54	877-699	HEAD VALVE 0-RING NR90AC/65AK	$1.19
55	878-881	VALVE BUSHING (B) NT65MA2/3	$40.92
56	878-885	O-RING S-18 NR90AC/2/AA/NV45AC	$1.48
57	878-925	O-RING NR90AC/AA/AC2/3 NR65AK	$1.20
58	981-317	O-RING (S-4) NR90AC/AC2/3/AD	$1.19
59	884-143	VALVE PISTON (B) NT65MA2 NT65M	$10.33
60	878-887	O-RING (I.D 11)NR90AC/AA/AC2/3	$1.88
62	884-144	PLUNGER (A) NT65MA2, NR90AC3	$3.53
63	878-888	O-RING (ID1.8)NR90AC/AA/NV45AC	$1.20
64	880-671	VALVE BUSHING (A)NR90AC/2/3/AA	$27.59
65	876-465	NYLON NUT M4 NR83A/AA NR90AC	$1.19
66	885-222	COVER PLATE NT65M	$1.98
67	885-223	GUIDE PLATE (B) NT65M	$11.90
68	885-224	HEX SOCKET HD BOLT M5x25 NT65M	$0.94
69	884-323	LOCK LEVER NT65MA2 NT65M	$6.97
70	949-685	ROLL PIN D3x20 10PS NT65A2/A3	$2.88
71	885-225	GUIDE PLATE (A) NT65M	$20.42
72	885-226	SPIRAL PIN D4x12 NT65M	$0.70
73	885-227	MAGAZINE COVER NT65M	$8.26
74	885-228	FLANGE NUT M5 NT65M	$0.44
75	885-229	HANDLE ARM NT65M	$5.56
76	885-230	ARM PLATE NT65M	$1.21
77	885-231	NAIL RAIL NT65M	$2.91
78	885-232	BLADE GUIDE MAGAZINE (B) NT65M	$70.45
79	885-233	HEX SOCKET FLAT HD BOLT M4x10	$0.48
80	949-812	HexSockHDBoltM4x10 CE16 10PS	$2.59
81	885-234	NAIL FEEDER NT65M	$6.03
82	885-235	SPACER NT65M	$3.53
83	885-236	MAGAZINE PROTECTOR NT65M	$5.14
84	878-791	ROLL PIN D2.5X12 NC65AC NV75AG	$1.19
85	885-237	HEX SOCKET HD BOLT M4x14 NT65M	$0.51
86	885-238	MAGAZINE (A) NT65M	$26.64
87	885-239	HEX SOCKET HD BOLT M5x12 NT65M	$0.83
88	872-971	RETAINING RING NV83A D3SHAFT	$1.20
90	885-241	PIN NT65M	$0.74
91	885-242	RIBBON SPRING NT65M	$6.43
