Hitachi NT65GA Nailer Parts

Hitachi NT65GA Parts

Download Schematic

Time to buy a new tool?

Hitachi NT65GA

2-1/2 Inch Gas Power...

$334.99

Free Shipping

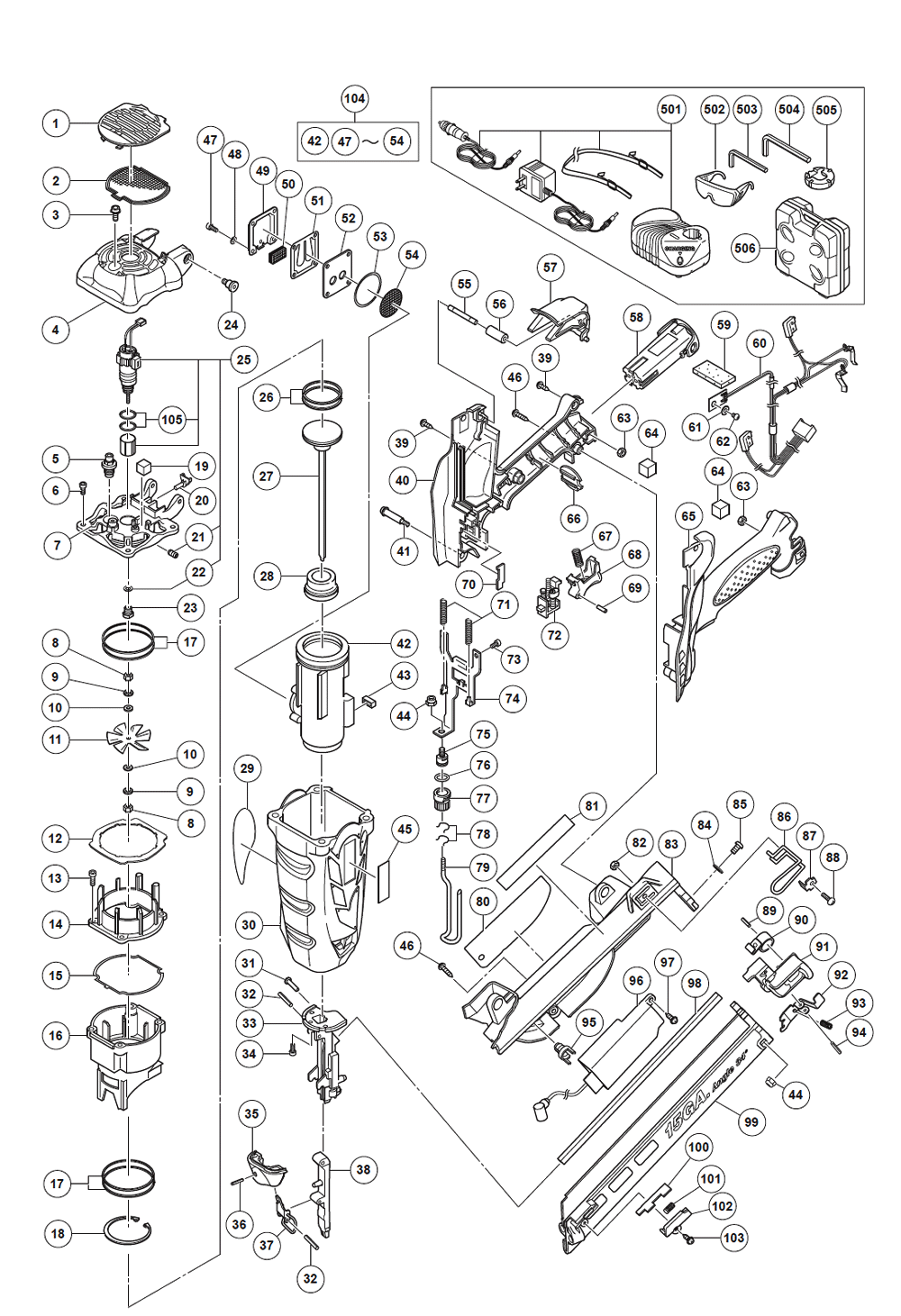

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1A	886-664	FILTER COVER	$1.40
2	886-344	FILTER MESH	$12.22
3	886-347	HEX. SOCKET HD. BOLT (W/FLANGE) M5X10	$1.43
4A	886-335	TOP COVER	$3.90
6	880-630	NYLOCK HEX.SOCK.HD.BOLT M4x12	$1.20
7A	886-661	CYLINDER HEAD	$26.38
8	949-553	NUT M3 (10 PCS.)	$1.21
9	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
10	949-422	WASHER M3 (10 PCS.)	$1.21
11	886-309	FAN	$2.66
12	886-568	RUBBER PLATE	$1.43
13	949-754	HexSockHDBoltM4x16 NR90AC 10PS	$2.59
14	886-295	CHAMBER HEAD	$10.99
15	886-296	GASKET	$1.43
17	886-312	PISTON RING (B)	$2.66
18	886-298	RETAINING RING FOR D40 HOLE	$1.43
19	886-315	PACKING	$1.43
20	886-313	ADAPTER	$1.43
22	886-567	SHAFT RUBBER WASHER	$1.43
23A	886-663	SHAFT COVER	$2.59
24	886-566	HEX. SHOULDER BOLT M5	$1.43
26	886-286	PISTON RING (A)	$5.12
27	886-573	PISTON	$26.69
28	886-289	PISTON BUMPER	$2.66
30	886-549	HOUSING	$15.41
31	886-310	PIN	$1.43
32	886-575	BLADE GUIDE	$26.38
33	886-311	SEAL LOCK HEX. SOCKET HD. BOLT M4X12	$1.43
34	886-574	LOCK LEVER COVER	$1.40
35	949-776	ROLL PIN D3X10 (10 PCS.)	$2.59
37	949-496	Roll Pin D3x16 (10 Pcs.)	$2.59
38	886-576	GUIDE PLATE	$15.90
39	305-812	TAP SCREW w/FLANGE D4x16 (BLK)	$1.06
40	886-317	HANDLE (B)	$10.99
41	886-565	HEX. SHOULDER BOLT M4X32	$1.43
42	886-284	CYLINDER	$38.87
43	886-285	CHAMBER STOP RUBBER	$1.43
44	877-371	NYLON NUT M5 NR83A/AA NT65A2	$1.20
45	886-342	Hitachi Plate	$1.75
46	886-307	SEAL LOCK HEX. SOCKET HD. BOLT M4X8	$1.43
47	886-319	BELLEVILLE SPRING H8	$1.43
48	886-287	BUFFER COVER	$5.12
49	886-288	MUFFLER	$2.66
50	886-290	REED VALVE	$3.90
51	886-293	BUFFER PLATE	$2.66
52	886-294	O-RING	$1.43
53	886-292	MESH	$3.90
55	886-333	PIPE RUBBER	$1.43
56	886-326	ACTUATER	$2.66
57	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
59	886-316	SUPPORT (B)	$1.43
61	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
62	949-216	MACHINE SCREW M4X10 (10 PCS.)	$1.19
63	886-330	LOCK NUT M4 (BLACK)	$1.43
64	886-325	PACKING	$1.43
65	886-345	HOOK	$3.90
67	886-346	TRUSS HD. SCREW M4 (BLACK)	$1.43
68	886-323	HANDLE (A)	$11.49
69	326-316	TERMINAL SUPPORT	$1.55
70	886-328	TRIGGER SPRING	$1.43
71	886-327	TRIGGER	$1.43
72	886-324	CORD COVER PLATE	$1.43
73	886-301	CHAMBER SPRING	$1.43
74	886-308	SEAL LOCK HEX. SOCKET HD. BOLT M4X10	$1.43
75	886-552	TRIGGER STOPPER	$3.90
76	949-890	PIN D3X20 (10 PCS.)	$2.58
77	886-299	PUSHING LEVER ARM	$8.78
78	886-300	PUSHING LEVER PIECE	$5.12
79	992-912	O-RING DH20DV/DH24PB/PC/PE/VB	$1.27
80	886-338	ADJUSTER	$2.66
82	886-578	PUSHING LEVER (A)	$4.97
86	886-583	MAGAZINE COVER	$9.24
87	949-431	BOLT WASHER M5 (10 PCS.)	$1.88
88	885-997	MACHINE SCREW M5x15 (BLK)	$1.55
89	949-496	Roll Pin D3x16 (10 Pcs.)	$2.59
90	881-755	RIBBON SPRING NT65MA/2/3/4	$3.58
91	886-340	NAIL FEEDER (B)	$2.66
92	886-579	NAIL FEEDER (A)	$2.59
93	886-604	STOPPER SPRING (C)	$1.40
94	886-322	PRISM	$1.43
95	886-320	CONTROLLER	$84.94
96	325-083	Tapping Screw (W/Flange) D4X12 (Black)	$1.84
97	886-580	NAIL RAIL	$10.20
98	886-605	ROLL PIN D2.5X26	$1.40
99	886-577	MAGAZINE	$13.30
100	886-606	PUSHING STOPPER (B)	$1.40
101	886-619	PUSHING STOPPER SPRING	$1.40
102	886-607	PUSHING STOPPER COVER (B)	$1.40
103	306-371	TAPPING SCREW (W/FLANGE) D3X10 (BLACK)	$1.20
104	886-550	CYLINDER ASS'Y (A)	$53.69
105	875-638	O-RING (S-12)	$1.88
