Hitachi NT32AE2 Nailer Parts

Hitachi NT32AE2 Nailer Parts Image

Hitachi NT32AE2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi NT32AE2
1-1/4 Inch 18 Gauge ...
$77.99
Tool Diagram    (Click image to Zoom in) View larger Image
Hitachi NT32AE2 Nailer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 885-866 TOP COVER NT32AE2 NT50AE2 $1.55
2 949-757 HEX SOCKET HD BOLT M5x20 10PS $3.23

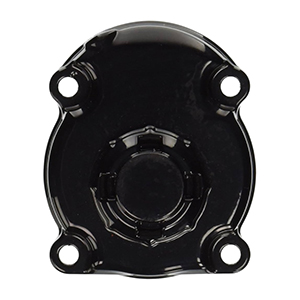

3 885-903 EXHAUST COVER NT32AE2 $9.94
7 885-868 GASKET NT32AE2 NT50AE2 $2.92
8 885-869 O-RING (P22.4) NT50AE2 NT32AE2 $1.55
9 885-904 PISTON NT32AE2 $19.77
10 885-871 O-RING (ID 44.7) NT50AE2 $1.55
11 885-872 CYLINDER PLATE NT32AE2 NT50AE2 $1.55
12 301-684 O-RING DH22VB/VD DH24VB/VD $1.27
13 986-374 O-RING NT32AE2 NT50AE2 $1.88
14 885-905 CYLINDER NT32AE2 $15.36
15 885-874 PISTON BUMPER NT50AE2 NT32AE2 $2.92
16 885-906 BUMPER PIECE NT32AE2 $1.55
17 885-907 NAME PALTE NT32AE2 $1.55
18 885-877 WARNING LABEL NT32AE2 NT50AE2 $1.55
19 953327 CORD ARMOR D8.8 D10VH SV13YB $1.19
20 885-878 BODY ASS'Y NT32AE2 NT50AE2 $37.82
22 884-342 GASKET (B) NT65M2 NT32AE2 $1.56
23 885-959 CAP (A) NT32AE2 NT50AE2 $6.68
24 949-821 HEX SKT HD BOLT M5x16 10PS $3.02
26 959-155 STEEL BALL D3.97 10PS DH38YE $1.19
27 982-454 SPRING (C) NR90AC/2/3 NV50AP3 $1.19
28 885-658 CHANGE KNOB (C) NT65M2 NT32AE2 $14.48
30 885-879 PROTECTOR NT32AE2 NT50AE2 $2.92
31 885-657 TRIGGER (C) ASS'Y NT65M2 $13.93
32 885-880 PUSHING LEVER GUIDE NT32AE2 $2.92
33 885-881 PUSHING LEVER SPRING (A) $1.55
36 885-884 ADJUSTER NT32AE2 NT50AE2 $1.55
37 885-885 PUSHING LEVER (B) NT32AE2 $2.92
38 885-908 PUSHING LEVER (A) NT32AE2 $5.61
39 872-971 RETAINING RING NV83A D3SHAFT $1.20
41 885-689 TRIGGER ARM (C) NT65M2 NT32AE2 $2.96
42 881-951 ROLL PIN D2.5 x 16 NR65AK $1.88
43 949-539 ROLL PIN D3x25 10PS C8FB2C10FS $2.87
44 949-539 ROLL PIN D3x25 10PS C8FB2C10FS $2.87
45 884-975 ROLL PIN D3x32 NR90AD/E NR90GC $1.84
46 884-962 VALVE BUSHING (A) NR90AD/E/F $1.84
47 877-763 FEED PISTON O-RING NV45AB2/AE $1.20
48 884-963 VALVE BUSHING (B) NR90AD/E/F $1.84
49 873-570 O-RING (P 18) NV50A1/AP NV45AC $1.55
50 676-531 O-RING (P-7) NR90AD/E/F NT65M2 $1.29
51 884-964 VALVE PISTON NR90AD/E/F NT65M2 $1.84
52 872-654 O-RING (1AP-10) CR13VA/B CR10V $1.67
53 884-966 PLUNGER SPRING NR90AD NT65M2 $1.84
54 878-888 O-RING (ID1.8)NR90AC/AA/NV45AC $1.20
55 885-888 PLUNGER NT32AE2 NT50AE2 $4.27
56 885-889 LOCK LEVER NT50AE2 NT32AE2 $4.27
57 949-518 ROLL PIN(10pc) NR83A2 C10FCD $2.48
58 885-909 GUIDE PLATE NT32AE2 $9.94
59 880-413 NYLOCK HEX SK HD BOLT M4x10 $1.20
60 885-910 BLADE GUIDE NT32AE2 $16.44
61 885-892 LABEL NT32AE2 NT50AE2 $1.55
62 885-911 MAGAZINE NT32AE2 $25.97
64 876-465 NYLON NUT M4 NR83A/AA NR90AC $1.19
65 949-685 ROLL PIN D3x20 10PS NT65A2/A3 $2.88
66 885-894 STOP LEVER NT32AE2 NT50AE2 $1.55
67 885-895 SPRING NT32AE2 NT50AE2 $1.55
68 885-896 PLATE NT32AE2 NT50AE2 $1.55
69 880-413 NYLOCK HEX SK HD BOLT M4x10 $1.20
70 885-960 SCREW M4x25 NT32AE2 NT50AE2 $1.55
71 885-912 NAIL FEEDER NT32AE2 $1.55
72 885-898 NAIL PLATE NT32AE2 NT50AE2 $1.55
73 885-899 FEEDER PIECE NT32AE2 NT50AE2 $1.55
74 885-900 FEED SPRING NT32AE2 NT50AE2 $1.55
75 885-913 MAGAZINE COVER NT32AE2 $16.98
