Hitachi NC40G

1 1/2 Inch Concrete ...

$545.99

Free Shipping

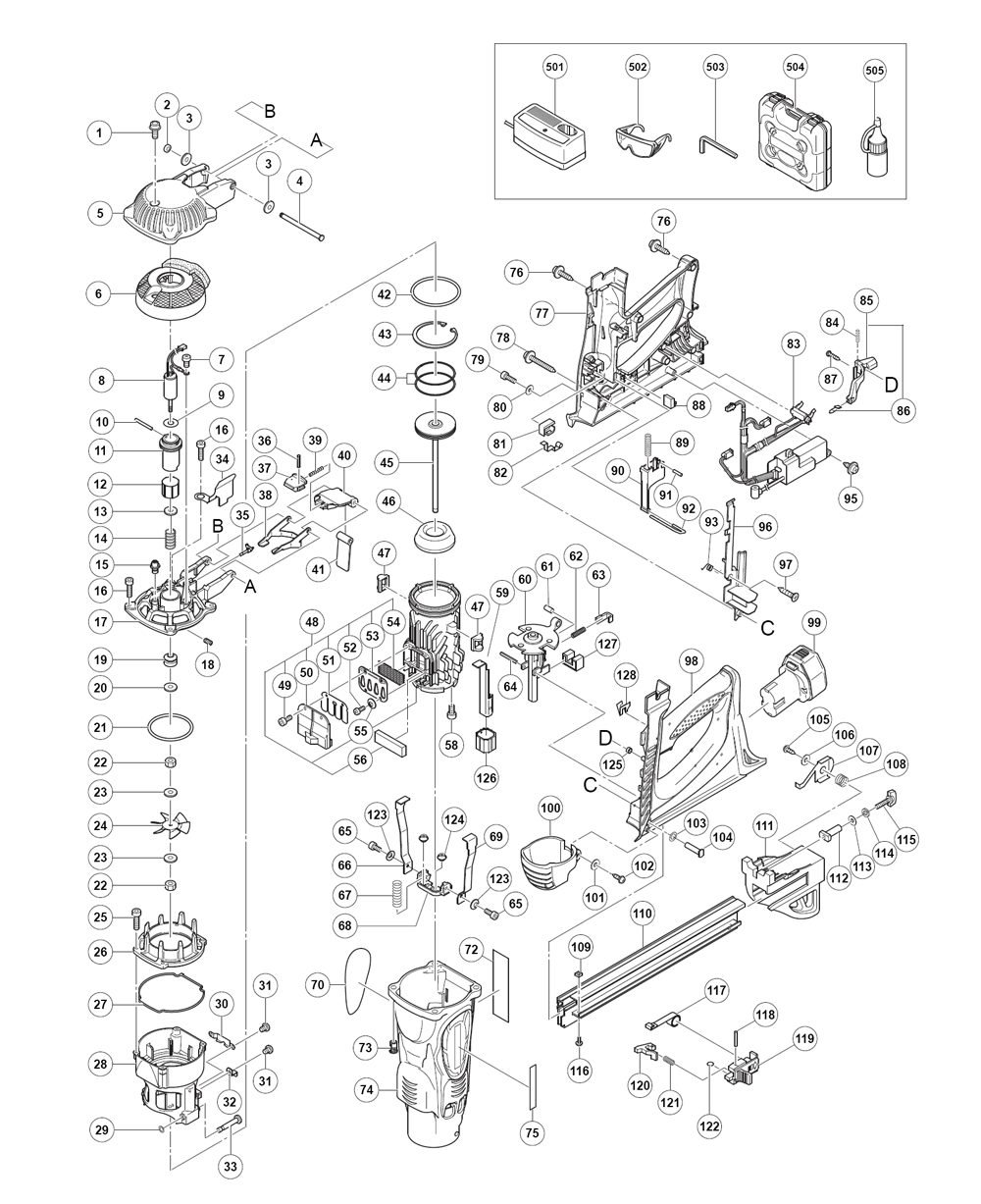

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	996-399	HEX SOCKET BOLT M5x12 w/FLANGE	$1.11
2	880-319	SHAFT RING NV65AH NV75AG	$1.88
3	949-424	WASHER M5 D13 D13M 10PS NT65A3	$1.20
4	885-277	SHAFT NR90GC NR90GC2	$3.46
5	886-142	TOP COVER	$8.66
6	886-129	FILTER	$34.72
9	885-313	RUBBER WASHER NR90GC NR90GC2	$1.84
12	885-314	MOUNT SLEEVE NR90GC NR90GC2	$1.84
13	885-320	SHAFT WASHER NR90GC NR90GC2	$1.84
14	885-319	MOTOR SPRING NR90GC NR90GC2	$1.84
16	949-757	HEX SOCKET HD BOLT M5x20 10PS	$3.23
17	885-308	CYLINDER HEAD NR90GC NR90GC2	$33.56
18	961-681	HEX SOCKET SET SCREW M4x5 WH16	$1.55
19	886-470	SHAFT COVER	$1.72
20	886-471	WASHER	$1.72
21	885-316	O-RING (I.D. 59.92) NR90GC/GR	$5.11
22	949-554	HEX NUT M4 10PS NR90GC/2 CB75	$1.18
23	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
24	885-311	FAN NR90GC NR90GC2	$5.11
25	949-754	HexSockHDBoltM4x16 NR90AC 10PS	$2.59
27	886-133	GASKET (B)	$1.72
28	885-296	CHAMBER NR90GC NR90GC2	$25.09
29	878-607	PLUNGER O-RING NR90GR2/GC2	$1.19
30	885-297	CHAMBER LOCK PLATE NR90GC	$3.46
32	885-306	SWITCH PLATE NR90GC NR90GC2	$1.84
33	886-484	PIN (A)	$1.87
34	886-253	WIRING PLATE	$1.87
35	885-317	ADAPTER NR90GC NR90GC2 NC40G	$1.84
36	949-859	ROLL PIN D2x8 (10 pc) NC40G	$1.53
37	885-280	LATCH NR90GC NR90GC2	$1.84
38	886-141	CELL LEVER (A)	$6.24
39	885-281	SPRING D3.6 NR90GC NR90GC2	$1.84
40	885-352	CELL COVER NR90GC NR90GC2	$3.46
41	886-131	CELL RUBBER (A)	$1.72
42	885-283	O-RING (I.D. 66.27) NR90GC/GR	$6.77
43	885-285	RETAINING RING NR90GC NR90GC2	$1.84
44	886-132	PISTON RING (A)	$8.93
45	885-700	PISTON (H)	$101.21
46	885-289	PISTON BUMPER NR90GC NR90GR	$8.68
47	885-284	CHAMBER STOP RUBBER NR90GC	$1.84
48	886-465	CYLINDER ASS'Y	$164.21
49	886-241	SEAL LOCK HEX. SOCKET HD. BOLT M4X10	$1.87
50	886-467	BUFFER COVER (A)	$1.72
51	885-290	LEAD VALVE NR90GC NR90GC2	$1.84
52	303-631	SEAL LOCK SCREW M4X6 (BLACK)	$1.19
53	886-468	BUFFER PLATE (A)	$3.19
54	885-292	MESH	$3.59
55	886-242	BELLEVILLE SPRING M4	$1.87
56	885-288	MUFFLER NR90GC NR90AC2	$13.98
58	991-690	SEAL LOCK HEX SOC.HDBOLT M5x12	$1.24
59	885-691	PUSHING LEVER	$12.27
60	885-704	NOSE	$117.16
61	949-749	ROLL PIN D3x8 10PS VB16Y NC40G	$2.25
62	885-706	SPRING (A)	$1.72
63	885-705	PUSHING LEVER STOPPER	$6.84
64	949-539	ROLL PIN D3x25 10PS C8FB2C10FS	$2.87
65	321-527	SEAL LOCK HEX. SOCKET HD. BOLT M5X8	$1.88
66	885-703	PUSHING LEVER ARM (L)	$14.07
67	886-245	PUSHING LEVER SPRING (A)	$1.75
68	885-699	PUSHING LEVER CONNECTOR (A)	$42.14
69	885-710	PUSHING LEVER ARM (R)	$14.07
72	885-307	INSULATOR SHEET NR90GC/GC2	$1.84
73	885-304	SCREW M5 NR90GC NR90GC2	$1.84
74	886-469	HOUSING	$27.34
75	328-922	HITACHI PLATE	$2.83
76	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
77	885-709	HANDLE (B)	$26.15
78	301-815	SCREW (W/FLANGE) D4x45 M12V	$1.27
79	990-079	SEAL LOCK HEX HD BOLT M5x16	$1.24
80	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.20
82	885-347	SWITCH ARM NR90GC NR90GC2	$1.84
83	886-462	WIRING (B)	$130.45
84	885-518	SPRING NR90GC NR90GC2	$1.84
85	886-147	SWITCH LEVER (B) ASS'Y	$6.98
87	885-714	TAPPING SCREW D3	$1.72
88	886-474	PRISM	$3.19
89	885-828	TRIGGER SPRING NR90GC NR90GR	$1.75
91	949-551	ROLL PIN D2.5x10 10PS VH650	$1.88
92	885-340	CHAMBER LOCK BAR NR90GC	$3.46
93	885-337	LOCK BAR SPRING NR90GC NR90GC2	$1.84
95	309-933	TAPPING SCREW D4x14 NR90GC/2	$1.16
96	885-339	WIRING COVER NR90GC NR90GC2	$3.46
97	885-346	FLAT HD TAPPING SCRW D4 NR90GC	$1.84
98	886-472	HANDLE (A)	$21.63
100	885-695	DUST COVER	$21.63
101	875-246	WASHER	$1.19
102	325-083	Tapping Screw (W/Flange) D4X12 (Black)	$1.84
103	885-712	WASHER (B)	$1.72
104	885-711	SHAFT (B)	$10.75
105	311-945	TAPPING SCREW (W/FLANGE) D4X10 (BLACK)	$1.19
106	875-246	WASHER	$1.19
107	885-696	NAIL STOPPER	$4.71
108	885-697	SPRING (C)	$1.72
109	319-166	SQUARE NUT M6	$1.98
110	886-475	MAGAZINE	$42.14
111	886-479	MAGAZINE COVER	$15.60
112	885-713	SHAFT (C)	$11.65
113	876-205	WASHER NT65A NV45AB/AC NV45AB2	$1.20
114	949-454	SPRING WASHER M5 (10 PCS.)	$1.18
115	885-694	KNOB	$3.19
116	884-215	HEX. SOCKET HD. BOLT (W/BUTTON) M6X7	$5.26
117	881-755	RIBBON SPRING NT65MA/2/3/4	$3.58
118	949-890	PIN D3X20 (10 PCS.)	$2.58
119	886-476	NAIL FEEDER (B)	$3.19
120	886-477	NAIL FEEDER (A)	$10.75
121	886-478	SPRING (B)	$1.72
122	873-093	O-RING (1AP-3)	$1.24
123	886-243	BELLEVILLE SPRING M5	$1.87
124	885-707	SPRING GUIDE	$4.71
125	886-463	SLEEVE	$3.19
127	885-693	NOSE RUBBER	$1.72
128	886-138	LEVER STOPPER	$3.59
