Hitachi M12VC Router Parts

Hitachi M12VC Router Parts Image

Hitachi M12VC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi M12VC
2-1/4 HP Variable Sp...
$121.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

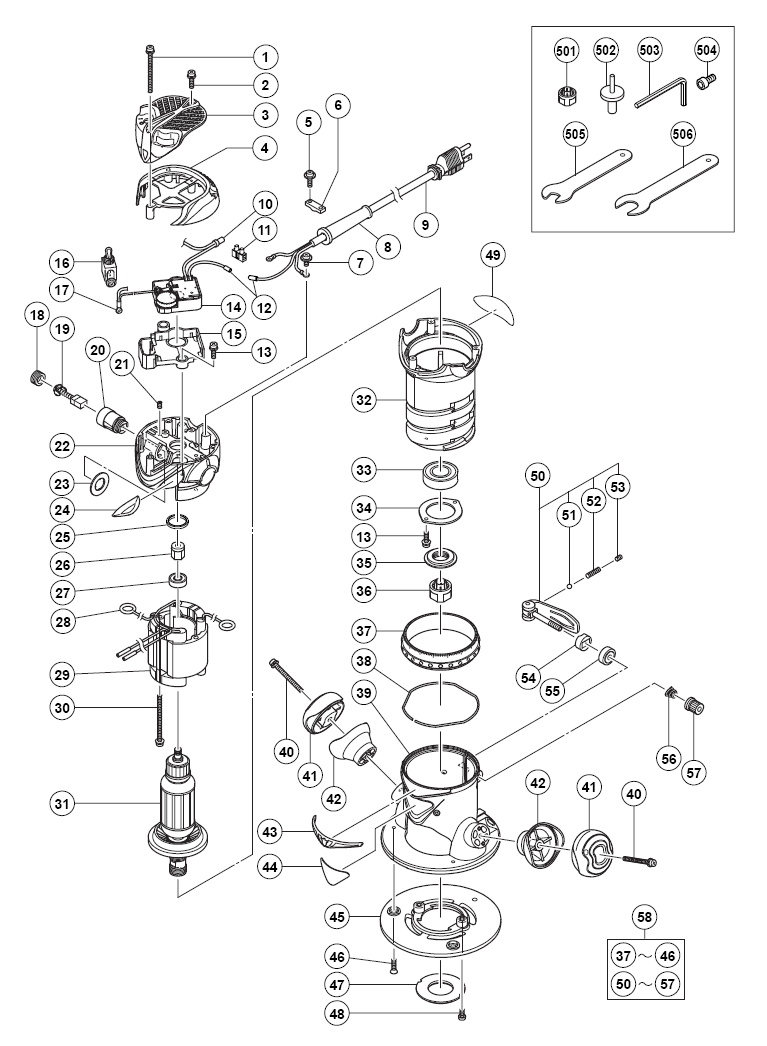

Hitachi M12VC Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 307-365 MACHINE SCREW M4x55 w/WASHERS $1.16
2 317-200 MACHINE SCREW W/WASHER M4x8 $1.89
3 323-267 HEAD COVER (B) $4.33
4 323-266 HEAD COVER (A) KM12SC KM12VC $16.68
5 954-878 MACHINE SCREWS M4x16 w/WASHERS $1.16
6 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.19
8 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
9 500-399Z CORD M12SC KM12SC/VC M12VC $29.67
10 959-141 CONNECTOR 50092 (10 PCS.) $6.26
11 938-307 Pillar Terminal $3.23
12 981373 TUBE(D) C15FB C10FS C8FB2 $1.48
13 307-081 MACHINE SCREW M4x12 w/WASHERS $1.16
14 323-273 CONTROLLER CIRCUIT $55.01
15 323-274 SWITCH HOLDER KM12VC KM12SC $1.87
16 955-509 SWITCH 1P ScrewType M8 M8V $13.70
17 930-804 TERMINAL M4.0 10PS DH40FA/MB $3.23
18 935-829 BRUSH CAP H45MA/H45SB2 $1.19
19 999-043 CARBON BRUSH (1 PAIR) $5.15
19 P05 This item will be shipped Free Carbon Brush Set Replaces Hitachi 999-043 $8.50
20 957-051 BRUSH HOLDER C7SC KM12SC $5.41
21 938-477 Hex. Socket Set Screw M5X8 $1.19
22 323-256 STATOR HOLDER ASS'Y KM12SC $28.18
23 930-706 STOP PLATE KM12SC KM12VC $1.16
24 323-424 HITACHI PLATE (C) $1.56
25 323-420 RUBBER RING KM12SC KM12VC $1.56
26 307-093 MAGNET KM12SC KM12VC $16.58
27 608VVM BALL BEARING G10SR SP18SA $7.02
28 930-703 Brush Terminal $2.59
29 340-595D STATOR ASS'Y 120v KM12SC $20.58
30 943-430 SCREW M5x60 C7SC KM12SC $1.16
31 360-668U ARMATURE ASS'Y 120v KM12VC $85.03
32 323-255 HOUSING KM12SC KM12VC $35.84
33 600-4VV BALL BEARING 6004VVCMPS2L $11.40
34 323-257 BEARING COVER KM12SC KM12VC $1.56
35 323-258 THRUST NUT KM12SC KM12VC $2.96
37 323-260 RING KM12SC KM12VC $1.87
38 323-264 STOPPER PIN KM12SC KM12VC $1.56
39 323-259 BASE (A) KM12SC KM12VC $33.28
40 323-263 MACHINE SCREW M6x40 w/WASHERS $3.19
41 323-261 HANDLE (B) KM12SC KM12VC $2.96
42 323-262 HANDLE (A) KM12SC KM12VC $2.96
43 323-423 DECORATION PLATE(B) KM12SC $1.56
44 323-422 HITACHI PLATE (A) KM12SC $1.56
45 323-265 SUB BASE (A) KM12SC KM12VC $8.98
46 949-332 FLAT HD SCREW M5x12 P12RA 10PS $1.19
48 949-234 SCREWS M5x6 10PS M12V C10RA2 $1.19
50 323-270 LEVER (A) ASS'Y KM12SC KM12VC $11.73
51 959-155 STEEL BALL D3.97 10PS DH38YE $1.19
52 982-454 SPRING (C) NR90AC/2/3 NV50AP3 $1.19
53 938-477 Hex. Socket Set Screw M5X8 $1.19
54 323-268 LEVER SLEEVE KM12SC KM12VC $1.56
55 323-269 LEVER HOLDER KM12SC KM12VC $2.96
56 306-024 SPRING W6VB2 W6VA3 W8VB/2 $1.53
57 323-271 KNOB NUT KM12SC KM12VC $2.96
58 323-348 FIXED BASE ASS'Y KM12SC KM12VC $82.53
504 949-819 HEX SOCKET HD BOLT M5x10 10PS $2.88
613 302-317 SCREW M5x16 C12LSH/RSH (BLACK) $1.27
619 301-806 WING BOLT M6x15 M12V C10FCB $1.24
