Hitachi H45MRY Rotary Hammer Parts

Hitachi H45MRY Rotary Hammer Parts Image

Hitachi H45MRY Parts

Download Schematic

Time to buy a new tool?

Hitachi H45MRY

12 LB SDS-Max UVP Ch...

$597.99

Free Shipping

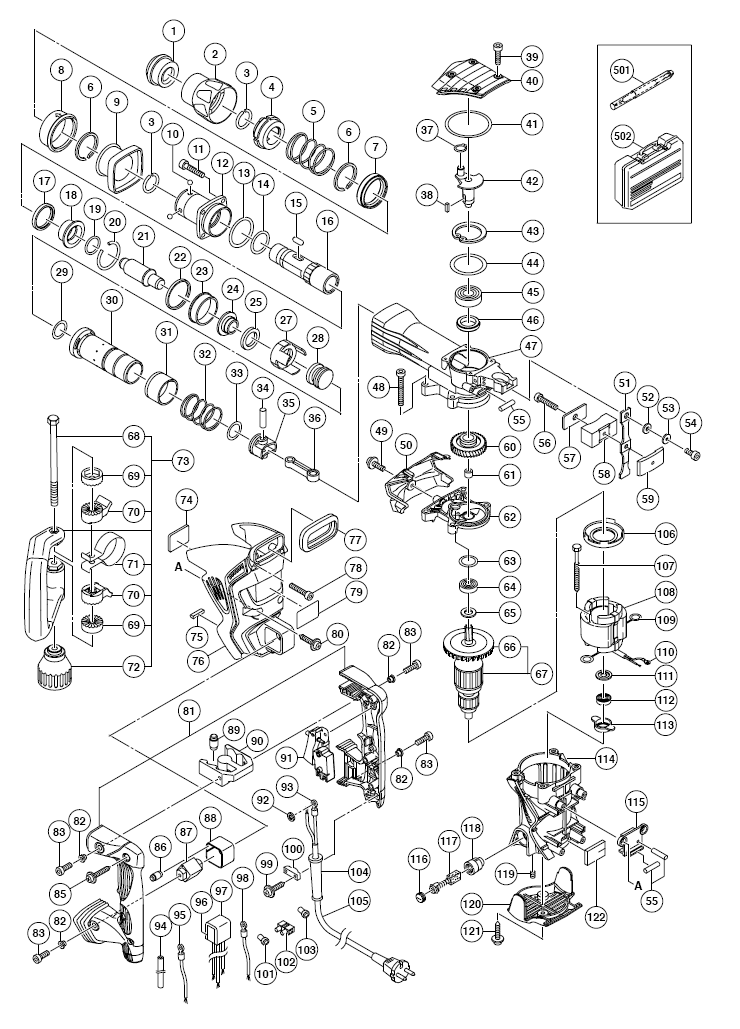

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	315-529	FRONT CAP H45MA/H60MA/H60MB	$3.58
2	320-802	GRIP (A) H45MR H45MRY	$6.98
3	320-803	RING H45MR H60MR H60MRV	$1.88
4	320-804	NEEDLE HOLDER H45MR H60MR	$29.93
5	320-806	SPRING (A) H45MR H45MRY	$6.98
6	317-088	RETAINING RING H60MRV D42SHAFT	$3.60
7	320-810	BALL HOLDER H45MR H60MR H60MRV	$13.06
8	320-807	GRIP (B) H45MR H45MRY	$3.58
9	320-808	GRIP (C) H45MR H45MRY	$5.27
10	959-150	STEEL BALL D6.35 10PS DH38YE	$1.67
11	981-942	SEAL LOCK BOLT M6x25 H45SB/MR	$1.97
12	326-494	FRONT COVER	$61.66
13	990-067	O-RING (1AS-50) NV45AC H45MR/Y	$1.97
14	980-879	O-RING (S-34) NV65AH/NT65AA/MA	$1.20
15	313-421	NEEDLE ROLLER D8x20 DH40MA/B	$5.56
16	320-805	RETAINER SLEEVE H45MR H45MRY	$98.41
17	322-528	DAMPER (A)	$1.88
18	326-379	HAMMER HOLDER (A)	$25.85
19	319-572	O-RING (S-25) H45MR H45FRV	$1.88
20	326-380	RING (B)	$1.75
21	326-381	SECOND HAMMER	$31.51
22	326-662	DAMPER (C)	$3.27
23	326-495	SLEEVE (A)	$3.27
24	320-814	HAMMER HOLDER (B) H45MR	$11.33
25	320-815	DAMPER (B) H45MR H45FRV	$3.58
27	326-382	HAMMER HOLDER (C)	$14.93
28	326-383	STRIKER	$14.93
29	325-297	O-RING (I.D 27.2)	$3.27
30	326-496	CYLINDER	$67.27
31	326-497	SLIDE SLEEVE	$26.01
32	326-498	SPRING (B)	$6.37
33	325-297	O-RING (I.D 27.2)	$3.27
34	324-917	PISTON PIN	$4.81
35	326-384	PISTON	$6.37
36	326-385	CONNECTING ROD	$5.26
37	939-540	RETAINING RING FOR D10 SHAFT (10 PCS.)	$2.25
38	930-511	FEATHER KEY 4x4x10mm H45MRY	$2.59
39	990-079	SEAL LOCK HEX HD BOLT M5x16	$1.24
40	326-500	CRANK COVER	$6.98
41	326-501	O-RING	$1.75
42	326-499	CRANK SHAFT	$34.40
43	948-391	C-RING FOR D40 HOLE CC14SC	$1.73
44	996-363	O-RING (S-40) DH40MR/Y DH40FR	$1.88
45	620-3DD	BALL BEARING H45MR DH40MR/FR	$9.34
46	310-119	OIL SEAL H45FRV H45MRY H45MR	$3.87
47	326-502	CYLINDER CRANK CASE	$56.07
48	986-940	SEAL LOCK HEX SOCKET HD BOLT	$1.27
49	998-471	HEX. SOCKET HD. BOLT M5X12	$1.19
50	326-503	HOOD	$4.81
51	326-386	LEAF SPRING	$5.26
52	326-375	SPRING BUMPER (A)	$1.75
53	326-477	WASHER M4.5	$1.75
54	878-356	SEAL LCK HEX SCKT HD BLT M4x10	$1.20
55	878-418	NEEDLE ROLLER NR83A NR90AC	$1.88
56	317-245	SEAL LOCK HEX SOCKET HD BOLT	$1.88
57	326-515	RUBBER SHEET (C)	$1.75
58	326-508	WEIGHT (B)	$12.49
59	326-507	WEIGHT (A)	$6.37
60	320-830	FIRST GEAR H45MR H45FRV	$28.41
61	939-299	NEEDLE BEARING (M661) DH38YE	$11.33
62	326-510	GEAR COVER ASS’Y	$26.01
63	872-767	O-RING (S-32)	$2.04
64	620-1DD	BALL BEARING SP18SA P12R	$8.52
65	302-429	DUST WASHER (B) C7BD C7SB C8	$1.27
66	321-640	FAN	$6.97
68	317-107	BOLT M8 H60MRV H60MR H45FRV	$3.58
69	317-106	HANDLE HOLDER (B) H60MB H60MA	$3.58
70	317-105	HANDLE HOLDER (A)	$5.27
71	320-635	BAND H45MR H45FRV H60MR H60MRV	$7.20
72	317-108	GRIP H60MB H60MA H45MR H45FRV	$10.65
74	326-487	RUBBER SHEET (A)	$1.75
75	326-376	SPRING BUMPER (B)	$1.75
76	326-505	BACK COVER	$16.18
77	326-378	BELLOWS	$3.27
78	306-061	SEAL LOCK HEX. SOCKET HD. BOLT M5X30	$1.10
80	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
81	326-485	HANDLE (A).(B) SET	$19.84
82	991-711	Distance Piece (B)	$1.20
83	991-690	SEAL LOCK HEX SOC.HDBOLT M5x12	$1.24
85	307-028	SCREW W/FLANGE D4x25 CR13VA/2	$1.19
86	310-124	HANDLE DAMPER H45SB2 H45MA	$4.57
87	326-377	HANDLE SHAFT	$4.81
88	326-479	HOLDER	$3.27
89	310-124	HANDLE DAMPER H45SB2 H45MA	$4.57
90	310-123	TRANSATORY UNIT H45SB2/MA	$12.70
91	306-143	SWITCH (B) 1P H45MA H60MA/MB	$19.81
92	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
93	980063	TERMINAL CR12V D13V DH38YE	$1.24
94	326-541	VINYL TUBE (I.D.9.5XT0.56X85)	$1.75
97	317-492	SUPPORT (B) H45MR DH30PC2	$1.88
99	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
100	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
100	981-987Z	Cord Clip	$1.19
101	959-140	CONNECTOR 50091 (10 PCS.)	$3.50
102	938-307	Pillar Terminal	$3.23
103	959-141	CONNECTOR 50092 (10 PCS.)	$6.26
104	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
106	321-320	FAN GUIDE DH40MR DH40FR	$3.53
107	953-174	HEX. HD. TAPPING SCREW D5X55	$1.55
109	930-703	Brush Terminal	$2.59
110	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
111	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.94
112	608VVM	BALL BEARING G10SR SP18SA	$7.02
113	326-484	BEARING HOLDER	$4.81
114	326-481	HOUSING ASS’Y	$37.24
115	326-506	SPRING BASE	$3.27
116	935-829	BRUSH CAP H45MA/H45SB2	$1.19
117	999-073	CARBON BRUSH AUTO (pair) CR10V	$16.19
118	971-001	BRUSH HOLDER DH40MR/Y DH40FR	$6.98
119	938-477	Hex. Socket Set Screw M5X8	$1.19
