Hitachi DV18DVC Cordless Impact Wrenches & Driver Parts

Hitachi DV18DVC Parts

Download Schematic

Time to buy a new tool?

Hitachi DV18DVC

18 Volt Cordless Ham...

$155.99

Free Shipping

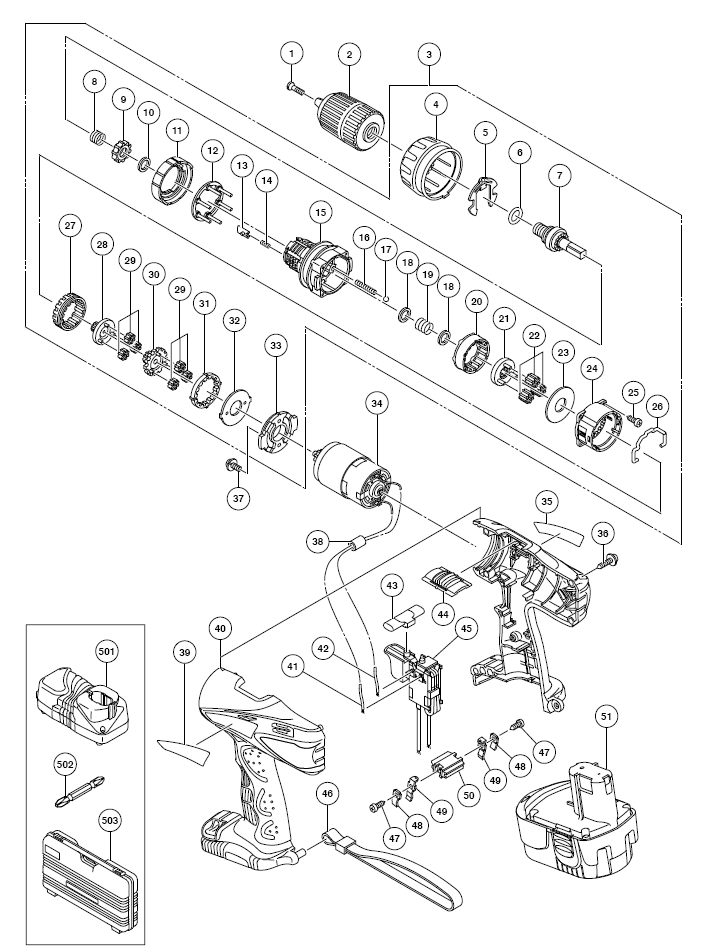

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	995-344	FLAT HD SCREW LH M6x25 DV20VB2	$1.53
3	327-131	GEAR BOX ASS’Y	$90.64
4	327-149	CLUTCH DIAL	$4.71
5	327-146	CLICK SPRING	$1.72
6	327-142	O-RING	$1.72
7	327-137	SPINDLE	$11.04
8	327-136	SPRING (C)	$1.72
9	327-134	RATCHET (B)	$3.19
10	327-147	WASHER (A)	$1.72
11	327-145	NUT	$1.72
12	327-144	WASHER	$1.72
13	327-135	SLIP BLOCK	$1.72
14	327-133	STOPPER SPRING	$1.72
15	327-132	FRONT CASE	$3.19
16	327-143	SPRING (A)	$1.72
17	306-936	STEEL BALL DS10/13DV2 DS14DV	$1.19
18	327-138	WASHER (A)	$1.72
19	327-148	SPRING (D)	$1.72
20	328-055	RING GEAR	$3.19
21	327-139	CARRIER	$3.19
22	312-705	PLANET GEAR (C) SET DS14DV 3PS	$2.59
23	312-704	WASHER (A) DS10/13DV2 DS14DV	$2.25
24	327-140	REAR CASE	$3.19
25	324-357	SCREW SET D3x12 (4PCS) DS9DVF3	$1.84
26	319-753	SHIFT ARM DS14DVB DS18DVB	$3.58
27	327-141	SLIDE RING GEAR	$3.19
28	312-702	PINION (C)	$4.29
29	312-699	PLANET GEAR (A) SET (6 PCS.)	$4.93
31	315-136	FIRST RING GEAR DS14DV	$6.98
32	312-716	WASHER (B) DS9/12/14DVF/2	$2.25
33	316-955	MOTOR SPACER DS12DVB	$5.27
34	327-153	MOTOR	$43.43
36	313-687	TAP SCREW W/FLANGE D3x16	$1.19
38	323-229	FERRITE CORE DV18DVC DV18DCL	$1.72
41	328-057	INTERNAL WIRE (BLACK) 150L	$2.66
42	328-056	INTERNAL WIRE (RED) 150L	$2.66
43	327-151	PUSHING BUTTON	$1.43
44	327-150	SHIFT KNOB	$1.43
45	327-154	DC-SPEED CONTROL SWITCH	$14.93
46	306-952	STRAP DN10DYK DS10DV2/ DS13DV2	$6.98
47	958-715	TAP SCREW D4x10 DH50SB C7D	$1.55
48	996-118	HOLDER SPRING WH8DC C6DC	$2.87
49	327-155	TERMINAL	$1.43
50	320-997	TERMINAL PIECE C6DC2 DV14/18DL	$1.84
