Hitachi DV18DL Cordless Screwdriver Parts

Hitachi DV18DL Cordless Screwdriver Parts Image

Hitachi DV18DL Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi DV18DL
18-Volt Lithium Ion ...
$289.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

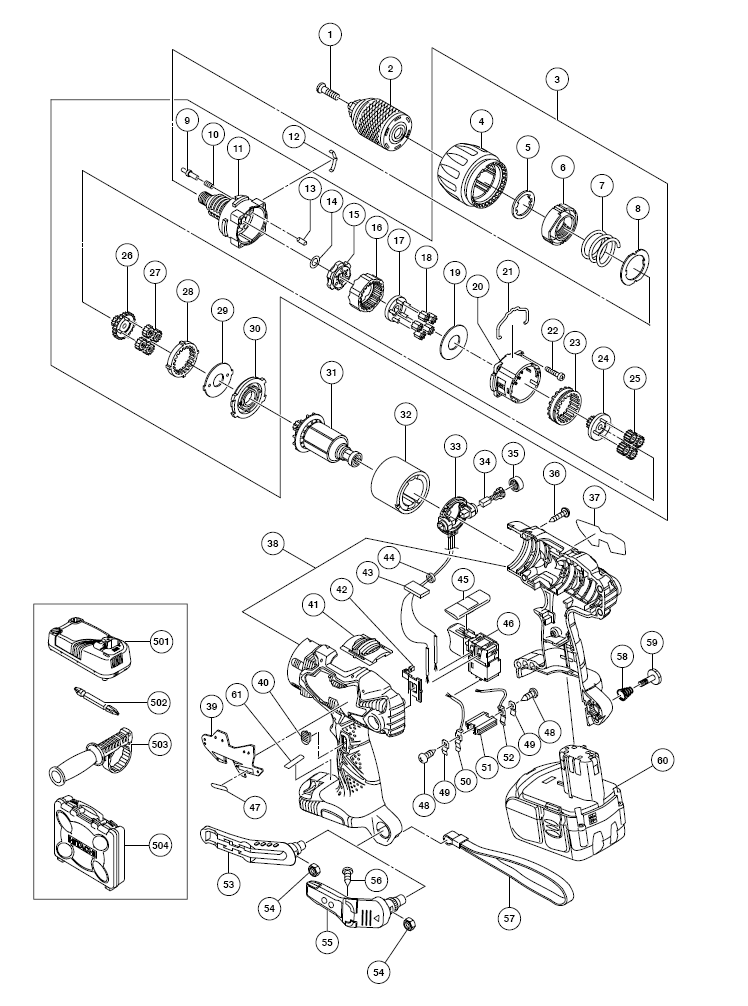

Hitachi DV18DL Cordless Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 311-959 SPECIAL SCREW LH M6x23 DS18DL $2.25
3 324-061 GEAR BOX ASS'Y DV14DMR DV18DMR $109.94
4 324-074 FRONT CAP DV14/18DMR/DL $15.26
5 324-136 SWITCH PLATE DV14DMR DV18DMR $1.84
6 324-064 NUT DV14DMR DV18DMR $1.84
7 324-135 SPRING DV14DMR DV18DMR $1.84
8 324-063 THRUST WASHER DV14DMR DV18DMR $1.84
9 322-972 STOPPER DS14DMR DS18DMR $3.46
10 322-971 STOPPER SPRING DS14DMR DS18DMR $1.84
11 324-062 FRONT CASE DV14DMR DV18DMR $42.69
12 320-773 CLICK SPRING DV14DMR DV18DMR $1.84
13 322-975 PIN SET (6PC) DS14DMR DS18DMR $22.49
14 322-980 WASHER (A) DS14DMR DS18DMR $1.84
15 322-976 LOCK RING DS14DMR DS18DMR $10.68
16 324-066 RING GEAR DV14DMR DV18DMR $5.11
17 322-978 CARRIER DS14DMR DS18DMR $3.46
18 324-067 PLANET GEAR (C) SET(5pcs) $5.11
19 324-065 WASHER (D) DV14DMR DV18DMR $1.84
20 322-981 REAR CASE DS14DMR DS18DMR $5.11
21 322-990 SHIFT ARM DS14DMR DS18DMR $1.84
22 320-087 SCREW SET M3x12 (4PS) DV14DV $5.27
23 324-069 SLIDE RING GEAR DV14DMR $6.77
24 324-068 PINION (C) DV14DMR DV18DMR $5.11
25 324-070 PLANET GEAR (B) SET(4pcs) $3.46
26 324-071 PINION (B) DV14DMR DV18DMR $6.77
27 324-073 PLANET GEAR (A) SET(4pcs) $3.46
28 324-072 FIRST RING GEAR DV14DMR $3.46
29 322-988 WASHER (B) DS14DMR DS18DMR $1.84
30 322-989 MOTOR SPACER DS14DMR DS18DMR $3.46
31 360-701 ARMATURE AND PINION SET $55.10
32 322-996 MAGNET DS14DMR DS18DMR $14.48
33 322-993 BRUSH BLOCK DS14DMR DS18DMR $30.74
34 999-054 CARBON BRUSH (pair) WH/WR18DL $6.98
35 319-918 BRUSH CAP WH9DM WH/WR18DL $3.58
36 313-687 TAP SCREW W/FLANGE D3x16 $1.19
38 326-278 HOUSING (A).(B) SET $27.77
39 326-279 PLATE (A) $27.25
40 326-276 LEVER (A) $1.55
41 324-137 SHIFT KNOB DS14/18DMR/DL $2.96
42 326-277 LEVER (B) $1.55
44 323-229 FERRITE CORE DV18DVC DV18DCL $1.72
45 322-997 PUSHING BUTTON DS14DMR DS18DMR $1.56
46 333-640 DC SPEED CONTROL SWITCH Replaces 322-994 $39.67
48 958-715 TAP SCREW D4x10 DH50SB C7D $1.55
49 996-118 HOLDER SPRING WH8DC C6DC $2.87
50 323-003 TERMINAL DS14DMR DS18DMR $1.56
51 320-997 TERMINAL PIECE C6DC2 DV14/18DL $1.84
52 322-995 TERMINAL DS14DMR/DL DS18DMR/DL $1.56
53 320-287 HOOK ASSEMBLY WH9DM DS14DMR $5.27
54 320-288 LOCK NUT M5 WH9DM WH/WR14DM $1.88
56 321-672 TAPPING SCREW D2x6 WH12DM2 $1.88
57 306-952 STRAP DN10DYK DS10DV2/ DS13DV2 $6.98
58 319-926 HOOK SPRING WH9DM WH12DM $1.88
59 320-881 SPECIAL SCREW (A) M5 $1.88
503 323-001 SIDE HANDLE $7.31
