Hitachi DH40FA Electric Drill Parts

Hitachi DH40FA Electric Drill Parts Image

Hitachi DH40FA Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

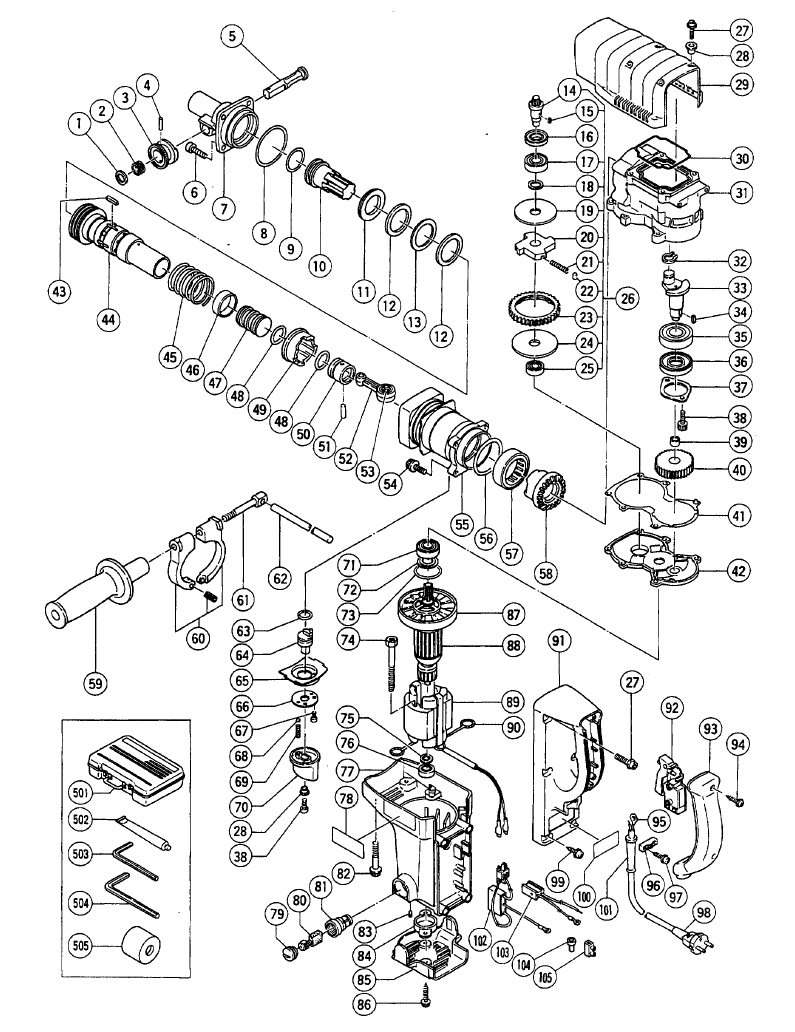

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	983-242	STOPPER WASHER DH38YE	$1.24
2	981-937	STOPPER SPRING DH38YE DH40FR	$1.24
3	983-241	KNOB (A) DH38YE DH40.. H45SB2	$37.77
4	943-364	NEEDLE ROLLER D4x20 DH38YE	$1.24
5	313-936	STOP LEVER DH40FA DH40FB	$52.36
6	993-040	NYLOCK HI/TEN BOLTM7x25 DH38YE	$2.59
7	313-935	FRONT COVER DH40FB	$125.25
8	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
9	986-882	O-RING DH40FA DH40FB DH50SB	$11.18
11	993-235	DAMPER WASHER DH50SB	$13.39
12	993-234	DAMPER DH40FA DH40FB DH50SB	$5.71
13	993-233	WASHER DH50SB DH40FA/FB DH50SB	$2.25
15	941719131	UNIVERSAL WRENCH DCS431	$13.88
16	313-050	OIL SEAL (A) DH40FA/FB/MA/MB	$4.29
17	600-2DD	BALL BEARING 6002DDCMPS2L	$10.83
18	313-058	WASHER DH40FB/MB/FA/MA	$1.19
19	313-053	WASHER (A) DH40FB/MB/FA/FB	$3.87
20	313-055	GEAR HOLDER DH40FB/MB/FA/MA	$15.02
21	313-056	SPRING (C) DH40FA/FB/MA/MB	$5.56
22	313-057	NEEDLE PIN D 6x6 DH40FB/MB/FA	$4.57
23	313-054	SECOND GEAR DH40FA/FB/MA/MB	$31.21
24	313-059	SPACER DH40FB/MB/FA/MA	$12.69
27	313-082	NYLOCK BOLT w/FLANGE M5x16	$1.19
28	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.55
29	313-083	CRANKCASE COVER ASSY DH40MA	$19.40
30	313-084	RUBBER SEAL DH40MA/MB/FA/FB	$2.87
32	939-542	RETAINING RING D12SHAFT 10 PCS	$2.54
33	313-046	CRANKSHAFT DH40FB/MB/FA/MA	$50.32
34	940-533	FEATHER KEY 3x3x10 CC12Y DH40.	$2.04
35	620-4VV	BALL BEARING 6204VVCMPS2L	$11.18
37	313-048	BEARING COVER DH40FB/MA/MB/FA	$2.59
38	878-181	NYLOCK HEX. SOCKET HD. BOLT M5	$1.24
39	939-299	NEEDLE BEARING (M661) DH38YE	$11.33
40	313-047	FIRST GEAR DH40FB/MB/FA/MA	$26.18
43	971-750	FEATHER KEY 3x3x20 DH38YE	$1.24
45	313-121	CLUTCH SPRING DH40FA/FB/MA/MB	$4.29
46	981-858	VALVE BAND DH38YE DH40FA/FB	$7.96
47	314-287	STRIKER DH40FA/DH40FB	$18.41
48	986-104	O'RING (1AS-60) DH38YE..DH40..	$1.20
49	981-956	CLUTCH DH38YE DH40...	$83.04
50	981-885	PISTON DH38YE DH40...	$21.78
51	980-708	PISTON PIN DH38YE DH40...	$2.59
52	980- 707	CONNECTING ROD DH38YE DH40's	$37.78
53	980063	TERMINAL CR12V D13V DH38YE	$1.24
54	993- 041	NYLOCK BOLT W/FLANGE M6x25	$1.19
55	313- 116	CYLINDER CASE DH40FA DH40FB	$61.53
56	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
57	993-069	NEEDLE BEARING DH38YE/DH40FA	$24.21
60	313-079	HANDLE HOLDER DH40FA/FB DH40MA	$18.77
61	313-080	HANDLE BOLT DH40MA/MB/FA/FB	$12.69
63	873-095	O-RING (P16) CJ65V2/VA2 DH40FA	$1.19
64	313-118	LEVER SHAFT DH40FA/FB/MA/MB	$17.77
65	313-120	UNDER COVER DH40FA DH40FB	$2.59
66	313-119	SHAFT COVER DH40FA, DH40FB	$2.59
67	880-630	NYLOCK HEX.SOCK.HD.BOLT M4x12	$1.20
68	959-155	STEEL BALL D3.97 10PS DH38YE	$1.19
69	981-966	SPRING (B) DH38YE DH40FA/FB	$1.24
70	313-117	LEVER DH40FA DH40FB	$1.53
71	620-2VV	BALL BEARING 6202VVCMPS2L P12R	$7.64
72	980-700	DUST WASHER (B) DH38YE H45SB	$1.24
73	313-089	O-RING DH40MA/MB DH40FA/FB	$1.53
75	313-086	DUST WASHER (A) DH40MA/MB/FA	$1.19
77	313- 141	HOUSING ASSY DH40MA DH40FA	$58.53
79	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
81	958-900	BRUSH HOLDER CR13VA/V/2 CM4SB2	$7.02
82	313-077	NYLOCK BOLT w/FLANGE M5x25	$6.26
83	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
84	313-091	BEARING HOLDER DH40MA/MB/FA/FB	$10.65
85	313-090	TAIL COVER DH40MA/MB/FA/FB	$8.04
86	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
87	971-097	FAN DH40FA/FB/MA/MB	$8.32
90	926-208-001	SPRING WASHER 8, DPC7000	$2.51
91	313-095	HANDLE DH40MA DH40FA	$28.07
92	313-093	SWITCH (C) 2P ScrewType DH38MS	$16.72
93	313-096	HANDLE COVER DH40MA/MB/FA/FB	$23.84
94	307-028	SCREW W/FLANGE D4x25 CR13VA/2	$1.19
95	992-810	TERMINAL H45MA DH40FA/FB/MA/MB	$1.19
95	980063	TERMINAL CR12V D13V DH38YE	$1.24
95	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
96	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
96	981373	TUBE(D) C15FB C10FS C8FB2	$1.48
97	982033	SLIDE BAR G10SR G12SR GP2	$5.24
99	305-558	SCREW W/FLANGE D5x25 C10FS	$1.48
101	940-778	CORD ARMOR D10.7 C10FA C15FB	$3.19
101	958-049	CORD ARMOR D8.2 SAT180 SP18V	$1.19
104	957-150-040	CTRL.PARTS(CARB.),DCS340	$14.61
105	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
