Hitachi DH24PF Rotary Hammer Parts

Hitachi DH24PF Rotary Hammer Parts Image

Hitachi DH24PF Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

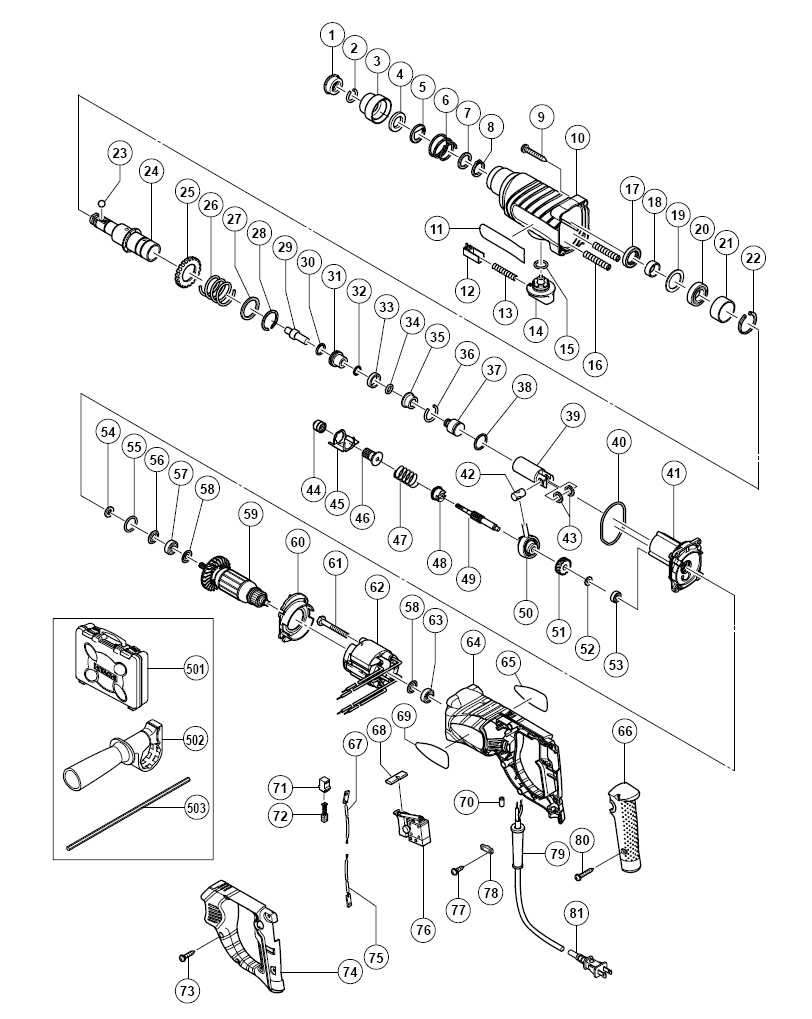

Hitachi DH24PF Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 306-345 FRONT CAP DH24PB/PD/PE/VB $3.38
2 306-340 STOPPER RING DH22PG DH30PC2 $1.55
3 322-809 GRIP DH22PB DH24PB2 $3.19
6 322-812 HOLDER SPRING DH22PB DH24PB2 $1.84
7 984-118 WASHER (B) DH24PE/PC/VD/PB $1.24
8 939-547 RETAINING RING DH24PF D20SHAFT $4.29
9 301-654 SCREWw/FLANGE D5x35 G18SE2/3 $2.21
10 323-178 GEAR COVER DH24PC2 $104.15
13 317-223 PUSHING SPRING DH24PC DH24PE(S $1.97
14 323-179 CHANGE LEVER DH24PC2 $18.20
15 878-885 O-RING S-18 NR90AC/2/AA/NV45AC $1.48
16 317-238 SPRING (B) DH24PC DH24PE(S) $1.88
17 307-688 OIL SEAL DH24PB/B2/B3/C/PE $4.29
18 322-815 SLEEVE DH22PB DH24PB2/3 $1.84
19 323-232 FELT PACKING (B) DH24PC2/PC3 $1.84
20 690-4DD BALL BEARING DH24PC2 DH22PB $22.95
21 322-819 SLEEVE (A) DH22PB DH24PB2 $11.67
22 322-813 RETAINING RING DH22PB 37SHAFT $1.84
23 959-156 STEEL BALL D7.0 DH20DV 10PS $1.88
24 323-184 CYLINDER DH24PC2 DH24PC3 $83.58
25 323-185 SECOND GEAR DH24PC2 DH24PC3 $22.78
26 317-233 SPRING (A) DH24PC DH24PE(S) $7.96
27 317-234 WASHER (A) DH24PC DH24PE(S) $3.58
28 317-235 RETAINING RING DH24PC D30SHAFT $1.88
29 322-803 SECOND HAMMER DH22PB DH24PB2 $11.67
30 944-486 O-RING (1AP-20) NV50AG WH16 $1.19
31 322-804 HAMMER HOLDER DH22PB DH24PB2 $19.21
32 322-802 O-RING (B) DH24PB3/PC3/PF3 $3.46
33 322-805 DAMPER (A) DH24PF3/PC3/PB3 $1.84
34 322-808 O-RING (C) DH22PB DH24PB2 $1.84
35 322-806 DAMPER HOLDER DH22PB DH24PB2 $11.67
36 322-807 STOPPER RING DH22PB DH24PB2 $1.84
37 322-801 STRIKER DH22PB DH24PB2 $13.98
38 322-834 O-RING (I.D.16) DH24PB2 DH24PC $3.46
39 322-800 PISTON DH22PB DH24PB2 DH24PF $26.40
40 322-793 O-RING (I.D. 66.5) DH22PB $3.46
41 322-792 INNER COVER DH22PB DH24PB2 $30.25
42 322-798 PISTON PIN DH22PB/H DH24PB2 $1.84
43 322-799 WASHER (C) DH24PB2/3 DH24PC2/3 $1.84
44 323-249 PINION SLEEVE DH24PC2 DH24PC3 $48.78
45 318-522 LOCK PLATE DH24PF3 DH24PC3 $25.18
46 323-181 SECOND PINION DH24PC2/3 $20.50
47 323-182 CLUTCH SPRING DH24PC2/3 $1.84
49 323-180 SECOND SHAFT DH24PF3/PC2/3 $33.56
50 306-990 RECIPROCATING BEARING DH20DV $52.36
51 322-797 FIRST GEAR DH22PB DH24PB2/3 $13.98
52 301-663 SPACER DH24PB/PB2/PC/PC2/PE/PF $1.27
53 626-VVM BALL BEARING 626VVC2PS2L DH24 $7.02
54 322-816 FELT PACKING DH22PB DH24PB2/3 $1.84
55 876-796 O-RING NV65AC/NV83A/2/DH24PB/ $1.24
56 322-818 PACKING WASHER DH22PB DH24PB2 $3.46
57 608-DDM BALL BEARING 608DDC2PS2L C10FS $7.33
58 982-631 WASHER (A)H45SB2 DH24PE/B/C/B2 $0.94
59 360-644U ARMATURE ASS'Y 120v DH24PF $68.66
60 322-791 FAN GUIDE DH22PB DH24PB2 $3.46
61 981-421 HEX HD TAPPING SCREW D4x55 $1.00
62 340-585C STATOR 120v DH24PF $45.75
63 608VVM BALL BEARING G10SR SP18SA $7.02
64 323-197 HOUSING DH24PF $13.98
66 322-865 GRIP COVER DH24PF $5.11
68 322-790 PUSHING BUTTON DH22PB DH24PB2 $1.84
70 981373 TUBE(D) C15FB C10FS C8FB2 $1.48
71 955-203 BRUSH HOLDER CJ110MV D13VB2 $3.75
72 999-072 CARBON BRUSH AUTO (pair) D13V $16.19
73 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.24
74 323-198 HANDLE COVER DH24PF $6.77
75 314-895 INTERNAL WIRE (B) DH24PE/PF $3.58
76 322-820 SWITCH (A) DH22PB DH24PB2 $48.78
77 984750 TAP SCREW w/FLANGE D4x16 C8 $1.19
78 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.19
79 953327 CORD ARMOR D8.8 D10VH SV13YB $1.19
80 307-028 SCREW W/FLANGE D4x25 CR13VA/2 $1.19
81 500-249Z CORD, ELECTRICAL, 2 WIRES $29.92
