Hitachi CN16 Nibbler Parts

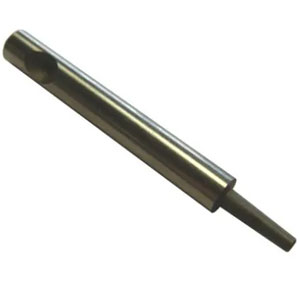

Hitachi CN16 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

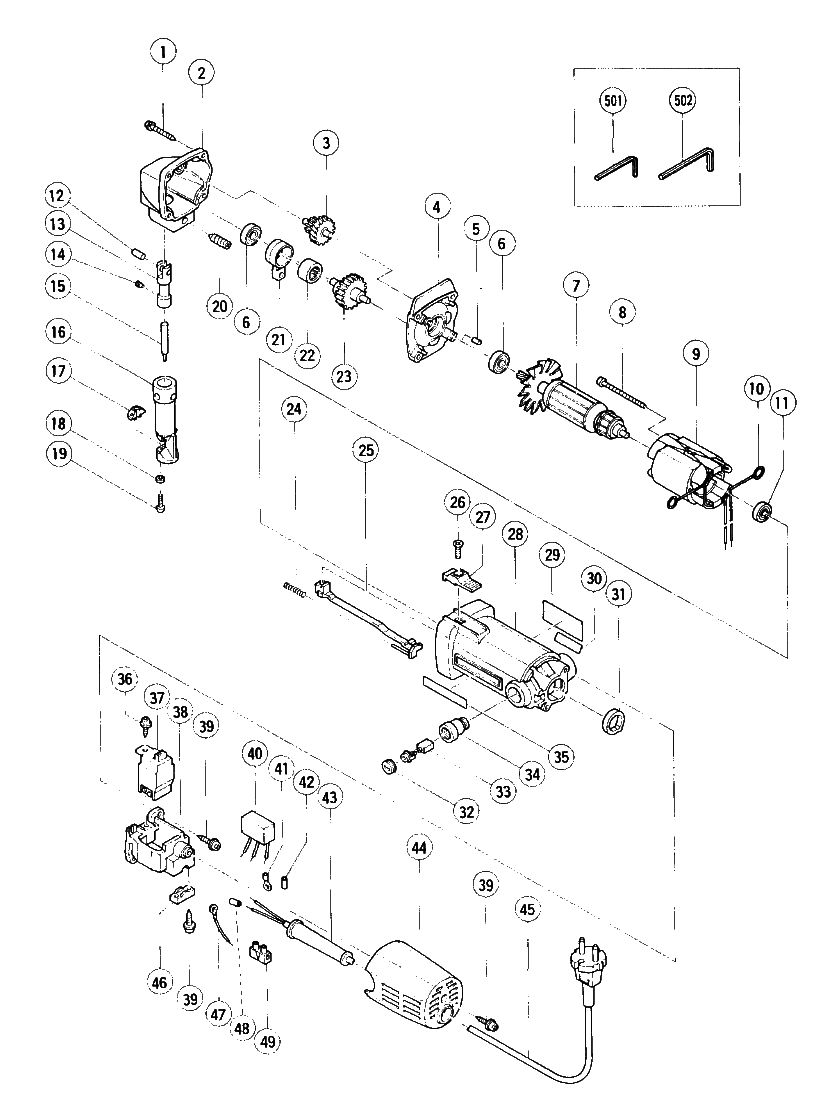

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.31
2	998033	GEAR COVER CN16 CN16SA	$39.55
3	998036	SECOND PINION CN16 CN16SA	$31.10
4	998032	INNER COVER CN16 CN16SA	$40.54
5	931701	BEARING LOCK C7SC D10VC D13V	$1.06
8	954642	TAP SCREW D4x60 CE16 CN16	$1.31

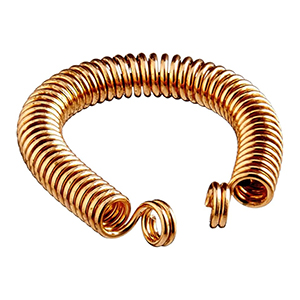

10	930630	BRUSH TERMINAL P20SB TR6 DH25V	$1.41
12	993546	PIN D6 CE16 CN16 CN16SA CE16SA	$1.31
13	998034	PISTON CN16 CN16SA	$39.55
14	998037	HEX SOCKET SET SCREW M5x6 CN16	$1.06
16	998038	DIE HOLDER CN16 CN16SA	$146.20
18	949451	LOCK WASHER M3 (10pc) CB75F	$1.31
19	949206	SCREW M3x14 CN16SA 10PCS	$1.31
20	998008	HEX SOCK.SET SCREW M8x20 CE16	$1.31
21	998004	CONNECTING ROD ASSY CE16 CN16	$34.06
22	993163	NEEDLE BEARING (M152112) CE16	$5.95
23	998035	SPINDLE CN16 CN16SA	$38.88
24	938299	SPRING G10SR G12SA G12SR GP2	$1.07
25	982033	SLIDE BAR G10SR G12SR GP2	$4.32
26	949323	FLAT HD SCREW M4x12 GP2 10PS	$1.06
27	938312	SLIDE SWITCH KNOB (B) GP2 CE16	$1.06
28	982020	HOUSING ASSY GP2/CE16/CN16	$30.57
31	982023	BEARING BUSHING GP2 CE16 CN16	$2.65
32	937847	BRUSH CAP G10SD1 GP2 WH16	$1.70
33	999021	CARBON BRUSH (pair) G10/12SR2	$4.25
34	937846	BRUSH HOLDER G10SD1/G10SR/GP2	$3.14
36	982034	TAPPING SCREW D4x12 GP2 CE16	$1.01
37	980778	SLIDE SWITCH 2PPillarG10SR/SD1	$19.25
39	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
44	982035	TAIL COVER CE16	$6.28
46	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.01
38	982044	SWITCH HOLDER GP2 G10SR	$5.29
41	980063	TERMINAL CR12V D13V DH38YE	$1.06
41	959144	TERMINAL 50051 10PS CC12Y	$2.68
42	981373	TUBE(D) C15FB C10FS C8FB2	$1.24
43	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.01
43	938051	CORD ARMOR D10.1 M12V H45SB2	$1.01
45	500240z	CORD, ELECTRICAL, 2 WIRES	$14.86
48	981373	TUBE(D) C15FB C10FS C8FB2	$1.24
