Hitachi C7SB2 Electric Saw Parts

Hitachi C7SB2 Parts

Download Schematic

Time to buy a new tool?

Hitachi C7SB2

7-1/4 Inch Circular ...

$105.99

Free Shipping

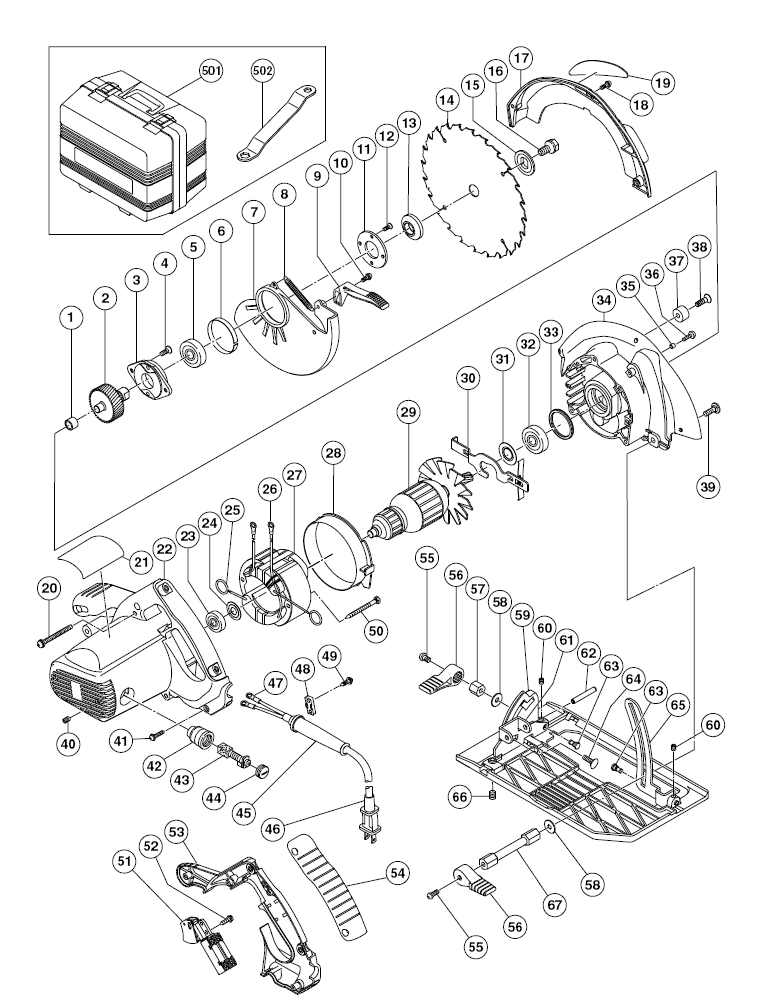

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	982-027	NEEDLE BEARING (HK1010) C7SB	$11.79
2	320-960	SPINDLE AND GEAR SET	$24.62
3	302-433	BEARING HOLDER C7BD/SB/C8/C7YA	$4.17
4	992-013	FLAT HD SCREW M5x14 C7SB C8	$1.24
5	600-3VV	BALL BEARING 6003VVCMPS2L	$9.09
6	961-807	BUSHING C7BD2 C7SB2 C8 C7YA	$3.23
7	320-956	LOWER GUARD	$19.79
8	320-968	RETURN SPRING	$1.88
9	320-957	LEVER	$1.88
10	935-196	MACHINE SCREW W/WASHER M4x12	$1.20
11	302-435	BEARING COVER CR13VA C7SB C7BD	$2.54
12	990-430	SEAL LOCK FLAT HD SCREW M4x10	$1.55
13	320-970	WASHER (A)	$5.15
15	320-953	WASHER (B)	$5.15
16	320-971	BOLT (W/FLANGE) M8X15.5	$1.84
18	951-039	MACH. SCREW w/SP. WASHER M4x12	$1.24
20	308-357	MACHINE SCREW (W/WASHERS) M5X55	$1.15
22	320-951	HOUSING ASS’Y	$27.11
23	600-0VV	BALL BEARING 6000VVCMPS2L	$10.83
24	302-428	WASHER (A) C7BD C7SB C8 C7YA	$1.27
25	937-623	BRUSH TERMINAL C8 C7SB/2 H55SC	$1.24
26	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
27	340-528C	STATOR ASS’Y 120V	$55.46
28	320-958	FAN GUIDE	$1.84
29	360-577U	ARMATURE ASS’Y 120V	$114.42
30	320-959	LOCK LEVER	$3.50
31	980-700	DUST WASHER (B) DH38YE H45SB	$1.24
32	620-2VV	BALL BEARING 6202VVCMPS2L P12R	$7.64
33	303-792	RUBBER RING C7BD2 C10FCE2	$1.15
34	320-954	GEAR COVER	$46.07
35	311-837	SPACER M4	$1.19
36	311-836	TP-SCREW M4X14	$1.19
37	961-729	CUSHION C7BD C7SB C7SC C8 C7YA	$1.24
38	949-794	FLAT HD SCREW M6x20 C7SB 10PS	$2.04
39	942-808	BOLT (SQUARE) M6X20	$1.24
40	938-477	Hex. Socket Set Screw M5X8	$1.19
41	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
42	938-241	BRUSH HOLDER C7BD2 C7BMR	$6.83
43	999-038	CARBON BRUSH (pair) C12FSA C8	$5.15
44	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
45	940-778	CORD ARMOR D10.7 C10FA C15FB	$3.19
46	500-453Z	CORD, ELECTRICAL, 2 WIRES	$36.27
47	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
48	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
49	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
50	953-121	HEX TAPPING SCREW D5x50 C7BMR	$1.19
51	320-969	SWITCH (2P SCREW TYPE)	$27.18
52	305-720	TAP SCREW W/ FLANGE D4x12	$1.20
53	320-952	HANDLE COVER	$3.53
54	320-967	GRIP COVER	$5.15
55	949-253	MACHINE SCREW M6X8 (10 PCS.)	$1.94
58	320-975	WASHER	$1.88
59	320-961	BASE ASS’Y	$27.22
60	319-541	SEAL LOCK HEX. SOCKET SET SCREW M5X6	$1.81
61	320-962	BEVEL PLATE	$3.50
62	949-686	ROLL PIN D6X40 (10 PCS.)	$7.23
63	320-163	STEP PIN D6X13	$1.81
64	942-808	BOLT (SQUARE) M6X20	$1.24
65	320-963	LINK	$5.15
67	320-966	LONG NUT	$3.53
