Hitachi B13F Drill Press Parts

Hitachi B13F Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

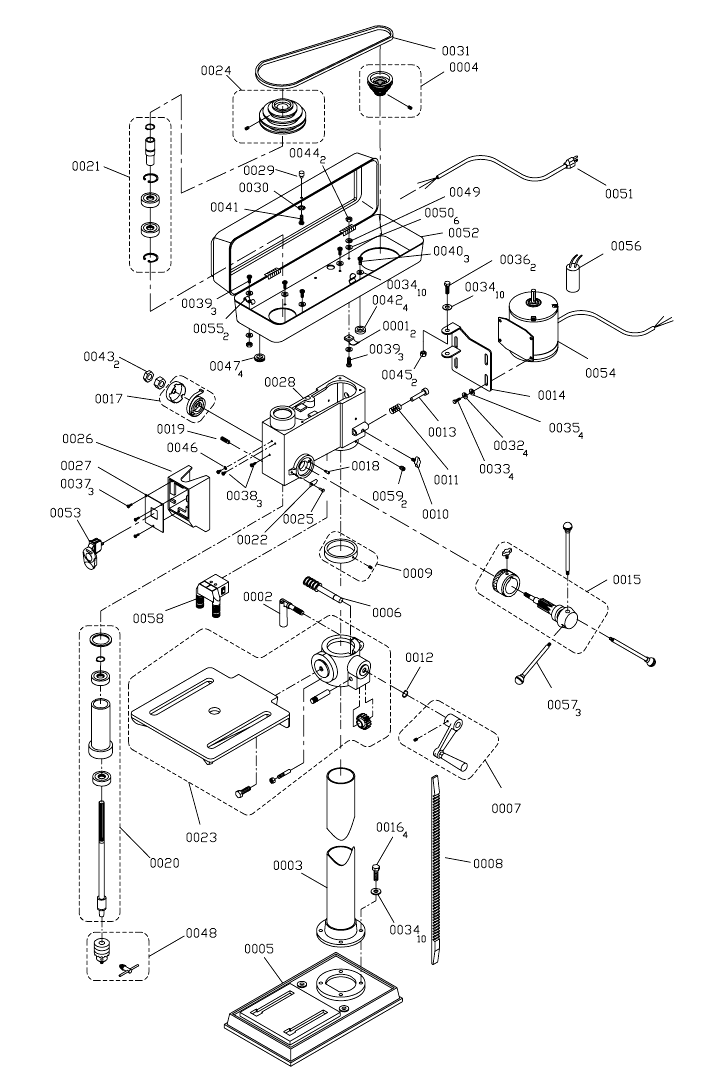

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	327441	CLAMP CORD B13F	$2.42
2	327442	TABLE LOCK HANDLE B13F	$5.87
3	327443	COLUMN ASS'Y B13F	$33.61
5	327445	BASE B13F	$34.89
6	327446	WORM B13F	$8.48
8	327448	RACK B13F	$14.91
10	327450	SHIFTER KNOB B13F	$0.79
11	327451	SPRING B13F	$1.21
12	327452	RETAINING RING 3AMI-14 B13F	$0.41
13	327453	SHIFTER BOLT B13F	$1.41
14	327454	MOTOR BASE B13F	$18.45
15	327455	FEED SHAFT ASS'Y B13F	$32.39
16	327456	HEX HD. BOLT M8 1.25-20 B13F	$2.17
17	327457	SPRING CAP ASS'Y B13F	$6.91
18	327458	PIN B13F	$0.61
19	327459	QUILL SET SCREW B13F	$25.47
20	327460	SPINDLE ASS'Y B13F	$35.59
21	327461	DRIVING SLEEVE ASS'Y B13F	$24.91
22	327462	POINTER B13F	$0.79
23	327463	TABLE ASS'Y B13F	$46.83
24	327464	PULLEY SPINDLE B13F	$18.48
25	327465	RIVET B13F	$0.46
26	327466	SWITCH BOX B13F	$7.89
27	327467	SWITCH COVER B13F	$0.79
29	327469	KNOB B13F	$0.79
30	327470	EXTERNAL TOOL LOCK WASHER J4	$3.53
31	327471	V-BELT B13F	$6.49
33	327473	HEX HD. BOLT M6 10-12 B13F	$0.46
35	327475	FLAT WASHER M6 B13F	$0.65
37	327477	CR.RE.TRUSS HD.TAPPING SCREW	$0.96
38	327478	CR. RE. PAN HD. SCREW M5 .8-10	$0.61
39	327479	CR. RE. PAN HD. SCREW M5 .8-15	$1.41
40	327480	CR. RE. PAN HD. SCREW M6 1.0-8	$0.70
41	327481	CR. RE. PAN HD. SCREW M4 0.7-8	$0.41
42	327482	SPACER B13F	$0.79
43	327483	HEX NUT M10 1.5-8 B13F	$0.46
44	327484	HEX NUT M5 0.8 B13F	$2.17
45	327485	HEX NUT M8 1.25 B13F SB10Y	$0.65
47	327487	GROMMET B13F	$2.83
50	327490	FLAT WASHER M5 B13F SB10Y	$0.96
51	327491	POWER CABLE B13F	$12.94
52	327492	PULLEY COVER B13F B13FI	$29.86
54	327494	MOTOR B13F	$116.50
55	327495	CLAMP-CORD B13F	$0.46
56	327496	CAPACITOR B13F	$21.78
57	327497	HANDLE FOR QUILL FEED B13F 1EA	$3.27
58	327498	LASER GUIDE ASS'Y B13F B13FI	$37.82
