DeWalt DWD460K-Type-1 Electric Drill & Driver Parts

DeWalt DWD460K-Type-1  Electric Drill & Driver Parts Image

DeWalt DWD460K-Type-1 Parts
1/2 Inch VSR Stud Joist Drill w/Clutch and Bind-Up Control Kit
Time to buy a new tool?

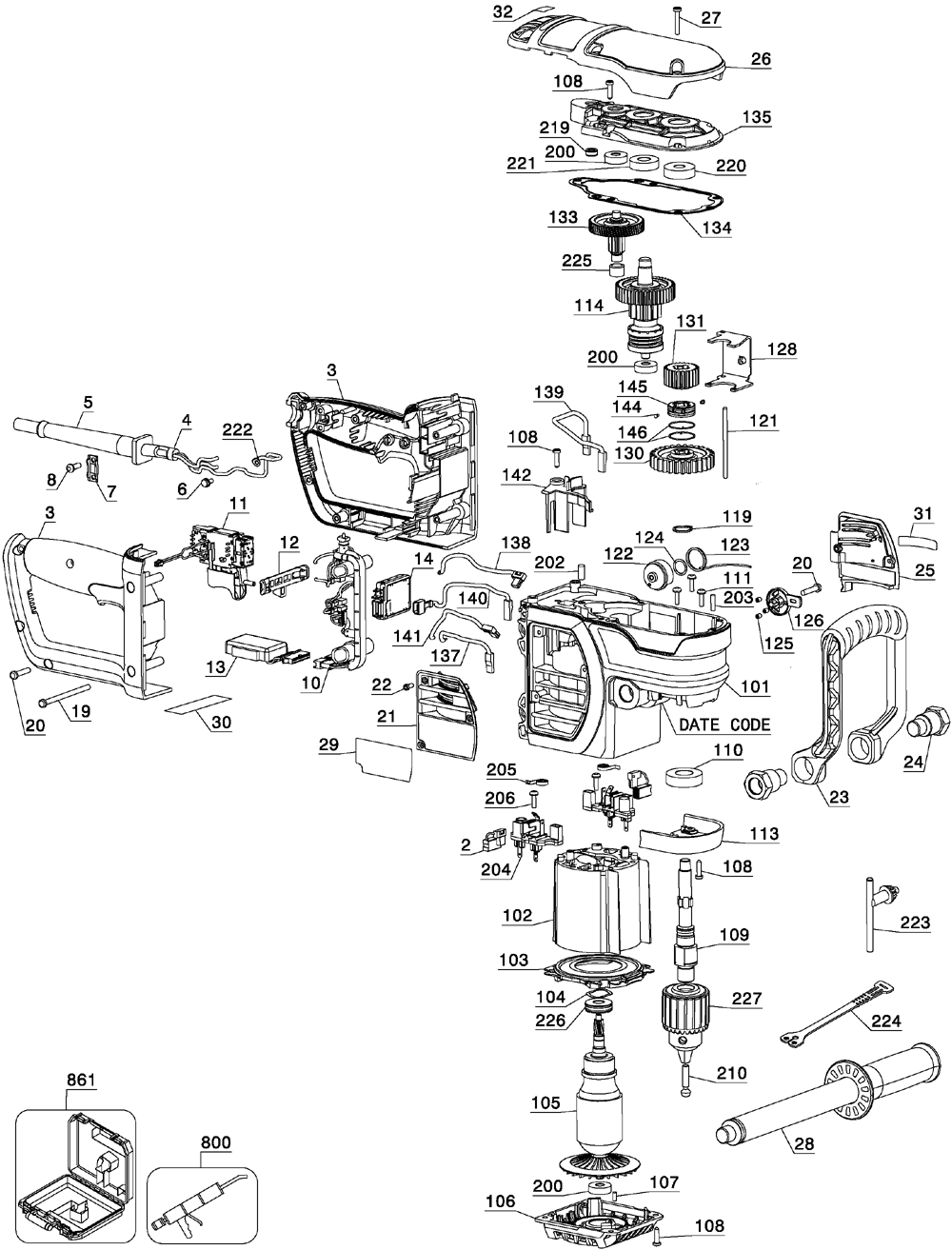

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
2 660804-00SV BRUSH $3.78
2 660804-00SV BRUSH $3.78
3 654946-00 HANDLE SET $32.72
3 654946-00 HANDLE SET $32.72
4 444518-98 CORD/10FT./16-3 $23.67
4 444518-98 CORD/10FT./16-3 $23.67
5 445338-00 PROTECTOR, CORD $3.96
5 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
5 445338-00 PROTECTOR, CORD $3.96
6 150036-00 SCREW, GROUND $1.30
5 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
6 150036-00 SCREW, GROUND $1.30
7 450877-00 CORD CLAMP $2.16
8 330019-11 SCREW $1.30
7 450877-00 CORD CLAMP $2.16
8 330019-11 SCREW $1.30
10 646486-00 WIRE HARNESS $23.76
11 N079270 SWITCH $37.09
10 646486-00 WIRE HARNESS $23.76
12 636379-00 BAR $1.14
13 644747-00 MODULE $157.62
11 N079270 SWITCH $37.09
12 636379-00 BAR $1.14
14 639062-01 MODULE $51.17
13 644747-00 MODULE $157.62
19 330019-72 SCREW $1.20
20 330019-32 SCREW $1.29
14 639062-01 MODULE $51.17
21 649086-00 BRUSH DOOR $12.34
22 648777-00 SCREW $1.22
23 648853-00 BAIL HANDLE $13.77
24 636385-00 ADAPTER $4.42
19 330019-72 SCREW $1.20
25 649085-00 BRUSH DOOR $11.27
20 330019-32 SCREW $1.29
26 650093-00 SHROUD $14.42
27 330045-08 SCREW $1.30
21 649086-00 BRUSH DOOR $12.34
22 648777-00 SCREW $1.22
28 650546-00SV SIDE HANDLE $20.51
23 648853-00 BAIL HANDLE $13.77
29 N088739 NAMEPLATE $1.44
24 636385-00 ADAPTER $4.42
30 659573-00 WARNING LABEL $1.20
25 649085-00 BRUSH DOOR $11.27
31 659574-00 ID LABEL $1.20
26 650093-00 SHROUD $14.42
32 660154-00 LABEL $1.14
27 330045-08 SCREW $1.30
101 N088734 GEAR CASE $62.29
28 650546-00SV SIDE HANDLE $20.51
102 N182022 FIELD CASE ASSY $34.47
29 660152-00 NAME PLATE $1.14
103 636398-00 FAN BAFFLE $2.35
30 659573-00 WARNING LABEL $1.20
104 448373-00 WASHER, SPRING $1.30
31 659574-00 ID LABEL $1.20
105 636395-00SV ARMATURE & BRGS. $65.37
32 660154-00 LABEL $1.14
106 636345-00 END CAP $25.19
107 145312-00 PLUG, RUBBER $1.30
108 330045-06 SCREW $1.30
109 N088737 SPINDLE $18.83
110 330003-15 BALL BEARING $8.05
111 330045-78 SCREW $1.44
113 652831-00 COVER $12.84
114 N030550SV CLUTCH ASSEMBLY $54.81
119 652890-00 RETAINING RING $1.20
121 649351-00 PIN $1.14
122 636387-00 HOLDER $1.20
123 636386-01 SPRING $1.14
124 650249-00 O-RING $1.41
125 326467-00 DETENT $1.30
126 636388-00 LEVER $1.20
128 636360-00 SLIDER $2.05
130 660510-00 GEAR $23.62Disc
131 N019978 GEAR $13.74
133 636348-00 GEAR & PINION $31.67
134 658818-00 GASKET $2.70
135 636393-00 GEAR CASE COVER ASSEMBLY $35.31
137 660938-00 LEAD $1.27
138 660938-01 LEAD $1.56
139 660938-02 LEAD $1.84
140 660938-03 LEAD $2.28
141 660938-04 LEAD $1.56
142 652893-00 GUIDE $1.56
144 660514-01 DETENT $1.20
145 660513-00 SPACER $5.55
146 660512-00 DETENT SPRING $1.14
200 330003-60 BEARING 608SS $4.99
202 330041-23 ROLLER PIN $1.20
203 330041-07 ROLLER PIN $1.20
204 616857-00 BRUSH HOLDER $4.97
205 383387-00 SPRING, BRUSH $4.49
206 176951-00 SCREW $1.30
210 447735-02 SCREW $1.45
219 636392-00 SLEEVE BEARING $1.14
220 605040-60 BEARING $5.20
221 330003-83 BALL BEARING $5.84
222 395716-00 TERMINAL $1.14
223 330034-16 CHUCK KEY $2.07
224 065288-02 HOLDER $2.22
225 386780-00 BEARING $2.82
226 654944-00 BALL BEARING $5.84
227 5140057-77 CHUCK & KEY $84.60
800 286436-00 GREASE $91.49
861 653089-00 KIT BOX $76.86
101 636394-00 GEAR CASE $84.60
102 N182022 FIELD CASE ASSY $34.47
103 636398-00 FAN BAFFLE $2.35
104 448373-00 WASHER, SPRING $1.30
105 636395-00SV ARMATURE & BRGS. $65.37
106 636345-00 END CAP $25.19
107 145312-00 PLUG, RUBBER $1.30
108 330045-06 SCREW $1.30
109 660509-01 SPINDLE $26.63
110 330003-15 BALL BEARING $8.05
113 652831-00 COVER $12.84
114 N030550SV CLUTCH ASSEMBLY $54.81
116 649228-00 THRUST WASHER $1.99
117 610541-00 THRUST BEARING $3.69
119 652890-00 RETAINING RING $1.20
121 649351-00 PIN $1.14
122 636387-00 HOLDER $1.20
123 636386-01 SPRING $1.14
124 650249-00 O-RING $1.41
125 326467-00 DETENT $1.30
126 636388-00 LEVER $1.20
128 636360-00 SLIDER $2.05
130 660510-00 GEAR $23.62Disc
131 N019978 GEAR $13.74
133 636348-00 GEAR & PINION $31.67
134 658818-00 GASKET $2.70
135 636393-00 GEAR CASE COVER ASSEMBLY $35.31
137 660938-00 LEAD $1.27
138 660938-01 LEAD $1.56
139 660938-02 LEAD $1.84
140 660938-03 LEAD $2.28
141 660938-04 LEAD $1.56
142 652893-00 GUIDE $1.56
144 660514-01 DETENT $1.20
145 660513-00 SPACER $5.55
146 660512-00 DETENT SPRING $1.14
200 330003-60 BEARING 608SS $4.99
202 330041-23 ROLLER PIN $1.20
203 330041-07 ROLLER PIN $1.20
204 616857-00 BRUSH HOLDER $4.97
205 383387-00 SPRING, BRUSH $4.49
206 176951-00 SCREW $1.30
210 447735-02 SCREW $1.45
219 636392-00 SLEEVE BEARING $1.14
220 605040-60 BEARING $5.20
221 330003-83 BALL BEARING $5.84
222 395716-00 TERMINAL $1.14
223 330034-16 CHUCK KEY $2.07
224 065288-02 HOLDER $2.22
225 386780-00 BEARING $2.82
226 654944-00 BALL BEARING $5.84
227 5140057-77 CHUCK & KEY $84.60
800 286436-00 GREASE $91.49
861 653089-00 KIT BOX $76.86
