Dewalt DW958K-2-Type-2 Electric Drill & Driver Parts

Dewalt DW958K-2-Type-2  Electric Drill & Driver Parts Image

Dewalt DW958K-2-Type-2 Parts
Time to buy a new tool?

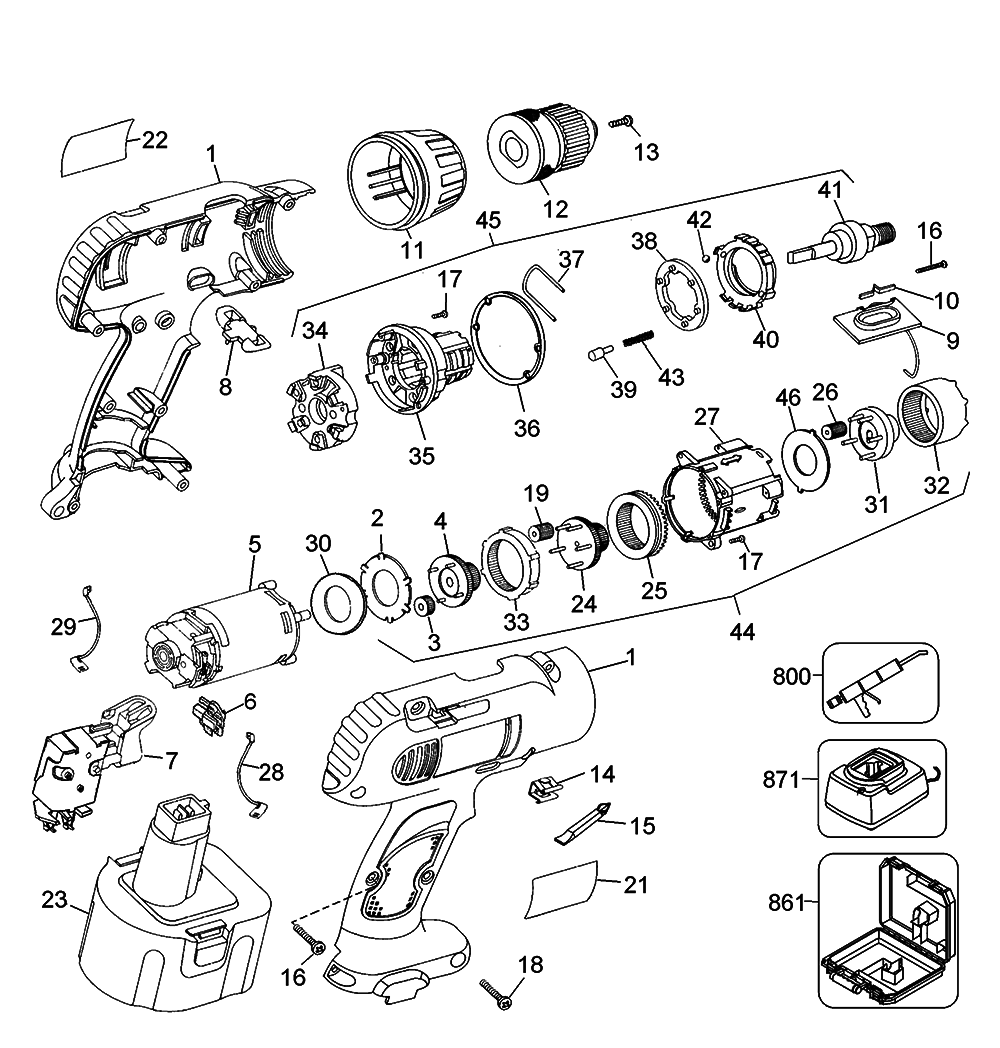

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 000000-00 No Longer Available $0.00Disc
2 798954-00 WASHER, RETAIN. $2.31
3 151936-02 GEAR, PLANET 1ST $3.82
4 381153-02 CARRIER $14.82
5 393111-01 MOTOR & PINION $69.46
6 389025-00SV BRUSH PAIR KIT $14.68
7 152274-15 SWITCH, VSR $61.59
8 151296-00 BUTTON, REV. $2.71
9 153281-03 SHIFTER $0.00Disc
10 144658-00 SPRING $1.30
11 387068-00 CL ADJ COLLAR $19.56
12 330075-46 KEYLESS CHUCK $42.65
13 605256-01 SCREW $1.30
14 148354-03 BIT CLIP $1.30
15 607918-41 SCREWDRIVER BIT $1.14
16 330019-00 SCREW $1.30
17 098091-10 SCREW $1.30
18 330019-04 SCREW, PLASTITE $1.29
19 372274-00 GEAR,PLANET 2ND $3.30
21 391124-00 NP:DW958 T2 $1.58
22 395657-00 ID LABEL $1.30
23 651034-01 BATTERY PACK $123.80
24 372272-03 CARRIER,2ND.RED $15.55
25 805068-01 GEAR, RING 2-RED $1.30
26 608550-00 PLANET GEAR $1.24
27 798701-00 CASE, GEAR $8.96
28 388913-00 RED LEAD WIRE $1.30
29 388914-00 BLACK LEAD WIRE $1.30
30 152482-00 SEAL, FOAM $1.30
31 391144-01 OUTPUT CARRIER $9.94
32 392755-00 GEAR, OUTPUT $3.30
33 805063-02 GEAR, RING $4.88
34 000000-00 No Longer Available $0.00Disc
35 798966-01 HOUSING ASSY $0.00Disc
36 805004-00 WASHER, FLANGE $2.55
37 798959-00 CLIP, BEARING $1.30
38 380792-00 PLATE, DETENT $4.88
39 387058-00 PIN $1.24
40 798709-00 NUT, ADJUSTING $3.82
41 391213-00 SPINDLE $27.18
42 386690-00 BALL $1.30
43 152347-00 SPRING $1.30
44 391108-05SV TRANSMISSION $28.09
45 391106-13 CLUTCH MECH. $0.00Disc
46 798689-00 PLATE, THRUST $2.44
800 284778-00 GREASE, MOLYKOTE $51.56
861 388329-00 KITBOX $36.67
871 388683-12 1 HOUR CHARGER $84.55
