DeWalt DW861W Electric Saw Parts

DeWalt DW861W Parts

Download Schematic

Time to buy a new tool?

DeWalt DW861W

4-1/2 Inch Heavy-Dut...

$169.99

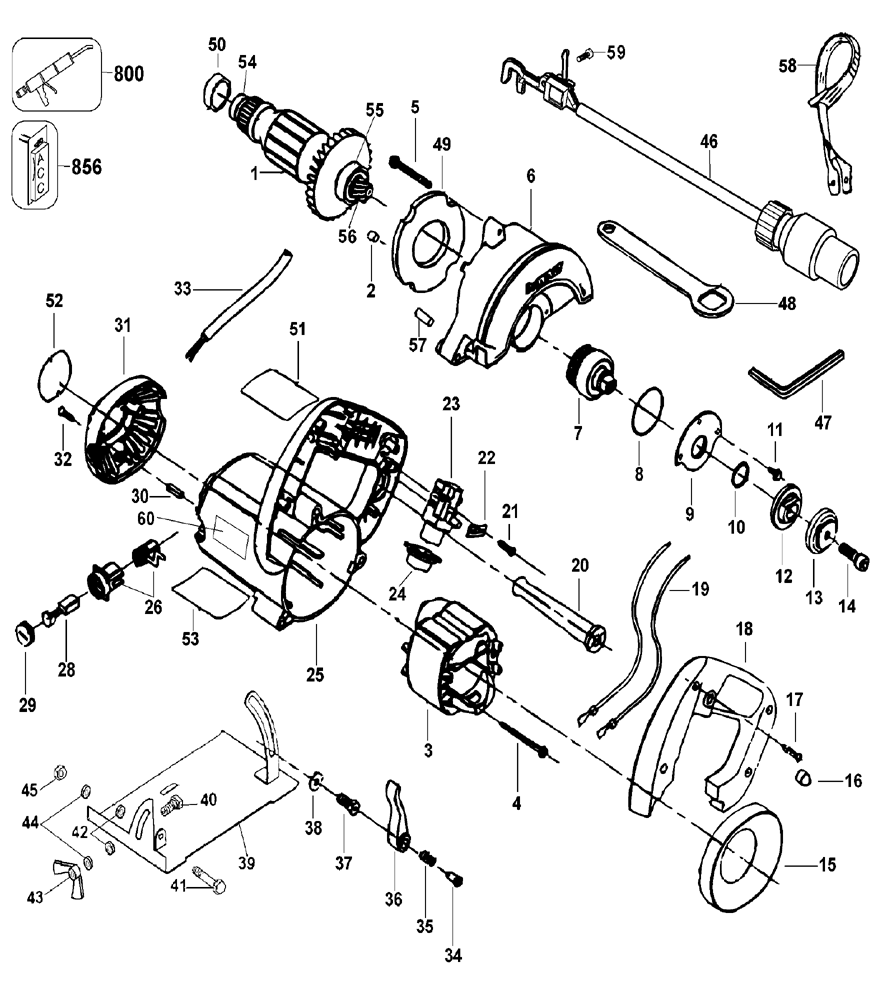

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	187613-01	ARMATURE KIT	$82.38
3	185440-00	FIELD	$28.46
4	561914-02	SCREW	$6.44
5	561914-01	SCREW	$1.10
6	562228-00	GEAR CASE	$30.73
7	562229-00	SPINDLE & GEAR	$33.04
8	561917-02	O RING	$1.10
9	562252-00	GEAR CASE COVER	$2.69
10	561917-01	O RING	$1.10
11	561914-00	SCREW	$1.10
12	562231-00	INNER FLANGE	$2.69
13	562232-00	OUTER FLANGE	$3.51
14	185335-00	SCREW	$1.10
15	562215-00	BAFFLE	$1.84
16	562225-00	SWITCH LOCK-ON BOOT	$1.10
17	562097-03	SCREW	$1.24
18	562221-00	HANDLE COVER	$5.98
19	561913-00	LEAD	$3.51
20	330005-01	PROTECTOR, CORD	$4.63
20	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
21	562097-00	SCREW	$1.24
22	629724-00	CORD CLAMP	$1.56
24	562224-00	SWITCH BOOT	$1.84
25	187379-00	FIELD CASE KIT	$13.20
26	569518-00	BRUSH HOUSING	$9.68
28	562217-00	BRUSH	$3.92
29	562219-00	BRUSH CAP	$1.43
30	561928-00	RUBBER PIN	$1.10
31	562222-00	END CAP	$1.84
32	562097-05	SCREW	$1.24
33	632311-01	GFCI PLUG	$62.02
34	561920-00	STOPPER PIN	$1.43
35	562210-00	SPRING	$4.36
36	561918-00	LEVER	$2.41
37	562235-00	BOLT	$1.60
38	561916-00	WASHER	$1.10
39	561934-02	SHOE	$12.55
40	562369-00	SQUARE BOLT	$1.10
41	569657-00	HEX BOLT	$1.10
42	403148-00	WASHER	$1.24
43	562368-00	WING NUT	$1.10
44	185244-00	SPRING WASHER	$1.10
45	330015-02	NUT, HEX	$1.23
46	627050-01	WET KIT	$100.63
47	098000-11	WRENCH	$1.24
48	389848-00	WRENCH	$2.40
49	569723-00	DEFLECTOR	$4.89
50	949721-05	BEARING CUP	$1.10
51	627212-00	ID LABEL	$1.28
54	330003-03	BEARING, BALL	$4.96
55	330003-64	BALL BEARING	$8.54
56	562244-00	PINION	$24.92
58	065288-02	HOLDER	$2.13
59	330045-06	SCREW	$1.24
60	630012-00	WARNING LABEL	$1.21
800	286436-00	GREASE	$87.14
856	615917-04	DIAMOND WHEEL BLADE	$46.00
